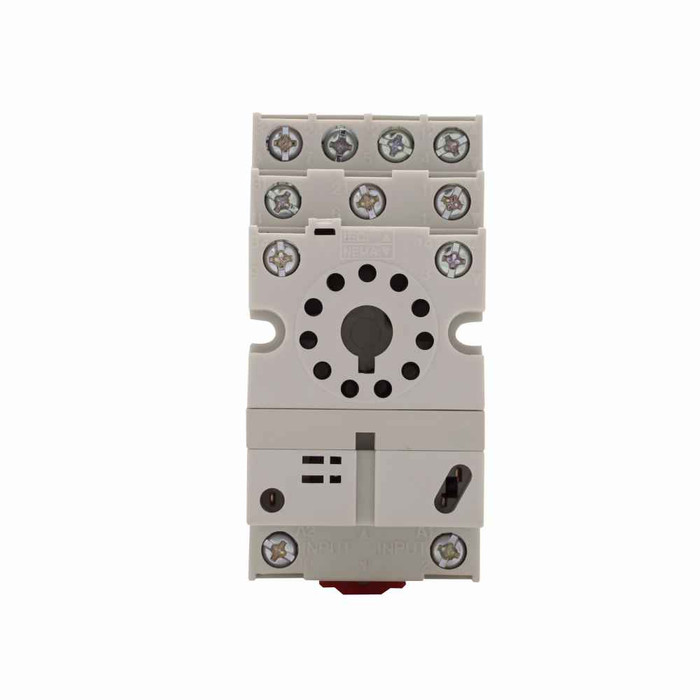

Eaton D3 Series 11-Pin Relay Socket DIN Rail Mount with Screw Terminal Connection
Professional DIN Rail Mounting Solution for Industrial Control Applications
The Eaton D3 Series relay socket delivers reliable connection and mounting for 11-pin relays in industrial control systems. Featuring DIN rail and screw mounting options with IP20 enclosure protection, this socket provides secure screw clamping connections for professional electrical installations. The compact Module Size A design ensures efficient panel space utilization while maintaining finger-safe protection standards.
Professional Features & Benefits
- 11-Pin Configuration: Accommodates standard 11-pin relay connections for versatile control circuit applications
- DIN Rail & Screw Mounting: Dual mounting options provide flexible installation in control panels and enclosures
- IP20 Enclosure Protection: Finger-safe protection category ensures safe operation in industrial environments
- Screw Clamping Connections: Secure terminal connections maintain reliable electrical contact under vibration and temperature cycling
- Module Size A Design: Compact footprint maximizes panel density while providing adequate connection access
- D3 Series Quality: Eaton engineering delivers consistent performance and long-term reliability
Technical Specifications
- Catalog Notes: Protection category (finger safe)
- Enclosure: IP20
- Module Size: A
- Mounting Method: DIN rail, screw
- Number Of Pins: 11
- Series: D3
- Wiring Connection: Screw clamping
Installation & Operation
- Mount the socket on DIN rail or secure with screws in a suitable control panel location with appropriate clearance and access for connections and service.
- Connect control circuit conductors to the screw clamping terminals following applicable guidelines and the manufacturer's instructions.
- Wire load and control inputs according to the 11-pin configuration and relay specifications.
- Configure control logic connections as supported by the relay and circuit requirements.
- Test relay operation and socket connections to verify proper performance before placing the control system into service.
- Complete final inspection and follow ongoing maintenance practices appropriate to industrial control applications.
Professional Applications
- Industrial Control Panels
- Manufacturing Automation Systems
- Process Control Equipment
- Motor Control Centers
- Building Management Systems
- Power Distribution Panels
- Machine Control Applications
Why Choose Eaton Quality?
Eaton D3 Series relay sockets provide dependable performance with IP20 protection and finger-safe design standards. The robust screw clamping connections and dual mounting options ensure reliable operation in demanding industrial environments, backed by Eaton's commitment to electrical control system excellence.
Manufacturer Resources
Product Specs
- Catalog Notes:
- Protection category (finger safe)
- Enclosure:
- IP20
- Module Size:
- A
- Mounting Method:
- DIN rail, screw
- Number Of Pins:
- 11
- Series:
- D3
- Wiring Connection:
- Screw clamping
- Department:
- Electrical
- Product Group:
- Relays
- Product Type:
- Relays
