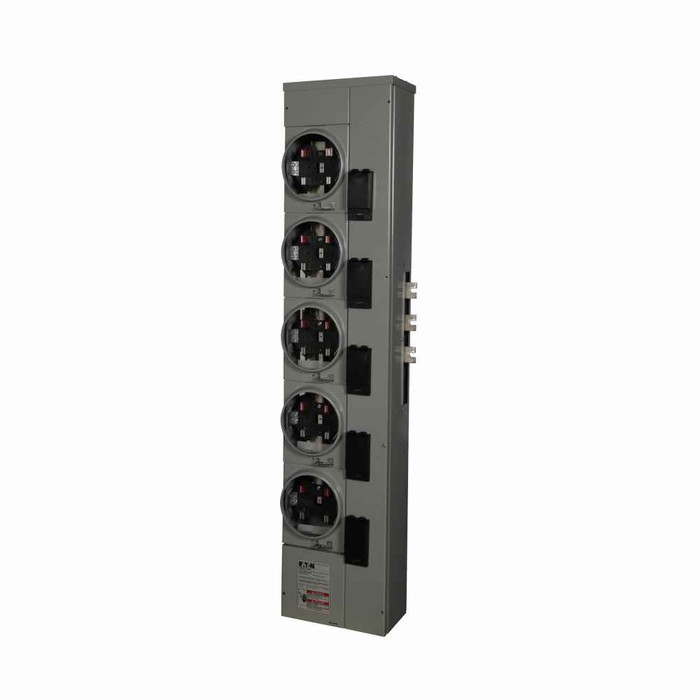

Eaton Residential Meter Stack 125A 5-Socket Single-Phase 120/240V Outdoor Aluminum Ringless
Professional Multiple Metering Solution for Residential Applications
The Eaton Residential Meter Stack delivers exceptional electrical power distribution and metering performance for multi-unit residential applications. This 125A single-phase meter stack with 800A bus rating provides reliable power distribution designed for professional electricians, electrical contractors, and property managers, offering the proven reliability and advanced technology that professionals trust from the global leader in intelligent power management.
Professional Features & Benefits
Electrical Performance & Capacity
- 125A Amperage Rating with 800A Bus Capacity - Provides robust electrical distribution capacity for multiple residential units with high-capacity bus design for reliable power delivery
- Single-Phase In/Single-Phase Out Configuration - Optimized for residential electrical systems with 120/240V operation for standard residential voltage requirements
- 5-Socket Multiple Metering Design - Accommodates up to five separate electrical meters for individual unit metering and billing in multi-tenant residential applications
- 4-Jaw Meter Socket Configuration - Professional meter connection system ensuring secure and reliable meter installation with proper electrical contact
Construction & Environmental Protection
- Outdoor Enclosure Rating - Weather-resistant construction designed for exterior installation with protection against environmental elements
- Aluminum Construction - Durable aluminum material provides corrosion resistance and long-term reliability in outdoor applications
- Ringless Design - Modern ringless meter socket configuration for simplified meter installation and maintenance procedures
Technical Specifications
Amperage Rating: 125A, Bus Rating: 800A, Voltage Rating: 120/240V, Phase Configuration: Single-phase in/single-phase out, Number of Sockets: 5, Socket Configuration: 4-jaw, Construction Material: Aluminum, Enclosure: Outdoor rated, Design: Ringless, Type: Multiple metering, Dimensions: 57.5" H x 12.26" W x 7.01" D, Weight: 68 lb, Certifications: UL Listed, Utility Approvals: ME Central Maine Power, Interrupt Rating: Depends on selected main circuit breaker
Installation & Usage
- Verify proper mounting location meets utility requirements and local electrical codes for meter stack installation
- Secure meter stack to appropriate mounting surface ensuring proper structural support for 68-pound unit weight
- Connect incoming service conductors to line terminals following utility company specifications and local electrical codes
- Install appropriate main circuit breakers in each socket position based on individual unit electrical load requirements
- Connect load conductors to load terminals for each individual residential unit following proper electrical safety procedures
- Coordinate with utility company for meter installation and service connection activation for each socket position
Professional Applications
Ideal for:
- Multi-Unit Residential Buildings - Apartment complexes, condominiums, and townhouse developments requiring individual metering for each unit
- Residential Electrical Service Distribution - New construction and electrical service upgrades for multi-tenant residential properties
- Property Management Applications - Individual utility billing and electrical monitoring for rental properties and residential complexes
- Electrical Contractor Installations - Professional electrical installations requiring multiple meter configurations for residential developments
- Utility Company Requirements - Meeting utility specifications for multi-unit residential metering and service distribution
- Residential Electrical Panels - Integration with residential electrical distribution systems and load center installations
- Outdoor Electrical Installations - Weather-resistant electrical metering solutions for exterior mounting applications
- Code Compliance Projects - Meeting NEC and local electrical code requirements for multi-unit residential electrical systems
Multiple Metering Advantage
The multiple metering design allows property owners and managers to provide individual electrical service metering for each residential unit, enabling separate utility billing and electrical usage monitoring. This configuration supports property management efficiency while meeting utility company requirements for multi-unit residential electrical service distribution.
Why Choose Eaton Quality?
Eaton's century-plus experience in electrical power management innovation ensures reliable performance and safety in residential electrical applications. With UL listing and utility approvals, this meter stack provides the trusted quality that electricians, electrical contractors, and property professionals rely on for critical electrical infrastructure installations worldwide.
Manufacturer Resources
Product Specs
- Amperage Rating:
- 125A
- Bus Rating:
- 800 A
- Certifications:
- UL Listed
- Enclosure:
- Outdoor
- Interrupt Rating:
- Depends on selected main circuit breaker
- Phase:
- Single-phase in, single-phase out
- Product Height:
- 57.5 in
- Product Length Depth:
- 7.01 in
- Product Weight:
- 68 lb
- Product Width:
- 12.26 in
- Utility Approvals:
- ME : Central Maine Power
- Voltage Rating:
- 120/240 V
- Product Subgroup:
- Meter Stack
- Product Group:
- Electrical
- Department:
- Electrical
- Product Details:
- Multiple metering
