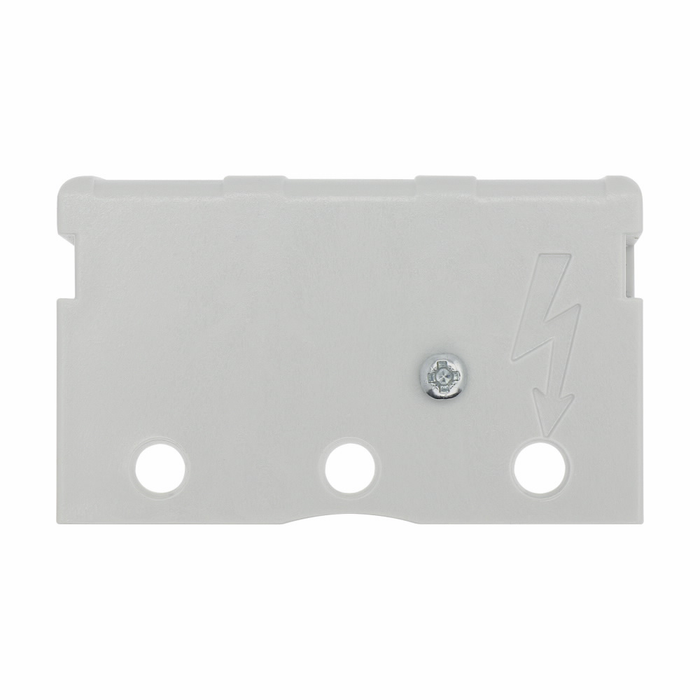

Eaton Four-Pole Terminal Cover Shroud for P1 Switch Disconnector
The Eaton Four-Pole Terminal Cover Shroud is a purpose-built accessory engineered for use with the Eaton switch disconnector P1, providing a protective cover over exposed terminal connections. Configured for four-pole applications, this compact shroud measures 1.25 in wide, 2.75 in in length/depth, and 1 in high, delivering a precise fit without adding unnecessary bulk to the disconnector assembly. Designed by Eaton for professional electrical installations, the terminal cover shroud helps maintain a safer, more organized termination point on switch disconnector equipment.
Key Features
- Four-Pole Configuration: Purpose-matched to four-pole switch disconnector terminal layouts for a secure, correct fit.
- Compact Footprint: Product Width of 1.25 in and Product Length/Depth of 2.75 in keep the shroud low-profile within the enclosure.
- Low-Profile Height: Product Height of 1 in allows installation without interfering with surrounding panel components.
- Engineered for Switch Disconnector P1: Designed specifically for use with the Eaton switch disconnector P1 platform.
- Terminal Cover Shroud Construction: Classified under Eaton's terminal cover shrouds product category for straightforward specification and reordering.
- Eaton Reliability: Backed by Eaton Selling Policy 25-000, covering the product for one (1) year from installation or eighteen (18) months from shipment, whichever occurs first.
Technical Specifications
- Number of Poles: Four-pole
- Product Width: 1.25 in
- Product Length/Depth: 2.75 in
- Product Height: 1 in
- Used With: Switch disconnector P1
- Type: Terminal cover shroud
- Product Category: Terminal cover shrouds
- Special Features: For switch disconnector P1
- Department: Electrical
Typical Applications
- Switch Disconnector Terminal Protection
- Industrial and Commercial Electrical Panels
- Motor Control Centers and Power Distribution Equipment
- Panel Retrofits, Upgrades, and Maintenance Projects
- OEM Panel Builds Using Eaton Switch Disconnectors
Why Eaton?
Eaton engineers its switch disconnector accessories, including this four-pole terminal cover shroud, to fit precisely with the switch disconnector P1 platform, supporting safer terminal management on industrial and commercial electrical equipment. Choosing an Eaton-specified shroud helps ensure correct fit and consistent performance across your panel build, backed by Eaton's standard selling policy warranty. For electricians and panel builders standardizing on Eaton switch disconnector components, this terminal cover shroud is a straightforward, code-conscious accessory choice.
Manufacturer Resources
Product Specs
- Number Of Poles:
- Four-pole
- Product Width:
- 1.25 in
- Used with:
- Switch disconnector P1
- Product Category:
- Terminal cover shrouds
- Product Length/Depth:
- 2.75 in
- Special features:
- For switch disconnector P1
- Product Height:
- 1 in
- Product Type:
- Terminal Protective Cover
- Certifications:
- Contact Manufacturer
- Department:
- Electrical
- Product Group:
- Wiring Devices
- Product Subgroup:
- Weatherproof Covers
Eaton HP1 – Frequently Asked Questions
1) How much room does the Eaton HP1 shroud need inside the enclosure?
The shroud measures 1.25 x 2.75 x 1 inches (width, length/depth, height). The 1 inch height is the number that usually matters, since it's what determines whether you clear the panel door, wireway or the next device over once the cover is on.
2) What does the Eaton HP1 shroud actually do on a switch disconnector?
It covers the exposed terminal connections on an Eaton P1 switch disconnector, so live line and load terminations aren't open to accidental contact once the panel door is off. It is a snap-over cover, not a functional part of the switch itself, so it doesn't change the disconnector's ratings or operation.
3) Can I add the HP1 terminal cover to a P1 disconnector that is already installed and wired?
Yes, it's a retrofit-friendly accessory. The HP1 is a terminal cover only, so it goes over existing terminations on a four-pole Eaton P1 without rewiring the device. De-energize the equipment first, and make sure your conductors route out of the terminal area within the 2.75 inch depth of the cover.
4) Is the Eaton HP1 shroud compatible with other brands of disconnect switch?
Treat it as an Eaton-only part. It is dimensioned to the Eaton P1 switch disconnector terminal layout, and there is no cross-brand fit behind it. For another manufacturer's disconnect, use that maker's own terminal shroud.
5) What part number do I order for the four-pole Eaton P1 terminal shroud?
Order Eaton HP1. That's the manufacturer part number for the four-pole terminal cover shroud used with the P1 switch disconnector, and it's the number to quote for OEM panel builds or repeat orders when you're standardizing on Eaton P1 gear.
6) Do I need one HP1 shroud per disconnector or one per pole?
One per four-pole P1 disconnector. The HP1 is configured for the full four-pole terminal group, not a single pole, so a single cover handles the terminal block on that device. Count your disconnectors, not your conductors.
