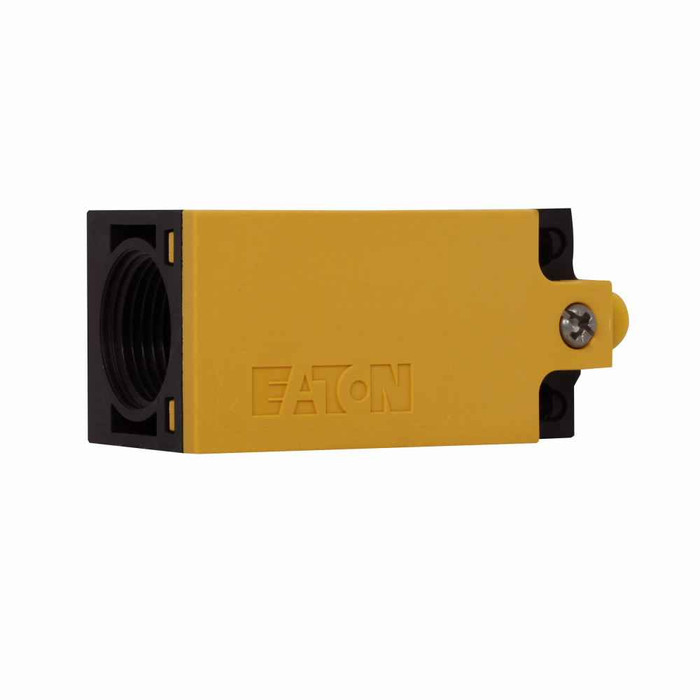

Eaton Safety Switch Body, LS-Titan, Screw Terminals, 6A at 230 Vac, 3A at 24 Vdc, 2NC with positive opening contacts, Plus or minus 0.02mm, 99.97 cm/sec, 2NC with positive opening contacts
Manufacturer Resources
Product Specs
- Accuracy:
- ±0.02mm
- Catalog Notes:
- 0
- Certifications:
- UL Listed
- Compliances:
- RoHS Compliant
- Connection:
- Screw terminal
- Contact Configuration:
- 2 NC with positive opening contacts
- Contact Rating:
- 6A at 230 Vac, 3A at 24 Vdc
- Enclosure Material:
- Plastic
- Environmental Rating:
- IP66, IP67
- Maximum Ac Current:
- 6 A at 230 Vac
- Maximum Dc Current:
- 3 A at 24 Vdc
- Operating Speed:
- 99.97 cm/sec
- Operating Temperature Max:
- 158 °F
- Operating Temperature Min:
- -13 °F
- Output:
- 2 NC with positive opening contacts
- Product Height:
- 1.32 in
- Product Length Depth:
- 2.99 in
- Product Weight:
- .05 lb
- Product Width:
- 1.22 in
- Series:
- LS-Titan
- Type:
- LS-Titan
- Product Group:
- Electrical
