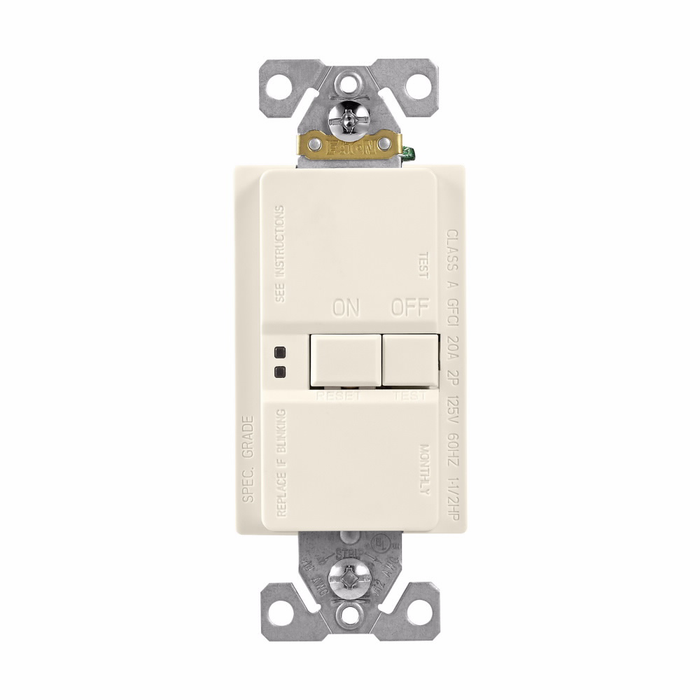

Eaton Self-Test Blankface GFCI Receptacle, 20A, 125V

Eaton Self-Test Blankface GFCI Receptacle, 20A, 125V

(No reviews yet) Write a Review

Model: SGFD20LA

In Stock (leaves warehouse same day if ordered before 3pm ET)

$332.49
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton Self-Test GFCI Receptacle, 20A, 125V

The Eaton Self-Test GFCI Receptacle delivers reliable ground-fault circuit interrupter protection for residential and commercial electrical installations. Rated 20A at 125V with a NEMA 5-20R configuration, this two-pole, three-wire grounding receptacle features self-test circuitry that automatically verifies GFCI protection without manual testing. Built with a durable PVC face/body and brass contacts, it mounts flush and is cULus Listed for code-compliant performance. Available in a range of colors and models to suit your installation.

Key Features

  • Amperage & Voltage Rating: 20A at 125V for standard residential and commercial branch circuits.
  • Self-Test Type: automatically verifies GFCI protection is functioning, reducing manual test requirements.
  • Durable Construction: PVC face/body material paired with brass contacts for long-term reliability.
  • Flush Mounting Method: designed for a clean, flush installation in standard wall boxes.
  • Wiring Method: back and side wire terminals accept #14 - 10 AWG wire for flexible installation.
  • Receptacle Configuration: NEMA 5-20R, two-pole, three-wire grounding receptacle.
  • Application: suitable for Residential and Commercial use.

Certifications & Compliance

  • cULus Listed

Technical Specifications

  • Face/body material: PVC
  • Product Type: Electrical Component
  • Warranty: Refer to warranty document.
  • Department: Electrical
  • Number Of Poles: Two-pole
  • Contact material: Brass
  • Product Width: 2.86 in
  • Mounting method: Flush
  • Amperage Rating: 20 A
  • Voltage rating: 125V
  • Certifications: cULus Listed
  • NEMA configuration: 5-20R
  • Circuit interrupter type: GFCI
  • Product Length/Depth: 4.689 in
  • Application: Residential|Commercial
  • Wiring method: Back and side wire
  • Product Height: 2.033 in
  • Type: Self-test
  • Allowable wire size: #14 - 10 AWG
  • Receptacle type: Two-pole, three-wire, grounding
  • Number of wires: Three-wire
  • Device type: Receptacle

Typical Applications

  • Residential Electrical Installations
  • Commercial Electrical Installations
  • Kitchen, Bath, and Wet-Location Circuit Protection
  • Renovation and New Construction Wiring
  • Ground-Fault Protection for 20A Branch Circuits

Why Eaton?

Eaton's Self-Test GFCI Receptacle combines a PVC face/body with brass contacts and a cULus Listed rating to deliver dependable ground-fault protection for professional electrical work. The self-test function and NEMA 5-20R, two-pole, three-wire grounding configuration make it a code-compliant choice for both residential and commercial applications where consistent GFCI performance is essential.

Variant Specifications

ColorModelSKU
Light AlmondSGFD20LASGFD20LA
Ivory/WhiteStandardSGFD20V

Manufacturer Resources

Product Specs

Circuit interrupter type:
GFCI
Department:
Electrical
Face/body material:
PVC
Contact Material:
Brass
Product Type:
GFCI Receptacle
Allowable Wire Size:
#14 - 10 AWG
Mounting Method:
Flush
Number Of Poles:
Two-pole
Device Type:
Receptacle
Warranty:
Refer to warranty document.
Wiring Method:
Back and side wire
Listing:
cULus
Certifications:
cULus Listed
Application:
Residential|Commercial
Voltage Rating:
125V
Number Of Wires:
Three-wire
Product Material:
PVC
Amperage Rating:
20A
Receptacle Type:
Two-pole, three-wire, grounding
Nema Configuration:
5-20R
Product Group:
Wiring Devices
Product Subgroup:
Receptacles & Outlets

Eaton SGFD20LA – Frequently Asked Questions

1) Can the Eaton SGFD20 self-test GFCI receptacle be used on a 20A kitchen or bathroom branch circuit?
Yes. The Eaton SGFD20 GFCI is rated 20A at 125V with a NEMA 5-20R face, which is the configuration used on 20-amp small-appliance, bath, and wet-location circuits. It is a two-pole, three-wire grounding device, so the branch circuit needs a hot, a neutral, and an equipment ground landed at the box.
2) What wire size can I land on this Eaton GFCI, and does it take back wire or side screws?
Terminals accept #14 through #10 AWG, and the device is back and side wire, so you can use the pressure-plate back terminals or the side screws. That range covers 14 AWG through 10 AWG copper branch wiring; on a 20A circuit you will typically be landing 12 AWG. Contacts are brass.
3) Is the Eaton SGFD20 GFCI listed for commercial work, and by whom?
It is cULus Listed, and the device is rated for both residential and commercial use. That covers inspection in the US and Canada for the listed application.
4) If the circuit does not need ground-fault protection, what 20A 125V receptacle can be used instead of the Eaton SGFD20?
For a straight 20A/125V duplex outlet with no GFCI function, the Bryant 5362B is a heavy-duty grade 20A/125V duplex receptacle, and the Pass & Seymour 26352W is a specification grade 20A 125V decorator duplex in white. Both give you usable outlet faces; neither provides the ground-fault interrupter function that the Eaton SGFD20 carries at 20A, 125V on a NEMA 5-20R, two-pole three-wire grounding configuration.
5) What is the closest self-test GFCI equivalent to the Eaton SGFD20 in a hospital grade device?
The Pass & Seymour 2097HGI is a hospital grade 20A duplex self-test GFCI receptacle in ivory. It matches the Eaton SGFD20's 20A rating and self-test GFCI function, and adds hospital grade construction with a standard duplex face. The Eaton SGFD20 is a blankface GFCI, so it protects downstream devices rather than offering receptacle openings at the device itself, and it is offered in Light Almond (SGFD20LA) and Ivory/White (SGFD20V).
6) Can I use the Eaton SGFD20 on a 277V or locking-type circuit?
No. The Eaton SGFD20 is rated 125V with a NEMA 5-20R straight-blade configuration. For a 277V two-pole three-wire application the Bryant 430R9W 4750DR motor-duty receptacle is the 277V device, and for a locking connection the Bryant 70520FR is a NEMA flanged locking receptacle or the Pass & Seymour Turnlok 3330 is a 30A single receptacle. None of those are interchangeable with a 5-20R GFCI device.
7) What does the self-test feature on this Eaton GFCI actually do?
The self-test circuitry automatically verifies that the ground-fault protection is still working, rather than relying on someone pressing the TEST button on a schedule. For a property manager or MRO crew with dozens of GFCIs across a building, that cuts the manual monthly test routine and flags a device that has lost protection.
8) What colors does the Eaton SGFD20 self-test GFCI come in and what are the part numbers?
Two color options: light almond as model SGFD20LA, and ivory/white as SGFD20V. If you are standardizing device color across a building, order all openings off the same suffix so the wall plates match.
9) Will this Eaton GFCI fit a standard wall box with a normal cover plate?
It is a flush-mount device for standard wall boxes, with a PVC face and body. Depth matters more than width on a GFCI: in a shallow or already crowded box, fold your conductors before you set the device. A standard single-gang GFCI/decorator plate covers it.
10) Do I need a GFCI at every outlet, or can this one protect the whole circuit?
Because it is a two-pole, three-wire grounding GFCI with both line and load capability implied by its back and side wire terminals, the common practice is to install it as the first device on the run and feed the downstream receptacles from the load side, so one device protects the rest of the circuit. If you want independent protection or easier troubleshooting per outlet, install one at each location instead.
11) What is a good alternative if I need a hospital grade self-test GFCI instead of this Eaton?
For patient care and healthcare facility work, the Pass & Seymour 2097HGI is a hospital grade 20A duplex self-test GFCI in ivory. The Eaton SGFD20 is rated residential and commercial, so for a healthcare spec calling out hospital grade, go with the P&S device.
12) Is the Eaton SGFD20 suitable for a hazardous or wet industrial location?
The Eaton SGFD20 is a flush-mounted device with a PVC face and body, cULus Listed for residential and commercial branch circuits. For classified hazardous areas the Appleton FSQC Series interlocked explosionproof receptacle or the Appleton U-Line ECS factory-sealed 15 and 20 amp plug and receptacle set are the devices built for that duty, and they are not substitutes for a standard flush GFCI in a wall box.
13) Do the Bryant 5362BI and Eaton SGFD20 wire up the same way?
Both are 20A/125V wall-box devices, but they are not the same class of product. The Bryant 5362BI is a heavy-duty grade 20A/125V duplex receptacle. The Eaton SGFD20 is a GFCI device with back and side wire terminals accepting #14 to #10 AWG, and as a GFCI it has line and load terminations that determine what it protects downstream, so the terminal assignment matters in a way it does not on a plain duplex.
14) Can I plug a 15A cord cap into this Eaton 20A GFCI?
Yes. The NEMA 5-20R face has the T-slot neutral, so it accepts both 5-15P and 5-20P plugs. That is why it suits shop, kitchen, and commercial locations where tools or appliances may carry either cord cap.
