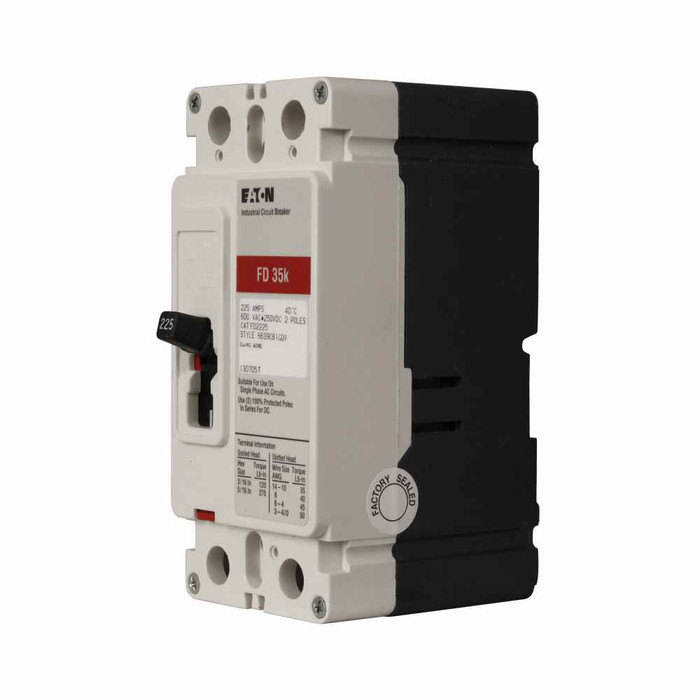

Eaton Series C complete molded case circuit breaker, F-frame, FD, Fixed thermal, fixed magnetic trip, Two-pole, 150A, 600 Vac, 250 Vdc, 65 kAIC at 240 Vac, 35 kAIC at 480 Vac, Line and load, Freeze tested, 80°C, 50/60 Hz
Manufacturer Resources
Product Specs
- Amperage Rating:
- 150 A
- Calibration:
- 80°C
- Circuit Breaker Frame Type:
- Complete breaker
- Circuit Breaker Type:
- FD
- Frame:
- F
- Frequency Rating:
- 50/60 Hz
- Interrupt Rating:
- 65 kAIC at 240 Vac
- Number Of Poles:
- Two-pole
- Product Height:
- 2.75 in
- Product Length Depth:
- 3.38 in
- Product Weight:
- 4.5 lb
- Product Width:
- 2.75 in
- Series:
- Series C
- Special Features:
- Freeze tested
- Terminals:
- Line and load
- Trip Type:
- Fixed thermal, fixed magnetic
- Voltage Rating:
- 600 Vac, 250 Vdc
- Product Group:
- Electrical
