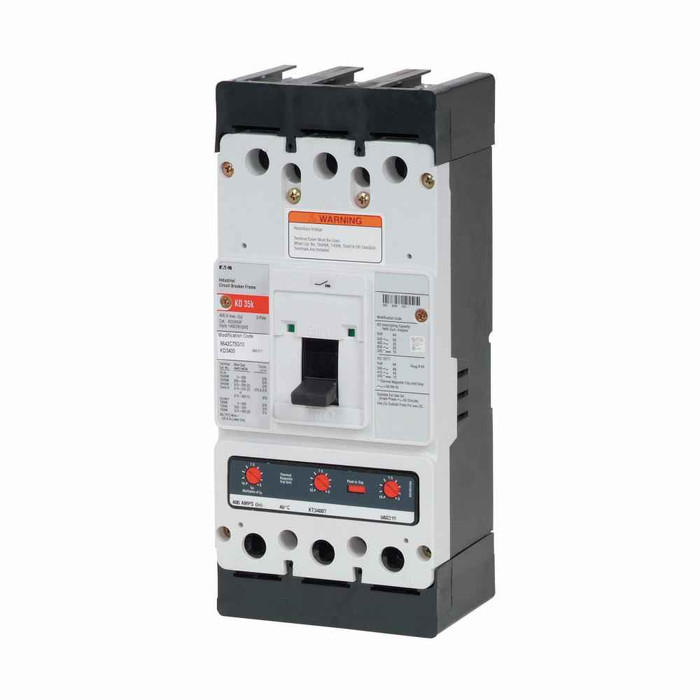

Eaton Series C complete molded case circuit breaker, K-frame, KDB, Molded case switch, Fixed thermal, fixed magnetic trip, Three-pole, 400A, 600 Vac, 250 Vdc, 65 kAIC at 240 Vac, 35 kAIC at 480 Vac, load-side control terminals
Manufacturer Resources
Product Specs
- Amperage Rating:
- 400 A
- Catalog Notes:
- TA350K load, 5/16 Switching neutral line
- Certifications:
- UL Listed
- Circuit Breaker Frame Type:
- Molded case switch
- Circuit Breaker Type:
- KDB
- Frame:
- K
- Frequency Rating:
- 50 to 60 Hz
- Interrupt Rating:
- 35 kAIC at 480 Vac
- Number Of Poles:
- Three-pole
- Product Height:
- 1 in
- Product Length Depth:
- 1 in
- Product Weight:
- 1 lb
- Product Width:
- 4.1 in
- Series:
- Series C
- Terminals:
- Optional line or load
- Trip Type:
- Fixed thermal, fixed magnetic
- Type:
- Molded case switch
- Voltage Rating:
- 600 Vac, 250 Vdc
