Eaton KG3300M01 Series C compl...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$3,785.79
$3,735.79

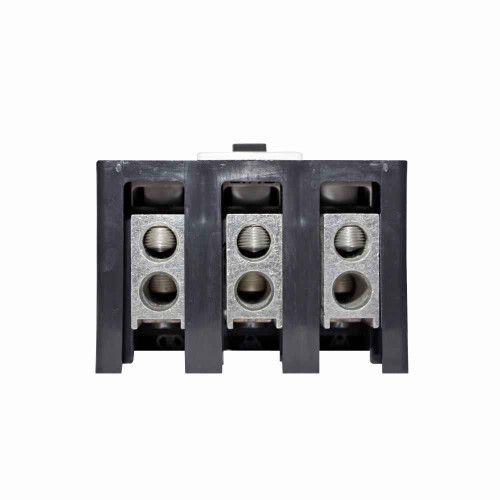

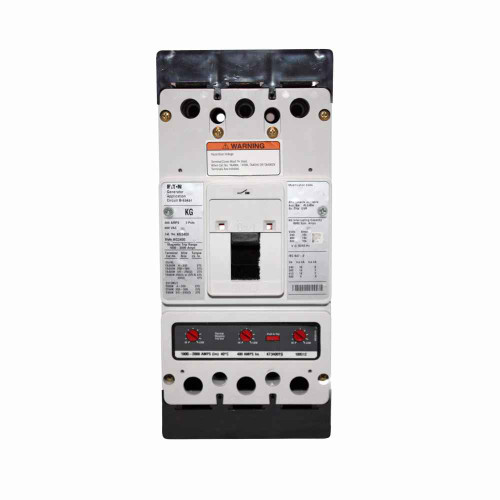

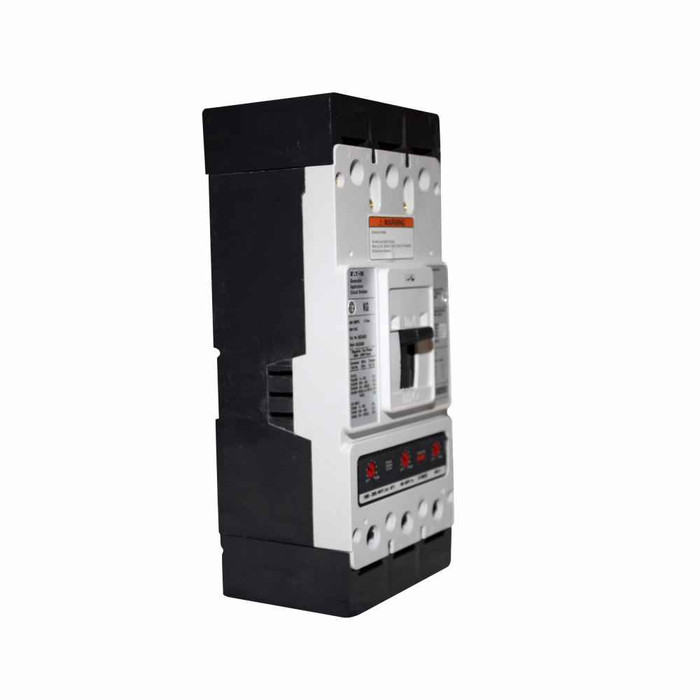

Eaton KG3300M01 Series C complete molded case circuit breaker, K-frame, KG, Fixed thermal and magnetic trips, 500-1000A, Three-pole, 300A, 600 Vac, 18 kAIC at 240 Vac, 14 kAIC at 480 Vac, Line/load, Reverse feed, 60 Hz

Eaton KG3300M01 Series C complete molded case circuit breaker, K-frame, KG, Fixed thermal and magnetic trips, 500-1000A, Three-pole, 300A, 600 Vac, 18 kAIC at 240 Vac, 14 kAIC at 480 Vac, Line/load, Reverse feed, 60 Hz

(No reviews yet) Write a Review

Model: KG3300M01
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$3,785.79
$3,735.79
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton KG3300X02Y15 Series C complete molded case circuit breaker, K-frame, KG, Fixed thermal and magnetic trips, 500-1000A, Three-pole, 300A, 600 Vac, 18 kAIC at 240 Vac, 14 kAIC at 480 Vac, No term., optional line or load, Reverse feed, 60 Hz, 3TA40

Eaton KG3300X02Y15 Series C complete molded case circuit breaker, K-frame, KG, Fixed thermal and magnetic trips, 500-1000A, Three-pole, 300A, 600 Vac, 18 kAIC at 240 Vac, 14 kAIC at 480 Vac, No term., optional line or load, Reverse feed, 60 Hz, 3TA40

Model: EAT-KG3300X02Y15

Eaton Series C complete molded case circuit breaker, K-frame, KG, Fixed thermal and magnetic trips, 500-1000A, Three-pole, 300A, 600 Vac, 18 kAIC at 240 Vac, 14 kAIC at 480 Vac, No term., optional...

Eaton

$3,776.77
$3,726.77
Eaton KG3300WD05X02 Series C complete EG molded case circuit breaker, K-frame, KG, Fixed thermal and magnetic trips, 500-1000A, Three-pole, 300A, 600 Vac, 18 kAIC at 240 Vac, 14 kAIC at 480 Vac, Line side end cap, optional load side, Reverse feed, 60

Eaton KG3300WD05X02 Series C complete EG molded case circuit breaker, K-frame, KG, Fixed thermal and magnetic trips, 500-1000A, Three-pole, 300A, 600 Vac, 18 kAIC at 240 Vac, 14 kAIC at 480 Vac, Line side end cap, optional load side, Reverse feed, 60

Model: EAT-KG3300WD05X02

Eaton Series C complete EG molded case circuit breaker, K-frame, KG, Fixed thermal and magnetic trips, 500-1000A, Three-pole, 300A, 600 Vac, 18 kAIC at 240 Vac, 14 kAIC at 480 Vac, Line side end cap,...

Eaton

$3,598.77
$3,548.77
Eaton Series C complete molded case circuit breaker, K-frame, KG, Fixed thermal and magnetic trips, 500-1000A, Three-pole, 300A, 600 Vac, 18 kAIC at 240 Vac, 14 kAIC at 480 Vac, Line/load, Reverse feed, 60 Hz

Manufacturer Resources

Product Specs

Amperage Rating:
300 A
Certifications:
UL 489
Circuit Breaker Frame Type:
Complete breaker
Circuit Breaker Type:
KG
Class:
Engine generator
Frame:
K
Frequency Rating:
60 Hz
Functions:
Reverse
Interrupt Rating:
14 kAIC at 480 Vac
Mounting Hardware:
Single-pole imperial mounting base
Number Of Poles:
Three-pole
Product Height:
6.9 in
Product Length Depth:
6.2 in
Product Weight:
10 lb
Product Width:
12.3 in
Terminals:
Line and load
Trip Rating:
500-1000 A
Trip Type:
Fixed thermal, fixed magnetic
Type:
Complete breaker
Voltage Rating:
600 Vac
!
