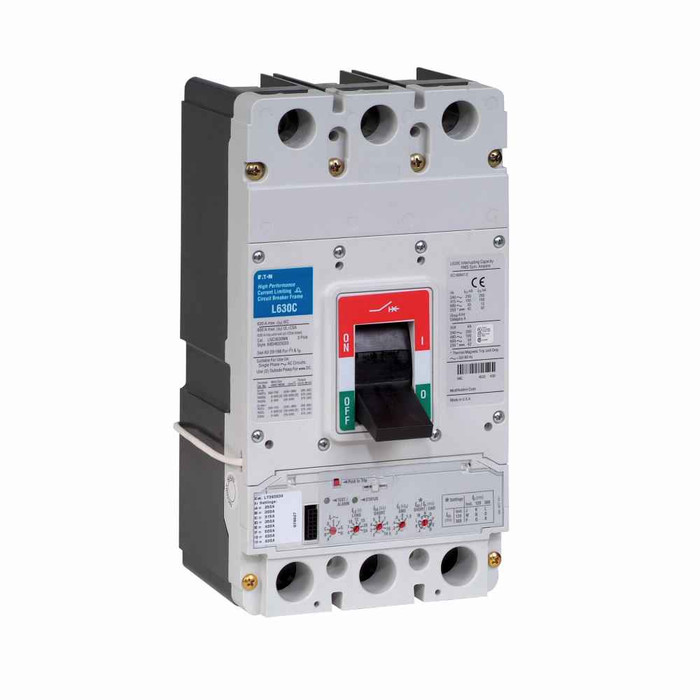

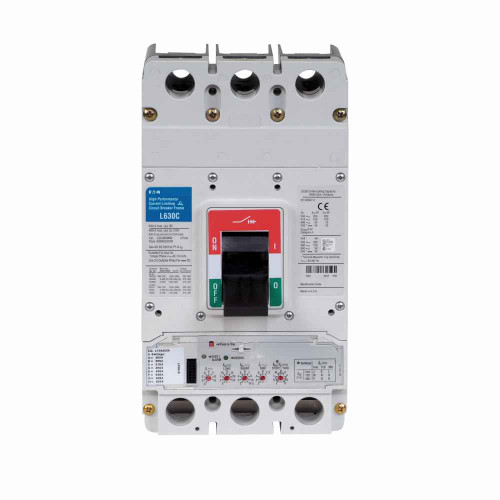

Eaton Series G electronic molded case circuit breaker, LG-frame, LG, Complete breaker, Digitrip 310 RMS, Electronic LSIG trip, Three-pole, 600A, 65 kAIC at 240 Vac, 35 kAIC at 415 Vac, 35 kAIC at 480 Vac, 18 kAIC at 600 Vac, Line/load
Manufacturer Resources
Product Specs
- Alarm Lockout:
- High load alarm with right-hand trip
- Amperage Rating:
- 600A
- Catalog Notes:
- LG breaker is HACR rated
- Certifications:
- CSA Certified
- Circuit Breaker Frame Type:
- Complete breaker
- Circuit Breaker Type:
- LG
- Compliances:
- CE Marked
- Frame:
- LG-frame
- Interrupt Rating:
- 65 kAIC at 240 Vac, 35 kAIC at 415 Vac, 35 kAIC at 480 Vac, 18 kAIC at 600 Vac
- Mounting Hardware:
- Metric
- Number Of Poles:
- Three-pole
- Product Height:
- 5.48 IN
- Product Length Depth:
- 5.48 IN
- Product Weight:
- 16 LB
- Product Width:
- 5.48 IN
- Terminals:
- Line and load
- Trip Type:
- Electronic LSIG
- Type:
- Complete breaker
- Voltage Rating:
- 600 Vac
- Product Group:
- Electrical
