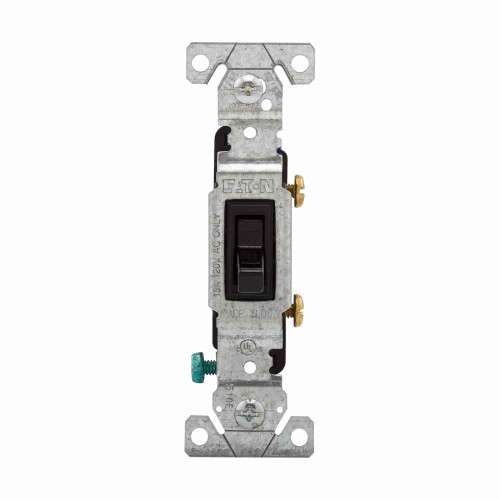

Eaton 1301B toggle switch, #14-10 AWG, 15A, Residential, Flush, 120V, Side and push, Screw, Brown, Single-Pole, Single-Pole, Polycarbonate
Model: EAT-1301B
Eaton
Eaton 1303-7V toggle switch, #14-10 AWG, 15A, Residential, Flush, 120V, Back and side, push wire, Screw, Ivory, Load type: Motor Control, Fan, LED, Incandescent, ELV, MLV, CFL, Flourescent, Halogen, Single-Pole, Three-Way, Three-Way
Model: EAT-1303-7V
Eaton
Eaton 1201V construction grade toggle switch, #14-10 AWG, 15A, Residential, Wall, 120/277V, Back and side, Screw, Ivory, Single-Pole, Single-Pole, Polycarbonate
Model: EAT-1201V
Eaton

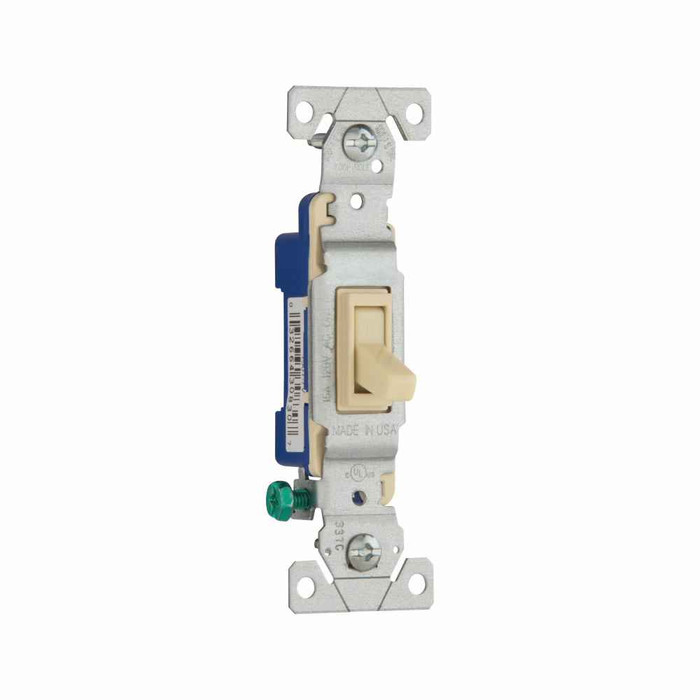

Eaton Toggle Switch Single-Pole 15A 120V Residential Flush Mount
Professional Residential Electrical Control Switch
The Eaton Toggle Switch delivers exceptional electrical control performance for residential lighting and motor control applications. This 15A 120V single-pole toggle switch provides reliable electrical switching designed for professional electricians, electrical contractors, and homeowners, offering the proven reliability and advanced technology that professionals trust from the global leader in intelligent power management.
Professional Features & Benefits
Electrical Performance
- 15 Ampere Rating at 120 Volts - Provides reliable switching capacity for residential lighting circuits, motor control, and various electrical loads
- Single-Pole Configuration - Simple on/off control for single circuit switching applications with standard residential wiring
- Multi-Load Compatibility - Supports motor control, fan control, LED, incandescent, ELV, MLV, CFL, fluorescent, and halogen lighting loads
- Wire Size Compatibility - Accommodates #14-10 AWG wire sizes for flexible installation with standard residential electrical wiring
Installation & Construction
- Flush Mounting Design - Professional flush installation for clean, finished appearance in residential wall boxes
- Side and Push Wiring Method - Convenient wiring connections for efficient installation and secure electrical connections
- Polycarbonate Construction - Durable material construction provides long-lasting performance and electrical insulation properties
Technical Specifications
Amperage Rating: 15A, Voltage Rating: 120V, Configuration: Single-pole, Wire Size: #14-10 AWG, Mounting Method: Flush, Wiring Method: Side and push, Connection Type: Screw terminals, Material: Polycarbonate, Color: Ivory, Application: Residential, Load Types: Motor Control, Fan, LED, Incandescent, ELV, MLV, CFL, Fluorescent, Halogen, Certifications: cULus Listed, Compliance: RoHS Compliant, Dimensions: 3.28" H x 1.31" D x 0.88" W, Weight: 0.16 lb
Installation & Usage
- Turn off power at circuit breaker and verify power is off with voltage tester
- Remove existing switch and disconnect wires following proper electrical safety procedures
- Connect hot wire to appropriate terminal using screw connection method
- Secure switch in electrical box using flush mounting method
- Install wall plate and restore power to test switch operation
- Verify proper operation of connected lighting or motor control loads
Professional Applications
Ideal for:
- Residential Lighting Control - Single-pole switching for bedroom, living room, kitchen, and bathroom lighting circuits
- Motor Control Applications - Reliable switching for residential motor loads and electrical equipment control
- Fan Control Systems - Professional switching for ceiling fans and ventilation equipment in residential applications
- LED Lighting Systems - Compatible switching for modern LED lighting installations and energy-efficient lighting
- Incandescent Lighting - Traditional switching for standard incandescent lighting circuits and fixtures
- Specialty Lighting Control - ELV, MLV, CFL, fluorescent, and halogen lighting system switching applications
- Home Electrical Upgrades - Professional replacement switches for residential electrical system improvements
- New Construction Wiring - Quality switching solutions for new residential electrical installations
Multi-Load Technology Advantage
This Eaton toggle switch features advanced multi-load compatibility, supporting various lighting technologies including LED, incandescent, ELV, MLV, CFL, fluorescent, and halogen loads, plus motor control and fan applications. The versatile load handling capability makes it ideal for modern residential electrical systems with diverse lighting and control requirements.
Why Choose Eaton Quality?
Eaton's century-plus experience in electrical power management innovation ensures reliable performance and electrical safety. With cULus listing and RoHS compliance, this toggle switch meets rigorous safety standards trusted by electricians, electrical contractors, and homeowners worldwide. The durable polycarbonate construction and professional-grade electrical performance deliver the dependable switching control that electrical professionals demand.
Manufacturer Resources
Product Specs
- Allowable Wire Size:
- #14-10 AWG
- Amperage Rating:
- 15 A
- Application:
- Residential
- Certifications:
- cULus Listed
- Compliances:
- RoHS Compliant
- Connector Type:
- Screw
- Load Type:
- MLV
- Mounting Method:
- Flush
- Number Of Poles:
- Single-pole
- Product Height:
- 3.28 in
- Product Length Depth:
- 1.31 in
- Product Weight:
- .16 lb
- Product Width:
- .88 in
- Voltage Rating:
- 120 V
- Wiring Method:
- Side and push
- Product Group:
- Electrical
- Department:
- Electrical
- Product Details:
- Toggle switch
- Product Color:
- Ivory
- Switch Classification:
- Single-pole
- Product Material:
- Polycarbonate
