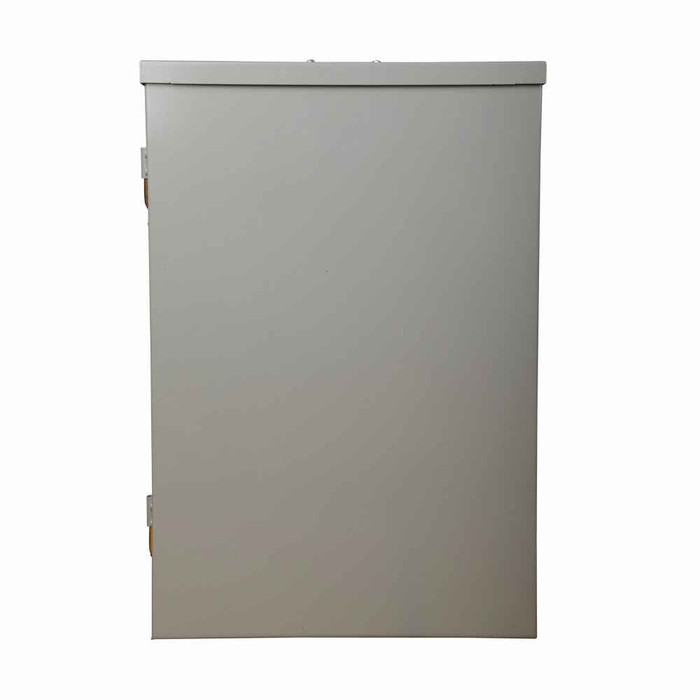

Eaton Type BR Three-Phase Four-Wire Convertible Loadcenter - 125A - 24 Spaces

Eaton Type BR Three-Phase Convertible Loadcenter 125A 24-Space 4-Wire Electrical Panel

(No reviews yet) Write a Review

Model: 3BR1224N125R

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,095.71
$1,022.67
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton Type BR Three-Phase Convertible Loadcenter 125A 24-Space 4-Wire Electrical Panel

Professional Three-Phase Power Distribution for Commercial Applications

The Eaton Type BR Three-Phase Convertible Loadcenter delivers reliable 125A power distribution with convertible main design for flexible installation options. This professional-grade electrical panel features aluminum bus construction, metallic enclosure, and 10 kAIC interrupt rating for dependable three-phase power management in commercial and industrial applications.

Professional Features & Benefits

  • 125A Service Rating: Provides substantial power capacity for demanding three-phase electrical loads and commercial equipment requirements.
  • Three-Phase 4-Wire Configuration: Supports 208Y/120V and 240V systems for versatile commercial and industrial power distribution applications.
  • Convertible Main Design: Offers installation flexibility as main breaker or main lug configuration to meet specific electrical service requirements.
  • 24-Space Capacity: Accommodates up to 24 Type BR 1-inch breakers for comprehensive circuit protection and load distribution.
  • 10 kAIC Interrupt Rating: Provides reliable fault current interruption capability for safe electrical system protection.
  • Aluminum Bus Construction: Ensures efficient power transmission with corrosion-resistant aluminum bus material for long-term reliability.
  • Metallic Enclosure: Delivers durable protection with included cover for secure installation in various commercial environments.

Technical Specifications

  • Amperage Rating: 125 A
  • Bus Material: Aluminum
  • Catalog Notes: The maximum rating of the panel is the main breaker rating when used as service entrance equipment.
  • Cover Type: Cover included
  • Enclosure Material: Metallic
  • Interrupt Rating: 10 kAIC
  • Main Circuit Breaker: BR
  • Mounting Method: Combination
  • Number Of Circuits: 24
  • Number Of Spaces: 12
  • Number Of Wires: 4
  • Phase: Three-phase
  • Product Details: Convertible main
  • Product Height: 21 in
  • Product Weight: 20 lb
  • Product Width: 14.31 in
  • Special Features: No feed-thru lugs, includes BREQS125 hold-down screw
  • Used With: Type BR 1-inch breakers
  • Voltage Rating: 208Y/120, 240V
  • Wire Size: Determined by circuit breaker installed

Installation & Operation

  1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
  2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
  3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
  4. Configure any available load management or control features as supported by the provided specifications.
  5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
  6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

  • Commercial Office Buildings
  • Retail Establishments
  • Light Industrial Facilities
  • Multi-Unit Properties
  • Professional Service Centers
  • Educational Facilities
  • Healthcare Facilities

Why Choose Eaton Quality?

Eaton Type BR loadcenters provide proven reliability with professional-grade metallic enclosure construction and 10 kAIC interrupt rating for dependable electrical system protection. The convertible main design and aluminum bus material ensure long-term performance in demanding commercial applications.

Manufacturer Resources

Product Specs

Amperage Rating:
125 A
Bus Material:
Aluminum
Catalog Notes:
The maximum rating of the panel is the main breaker rating when used as service entrance equipment.
Cover Type:
Cover included
Enclosure Material:
Metallic
Interrupt Rating:
10 kAIC
Main Circuit Breaker:
BR
Mounting Method:
Combination
Number Of Circuits:
24
Number Of Spaces:
12
Number Of Wires:
4
Phase:
Three-phase
Product Details:
Convertible main
Product Height:
21 in
Product Weight:
20 lb
Product Width:
14.31 in
Special Features:
No feed-thru lugs, includes BREQS125 hold-down screw
Used With:
Type BR 1-inch breakers
Voltage Rating:
208Y/120, 240V
Wire Size:
Determined by circuit breaker installed
Department:
Electrical
Product Type:
Load Center
Product Group:
Load Centers & Panel Boards
