Eaton Tenant Main Circuit Breaker 200A Two-Pole 120/240V 10kAIC Shunt Trip CCV

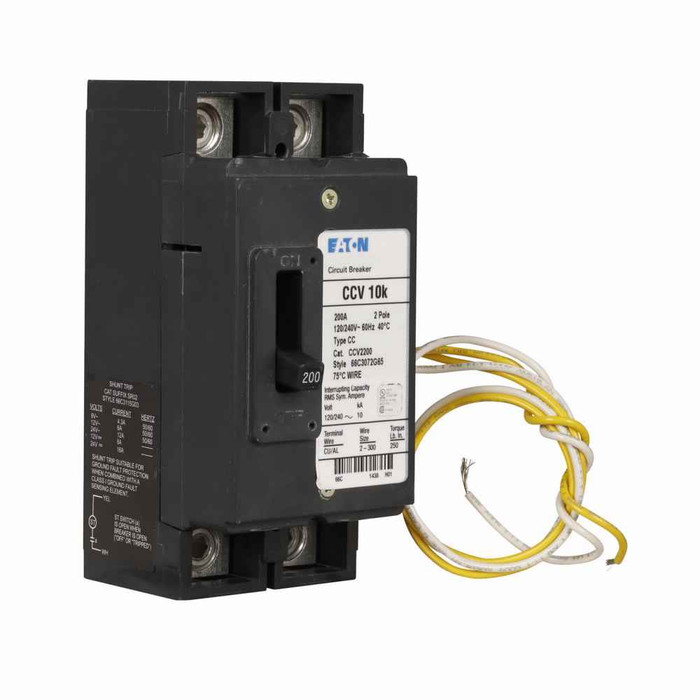

Eaton Type CCV Tenant Main Shunt Trip Circuit Breaker

Professional Electrical Tenant Main Protection System

The Eaton Type CCV Tenant Main Circuit Breaker delivers exceptional electrical power management and control performance for tenant electrical distribution systems. This 200A two-pole circuit breaker provides reliable electrical protection designed for professional electricians, electrical contractors, and facility managers, offering the proven reliability and advanced technology that professionals trust from the global leader in intelligent power management.

Professional Features & Benefits

Electrical Performance & Protection

• 200 Ampere Rating - High-capacity current handling for demanding tenant electrical distribution applications with reliable overcurrent protection
• Two-Pole Configuration - Dual-pole design provides simultaneous protection for both hot conductors in 120/240V electrical systems
• 10 kAIC Interrupt Rating - Professional-grade interrupting capacity safely clears fault currents up to 10,000 amperes for enhanced electrical safety
• 120/240V Voltage Rating - Versatile voltage compatibility for standard residential and light commercial electrical distribution systems

Advanced Control Features

• 120V Shunt Trip - Remote electrical disconnection capability allows emergency shutdown from remote locations for enhanced safety control
• CCV Frame Design - Compact tenant main breaker construction optimized for Type ECC unit enclosures and space-efficient installations
• Professional Wire Compatibility - Accommodates #2/0 AWG through 300 kcmil copper and aluminum conductors with standard lug terminals

Installation & Safety

• UL 489 Certification - Meets rigorous safety standards for molded case circuit breakers ensuring code compliance and electrical safety
• Type ECC Enclosure Compatibility - Specifically designed for seamless integration with Eaton Type ECC unit enclosures for professional installations

Technical Specifications

Amperage Rating: 200A, Voltage Rating: 120/240V, Number of Poles: Two-pole, Interrupt Rating: 10 kAIC, Frame Type: CCV, Special Features: 120V Shunt Trip, Wire Size: #2/0 AWG-300 kcmil Cu/Al, Dimensions: 8" L x 5.5" H x 4.5" W, Weight: 2.83 lb, Certifications: UL 489, Used With: Type ECC Unit Enclosures, Terminal Type: Standard lugs suitable for copper or aluminum wire

Installation & Usage

1. Verify electrical system is de-energized and follow proper lockout/tagout procedures before beginning installation
2. Mount circuit breaker securely in Type ECC unit enclosure ensuring proper alignment and mechanical connection
3. Connect incoming line conductors to line terminals using appropriate torque specifications for wire size
4. Connect load conductors to load terminals ensuring proper wire sizing and termination techniques
5. Install and connect 120V shunt trip wiring to remote control circuit following manufacturer specifications
6. Test circuit breaker operation including manual trip/reset function and shunt trip remote operation before energizing system

Professional Applications

Ideal for:

• Tenant Electrical Distribution - Primary overcurrent protection for individual tenant electrical services in multi-tenant commercial buildings
• Multi-Family Residential - Main breaker protection for apartment units, condominiums, and multi-unit residential electrical systems
• Commercial Tenant Spaces - Electrical protection for retail spaces, office suites, and commercial tenant electrical distribution panels
• Light Industrial Applications - Main circuit protection for small manufacturing spaces, workshops, and light industrial tenant facilities
• Emergency Disconnect Systems - Remote shutdown capability for tenant electrical systems requiring emergency electrical isolation
• Property Management - Centralized electrical control for property managers requiring remote tenant electrical disconnection capability
• Electrical Service Upgrades - Replacement and upgrade applications for existing tenant main electrical protection systems
• Code Compliance Projects - New installations requiring UL 489 listed tenant main circuit breakers for electrical code compliance

Shunt Trip Control Advantage

The integrated 120V shunt trip feature provides professional electricians and facility managers with remote electrical disconnection capability, enabling emergency shutdown from central control locations, fire alarm system integration, and enhanced electrical safety control for tenant electrical distribution systems.

Why Choose Eaton Quality?

Eaton's century-plus experience in electrical power management innovation delivers the reliability and performance that electrical professionals demand. With rigorous UL 489 certification, proven CCV frame design, and trusted performance in tenant electrical applications, Eaton circuit breakers provide the quality construction and dependable electrical protection that electricians, electrical contractors, and facility professionals rely on for critical electrical distribution systems worldwide.
