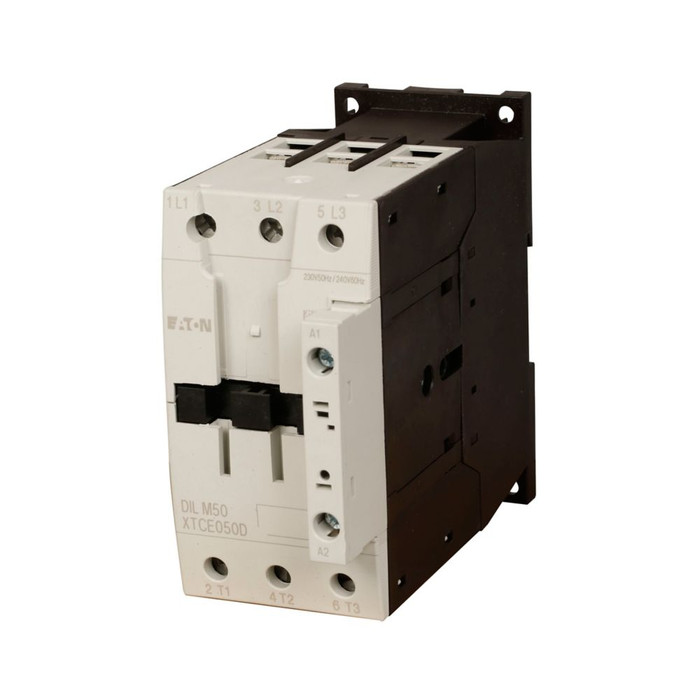

Eaton XT IEC Contactor 50A Three-Pole 110/120V Coil Frame D Full Voltage Non-Reversing

Eaton XT IEC Contactor 50A Three-Pole 110/120V Coil Frame D Full Voltage Non-Reversing

(No reviews yet) Write a Review

Model: XTCE050DS1A

In Stock (leaves warehouse same day if ordered before 3pm ET)

$387.07
$366.68
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton XT IEC Contactor 50A Three-Pole 110/120V Coil Frame D Full Voltage Non-Reversing

Professional IEC contactor for reliable motor control applications

The Eaton XT IEC Contactor delivers dependable three-pole motor control with 50A continuous ampere rating and 110/120V AC coil operation. This full voltage non-reversing contactor features Frame D construction with 55mm frame size, providing reliable switching performance for motor control applications. UL Listed for professional installations with screw terminal connections for secure field wiring.

Professional Features & Benefits

  • 50A Continuous Rating: Handles demanding motor loads up to 50 horsepower at 575V three-phase for versatile application compatibility
  • 110/120V AC Coil: Standard control voltage simplifies integration with common control circuits and reduces installation complexity
  • Three-Pole Configuration: Complete three-phase motor control with 1 NO, 1 NC auxiliary contact for control circuit feedback
  • Frame D Construction: Compact 55mm frame size with 1-inch dimensions provides space-efficient mounting in control panels
  • UL Listed Certification: Meets rigorous safety standards for commercial and industrial motor control applications
  • Screw Terminals: Secure field wiring connections ensure reliable long-term electrical performance
  • Non-Reversing Operation: Full voltage starting design optimized for standard motor control applications

Technical Specifications

  • Amperage Rating: 50A
  • Certifications: UL Listed
  • Coil: 110-120 Vac, 50/60 Hz
  • Coil Voltage: 110-120 Vac, 50/60 Hz
  • Contact Configuration: 1 NO, 1 NC
  • Continuous Ampere Rating: 50 A
  • Frame Size: 55 mm
  • Frequency Rating: 50-60 Hz
  • Hp Rating Max: 3, 7.5, 10/ 15, 20, 40, 50 hp (1/3PH @115,200,230/200,230,460,575 V)
  • Number Of Poles: Three-pole
  • Operation: Non-reversing
  • Product Details: Full voltage non-reversing contactor
  • Product Height: 1 in
  • Product Length Depth: 1 in
  • Product Weight: 1 lb
  • Product Width: 1 in
  • Series: XT IEC
  • Terminals: Screw terminals

Installation & Operation

  1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
  2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
  3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
  4. Configure any available load management or control features as supported by the provided specifications.
  5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
  6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

  • Industrial Motor Control Systems
  • Commercial HVAC Equipment
  • Manufacturing Process Control
  • Pump and Compressor Control
  • Conveyor System Control
  • Machine Tool Applications
  • Building Automation Systems

Why Choose Eaton Quality?

Eaton XT IEC contactors provide proven reliability with UL Listed certification and compact Frame D construction. The 55mm frame size and lightweight 1-pound design optimize panel space while delivering dependable 50A motor control performance for professional installations.

Manufacturer Resources

Product Specs

Amperage Rating:
50A
Certifications:
UL Listed
Coil:
110-120 Vac, 50/60 Hz
Coil Voltage:
110-120 Vac, 50/60 Hz
Contact Configuration:
1 NO, 1 NC
Continuous Ampere Rating:
50 A
Frame Size:
55 mm
Frequency Rating:
50-60 Hz
Hp Rating Max:
3, 7.5, 10/ 15, 20, 40, 50 hp (1/3PH @115,200,230/200,230,460,575 V)
Number Of Poles:
Three-pole
Operation:
Non-reversing
Product Details:
Full voltage non-reversing contactor
Product Height:
1 in
Product Length Depth:
1 in
Product Weight:
1 lb
Product Width:
1 in
Series:
XT IEC
Terminals:
Screw terminals
Department:
Electrical
Product Group:
Starters & Contactors
Product Type:
Contactor
