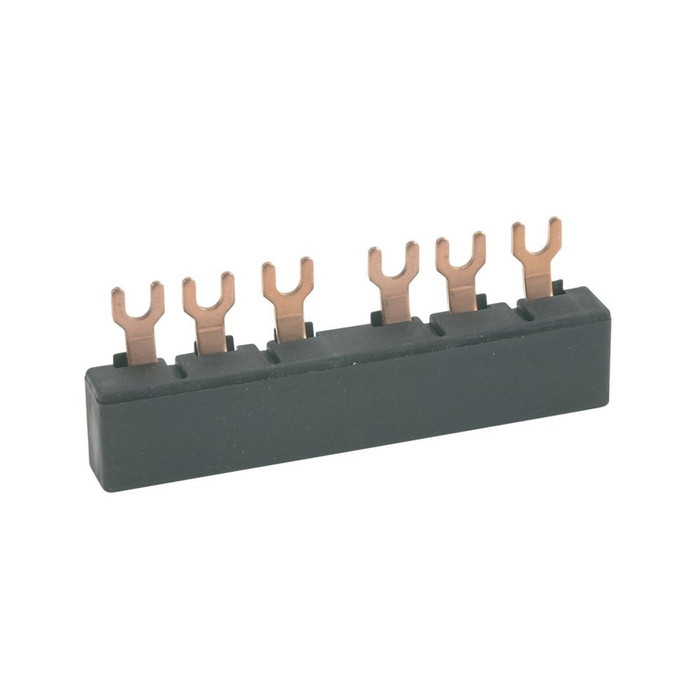

Eaton XT Three-Phase Commoning Link Accessory for MMP Motor Protection

Eaton XT Three-Phase Commoning Link Accessory for MMP Motor Protection

(No reviews yet) Write a Review

Model: XTPAXCLKA2

In Stock (leaves warehouse same day if ordered before 3pm ET)

$28.23
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Typical Applications

  • Industrial Motor Control Panels
  • Commoning Multiple Manual Motor Protectors
  • Three-Phase Motor Protection Circuits
  • Commercial and Industrial Electrical Installations
  • Panelboard and Control Cabinet Wiring

Why Eaton?

Eaton's XT series manual motor protection accessories are engineered for dependable performance in demanding industrial environments. With protection against accidental contact and a short-circuit proof Frame AB rating, this commoning link supports safe, code-compliant motor control panel builds. Choose Eaton for consistent quality across your motor protection accessory needs.

Manufacturer Resources

Product Specs

Item Quantity:
10
Certifications:
Not Applicable
Product Type:
Electrical Component
Phase:
Three-phase
Warranty:
Not Applicable
Special features:
MMP with no side-mounted auxiliaries or voltage releases
Department:
Electrical
Configuration:
Three-Phase
Voltage Rating:
690V
Amperage Rating:
63A
Product Group:
Motor Control & Automation
Product Subgroup:
Motor Starters & Contactors

Eaton XTPAXCLKA2 – Frequently Asked Questions

1) What does the Eaton XT three-phase commoning link actually do in a motor control panel?
It ties the line-side terminals of several Eaton XT manual motor protectors together across all three phases, so one incoming feed supplies a row of MMPs instead of you landing individual conductors on each device. That saves wiring time in industrial motor control panels, control cabinets, and panelboard builds, and it keeps the busing arrangement tidy and repeatable.
2) What voltage and current can the Eaton XT commoning link carry?
The link is rated 690V and 63A, and it is short-circuit proof to Frame AB. That covers standard 480V and 600V three-phase industrial motor circuits, so the limiting factor in most panels will be the MMPs themselves rather than the busbar link.
3) Will the Eaton XT commoning link work if my manual motor protectors have side-mounted auxiliary contacts?
No. The link is intended for MMPs with no side-mounted auxiliaries or voltage releases. Side-mounted accessories occupy the space between adjacent devices and change the spacing the link is built to span, so if your protectors are fitted with side aux contacts or undervoltage/shunt releases, this link is the wrong part for that row.
4) What is the difference between the Eaton XTPAXCLKA2 and XTPAXCLKA4 commoning links?
Both are three-phase Frame AB commoning links rated 690V, 63A; they differ in how many manual motor protectors they bus together. Order by the number of MMPs in the row you are feeding, and use additional links or a separate feed for rows beyond that count.
5) Does the Eaton commoning link give any protection against accidental contact with live parts?
Yes. The commoning link is built with protection against accidental contact, which matters on the line side of a group of MMPs where the busing stays energized whenever the feeder is on. That finger-safe construction is part of what makes it suitable for code-compliant motor control panel builds.
6) Can I use this commoning link on single-phase motor protectors?
No. This is a three-phase link, busing all three poles across adjacent MMPs. For a single-phase or two-pole arrangement you need the matching single-phase commoning accessory, not this one.
7) How many Eaton XT commoning links come in a pack?
Item quantity is 10, so these are supplied as a multi-pack rather than singly. Worth knowing if you are a panel shop standardizing on Eaton XT manual motor protection across several builds, since one pack covers multiple cabinets.
