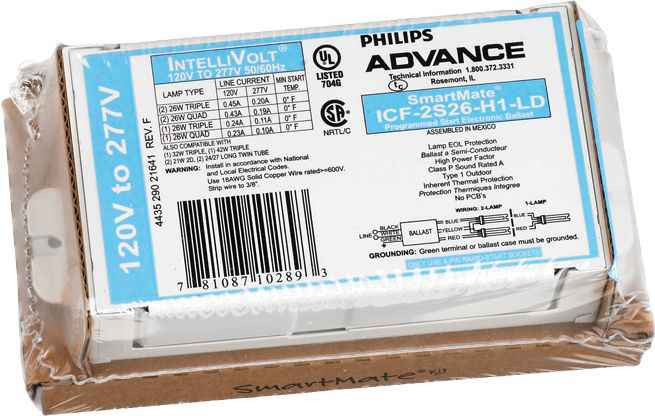

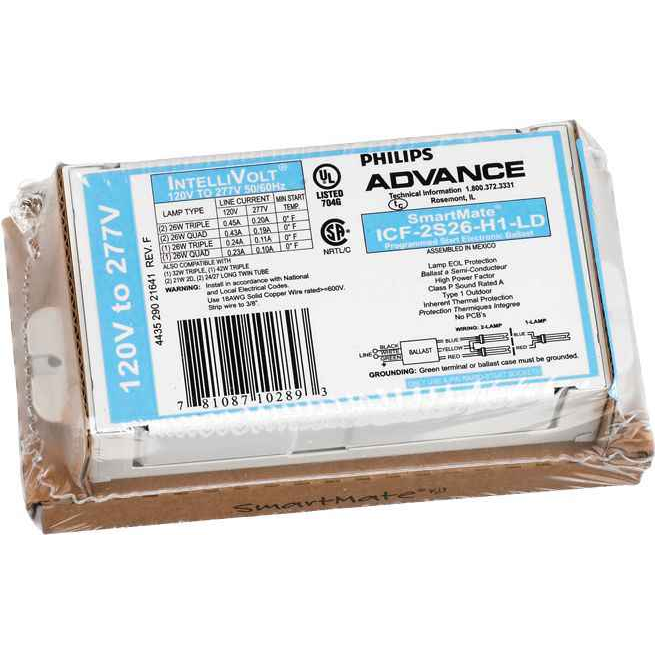

Advance Electronic Ballast Kit for (2) 26W CFL 4-Pin 120-277V Multi-Voltage System

Advance Electronic Ballast Kit for (2) 26W CFL 4-Pin 120-277V Multi-Voltage System

(No reviews yet) Write a Review

Model: ICF2S26H1LDK
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$98.10
$42.30
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Advance Electronic Ballast Kit for (2) 26W CFL 4-Pin 120-277V Multi-Voltage System

Professional Electronic Ballast Solution for Compact Fluorescent Applications

The Advance Electronic Ballast Kit delivers reliable performance for dual 26W compact fluorescent lamp applications with 4-pin configuration. This multi-voltage system operates on 120-277V with 50-60Hz frequency compatibility and 0.98 power factor for efficient operation. The compact design measures 5.37" x 2.87" x 1.95" and weighs 0.598 lbs, making it suitable for various professional lighting installations.

Professional Features & Benefits

  • Multi-Voltage Operation (120-277V): Provides installation flexibility across different electrical systems and reduces inventory requirements.
  • High Power Factor (0.98): Ensures efficient power utilization and reduces electrical system stress for professional applications.
  • Dual 26W CFL Capacity: Supports two 4-pin compact fluorescent lamps for balanced lighting distribution and energy efficiency.
  • Broad Frequency Range (50-60Hz): Compatible with standard North American and international electrical systems for versatile deployment.
  • Compact Design (5.37" x 2.87" x 1.95"): Space-efficient form factor enables installation in tight spaces and various fixture configurations.
  • Multiple Certifications (UL, CSA, CEC, NOM, RoHS): Meets comprehensive safety and environmental standards for professional installations.
  • USA Manufacturing: Ensures consistent quality control and reliable supply chain for professional projects.

Technical Specifications

  • Country Of Origin: USA
  • Frequency Rating: 50to60 Hz
  • Power Factor: 0.98
  • Product Height: 1.9500 IN
  • Product Length: 5.3701 IN
  • Product Weight: 0.598 Lbs
  • Product Width: 2.8701 IN
  • Standard: CSA certificate;UL certificate;CEC Listing;NOM certificate;RoHS Compliant

Professional Applications

  • Commercial Office Buildings
  • Retail and Hospitality Facilities
  • Educational Institutions
  • Healthcare Facilities
  • Industrial and Warehouse Lighting
  • Multi-Unit Residential Properties
  • Professional Service Buildings

Why Choose Advance Quality?

Advance electronic ballasts combine USA manufacturing with comprehensive certifications including UL, CSA, CEC, NOM, and RoHS compliance. The high 0.98 power factor and multi-voltage capability demonstrate professional-grade engineering for reliable, efficient operation across diverse commercial and industrial lighting applications.

Manufacturer Resources

Product Specs

Country Of Origin:
USA
Frequency Rating:
50to60 Hz
Power Factor:
0.98
Product Height:
1.9500 IN
Product Length:
5.3701 IN
Product Weight:
0.598 Lbs
Product Width:
2.8701 IN
Standard:
CSA certificate;UL certificate;CEC Listing;NOM certificate;RoHS Compliant
Department:
Electrical

Advance ICF2S26H1LDK – Frequently Asked Questions

1) Will the Advance ICF2S26H1LDK ballast run two 26W 4-pin CFL lamps?
That is exactly what it is built for. The Advance ICF2S26H1LDK is an electronic ballast kit for two 26W compact fluorescent lamps with the 4-pin base. Two-pin CFLs are not a match here, since they carry an integral starter and are meant for magnetic preheat ballasts, so confirm the lamps in the fixture are 4-pin 26W before you order.
2) Can I use this CFL ballast on both 120V and 277V circuits?
Yes. The ICF2S26H1LDK is a multi-voltage ballast rated 120-277V, so the same unit works on 120V branch circuits in a residential or tenant space and on 277V commercial lighting circuits. For a property manager or MRO buyer, that means one part number covers both voltages across a mixed-voltage building instead of stocking two.
3) Will this ballast fit inside my existing fixture housing or wireway?
The case measures 5.3701 x 2.8701 x 1.9500 inches and the unit weighs 0.598 lbs. Compare those three numbers against the ballast channel or canopy you are working in before you pull the old one out, because the 1.95 inch dimension is the one that usually decides whether it clears a shallow recessed can or a slim wrap housing.
4) Is the Advance ICF2S26H1LDK UL listed and RoHS compliant for a healthcare or school installation?
It carries UL certificate, CSA certificate, CEC Listing, NOM certificate, and is RoHS compliant. That combination covers US and Canadian safety listing, California Energy Commission listing, and Mexican NOM certification, which is generally what an institutional or government submittal package is asking for.
5) Is this Advance ballast a high power factor unit for utility rebate or code compliance?
Power factor is 0.98, which is well inside the high power factor range (0.90 and above) that commercial energy codes and utility lighting programs generally call for. A high PF ballast draws less line current for the same lamp wattage, which helps when you are loading up a 277V branch circuit with many fixtures.
6) Should I replace my failed CFL ballast or convert the fixture to LED?
If the fixture, lampholders, and lamp inventory are all in good shape and you are maintaining a standardized building, dropping in this 2-lamp 26W 4-pin electronic ballast keeps the fixture exactly as spec'd and is the fastest fix. Converting to LED means either ballast-bypass rewiring or a new lamp type across every fixture on that floor, which is a bigger scope. Where you have a handful of failures in a large installed base of 26W quad-tube CFL downlights, matching the existing ballast is usually the cleaner call.
7) What frequency does the Advance 26W CFL ballast operate on?
It is rated 50 to 60 Hz, so it runs on standard 60 Hz North American power and on 50 Hz systems as well. That matters if you are specifying for a facility on generator power or an installation outside North America.
8) Does this come as a kit with mounting hardware, or is it just the ballast?
It is sold as a ballast kit, not a bare ballast, which is the configuration Advance supplies for retrofit and replacement work rather than OEM fixture assembly. Plan your own wire nuts and any fixture-specific lampholders, and verify the mounting footprint against the 5.37 by 2.87 inch case before install.
