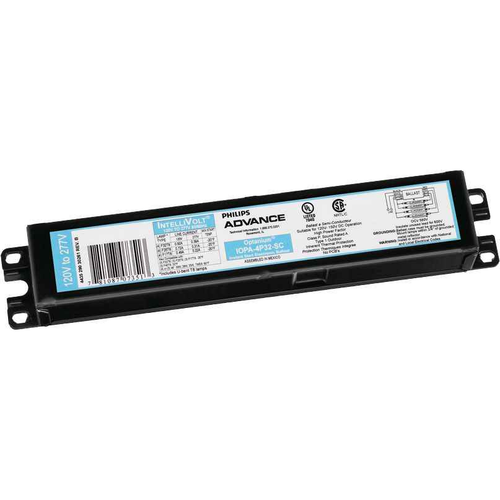

Advance Electronic Dimming Ballast 2-Lamp F32T8 120-277V Programmed Start

Advance Electronic Dimming Ballast 2-Lamp F32T8 120-277V Programmed Start

(No reviews yet) Write a Review

Model: IZT2PSP32SC35I
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$211.39
$129.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Advance Electronic Dimming Ballast 2-Lamp F32T8 120-277V Programmed Start

Professional Electronic Dimming Control for T8 Fluorescent Systems

The Advance Electronic Dimming Ballast delivers reliable programmed start operation for dual F32T8 fluorescent lamps with universal 120-277V input voltage. This professional-grade ballast features Class P thermal protection and 0.99 power factor for efficient lighting control in commercial and institutional applications.

Professional Features & Benefits

  • Dimmable Operation: Provides smooth dimming control for energy savings and lighting customization in professional environments.
  • Universal Voltage 120-277V: Compatible with standard commercial electrical systems for versatile installation flexibility.
  • Programmed Start Technology: Extends lamp life through controlled ignition sequence, reducing maintenance costs and lamp replacement frequency.
  • High Power Factor 0.99: Maximizes electrical efficiency and reduces power consumption for cost-effective operation.
  • Class P Thermal Protection: Built-in safety feature prevents overheating and ensures reliable long-term performance.
  • Compact Design 9.5" x 2.4" x 1.28": Space-efficient profile fits standard luminaire housings with minimal installation constraints.
  • Multiple Certifications: UL and CSA certified with CEC listing ensures code compliance and professional installation standards.

Technical Specifications

  • Ballast Factor: 1
  • Country Of Origin: USA
  • Dimmable: Yes
  • Frequency Rating: 50to60 Hz
  • Lamp Type: T8 RS
  • Number Of Lamps: 2
  • Power Factor: 0.99
  • Power Rating: 32 WTT
  • Product Height: 1.2799 IN
  • Product Length: 9.5000 IN
  • Product Weight: 1.000 Lbs
  • Product Width: 2.4000 IN
  • Standard: CSA certificate;UL certificate;CEC Listing;CEE Rated;CSA E;NEMA Premium;RoHS Compliant
  • Start Type: PROGRAMMED START
  • Thermal Protection: CLASS P
  • Voltage Rating: 120-277 V

Professional Applications

  • Commercial Office Buildings
  • Retail Establishments
  • Educational Facilities
  • Healthcare Facilities
  • Industrial Lighting Systems
  • Institutional Buildings
  • Professional Workspaces

Why Choose Advance Quality?

Advance ballasts deliver proven reliability with comprehensive UL and CSA certifications, Class P thermal protection, and RoHS compliance. The programmed start technology and high power factor design ensure efficient operation and extended lamp life for professional lighting applications.

Manufacturer Resources

Product Specs

Ballast Factor:
1
Country Of Origin:
USA
Dimmable:
Yes
Frequency Rating:
50to60 Hz
Lamp Type:
T8 RS
Number Of Lamps:
2
Power Factor:
0.99
Power Rating:
32 WTT
Product Height:
1.2799 IN
Product Length:
9.5000 IN
Product Weight:
1.000 Lbs
Product Width:
2.4000 IN
Standard:
CSA certificate;UL certificate;CEC Listing;CEE Rated;CSA E;NEMA Premium;RoHS Compliant
Start Type:
PROGRAMMED START
Thermal Protection:
CLASS P
Voltage Rating:
120-277 V
Department:
Electrical

Advance IZT2PSP32SC35I – Frequently Asked Questions

1) Will the Advance IZT2PSP32SC35I ballast run on 277V, or do I need a separate part number for 120V?
One part number covers both. The IZT2PSP32SC35I is a universal voltage ballast rated 120-277 V, so the same unit wires into a 120V office circuit or a 277V commercial lighting branch. Frequency rating is 50 to 60 Hz. For a facility standardizing on one ballast across mixed-voltage buildings, this is the one to stock.
2) How many F32T8 lamps will the Advance IZT2PSP32SC35I dimming ballast drive?
Two. It is a 2-lamp ballast for 32W T8 rapid start lamps. If the fixture is a 3-lamp or 4-lamp troffer, you either need two ballasts or a different unit; one of these will not carry more than two tubes.
3) Should I use a programmed start or instant start ballast in a space where the lights switch on and off all day?
Programmed start, which is what this Advance 2-lamp T8 unit is. Programmed start preheats the cathodes before striking the arc, so frequent switching costs far less lamp life than instant start, where every strike hits a cold cathode. Restrooms, classrooms, conference rooms and anything on an occupancy sensor are the classic case. Instant start is the cheaper choice only where lamps run long uninterrupted hours. Dimming systems are switched constantly by nature, which is why this one pairs dimming with programmed start.
4) Does the Advance IZT2PSP32SC35I give full light output, or does the dimming ballast cost me brightness?
Ballast factor is 1.0, so at full output the lamps produce their rated lumens. That matters on a retrofit: a lot of energy-saving ballasts run 0.77 or 0.88 ballast factor and the room comes out visibly dimmer than the fixture it replaced. At 1.0 you get the light back and take your savings from the dimming control instead.
5) Does this Advance T8 ballast meet the specs on my electrical drawings for a school or hospital job?
It carries UL and CSA certificates, CSA E, a CEC listing, CEE rating, NEMA Premium, and is RoHS compliant. Class P thermal protection is built in. Those are the marks a spec writer and an inspector look for on an institutional lighting package, and NEMA Premium is frequently called out by name in utility rebate paperwork for T8 systems.
6) I have T8 lamps but I am not sure they are rapid start. Will they work on this Advance dimming ballast?
The ballast is built for T8 RS lamps, meaning 4-pin rapid start style operation on standard bi-pin 32W T8 tubes. Programmed start circuitry needs both cathodes connected, so the fixture has to be wired with all four lamp leads landed, not a 2-lamp instant start wiring scheme with one lead per socket. On a retrofit, check the existing socket wiring before pulling the old ballast.
7) Can I put the Advance IZT2PSP32SC35I on a standard wall dimmer?
No. This is a dimming ballast for a low voltage dimming control system, not a line voltage phase-cut wall dimmer like you would use on incandescent or LED downlights. Wiring it behind an ordinary wall box dimmer will not dim the lamps and can damage the ballast. The control wiring runs separately from the 120-277 V line feed.
8) What does Class P thermal protection on a fluorescent ballast actually do for me?
Class P means a thermal cutout is built into the ballast case. If the windings run hot, whether from a failing lamp, a blocked fixture, or high ambient in a ceiling plenum, the ballast opens the circuit and resets once it cools instead of continuing to heat. It is a requirement for fluorescent ballasts in most indoor commercial fixtures, and it is what lets this Advance unit go into a recessed troffer without a separate protective device.
9) Will a 0.99 power factor ballast help with the power quality issues my facility engineer is flagging?
A 0.99 power factor is about as close to unity as fluorescent gear gets, so this Advance 2-lamp T8 ballast draws very little reactive current. Practically, that means more fixtures per branch circuit and less contribution to a power factor penalty on a commercial utility bill. Across a floor of troffers, the difference between a 0.99 and a low power factor ballast shows up in both the panel schedule and the bill.
10) What part number do I give my supplier for this Advance 2-lamp dimming ballast?
Order it as Advance IZT2PSP32SC35I. That is the full manufacturer part number for the 2-lamp F32T8 programmed start dimming ballast at 120-277 V, and it is the only model in the family described here, so there is no suffix or option code to add.
11) Is the Advance IZT2PSP32SC35I ballast made in the USA?
Yes, country of origin is the USA. That is worth noting on government, education and other publicly funded work where domestic sourcing shows up in the bid requirements.
