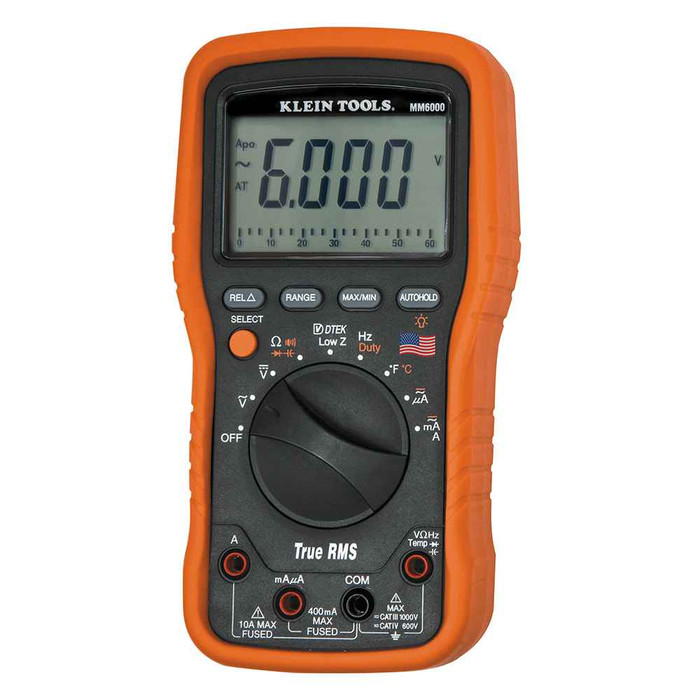

Klein Tools MM6000 Electricians / HVAC TRMS Multimeter

Klein Tools MM6000 Electricians / HVAC TRMS Multimeter

(No reviews yet) Write a Review

Model: MM6000
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$347.63
$297.63
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Electricians / HVAC TRMS Multimeter

  • Features

    • Temperature Range: -58~1832 degrees Fahrenheit
    • Low impedance reduces ghost voltage.
    • µA setting for checking flame sensors.
    • Auto ranging multimeter measures AC/DC voltage (1000V), AC/DC current (10A) and resistance.
    • Tests diodes and continuity.
    • Measures capacitance, frequency, duty cycle and temperature.
    • Durable, American-made True RMS Multimeter for accurate readings of all signals.
    • Includes lead warning, low battery indicator, auto power-off, 6000 count back lit display and lead storage.
    • Analog bar graph for fast moving readings.
    • Other features include: Data hold, auto hold, range hold, auto ranging, MAX/MIN, relative reading and micro amps.

Manufacturer Resources

Product Specs

Department:
Electrical
Product Group:
Test & Measurement
Product Subgroup:
Electrical Testers
Product Type:
Meter Socket

Klein Tools MM6000 – Frequently Asked Questions

1) Can the Klein MM6000 multimeter check a furnace flame sensor microamp signal?
Yes, the MM6000 has a dedicated microamp (uA) setting for checking flame sensors, which is the reading you need when a furnace lights and then drops out on flame rectification. That plus the temperature function is why this one is aimed at HVAC service work rather than being a plain electrician's meter.
2) Will the Klein MM6000 give false voltage readings on de-energized conductors run alongside live ones?
Less than a standard high impedance meter. The MM6000 uses low impedance input to reduce ghost voltage, so induced voltage bleeding off a parallel live conductor gets loaded down instead of showing as a phantom reading. That matters when you are tracing a dead circuit in a crowded raceway and need to trust the zero.
3) How much voltage and current can the Klein MM6000 measure?
The MM6000 auto ranges to 1000V AC or DC and 10A AC or DC, which covers panel work, motor circuits and control wiring up to 600V systems without swapping meters. Resistance, capacitance, frequency, duty cycle, temperature, diode test and continuity are all on the same dial.
4) Do I need a True RMS meter for VFD and electronic ballast circuits, or is an average responding meter enough?
On distorted waveforms, an average responding meter reads low. The MM6000 is a True RMS meter, so it reads the actual value on the non-sinusoidal signals you get off variable frequency drives, electronic ballasts, dimmers and switching power supplies. On clean sine wave power both types agree, so the difference only shows up where it matters most.
5) What temperature range does the Klein MM6000 read, and can it check a heat pump supply and return?
Temperature measurement runs -58 to 1832 degrees Fahrenheit. That spans refrigeration suction lines at the low end and flue or combustion temperatures at the high end, so supply and return delta T on a heat pump or furnace is well inside range.
6) Can the Klein MM6000 test a run capacitor on a condenser unit?
Yes, capacitance is one of the measurement functions, so you can check a run or start capacitor against its rated microfarads instead of guessing from a bulged can. Resistance, diode test and continuity are on the same meter for checking windings and control boards on the same call.
7) Is the Klein MM6000 display readable inside a dark mechanical room or panel?
The MM6000 has a 6000 count backlit display with an analog bar graph alongside the digits. The backlight handles dark closets and crawl spaces, and the bar graph tracks fast moving or fluctuating readings that the digital count cannot settle on, which is what you want when peaking a control signal or watching a contact chatter.
8) Can one person take a reading in an awkward spot with the MM6000 and read it afterward?
That is what the hold functions are for. Data hold freezes the reading you took, auto hold captures it without pressing anything, and range hold locks the meter out of auto ranging so it does not shift scale mid measurement. MAX/MIN and relative reading are also on board for logging a swing or zeroing out test lead resistance.
9) What is the exact model number to order for the Klein HVAC True RMS multimeter?
Klein Tools MM6000 is the part number, sold as a single model with no finish or configuration options to specify. It ships as the Electricians / HVAC TRMS Multimeter with lead storage built into the meter.
10) Does the Klein MM6000 warn you if the test leads are in the wrong jacks?
Yes. The MM6000 carries a lead warning that flags a lead plugged into the wrong jack for the selected function, which is the mistake that blows fuses when someone leaves the leads in the current jacks and goes to read voltage. It also has a low battery indicator and auto power-off.
