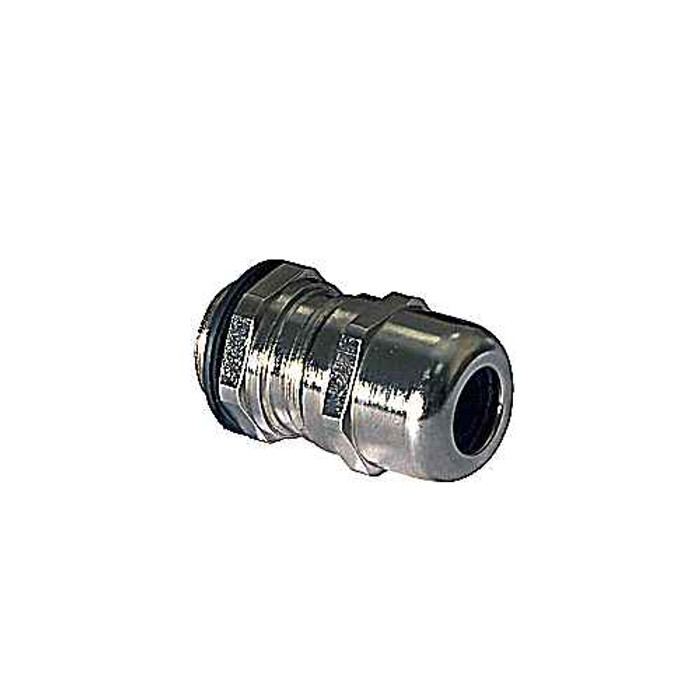

EMC Cable Gland
BEM-PG131 - spec sheet
Features
- Wide cable clamping range
- Extended radial contact with the shielding for improved EMI protection
- Good corrosion resistance
- Low profile compact cable glands
BEM-PG131 - spec sheet
Manufacturer Resources
Product Specs
- Color:
- Metallic
- Colour:
- Natural colour
- Conductor Range:
- 6 to 12 Millimeters
- Degree Of Protection Ip :
- IP68
- Emc Version:
- Y
- Etim:
- EC000441 Cable screw gland
- Finish:
- Nickel Plated
- Inner Dimensions Inches :
- 7.09x3.54x3.54
- Inner Quantity:
- 10
- Material:
- Metal
- Material Quality:
- Brass
- Nema Rating:
- NEMA 4
- Nominal Thread Size Metric Pg:
- 13.5
- Operating Temperature:
- -20-+100°C
- Outer Dimensions Inches :
- 3.94x15.75x11.02
- Outer Quantity:
- 50
- Product Group:
- Connectors
- Standard:
- cULus, RoHS, WEEE, LVD
- Suitable For Cable Diameter:
- 6 - 12mm
- Surface Protection:
- Nickel-plated
- Temperature Rating:
- -20 to +100 Degrees C
- Thread Length:
- 6.5mm
- Thread Type:
- PG
- Type:
- EMC Cable Gland
- Unspsc:
- 39121431 Cable gland connector
- Weight Uom:
- 0.01 lbs. Each
- Department:
- Electrical
- Product Subgroup:
- Electrical Connectors
- Product Type:
- EMC Cable Gland
- Product Model:
- Straight
