Emtek 2241 Brass Hinges Pivot ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$16.00
$12.80

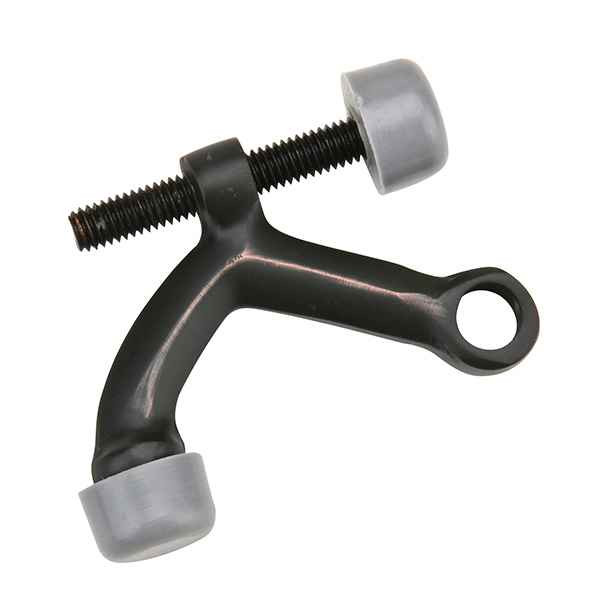

Emtek 2241 Hinge Pivot Stop in Oil Rubbed Bronze (US10B)

Emtek 2241 Brass Hinges Pivot Stop

(No reviews yet) Write a Review

Model: 2241.US4
From the Brass Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$16.00
$12.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Emtek 2241 Hinge Pin Door Stop

The Emtek 2241 is a hinge pin door stop machined from solid brass. It installs directly into the hinge pin location, requiring no wall or floor drilling. The rubber bumper absorbs door impact and protects the wall finish.

Features

  • Solid brass construction
  • Requires extended button tip (model 2242) when used with solid brass hinges
  • Not compatible with steel residential duty hinges
  • Limited lifetime warranty from Emtek

Specifications

  • Height: 2-3/8"
  • Projection: 1-3/4"
  • Material: Brass, Rubber

Solid Brass Construction

Emtek pivot hinge stops begin with raw bars of solid brass that are heated and pressed into specially made dies, producing a stronger, more substantial product. Solid brass is heavier, smoother, and naturally resists corrosion compared to lesser metals.

Product Specs

Subcategory:
Door Stops
Collection:
Brass
Product Type:
Door Stops - Hinge Pin
Product Group:
Door Trim and Accessories
Product Subgroup:
Door Stops, Holders, Silencers & Bumpers
Commercial/Residential:
Residential
Series:
Hinges Pivot Stop
Theme:
American Classic
Electronic:
No
MAP Policy:
Yes
Product Model:
2241
Product Style:
American Classic
Product Material:
Brass
Product Category:
Door Trim and Accessories
Product Substrate:
Brass
Department:
Door Hardware

Emtek 2241.US4 – Frequently Asked Questions

1) Will the Emtek 2241 hinge pin door stop work on standard steel hinges?
No. The 2241 is not compatible with steel residential duty hinges, which is what most builder-grade doors are hung on. If your hinges are plain steel, use a different hinge pin stop: the Orca Hardware HPDS Hinge Pin Door Stop or the Delaney Heavy Duty Hinge Pin Door Stop are both hinge pin units built for that. Check the hinge before ordering the Emtek, because the wrong pairing here means the stop won't seat.
2) Do I need anything else to use the Emtek 2241 stop on solid brass hinges?
Yes, one extra part. On solid brass hinges the 2241 needs Emtek's extended button tip, model 2242, and that tip is a separate order. Plan on one 2241 and one 2242 per door. On any other compatible hinge the stop goes on as-is.
3) Is the Emtek 2241 hinge pin stop suitable for a commercial building or apartment common doors?
The 2241 is a residential-duty product, so it suits houses, condos and unit interiors rather than a commercial corridor or a high-traffic common door. For those openings, the Delaney Door Saver Commercial Hinge Pin Door Stop is the commercial version of the same idea, and the Delaney Heavy Duty Hinge Pin Door Stop is the heavier residential option. Same install approach, built for more cycles.
4) What is the closest alternative to the Emtek 2241 hinge pin stop for a commercial opening?
The Emtek 2241 is a residential-duty solid brass hinge pin stop measuring 2-3/8 inches high with a 1-3/4 inch projection. For an opening specified as commercial, Delaney builds the Door Saver Commercial Hinge Pin Door Stop (DLY-40120X) and the Heavy Duty Hinge Pin Door Stop (DLY-402XXX), and Orca builds the HPHD HD Hinge Pin Stop (ORC-TH-HPHD). All of them mount the same way, at the hinge barrel rather than the floor or wall, so the swap does not change the door prep.
5) Are the Orca hinge pin stops a direct swap for the Emtek 2241?
They mount in the same place but they do a different job. Orca's HPDS Hinge Pin Door Stop (ORC-TH-HPDS), HPHD HD Hinge Pin Stop (ORC-TH-HPHD) and HPST Series Hinge Pin Stop (ORC-TH-HPST) all carry a door holder function, meaning they are set up to hold the door at a chosen position. The Emtek 2241 is a hinge pin door stop built of brass with a rubber bumper, which arrests the swing before the knob or lever reaches the wall. If the requirement is to park a door open, the Orca units answer it; if the requirement is to protect the wall, the 2241 does.
6) The doors have steel residential duty hinges. What hinge pin stop should be used instead of the Emtek 2241?
The Emtek 2241 is not compatible with steel residential duty hinges; it is a solid brass unit, and on solid brass hinges it takes the extended button tip 2242. Where the existing hinges are steel, the hinge pin stops to look at are the Delaney Heavy Duty Hinge Pin Door Stop (DLY-402XXX), the Delaney Door Saver Commercial Hinge Pin Door Stop (DLY-40120X) and the Orca HPHD HD Hinge Pin Stop (ORC-TH-HPHD). Check the hinge the stop is going onto before ordering, since hinge pin stops are matched to the pin and barrel they clamp over.
7) Does installing a hinge pin door stop require drilling into the wall or baseboard?
No drilling. A hinge pin stop like the Emtek 2241 mounts at the hinge barrel and works off the hinge pin, so nothing gets fastened to the door face, the jamb, the wall or the trim. That's why it's the common pick in rentals, finished rooms and anywhere a wall-mount or floor-mount stop would leave a hole. The one constraint is the hinge itself: the 2241 rules out steel residential duty hinges, and solid brass hinges need the 2242 extended button tip.
8) How far does the Emtek 2241 let the door swing open before it stops?
Projection on the 2241 is 1-3/4 inches, with an overall height of 2-3/8 inches. The projection is the number that matters: it's how far the rubber tip stands out from the hinge, and that's what decides how wide the door opens before contact. A longer projection stops the door sooner, a shorter one lets it swing further. If you're trying to keep a lever off drywall or a piece of casework, measure your current swing and compare against that 1-3/4 inches.
9) Will a hinge pin door stop hold the door open, or just stop it?
The Emtek 2241 stops the door, it doesn't hold it. It limits the swing and cushions the contact, then the door is free to move again. If you want the door to stay put once it's open, that's a door holder, and Orca Hardware's HPDS, HPHD and HPST hinge pin units are listed with a door holder function. Both types mount the same way at the hinge, so it's a straight choice between the two behaviors.
10) What finishes does the Emtek 2241 hinge pin stop come in to match my existing Emtek hardware?
Twelve finishes: Polished Brass - Lifetime (US3), Unlacquered Brass (US3NL), Satin Brass (US4), French Antique (US7), Oil Rubbed Bronze (US10B), Polished Nickel (US14), Satin Nickel (US15), Pewter (US15A), Flat Black (US19), Polished Chrome (US26), Medium Bronze (MB) and Tumbled White Bronze (TWB). Order by the US code your levers and hinges already carry and it will read as a set. Note that the US3NL option is unlacquered, so it is a living finish that darkens over time rather than staying bright like US3.
11) What is the part number for the Emtek 2241 hinge pin stop in oil rubbed bronze?
Oil rubbed bronze is SPC224110B. Emtek numbers this stop as SPC2241 plus the finish code, so flat black is SPC224119, polished chrome is SPC224126, satin nickel is SPC2241US15, pewter is SPC2241US15A, polished brass is SPC22413, satin brass is SPC22414, French antique is SPC22417, polished nickel is SPC224114 and medium bronze is SPC2241MB. Give your supplier the base number and the finish and you'll get the right one.
12) Do I need a left hand or right hand version of the Emtek 2241 hinge pin stop?
Handing isn't a factor. A hinge pin stop works off the hinge barrel, so the same 2241 goes on a left hand or right hand door and adapts to whichever way the door swings. Only one part number per finish, no handed variants to sort out. What does need checking is the hinge type, since steel residential duty hinges are ruled out.
13) Will a hinge pin door stop mark up the door or the casing where it makes contact?
The Emtek 2241 pairs a solid brass body with a rubber contact tip, so metal never lands on metal or on finished wood at the stop point. The rubber takes the hit and quiets it. Brass also holds up outdoors and in humid rooms better than plated steel, which is worth something on a bathroom or a back entry door.
14) Which hinge pin door stop can be matched to a decorative brass trim suite?
The Emtek 2241 is the one built for that. It is forged solid brass and comes in twelve finishes, including Unlacquered Brass, Polished Brass Lifetime, Satin Brass, French Antique, Oil Rubbed Bronze, Medium Bronze, Tumbled White Bronze, Polished Nickel, Satin Nickel, Pewter, Flat Black and Polished Chrome, so the stop can be ordered in the same finish as the knobs and levers on the same doors. The Delaney Door Saver Commercial Hinge Pin Door Stop (DLY-40120X) and the Orca HPST Series Hinge Pin Stop (ORC-TH-HPST) are hinge pin stops from their own separate lines rather than part of an Emtek brass suite.
15) We are standardizing hinge pin stops across a mixed portfolio of residential and heavier-traffic doors. How do the options divide up?
By the duty the door sees. The Emtek 2241 covers the residential side, a solid brass hinge pin stop 2-3/8 inches high with a 1-3/4 inch projection, offered in twelve finishes so it can follow the trim finish from unit to unit. Delaney splits its hinge pin stops into the Door Saver Hinge Pin Door Stop series (DLY-40120X), which is the commercial one, and the Hinge Pin Door Stop series (DLY-402XXX), which is the heavy duty one. Orca runs three: the HPDS Series (ORC-TH-HPDS), the HPHD Series (ORC-TH-HPHD) and the HPST Series hinge pin stop (ORC-TH-HPST), all of which carry a door holder function. One part number rarely covers both ends of a mixed portfolio, so most buyers standardize on the Emtek 2241 for finished residential doors and a commercial or heavy duty hinge pin stop for the rest.
