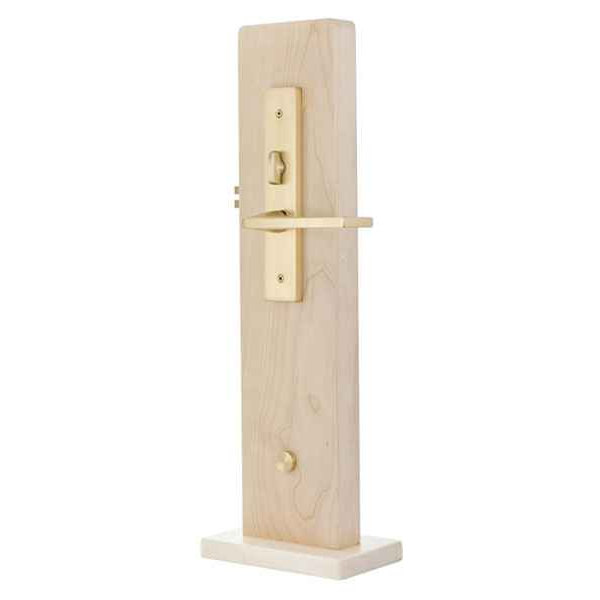

Emtek 3312 Adelaide Brass Mortise Entrance Handleset - Entry Set

Handing is required on the Adelaide 3312, and it is not field-reversible the way a tubular lock is. You pick from LH, RH, LHR, or RHR, with the LHR and RHR options being the out-swing door choices. Stand outside the door: if the hinges are on your left and the door swings away from you, that is LHR. Get it wrong and the lever or knob throw and the latch bevel end up backwards for the opening.

The Adelaide 3312 uses standard mortise door prep to ANSI A115.1, so if your door is already mortised for a commercial-standard mortise lock body, the case drops into that pocket. Backset is either 2-1/2 inch or 2-3/4 inch, and that has to match the prep you already have, because the backset sets how far the cylinder and trim sit from the door edge. On a fresh door, either backset can be prepped.

F20 is the standard entrance function: key retracts the latch from outside, and the inside knob or lever always gives free egress, with the outside trim locked or unlocked from the inside. F13 is dormitory, where the outside trim stays locked and is released only by key, so the door secures behind whoever leaves. Both are offered on the 3312 and both are UL Listed mortise functions. Pick F13 for a unit or bedroom door you want locked by default, F20 for a normal front entrance.

The Adelaide 3312 is a single cylinder keyed entry running the Schlage C keyway, so it can be keyed alike to anything else on Schlage C. Ordering gives you keyed different or keyed alike, and there is a field for keying to an existing code if you are matching a key you already carry. Property managers standardizing a building should give the code at order time rather than rekeying on site.

A mortise set puts the latch and the deadbolt in one case inside a pocket cut into the door edge, which is the stronger arrangement and why it shows up on heavy entry doors. It requires a real mortise pocket cut to ANSI A115.1, so it is not a drop-in on a door already bored for a tubular handleset. If your door is bored rather than mortised, a tubular set is the sensible route, for example the Schlage Residential F60 Addison keyed entry handleset with Accent lever or the Weslock 2810 Hillcrest single cylinder handleset with Hudson knob.

The Emtek 3312 Adelaide is a mechanical, non-electronic handleset keyed to a Schlage C keyway. For electronic access, the Yale Real Living BYRD226CBARX Assure Lock Wi-Fi Bluetooth Touchscreen Deadbolt with Ridgefield Handleset fits 1-3/4 to 2-1/4 inch doors, and the BYRD226NRRX is the standalone touchscreen version of the same set for the same thickness range. The Kwikset 815SCEHFL-CP913CNT San Clemente Handleset with Halifax lever pairs a handleset with a Contemporary SmartCode electronic deadbolt on 1-3/4 inch doors. All of these are deadbolt-plus-handleset assemblies rather than mortise locks, so the door prep is different.

The Emtek 3312 Adelaide is a mortise lock handleset with an entry function and a single cylinder. The nearest mortise-based alternative is the Baldwin Estates 6542 Tremont Single Cylinder Entry Mortise Trim, which is also entrance function mortise trim and lists a 1-3/4 inch door thickness. If you need both sides keyed on a mortise body, the Baldwin Estates 6542 Tremont Double Cylinder Entry Mortise Trim covers the double cylinder version of the same trim. The Adelaide 3312 differs in that it is ordered as a complete set with latch and strike, in 2-1/2 or 2-3/4 inch backset, F20 entrance or F13 dormitory function, with a Schlage C keyway and handing specified.

The Emtek 3312 Adelaide requires a standard mortise door prep to ANSI A115.1, so the door has to be pocketed. If the door is bored rather than mortised, entrance-function handlesets that fit bored doors include the Schlage Residential F60 Addison Single Cylinder Keyed Entry Handleset with Accent Lever, a Grade 2 F Series set for 1-3/8 to 1-3/4 inch doors, and the Kwikset 687AMD Amador Single Cylinder Handleset, a Grade 3 entrance set for 1-3/4 inch doors. The Pamex FS7P31 Lexington Single Cylinder Handleset is another entry-function option, covering 1-3/8 to 1-3/4 inch doors.

Several handlesets that look similar are not keyed. The Weslock 6695 Belmont Dummy Handleset with Impresa Knob and the Weslock 2815 Hillcrest Dummy Handleset with New Heaven Lever are dummy function, meaning no latch operation. The Schlage Residential JE285 Barcelona Style Handleset with Seville Lever is a non-keyed entry function set. The Emtek 3312 Adelaide is keyed, single cylinder, in F20 entrance or F13 dormitory function.

It ships as a complete set, mortise lock body and strike plate included. What you do choose is the inside trim, since the exterior handle is paired with any Emtek brass knob or lever for the interior, so nothing else is needed to finish the opening beyond screws for the strike into the frame.

The inside trim is a required choice from Emtek's full brass knob and lever range, roughly ninety styles. That spans contemporary bars and knurled shapes (T-Bar, R-Bar, L-Square, Conical, Spoke, The Ace), traditional levers (Cortina, Milano, Turino, Rope, Ribbon and Reed, Rustic), and crystal knobs (Windsor, Bristol, Diamond, Georgetown, Hampton). If you are matching interior doors already fitted with Emtek trim, order the same style here and the door reads as one set.

The closest peer is the Baldwin Estates 6542 Tremont entry mortise trim, offered in single cylinder and double cylinder for 1-3/4 inch doors. The double cylinder version takes a key on both sides, which matters on a door with glass beside the lock but is restricted in some jurisdictions for egress. The Adelaide 3312 is single cylinder only, so if you need key-both-sides the Baldwin 6542 double cylinder is the one to look at.

The Adelaide 3312 is built for 1-3/4 inch as standard and thicker doors are handled by calling out the thickness when ordering, which is a made-to-order path. If you want something that covers a thickness range off the shelf, the Deltana 810871 Montego handleset covers 1-3/8 to 2 inches and the Weslock 2810 Hillcrest covers the same span; the Weslock 1411 Traditionale Colonial with Eleganti knob runs 1-3/4 to 2-1/4 inches. Those are bored-door handlesets rather than mortise, so they suit a different prep.

Emtek classes the Adelaide 3312 as residential trim, though the mortise case behind it is a UL Listed F20 or F13 running standard ANSI A115.1 prep. It suits high-end homes, multi-family unit doors, and hospitality entrances where the look matters. For a straight commercial spec driven by an ANSI grade, look at graded handlesets instead, such as the Master Lock HDLB Series Grade 2 single cylinder deadbolt handleset.

They serve the same opening but are not the same lock. The Emtek 3312 Adelaide is a mortise handleset in brass with a Schlage C keyway, 2-1/2 or 2-3/4 inch backset and handing specified at order. The Deltana 803871B Hanover Handleset and the Deltana 815871 St. Ann Handleset are solid brass entry-function handlesets, as is the Deltana 825871 Kingston Handleset. Choose on the door prep you have and the trim style you want; the Adelaide also lets you pick the inside knob or lever separately from a large brass range.

No. The Emtek 3312 Adelaide is sold as a complete set including the latch and strike plate, with the inside knob or lever chosen as part of the order. If you need the exterior trim only, the Kwikset 687AMD SMC Amador Single Cylinder Handleset is supplied exterior only with an SC1 keyway and SmartKey, as is the Kwikset 687BW Belleview, both Grade 3 for 1-3/4 inch doors.

Both are entrance-function handlesets. The Baldwin 180WYHXATK pairs the Wesley handleset with the Alcott knob and the 180WYHXCYK pairs it with the Carnaby knob, so the interior knob is fixed by the part number you order. The Emtek 3312 Adelaide is a mortise lock in brass where the inside knob or lever is selected separately from a wide brass range, and the order also specifies backset of 2-1/2 or 2-3/4 inch, handing, and F20 entrance or F13 dormitory function.

Yes. The Yale Real Living BYRD256 CBARX Assure Key Free Touchscreen Deadbolt with Ridgefield Passage Handleset and trim is a Wi-Fi set for 1-3/4 to 2-1/4 inch doors, and the BYRD256CBARX Assure Lock 2 key-free touchscreen deadbolt with Wi-Fi and Ridgefield handleset covers 1-3/8 to 2-1/4 inch doors. Both remove the cylinder entirely. The Emtek 3312 Adelaide is keyed with a single cylinder on a Schlage C keyway, so it keeps mechanical key control and can be keyed alike across doors.

Six finishes: Flat Black (US19), Oil Rubbed Bronze (US10B), Polished Chrome (US26), Satin Brass (US4), Satin Nickel (US15), and Unlacquered Brass (US3NL). The body is solid brass, and the Unlacquered Brass option is the living finish that will darken and patina rather than hold its original color, so avoid it if you need a matched fleet of doors to stay looking identical.
