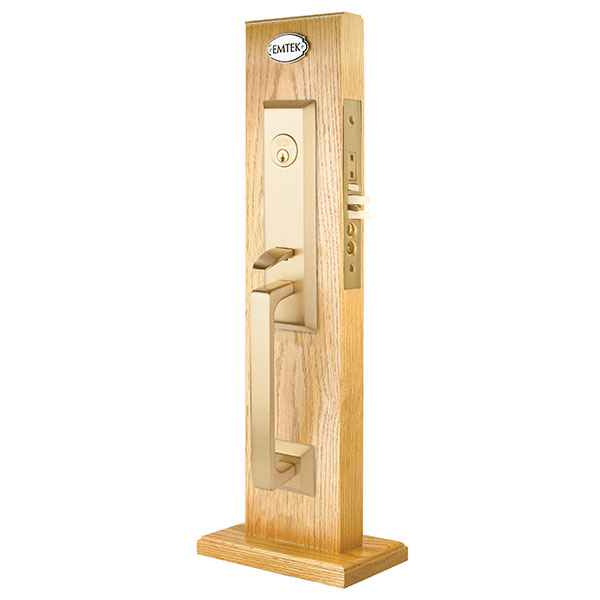

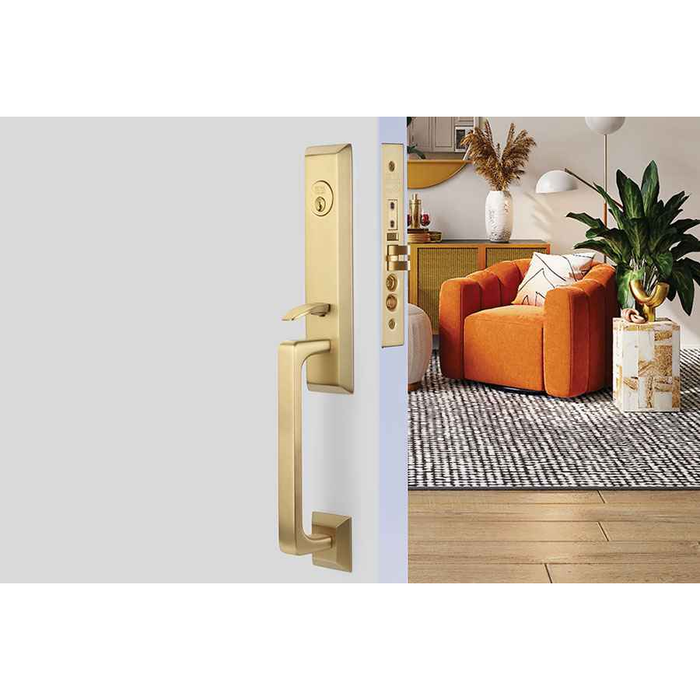

Emtek 3339 Transitional Heritage Brass Mortise Entrance Handleset - Entry Set

Handing is required on every Emtek mortise lock, so you have to state it on the order. The 3339 is built in LH, RH, LHR and RHR. LHR and RHR are the out-swing versions, so if the door swings out toward you when you're standing outside it, you want one of those. Get this wrong and the lever or knob throws the wrong way and the latch bevel faces the wrong direction.

Two backsets are built: 2-1/2 inch and 2-3/4 inch. Measure from the door edge to the center of the knob or lever hub on what's in the door now and order to match. The 3339 uses standard mortise door prep to ANSI A115.1, so if your door is already pocketed to that standard prep the case drops into it.

Both are offered. F20 is the entrance function, the normal choice for a house or apartment front door: key outside, thumbturn or button control inside. F13 is the dormitory function, where the inside is always free to exit but the outside stays locked until you key it, so it can't be left unlocked by accident. Multi-family and rental owners usually go F13 for that reason. Either way it's a single cylinder set keyed to Schlage C.

The mortise lock in the 3339 is UL Listed and carries a UL 180 minute fire rating, so it's usable on a rated opening within that rating. It's a mortise case in a standard ANSI A115.1 prep, not a tubular deadbolt and knob.

The 3339 uses the Schlage C keyway, so it runs on the same key blank family as standard Schlage residential cylinders and can be keyed into an existing C-keyway system. Keying is set at order time: keyed different, keyed alike across several sets, or keyed to a specific code you supply.

It ships as a complete set with the mortise latch and strike plate included. The inside trim is chosen as part of the order rather than bought separately: any Emtek brass knob or lever can be paired with it, from levers like Stuttgart, Helios, Athena and Luzern to knobs like Ace, Spoke, Orb and Round, plus crystal options such as Bristol, Windsor and Modern Disc.

No, not without specifying it. The 3339 is built to 1-3/4 inch as standard, and 1-3/8 inch is the common older interior door thickness that a standard commercial-thickness mortise set isn't cut for. If you're on 1-3/8 inch, a handleset with a range that covers it fits better, for example the Pamex FS7P31 Lexington at 1-3/8 to 1-3/4 inch, or the Deltana 810871 Montego at 1-3/8 to 2 inch.

The Emtek 3339 Transitional Heritage is a brass mortise entry handleset that uses standard mortise door prep to ANSI A115.1. If you want a different look on the same mortise pocket, Baldwin's Estates 6542 Tremont entry mortise trim is the peer that also works on a mortise prep, in a single cylinder version (BAL-6542ENTR) and a double cylinder version (BAL-6542DBLC), both listed for 1-3/4 inch doors. The Emtek 3339 is a single cylinder set, so the Baldwin 6542 double cylinder is the option when you need a key on the inside as well.

The Emtek 3339 is built for 1-3/4 inch doors as standard and thicker doors have to be specified when ordering. If you would rather buy a set catalogued for the thicker door outright, the Weslock 1411 Traditionale Colonial handleset with Eleganti knob (01411-AEASL2D) is a single cylinder set listed for 1-3/4 to 2-1/4 inch doors. The Weslock 2810 Hillcrest single cylinder handleset with Hudson knob (WES-2810-G) covers 1-3/8 to 2 inch, and the Deltana 810871 Montego handleset covers 1-3/8 to 2 inch as well.

No. The Emtek 3339 is a keyed entry mortise handleset. The Weslock 2815 Hillcrest with New Heaven lever and the Weslock 6695 Belmont with Impresa knob are both dummy function handlesets, meaning they are fixed trim with no latch or lock action. They look like a handleset substitute but will not secure or latch an entry door. Use them on an inactive leaf of a pair while the 3339 handles the active, keyed opening.

They solve different problems. The Emtek 3339 is a UL listed mortise handleset with a 180 minute fire rating, keyed on a Schlage C keyway. The Kwikset 815SCEHFL-CP913CNT San Clemente handleset comes with a Halifax lever interior trim and a contemporary SmartCode keypad electronic deadbolt, SmartKey, with RCAL latch and RCS strike, from the Signature Series for 1-3/4 inch doors. Its function is a handleset with an electronic deadbolt, so it brings code entry the 3339 does not, while the 3339 is the one to specify when a fire rated mortise opening is the requirement.

No, and this is where a substitution goes wrong on the jobsite. The Emtek 3339 is sold as a complete set including latch and strike plate, with the inside trim chosen from Emtek's brass knobs and levers. The Kwikset 687AMD Amador and 687BW Belleview single cylinder keyed handlesets are exterior only, so the interior trim is a separate purchase. The Kwikset 687AMD comes in a SmartKey version and an SC1 keyway SmartKey version, both Grade 3 for 1-3/4 inch doors.

Six: Flat Black (US19), Oil Rubbed Bronze (US10B), Polished Chrome (US26), Satin Brass (US4), Satin Nickel (US15) and Unlacquered Brass (US3NL). The set is solid brass. Unlacquered brass is the one to know about before you order, it has no clear coat and will patina with handling, which is the intent but surprises people who expected it to stay bright.

A mortise set puts the latch and the deadbolt in one steel case pocketed into the door edge, so it's one prep, one lock body, and the handle and bolt work together. Tubular handlesets bore two round holes instead and are simpler to install and to retrofit. The trade is prep: the 3339 needs a proper ANSI A115.1 mortise pocket, which a door bored for a tubular set doesn't have. If your door is bored rather than mortised, a tubular alternative like the Weslock 2810 Hillcrest or the Schlage F60 Addison suits the existing prep.

On the mortise side, Baldwin's Estates 6542 Tremont entry mortise trim is the closest peer, offered in single cylinder and double cylinder versions and listed for 1-3/4 inch doors. Note it's trim, so it's the handle and escutcheon set rather than a complete set with latch and strike the way the 3339 is. Most other brass handlesets in this class, the Deltana Hanover, St. Ann and Kingston sets among them, are tubular rather than mortise.

Yes, and the way to do it is to hold the finish and the interior trim style constant while varying handing and function per opening. Six finishes are offered and any Emtek brass knob or lever can be specified as the inside trim, so a run of doors can carry identical exterior and interior appearance. Order keyed alike, or keyed to your existing Schlage C code, to run one key across the group. Note this is a residential collection, not a commercial-grade line.

Single cylinder. Key on the outside, thumbturn or interior control on the inside, no key needed to get out. That's what most jurisdictions want on a residential egress door. If you specifically need a key on both sides, for a glass-panel door where someone could reach the inside turn, the Baldwin Estates 6542 Tremont is offered as a double cylinder entry mortise trim.

Handing has to be specified on the Emtek 3339 in LH, LHR out-swing, RH or RHR out-swing, as it does on all mortise locks. Bored-prep peers sidestep that question: the Schlage F60 Addison keyed entry handleset with Accent lever, Grade 2 for 1-3/8 to 1-3/4 inch doors, and the Kwikset 687BW Belleview single cylinder keyed entry handleset with SmartKey, Grade 3 for 1-3/4 inch doors, are both entrance-function sets. The tradeoff is that the 3339 gives you a mortise body carrying ANSI F20 entrance or F13 dormitory function, which a bored set does not offer.

The Emtek 3339 is a non-electronic keyed mortise entry handleset on a Schlage C keyway. The Yale Real Living Assure sets pair a touchscreen deadbolt with the Ridgefield handleset and are a different animal: BYRD226CBARX is Wi-Fi and Bluetooth, BYRD226NRRX is standalone, and BYRD256 CBARX is a key free Wi-Fi version with the Ridgefield passage handleset and trim. Those Assure sets are listed for 1-3/4 to 2-1/4 inch doors. If the opening needs to be keyed into an existing Schlage C key system with no electronics and no batteries, the 3339 is the set that does it; if credentialed access matters more than the key system, the Assure sets are where to look.

The Emtek 3339 is a single cylinder keyed mortise entry set, with the lock function in the mortise body itself. Where the latching is passage and the security comes from a separate deadbolt, the Schlage Residential JI18/19 interconnected passage lock with keyed deadbolt and Torino lever in satin stainless steel is the peer that splits those functions, Grade 2 for 1-3/8 to 1-3/4 inch doors. The Schlage JE285 Barcelona style handleset with Seville lever is a non-keyed entry function handleset, also Grade 2 and 1-3/8 to 1-3/4 inch, for an opening where the handleset carries no cylinder at all.

The Emtek 3339 is solid brass in six finishes: Flat Black US19, Oil Rubbed Bronze US10B, Polished Chrome US26, Satin Brass US4, Satin Nickel US15 and Unlacquered Brass US3NL. For solid brass entry handlesets in other styling, Deltana offers the 803871B Hanover, the 815871 St. Ann and the 825871 Kingston, all solid brass entry handlesets. The difference to weigh is the lock body: the 3339 works a mortise pocket, so a change of style here is not a like-for-like swap on a door already mortised.

Among the entrance-function handleset peers, the Master Lock HDLB Series HDLBA0615/4D single cylinder deadbolt handleset is Grade 2, the Schlage F60 Addison with Accent lever is Grade 2, and the Kwikset 687 Amador and 687BW Belleview handlesets are Grade 3. The Emtek 3339 is a residential brass mortise set that is UL listed with a 180 minute fire rating and runs ANSI F20 entrance or F13 dormitory function, which is the specification line to compare on where a fire rated opening is in play.

The Emtek 3339 is set up for 1-3/4 inch doors as standard. On a 1-3/8 inch door, the Pamex FS7P31 Lexington single cylinder handleset in satin nickel is an entry-function peer listed for 1-3/8 to 1-3/4 inch, and the Deltana 810871 Montego handleset covers 1-3/8 to 2 inch. Both are bored-prep style sets rather than mortise, so the door prep changes along with the thickness.

Both let you pair the exterior handleset with an interior knob, but they are sold differently. The Emtek 3339 is ordered as one set with the inside trim selected from any Emtek brass knob or lever. Baldwin's Wesley handleset is catalogued as fixed pairings: BAL-180WYHXATK is the Wesley handleset with the Alcott knob and BAL-180WYHXCYK is the Wesley handleset with the Carnaby knob, both entrance function. So with Baldwin you pick from the built combinations, while the 3339 lets you build the combination.

It's fully mechanical, no electronics and no wiring. If you want a keypad or app-controlled front entry with a handleset, the electronic options are separate products, such as the Yale Assure Lock touchscreen deadbolt with Ridgefield handleset, or the Kwikset San Clemente handleset with the SmartCode keypad deadbolt.
