Emtek 4219 Hercules Knurled Fu...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$684.00
$547.20

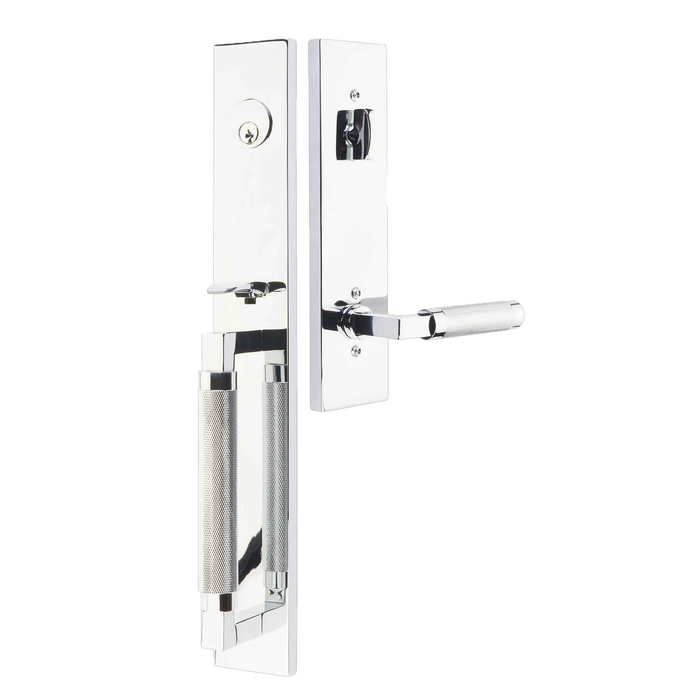

Emtek 4219 Hercules Knurled Full Length Single Cylinder Entrance Handleset - Brass Tubular

Emtek 4219 Hercules Knurled Full Length Single Cylinder Entrance Handleset - Brass Tubular

(No reviews yet) Write a Review

Model: 4219-US26
From the Brass Collection
$684.00
$547.20
Selected Finish is
Selected Knob or Lever Style for Inside Trim is
Selected Handing is
Selected Backset is
Selected FREE KEYING Options is
  • Emtek Emtek 443 Interconnect Device EMTEK-443

In Stock (leaves warehouse same day if ordered before 3pm ET)

$684.00
$547.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Emtek 4219 Hercules Knurled Full Length Single Cylinder Entrance Handleset - Brass Tubular

  • Can be ordered with any Brass Knob or Lever for the inside trim
  • Sold as a complete set. Includes Latch and Strike Plate
  • Standard 2-1/8" Door Prep. Door Prep 5-1/2" Center-to-Center
  • Schlage C Keyway
  • Standard latch is for 2-3/8" backset. Specify 2-3/4" backset if required
  • Handing required if Lever used on inside or if Interconnect device is specified

Weiser® (WR5) Keyway

Specify by adding "W" to the beginning of Product Code for Weiser (WR5) Keyway.
No upcharge for cylinder substitution. Can be keyed into existing Weiser system.





Specifications:

  • Backset: 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Door Thickness: 1-3/8" to 2"
  • Keyway: Schlage C
  • Handing: Required – specify left or right



Manufacturer Resources:

Product Specs

Subcategory:
Handlesets
Collection:
Brass
Product Type:
Handlesets
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Keyed Function:
Single Cylinder
Commercial/Residential:
Residential
Lock Type:
Tubular
Keyed:
Yes
Lock Function:
Entry
Series:
Hercules
Theme:
Contemporary
Electronic:
No
Handle Type:
Handleset
MAP Policy:
Yes
Product Model:
4219
(CTC) Center-to-Center:
5-1/2"
Product Function:
Entry
Product Style:
Contemporary
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 4219-US26 – Frequently Asked Questions

1) Can I key the Emtek 4219 handleset to my existing Schlage or Weiser keys?
Both are covered. The 4219 ships standard with a Schlage C keyway, and a Weiser WR5 keyway version is orderable instead, with no upcharge for the cylinder substitution. The Weiser cylinder can be keyed into an existing Weiser system. On the order form you also choose keyed different or keyed alike, and there is a keying-to-code field if you have a bitting code you need matched to the rest of the building.
2) Does the Emtek 4219 handleset need handing, and how do I tell left from right?
Handing is required and it is a mandatory selection on the order, left hand or right hand. It matters in two cases in particular: if you pick a lever for the inside trim rather than a knob, and if you add the interconnect device. Stand outside the door: if the hinges are on your left it is a left hand door, hinges on the right is right hand. Get this wrong on a lever and the lever points the wrong way.
3) My door is bored for a 2-3/4 inch backset. Will the Emtek 4219 work, or is it 2-3/8 only?
Both backsets are available on the 4219. The standard latch supplied is 2-3/8 inch, and 2-3/4 inch has to be specified at the time of order. Measure from the door edge to the center of the 2-1/8 inch cross bore and pick to match; ordering the standard 2-3/8 latch for a 2-3/4 bore means the latch will not reach the strike.
4) What comes in the box with the Emtek 4219 Hercules handleset, and what do I have to order separately?
The 4219 is sold as a complete set with the latch and strike plate included. What you have to choose is the interior trim: the inside knob or lever is a required selection, not an assumption, and any Emtek brass knob or lever can be paired with it. Backset, handing, and keying are also required selections. The only optional add-on is the Emtek 443 interconnect device, if you want the handle to retract the deadbolt with the interior trim.
5) What is the closest alternative to the Emtek 4219 Hercules handleset for a 1-3/4 inch door if I want a mortise lock instead of a tubular one?
The Emtek 4219 Hercules is a tubular entrance handleset with a single cylinder, and it fits doors from 1-3/8 to 2 inches. If the opening calls for mortise trim instead, the Baldwin Estates 6542 Tremont Single Cylinder Entry Mortise Trim is an entrance-function set built for a 1-3/4 inch door. Both are single cylinder entry, so the exterior key and interior thumbturn arrangement is the same idea; the difference is the lock body prep in the door - the 4219 uses a 2-1/8 inch cross bore with a 2-3/8 or 2-3/4 inch backset, while the Baldwin 6542 goes over a mortise pocket.
6) My door is 2-1/4 inches thick - the Emtek 4219 tops out at 2 inches, so what entry handleset fits?
The Emtek 4219 Hercules covers 1-3/8 to 2 inch doors, so a 2-1/4 inch door is past its range. The Weslock 1411 Traditionale Colonial handleset with Eleganti knob is single cylinder function for 1-3/4 to 2-1/4 inch doors. On the electronic side, the Yale Real Living BYRD226NRRX Assure Lock with Ridgefield handleset and the BYRD226CBARX Wi-Fi and Bluetooth version both cover 1-3/4 to 2-1/4 inches.
7) I want a keypad or app-controlled front door instead of a keyed handleset - what replaces the Emtek 4219?
The Emtek 4219 Hercules is a mechanical, non-electronic keyed handleset. For an electronic opening, the Kwikset 815SCEHFL-CP913CNT San Clemente handleset pairs a Halifax lever interior with a contemporary SmartCode keypad deadbolt and SmartKey, on a 1-3/4 inch door. The Yale Real Living BYRD226CBARX Assure Lock pairs a Wi-Fi and Bluetooth touchscreen deadbolt with the Ridgefield handleset for 1-3/4 to 2-1/4 inch doors, and the BYRD226NRRX is the standalone touchscreen version of the same pairing. Note the door thickness: the 4219 covers 1-3/8 to 2 inches, so a thin 1-3/8 inch door that suits the 4219 falls outside the Yale range.
8) Which solid brass entry handleset covers the same 1-3/8 to 2 inch door range as the Emtek 4219?
The Emtek 4219 Hercules is a solid brass entry handleset that fits doors 1-3/8 to 2 inches thick. The Deltana 810871 Montego handleset carries the same 1-3/8 to 2 inch door thickness range. If the door is at the thin end of that range and the brass look matters, both cover it. Deltana also offers the Hanover 803871B, the St. Ann 815871, and the Kingston 825871, all solid brass entry handlesets, if the Montego trim style is not the one the job wants.
9) I need an ANSI grade stated for a spec submittal - what entry handleset carries a published grade if the Emtek 4219 is the design intent?
For a submittal that has to show a grade, the Master Lock HDLBA0615/4D single cylinder deadbolt handleset is Grade 2 entrance function, and the Schlage Residential F60 Addison keyed entry handleset is Grade 2 for 1-3/8 to 1-3/4 inch doors. The Kwikset 687AMD Amador and 687BW Belleview single cylinder handlesets are Grade 3 entrance, both for 1-3/4 inch doors. The Emtek 4219 Hercules is a residential brass entry set with a Schlage C keyway and a 5-1/2 inch center-to-center prep, so where the grade line on the drawing is the deciding factor, one of the graded sets above answers it directly.
10) Can I use a Weslock 2815 Hillcrest or a Weslock 6695 Belmont in place of the Emtek 4219 Hercules entrance handleset?
No - those are dummy handlesets. The Weslock 2815 Hillcrest with New Heaven lever and the Weslock 6695 Belmont with Impresa knob are both dummy function, meaning fixed trim with no latch and no key. The Emtek 4219 Hercules is a keyed single cylinder entry set that includes the latch and strike plate. For an operating keyed opening from Weslock, the 2810 Hillcrest handleset with Hudson knob is single cylinder function and fits 1-3/8 to 2 inch doors, and the Weslock 1411 Traditionale Colonial with Eleganti knob is single cylinder for 1-3/4 to 2-1/4 inch doors.
11) Is the Schlage JE285 Barcelona handleset a substitute for the Emtek 4219 on a keyed front door?
It is not. The Schlage Residential JE285 Barcelona with Seville lever is a non-keyed entry function set, Grade 2, for 1-3/8 to 1-3/4 inch doors - it operates the door but takes no key. The Emtek 4219 Hercules is keyed, single cylinder, with a Schlage C keyway as standard and a Weiser WR5 keyway option that can be keyed into an existing Weiser system. If the door needs a key from outside, the JE285 will not do it; the Schlage F60 Addison is the keyed entry set in the same residential family.
12) I am standardizing apartment entries on a SmartKey system - can I still use the Emtek 4219 Hercules?
The Emtek 4219 Hercules ships with a Schlage C keyway as standard and can be ordered with a Weiser WR5 keyway at no cylinder upcharge, which lets it key into an existing Weiser system. It does not offer SmartKey. Where the fleet is on SmartKey, the Kwikset 687AMD Amador and 687BW Belleview single cylinder handlesets are SmartKey, Grade 3 entrance, for 1-3/4 inch doors, and the 687AMD is also offered with an SC1 keyway version under KWI-687AMD-SMC. All three Kwikset sets are exterior trim only.
13) Single cylinder vs double cylinder on an entry handleset, which do I want?
The Emtek 4219 Hercules is single cylinder: key on the outside, thumbturn on the inside. That is what most jurisdictions want on a residential entry door, since you can get out without a key. Double cylinder, keyed both sides, is what you use when there is glass next to the lock and you do not want someone reaching through to turn it. If that is your situation, the Baldwin Estates 6542 Tremont is offered in both a double cylinder and a single cylinder entry mortise trim.
14) What is the Emtek 443 interconnect device for and do I need it with the 4219?
It is optional. Add the 443 interconnect to the 4219 handleset when you want a single motion to retract the latch and the deadbolt together from the inside, which is how people usually want an entry door to behave in a hurry. Skip it and the deadbolt is thrown and retracted on its own thumbturn. One thing to note if you add it: handing becomes a required specification with the interconnect fitted, so the order has to carry left or right hand.
15) Is the Emtek 4219 handleset suitable for a commercial entrance or an apartment building corridor door?
It is a residential product. The 4219 Hercules is a brass tubular entry handleset built for house and residential unit entry doors, not a Grade 1 commercial opening. For a rental or multi-family unit door where you want a graded product, the Schlage Residential F60 Addison is a Grade 2 keyed entry handleset covering 1-3/8 to 1-3/4 inch doors, and the Master Lock HDLB Series single cylinder deadbolt handleset is also Grade 2. Where you want the Emtek look on a unit door, the 4219 still works mechanically, it just is not carrying a commercial grade rating.
16) Can I match the Emtek 4219 handleset to the interior door hardware I already have in the house?
That is the point of the inside trim selection. The 4219 takes any Emtek brass knob or lever as its interior trim, and the list runs from contemporary shapes like the Hercules Lever, the Ace Knurled Knob, and the T-Bar and L-Square knurled bars, through traditional Rope, Ribbon and Reed, and Victoria, to crystal knobs like Windsor and Georgetown. Pick the same style you already have on the interior doors and the front door reads as part of the set. If you choose a lever rather than a knob, the order has to specify handing.
17) Can I order several Emtek 4219 handlesets keyed alike so one key opens them all?
Yes, keyed alike is a selection on the order, alongside keyed different. That covers the common case of a front and a back entry door on the same key. If the property already runs on a key system, there is a keying-to-code field where you supply the code, and the Weiser WR5 cylinder option can be keyed into an existing Weiser system at no upcharge for the substitution.
18) The Emtek 4219 requires handing and a chosen interior knob or lever - is there an entry handleset that does not need those decisions?
The Emtek 4219 Hercules requires a handing call, left or right, and the interior trim knob or lever is a required selection. For a spec that arrives ready to install without those choices, the Schlage Residential F60 Addison Single Cylinder Keyed Entry Handleset ships with the Accent lever already paired, is Grade 2, and fits 1-3/8 to 1-3/4 inch doors. The Kwikset 687AMD Amador single cylinder handleset is Grade 3 and is an exterior-only trim for a 1-3/4 inch door, so an interior lock is chosen separately.
19) What is the difference between the Emtek 4219 with the 443 interconnect device and the Schlage JI18/19 interconnected lock?
The Emtek 4219 Hercules is an entry handleset that can be ordered with the Emtek 443 Interconnect Device, and specifying that interconnect makes handing a required call. The Schlage Residential JI18/19 with Torino lever is an interconnected passage lock with a keyed deadbolt, Grade 2, for 1-3/8 to 1-3/4 inch doors. The functional distinction is at the lever: the JI18/19 lever is passage, with the keying at the deadbolt, while the 4219 is a keyed single cylinder entry set with a Schlage C keyway.
20) Which handleset comes with the interior knob already matched, like the Emtek 4219 does with its brass knob and lever options?
The Emtek 4219 Hercules takes any brass knob or lever for the inside trim as a separate required selection. Sets that arrive as a fixed handle-and-knob pairing include the Baldwin Wesley Handleset with Alcott Knob and the Baldwin Wesley Handleset with Carnaby Knob, both entrance function, and the Weslock 2810 Hillcrest handleset with Hudson knob, single cylinder for 1-3/8 to 2 inch doors. The Weslock 2810 matches the 4219 door thickness range of 1-3/8 to 2 inches.
21) I want a key-free front door with a handleset - what goes in instead of the Emtek 4219 Hercules?
The Emtek 4219 Hercules is a keyed single cylinder set. For key-free operation, the Yale Real Living BYRD256 CBARX Assure key-free touchscreen deadbolt pairs with a Ridgefield passage handleset and trim, connected by August, for 1-3/4 to 2-1/4 inch doors. The Yale BYRD410BLERX Assure Lock 2 key-free touchscreen deadbolt with Wi-Fi and Ridgefield handleset covers a wider 1-3/8 to 2-1/4 inch range, which overlaps the 4219 range of 1-3/8 to 2 inches at both the thin and thick end.
22) What finishes does the Emtek 4219 Hercules handleset come in?
Eight, and all eight are available with either keyway: Oil Rubbed Bronze (US10B), Polished Nickel Lifetime (US14), Satin Nickel (US15), Flat Black (US19), Polished Chrome (US26), Unlacquered Brass (US3NL), Satin Brass (US4), and French Antique (US7). The set is solid brass, so if you are matching other Emtek brass trim already on the building, the finish codes are the ones to line up. Unlacquered brass is the one that will patina over time rather than hold its as-shipped look.
