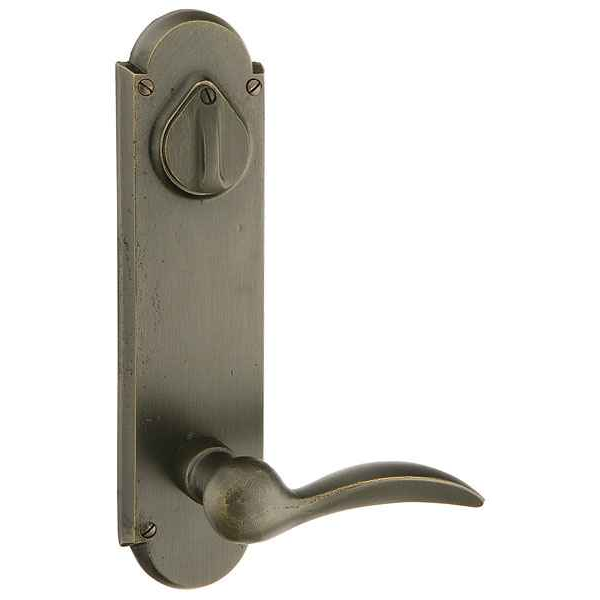

Emtek 7670 Sandcast Bronze #5 5-1/2" Keyed Sideplate Tubular Lockset, Passage/Single Keyed

The 7670 sideplate lockset uses one standard 2-1/8 inch cross bore, so it drops onto a door already prepped for a normal bored lock. The latch is adjustable for either a 2-3/8 or 2-3/4 inch backset, and the set covers doors from 1-3/8 to 1-3/4 inches thick. The sideplate is the 5-1/2 inch #5 plate, so the face of the door needs enough clear stile height for that plate above and below the bore.

Yes, the range runs 1-3/8 to 1-3/4 inches, which covers both the thinner older interior door and the standard 1-3/4 inch exterior slab. There is a door thickness field on the order, so state the actual slab you are measuring and the set is supplied to suit. Anything thicker than 1-3/4 inches is outside what this lockset covers.

The 7670 is a single cylinder entry lockset, keyed on the outside only. For an opening that has to be keyed from both faces - a door with glass beside it, or an exit a facility wants locked from inside - the Omnia D12036AC is a double cylinder deadbolt lever lockset in solid brass with a sideplate design. That is the direct answer for a two-sided keying requirement; the 7670 will not do it in any of its configurations.

Both are single cylinder sideplate lever locksets, so either one gives you a keyed exterior lever on a sideplate-style trim. The Emtek 7670 is a tubular lock in bronze, with an adjustable 2-3/8 inch or 2-3/4 inch backset, a 2-1/8 inch cross bore, and a door thickness range of 1-3/8 inch to 1-3/4 inch. The Omnia D12036A is a single cylinder deadbolt lever lockset built in solid brass. The practical split is the material and the lock body: the 7670 is bronze and tubular, the D12036A is solid brass and built around a deadbolt.

Keyed alike is an ordering option on the 7670, so a run of them can be set to one key at no extra charge, and keying to an existing code can be requested as well. Order every opening on the same request so they are cut to one bitting. If the openings mix knob and lever trim or different backsets, that does not affect keying, only the cylinder does.

Either one. The inside trim on the 7670 is chosen from the full Sandcast Bronze range, ten levers (Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton, Yuma) and fifteen knobs (Butte, Egg, Round, Winchester, Bristol, Hampton, Lowell, Windsor, Astoria, Diamond, Georgetown, Modern Disc, Modern Square, Old Town, Providence). Levers are the usual pick where you want an accessible operator or wet hands, knobs where the look matters more.

Emtek lists the 7670 sandcast bronze sideplate lockset as residential. It is built for house front doors, side entries, and similar openings, not for the cycle counts of a commercial storefront or a school corridor. Property managers standardizing across apartment or single-family units are the right fit; a facility spec calling for a graded cylindrical lock is not.

A sideplate lockset mounts the knob or lever on a long backplate running up and down the door rather than a small round rose. On the 7670 that plate is the #5 design at 5-1/2 inches. The door prep is the same either way, one 2-1/8 inch cross bore, so the choice is appearance and coverage: the plate hides an older, larger, or scarred prep that a small rose leaves showing.

The Emtek 443 interconnect device is the option that ties a deadbolt to the 7670 so the inside lever retracts both at once. It is an optional add on the order, not included in the base set. Without it, the lockset works on its own bore and a separate deadbolt above it operates independently.

On the same sideplate format, Omnia makes a solid brass range: the D12036A is the single cylinder equivalent, the D12036AC is the double cylinder version for glazed doors where you want key control on both faces, and the D12036PD is a double dummy with plates on a 5-1/2 inch center to center for an inactive leaf of a pair. The Omnia line is brass; the Emtek 7670 is sandcast bronze, which is the choice when the look is rustic rather than polished.

A keyed entry set like the Emtek 7670 is the wrong part for an opening with nothing to latch into - it ships as a complete set with latch and strike plate and is prepped for a 2-1/8 inch cross bore. Where you only need matching trim on a non-operating leaf, the Omnia D12036PD is a double dummy deadbolt lever lockset in solid brass with plates, on 5-1/2 inch center to center. Double dummy means it is surface mounted trim on both faces with no latch and no cylinder.

No. The D12036PD is a double dummy, meaning trim only - it has no cylinder and no latching mechanism. The Emtek 7670 is a keyed single cylinder entry lockset that comes as a complete set with the latch and strike plate. Buyers often pair them rather than swap them: the keyed set on the active leaf, the dummy on the inactive leaf of a pair of doors so the trim matches across the opening.

Sandcast bronze. The plate and trim are cast bronze, and Emtek notes brass in the latch hardware. Cast bronze weathers rather than fails, so a Medium Bronze or Tumbled White Bronze finish on an exposed front door will deepen over time; Flat Black Bronze holds its tone longer. Buyers matching existing sandcast bronze on other openings should order the same finish code across all of them.

They are different materials and different lock bodies, so plan the aesthetic decision deliberately. The Emtek 7670 is sandcast bronze, offered in Flat Black Bronze (FB), Medium Bronze (MB), and Tumbled White Bronze (TWB), and the inside trim can be ordered in any of the Sandcast Bronze knob or lever styles. The Omnia D12036A is solid brass construction. Bronze and brass read differently in a corridor, so a property manager standardizing across a fleet generally picks one family per elevation rather than alternating.
