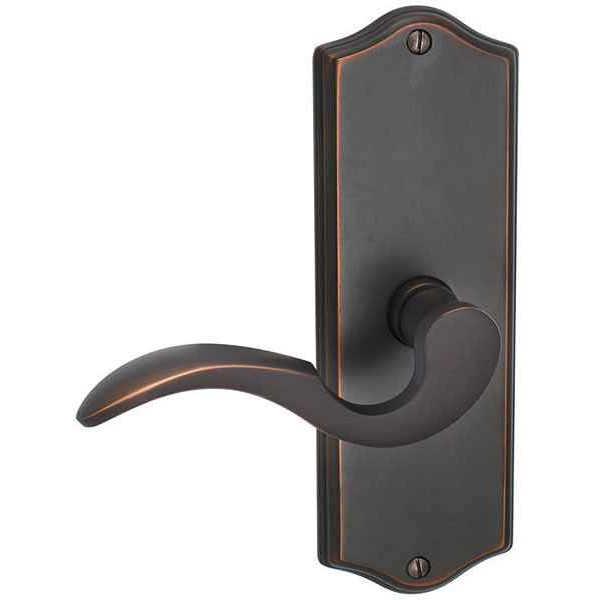

Emtek 8020 Colonial 7-1/8" Non-Keyed Sideplate Lockset, Privacy - Brass Tubular

Emtek 8020 Colonial 7-1/8" Non-Keyed Sideplate Lockset, Privacy - Brass Tubular

(No reviews yet) Write a Review

Model: 8020-US26
From the Brass Collection
$306.00
$244.80
Selected Finish is
Selected Knob or Lever Style for Inside Trim is
Selected Handing is
Selected Backset is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$306.00
$244.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Emtek 8020 Colonial 7-1/8" Non-Keyed Sideplate Lockset, Privacy - Brass Tubular

  • Can be ordered with any Brass Knob or Lever Style
  • Sold as complete set. Includes Knob or Lever, Latch and Strike Plate
  • One Standard 2-1/8" Door Prep
  • Standard latch is for 2-3/8" backset. Specify 2-3/4" backset if required
  • Handing required for Leverset



Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Latch Faceplate: Round or Square Corner
  • Material: Brass

Product Specs

Subcategory:
Non-Keyed Sideplate Locksets
Collection:
Brass
Product Type:
Sideplate Locksets
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Commercial/Residential:
Residential
Lock Type:
Tubular
Keyed:
No
Keyed Function:
Non-Keyed
Lock Function:
Privacy/Bed/Bath
Series:
Colonial
Theme:
American Classic
Electronic:
No
MAP Policy:
Yes
Product Model:
8020
Product Function:
Privacy/Bed/Bath
Product Size:
7-1/8"
Product Style:
American Classic
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 8020-US26 – Frequently Asked Questions

1) What does the privacy function on the Emtek 8020 actually do, and does it take a key?
Privacy means a bed or bath lock: it pushes or turns to lock from the inside and has an emergency release on the outside, with no keyway and no cylinder. The 8020 is a non-keyed lockset, so if you need to key an exterior or office door, this is the wrong function to order.
2) Do I have to specify handing when ordering the Emtek 8020 Colonial sideplate lockset?
Handing is required on every order, right hand or left hand. That matters most with a lever: a lever has to point toward the hinge side, so the wrong hand shows up backwards on the door. Stand outside the door, on the side that swings away from you, and the hinge side tells you the hand. Knobs are symmetrical in use, but the order still asks for a hand because the sideplate assembly is built to it.
3) What comes in the box with the Emtek 8020, and what else do I need to buy to finish the door?
It ships as a complete set: knob or lever trim, latch, and strike plate. Nothing else is needed for a standard bored door beyond screws for the strike into the jamb. You do have to make three choices on the order, though, because they are all built into the set: the knob or lever style for the trim, the hand, and whether the latch is 2-3/8 or 2-3/4 inch backset. The standard latch supplied is 2-3/8 inch, so call out 2-3/4 inch if the door is bored that way.
4) What sideplate lockset should I use on a bathroom door versus a front entry door?
The Emtek 8020 Colonial 7-1/8 inch sideplate lockset is a non-keyed privacy function, which is the bed and bath configuration: it locks from the inside only and takes no cylinder. For an opening that has to be locked from the outside with a key, the Omnia D12036A is a single cylinder deadbolt lever lockset in solid brass. Match the function to the door - privacy for bed and bath, single cylinder where a key is required.
5) Can I pick any Emtek knob or lever on the 8020 Colonial sideplate?
Any brass knob or lever style in the Emtek range can be ordered on the 8020, and the inside trim choice runs across the whole line, from the Colonial-era shapes like the Providence and Waverly knobs and the Rope and Ribbon and Reed levers, through crystal knobs such as Windsor and Georgetown, to the current bar and square levers. That is what lets you keep one plate design across a house while changing the grip room by room.
6) Is the Emtek 8020 sideplate lockset rated for a commercial building or an apartment turnover?
The 8020 Colonial is a residential lockset. It suits houses, condos, and unit interiors in multi-family work, and it is solid brass rather than plated steel, so it holds up in a finished space. For a commercial corridor, a school, or anywhere the door hardware is on a specified Grade schedule, buy a commercial bored lock instead; this one is not sold to that duty.
7) What finishes does the Emtek 8020 Colonial lockset come in, and which one matches existing brass hardware?
Eight finishes: Polished Brass Lifetime (US3), Unlacquered Brass (US3NL), French Antique (US7), Oil Rubbed Bronze (US10B), Satin Nickel (US15), Pewter (US15A), Flat Black (US19), and Polished Chrome (US26). If you are matching older brass on the other doors, the difference that matters is US3 versus US3NL: the Lifetime polished brass keeps its shine and will not patina, while unlacquered brass darkens with handling and will eventually blend with hardware that has already aged.
8) Is the Emtek 8020 a tubular lock or a mortise lock?
Tubular. The lock body is a bored tubular latch through a 2-1/8 inch cross bore, not a mortise pocket cut into the door edge, so installation is a drill-and-bore job rather than a routed pocket. The long 7-1/8 inch Colonial sideplate gives it the look of a mortise entry set while keeping the simpler prep.
9) What do I put on the inactive leaf of a pair of doors if I want the same sideplate look but no latch?
The Emtek 8020 Colonial sideplate lockset is a working privacy set - it comes as a complete set with knob or lever, latch and strike plate, and it needs a 2-1/8 inch cross bore. For a leaf that only needs a pull, the Omnia D12036PD is a double dummy deadbolt lever lockset with plates on a 5-1/2 inch center to center. Double dummy trim mounts surface to the door face and does not operate a latch, so it suits closet doors, inactive leaves and false pairs.
10) Is the Omnia D12036PD a substitute for a privacy sideplate lockset on a bathroom door?
No. The Omnia D12036PD is a double dummy deadbolt lever lockset with plates, meaning fixed trim with no latching or locking action. The Emtek 8020 Colonial sideplate lockset is a privacy bed and bath function that latches and locks from the inside, with an adjustable 2-3/8 or 2-3/4 inch backset. The two share the long sideplate appearance, which is why they get confused, but only the privacy set secures a bathroom.
11) Can I get the Emtek 8020 latch with a square corner faceplate to match my existing mortise pocket?
The latch faceplate is available round corner or square corner, so it can follow whatever the door edge is already routed for. Square corner suits a door prepped with a chisel-cut mortise; round corner drops into a router-cut pocket without recutting the edge.
12) Which of these brass sideplate sets can be ordered with a knob instead of a lever?
The Emtek 8020 Colonial 7-1/8 inch sideplate lockset is a brass tubular set that can be ordered with any brass knob or lever style, and handing only has to be specified when a lever is chosen. The Omnia D12036A, D12036AC and D12036PD are all lever locksets in solid brass. If the opening calls for a knob on a sideplate, the 8020 is the one that accepts it.
