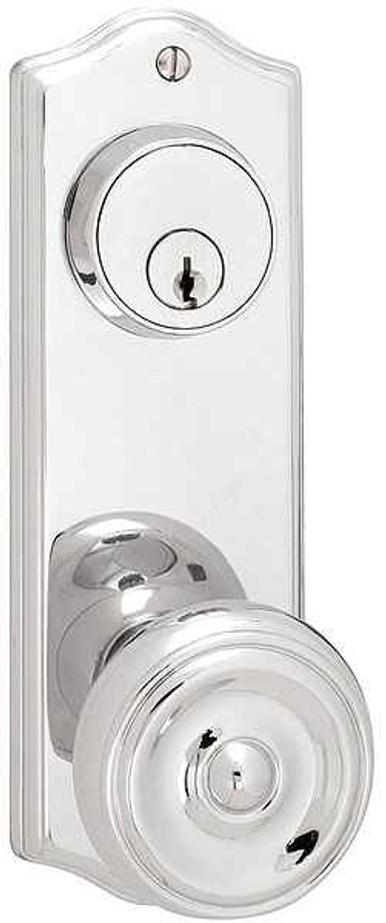

Emtek 8060 Colonial 3-5/8" C-to-C Keyed Sideplate Lockset, Passage/Single Keyed - Brass Tubular

Emtek 8060 Colonial 3-5/8" C-to-C Keyed Sideplate Lockset, Passage/Single Keyed - Brass Tubular

(No reviews yet) Write a Review

Model: 8060-US26
From the Brass Collection
$354.00
$283.20
Selected Finish is
Selected Knob or Lever Style for Inside Trim is
Selected Handing is
Selected Backset is
Selected FREE KEYING Options is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$354.00
$283.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Emtek 8060 Colonial 3-5/8" Keyed Sideplate Lockset, Passage/Single Keyed - Brass Tubular

Emtek's single cylinder entry sets use traditional American locks complete with a variety of trim styles, handcrafted from authentic materials. The entry set is operated by a key from the exterior, and a thumbturn from the interior. The door is opened by your choice of a variety of knob and lever options. Uncompromisingly rugged and beautifully crafted, these locks are suitable for the very finest homes. Sideplate entry sets are perfect for patio doors.

The Brass Modern Collection's latches are heavy-duty die cast construction, with strong internal springs, solid brass nose bolts, and sintered metal cams. A plastic bushing located in the joint between the handle and the rosette ensures a friction-free wear surface, preventing metal from bearing on metal and providing smooth, long-lasting operation. Handles are positively connected to rosettes with a permanent clip. Each has a set screw which eliminates "handle wobble" when tightened. Emtek's threaded tubes are machined brass to ensure good threads and prevent corrosion.

Features:

    • Standard Door Prep
    • Schlage C Keyway
    • Solid Forged Brass Trim

Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys

Specifications:

  • Height: 7-1/8"
  • Width: 2-7/16"
  • Material: Solid Forged Brass
  • Door Thickness: 1-1/4" - 2-3/4"

Emtek is dedicated to bringing interesting, well made hardware back into American homes. Emtek's mission is to satisfy the higher expectations of today's homeowners with regard to door locks. They strive to provide a broad and interesting range of products that consumers can use as elements of decor, and not just as a way to latch a door.

Product Specs

Subcategory:
Keyed Sideplate Locksets
Collection:
Brass
Product Type:
Sideplate Locksets
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Commercial/Residential:
Residential
Keyed Function:
Single Cylinder
Lock Type:
Tubular
Keyed:
Yes
Lock Function:
Entry
Series:
Colonial
Theme:
American Classic
Electronic:
No
MAP Policy:
Yes
Product Model:
8060
(CTC) Center-to-Center:
3-5/8"
Product Function:
Entry
Product Style:
American Classic
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 8060-US26 – Frequently Asked Questions

1) What keyway does the Emtek 8060 use, and can I key it to my existing house keys?
The 8060 uses the Schlage C keyway, the most common residential keyway in North America, so a locksmith can key it to an existing C-keyway system. Ordering lets you pick keyed different or keyed alike across multiple locks, and there is a field to key to a specific code if you already have one running through the house. Two keys ship per lock; order three or more keyed alike and you get six keys total.
2) Do I have to specify handing on the Emtek 8060 Colonial sideplate lockset?
Handing is required. You pick right hand or left hand when ordering, so determine it from the outside of the door: standing on the exterior face, if the hinges are on your right it is right hand. Get it wrong and the plate and lever orient backwards. The interior knob or lever style is a separate required choice from Emtek's full trim range, which spans levers, knobs, knurled and faceted bar styles, and crystal knobs.
3) What is the sideplate size on the Emtek 8060, and will it cover the existing plate on my patio door?
The Colonial sideplate measures 7-1/8 inches by 2-7/16 inches, with 3-5/8 inch center-to-center between the handle and the cylinder. That center-to-center spacing is what has to match if you are swapping into an existing two-hole sideplate prep. Measure hole center to hole center on the door: if it is not 3-5/8 inches, the 8060 will not land on the existing bores.
4) I need a keyed sideplate set that locks with a key from both sides. Is the Emtek 8060 the right one?
No. The Emtek 8060 Colonial is a single cylinder set - key on the exterior, thumbturn on the interior. For a double cylinder sideplate arrangement, the Omnia D12036AC is a double cylinder deadbolt lever lockset in solid brass with a sideplate design. Double cylinder means a key is required on the inside as well, which many jurisdictions restrict on a required egress door, so confirm the opening before specifying it.
5) The opening is a false or inactive door and does not need to latch. What do I use instead of the Emtek 8060?
The 8060 Colonial is an entry function set - it latches and it is keyed, so it is more hardware than an inactive leaf needs. For a non-latching leaf, the Omnia D12036PD is a solid brass dummy deadbolt lever lockset with plates in a double dummy function, on a 5-1/2 inch center to center. Note that its 5-1/2 inch center to center will not land on a door prepped for the 8060's 3-5/8 inch center to center, so a switch between the two on an already-bored door means new plate prep.
6) Is the Omnia D12036PD a substitute for the Emtek 8060 on a keyed patio door?
It is not. The D12036PD is a double dummy - it is trim only, with no keyed cylinder and no latching mechanism, so it cannot secure a patio door. The Emtek 8060 Colonial is the keyed entry set for that opening: single cylinder, tubular, key outside and thumbturn inside, in solid forged brass. The two look alike on the door face, which is exactly why they get confused on a takeoff.
7) Should I use a sideplate entry set or a knob with a separate deadbolt?
A sideplate set puts the key cylinder and the handle on one continuous escutcheon rather than two separate roses, which is why they get specified on patio and French doors where the stile is narrow and two stacked trims look wrong. It is a tubular lock on standard door prep, so it is a residential product, not a Grade 1 commercial one. If you want the same one-plate look with a keyed cylinder on both sides, the Omnia D12036AC is a double cylinder sideplate deadbolt lever set; for an inactive leaf that only needs to look the same, the Omnia D12036PD is a double dummy sideplate set at 5-1/2 inch center-to-center.
8) What else could I buy instead of the Emtek 8060 if I need a double cylinder sideplate lock?
The Omnia D12036AC is a double cylinder sideplate deadbolt lever lockset in solid brass, keyed on both faces. The 8060 Colonial is single cylinder only, key outside and thumbturn inside, so if a glass-front or sidelite door needs a key on the interior to stop someone reaching through, the Omnia is the direction to go. Omnia's single cylinder version of the same set is the D12036A.
9) Can I mix the Emtek 8060 and the Omnia D12036 sets on the same building and key them together?
Treat them as separate keying programs. The Emtek 8060 Colonial ships on the Schlage C keyway and can be ordered keyed alike or keyed different, and keyed to an existing code. The Omnia D12036A is a single cylinder set and the D12036AC is double cylinder, but a keyway is not something to assume across brands. For a run of doors that must operate on one key, standardize on the 8060 across the openings and set the keying at order time.
10) What finishes does the Emtek 8060 Colonial keyed sideplate set come in?
Eight finishes: Oil Rubbed Bronze (US10B), Satin Nickel (US15), Pewter (US15A), Flat Black (US19), Polished Chrome (US26), Polished Brass Lifetime (US3), Unlacquered Brass (US3NL), and French Antique (US7). Unlacquered brass is the one to know about, since it has no clear coat and will patina with handling. If you are matching other openings in the house, pick the US number rather than the name, since finish names vary between brands and the US code does not.
11) Is the Emtek 8060 sideplate lockset solid brass or plated?
Solid forged brass trim, not plated pot metal, and the threaded tubes are machined brass so the threads hold and do not corrode. The latch is heavy-duty die cast with solid brass nose bolts and sintered metal cams. A plastic bushing sits between the handle and rosette so metal never bears on metal, and a set screw takes the wobble out of the handle once tightened.
12) For a residential remodel, is the Emtek 8060 Colonial or an Omnia D12036 set the better match to the rest of the trim?
Both are solid brass. The Emtek 8060 Colonial is a residential set in an American Classic style, and it is the more flexible of the two on appearance: eight finishes from Polished Brass Lifetime US3 and Unlacquered Brass US3NL through Flat Black US19 and Polished Chrome US26, plus a choice of inside trim across knobs, levers and crystal knobs. The Omnia D12036A and D12036AC are solid brass constructions differing by single versus double cylinder function. If matching an existing finish program across a house is the driver, the 8060's finish and trim range is where to start.
