Emtek Emtek 8467 Modern Deadbolt - Brass - Single Cylinder EMTEK-8467

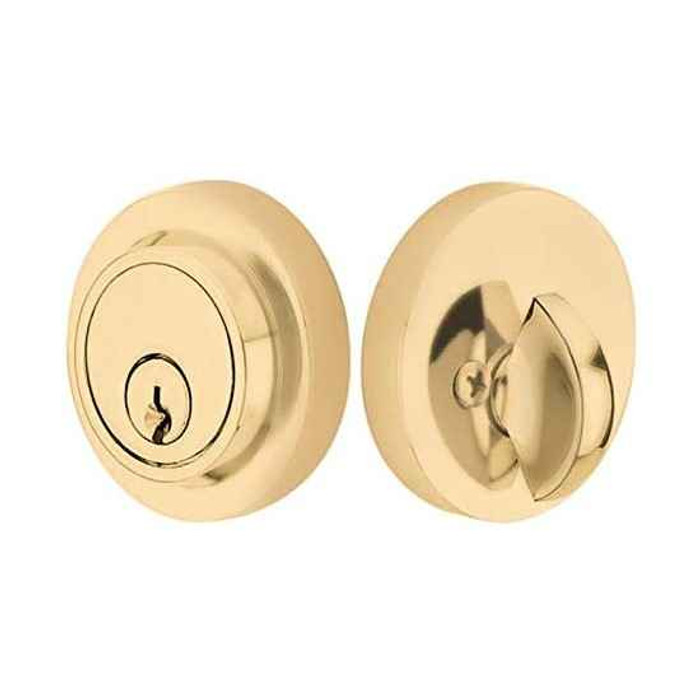

Emtek 8467 Modern Deadbolt - Brass - Single Cylinder

(No reviews yet) Write a Review

Model: 8467-US26
From the Brass Collection
$128.00
$102.40
Selected Finish is
Selected FREE KEYING Options is
Selected Backset is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$128.00
$102.40
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Emtek 8467 Modern Deadbolt - Brass - Single Cylinder

  • Schlage® C Keyway
  • Single Cylinder Deadbolt Includes extension collar for thin doors
  • Standard Door Prep and Installation
  • Solid Brass Cylinder, Housing, Collar, Thumbturn, and Rosette
  • Hardened Steel Bolt
  • Heavy Gauge Steel Understrike
  • Brass Trim Strike Shipped with Every Deadbolt
  • Handing Not Required
  • Standard door thickness of 1-3/4". Specify if thicker. EMPowered™ fits door thickness up to 2-1/4".
  • Standard latch is for 2-3/8” backset. Specify 2-3/4”backset if required.



Weiser® (WR5) Keyway

  • Specify by adding “W” to the beginning of product code.
  • No upcharge for cylinder substitution. Can be keyed into existing Weiser® system



Specifications:

  • Backset: 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Edge Bore: 1"
  • Door Thickness: 1-3/8" to 2"
  • Keyway: Schlage C
  • Material: Brass

Product Specs

Subcategory:
Deadbolts
Collection:
Brass
Product Type:
Deadbolts
Product Group:
Mechanical Locks
Product Subgroup:
Deadbolts
Commercial/Residential:
Residential
Lock Function:
Deadbolt
Keyed:
Yes
Lock Type:
Tubular
Series:
Modern
Theme:
Contemporary
Electronic:
No
Keyed Function:
Single Cylinder
Handle Type:
Deadbolt
Product Attribute:
Deadbolts
MAP Policy:
Yes
Product Model:
8467
Product Function:
Cylinder x Thumbturn
Product Style:
Contemporary
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 8467-US26 – Frequently Asked Questions

1) Will the Emtek 8467 deadbolt fit my existing door prep?
The 8467 Modern deadbolt uses standard door prep: a 2-1/8 inch cross bore and a 1 inch edge bore, so it drops into the same holes a standard tubular deadbolt already occupies. Backset is either 2-3/8 or 2-3/4 inches and you pick which one when you order. Door thickness range is 1-3/8 to 2 inches, with 1-3/4 inch being the standard build; an extension collar for thin doors ships with it. No handing to figure out.
2) Can I key the Emtek 8467 to my existing Schlage keys?
Standard cylinder on the 8467 is a Schlage C keyway, so it can be keyed into an existing Schlage C system. If your building runs Weiser, order the Weiser WR5 keyway version instead (the part code takes a W prefix, as in W8467US15) and it keys into an existing Weiser system at no cylinder upcharge. Keying is specified at order time as keyed different or keyed alike, and you can supply a key code.
3) What backset do I need to order for the Emtek 8467 deadbolt?
Measure from the door edge to the center of the bore hole. 2-3/8 inches is the standard latch on the 8467 and 2-3/4 inches is the alternate; both are selectable when ordering. Those two are the only backsets used on residential and light commercial doors, so one of them will match what you have. Get it wrong and the bolt will not line up with the strike.
4) Will the Emtek 8467 work on a 2 inch thick door?
Yes, up to 2 inches. The 8467 covers 1-3/8 to 2 inch doors, and a thin-door extension collar is included for the light end of that range. Note the door thickness for anything other than 1-3/4 inches when you order. If your door is thicker than 2 inches you need a different deadbolt, not this one.
5) I'm replacing an old deadbolt. Do I need to drill new holes for the Emtek 8467?
Usually not. If the old deadbolt was a standard tubular unit, the 8467 reuses the 2-1/8 inch cross bore and 1 inch edge bore already in the door. What you have to confirm is the backset, 2-3/8 or 2-3/4 inches, and the door thickness against the 1-3/8 to 2 inch range. Handing is not a factor. The strike side may need a fresh mortise if the old strike had a different lip.
6) What is the closest Grade 1 substitute for an Emtek 8467 deadbolt on a commercial opening?
The Emtek 8467 is a residential single cylinder tubular deadbolt in solid brass with a Schlage C keyway. Where a Grade 1 cylinder x thumbturn deadbolt is required instead, the Hager 3118 is a Grade 1 classroom deadbolt with a Schlage C keyway and a 6-pin cylinder, fitting doors 1-3/8 inch to 1-3/4 inch, and it carries a fire rating. The Accentra D111 is also a Grade 1 cylinder x thumbturn deadbolt with a 2-3/8 inch backset and the same 1-3/8 inch to 1-3/4 inch door thickness range. The Hager keeps the Schlage C keying the 8467 uses, so an existing Schlage C system stays intact.
7) Which deadbolt keeps a Schlage C keyway if the Emtek 8467 is not the right trim?
The Emtek 8467 ships standard with a Schlage C keyway, so it keys into an existing Schlage C system. If the modern brass trim does not suit the door, the Hager 3115 is a Grade 2 cylinder x thumbturn deadbolt with a Schlage C keyway for doors 1-3/8 inch to 1-3/4 inch, and the Hager 3215 is a single cylinder Grade 2 commercial deadbolt with a 1 inch throw over the same door thickness range. The Dormakaba D900 small case mortise deadbolt is a cylinder x thumbturn unit supplied keyed different with SC keyways, for openings prepped for a mortise case rather than a tubular bore.
8) What should be used instead of an Emtek 8467 when the door needs a key on both sides?
The Emtek 8467 is a single cylinder deadbolt, keyed on the outside with a thumbturn inside. For a glass-adjacent or sidelight opening that calls for a key both sides, the Baldwin Reserve Double Cylinder Contemporary Square Deadbolt and the Baldwin Reserve Double Cylinder Contemporary Round Deadbolt are double cylinder units in contemporary trim. The Dexter DB1000 Series double cylinder deadbolt is Grade 1 for doors 1-3/8 inch to 1-7/8 inch, and the Hager 3214 is a double cylinder deadbolt with a Schlage C keyway for doors 1-3/8 inch to 1-3/4 inch. Local egress code governs whether a double cylinder is permitted on the opening.
9) Which deadbolt fits a thicker door than the Emtek 8467 standard 1-3/4 inch prep?
The Emtek 8467 is built for a standard 1-3/4 inch door and includes an extension collar for thin doors, with a specified range of 1-3/8 inch to 2 inch. When a door runs thicker than that, the Corbin Russwin DL3011 is a Grade 1 cylindrical deadlock rated for doors 1-3/4 inch to 2-1/4 inch, though it is a cylinder x blank rather than a thumbturn unit. The Deltana 7312KA2 is a Grade 3 double cylinder deadbolt covering 1-3/8 inch to 2 inch, matching the 8467 range with a key both sides.
10) Is the Arrow E60 exit deadlock a substitute for the Emtek 8467?
No. The Emtek 8467 is keyed on the outside with a thumbturn inside, so it locks and unlocks from either face. The Arrow E60 is a Grade 2 non-keyed exit deadlock with blank plate x thumbturn function for doors 1-3/8 inch to 1-3/4 inch, meaning the exterior face has no cylinder at all and the bolt can only be thrown from inside. The Callan Model 205S is a Grade 3 one-sided half-bore deadbolt, likewise operated from a single face. Either one is the right part for a door that should never be opened by key from outside, and the wrong part for an entry door.
11) What deadbolt takes an interchangeable core instead of the Emtek 8467 fixed cylinder?
The Emtek 8467 comes with a fixed solid brass cylinder in Schlage C, or in Weiser WR5 by adding a W to the front of the product code. For a facility standardized on interchangeable cores, the Deltana CL200LAIC is a Grade 2 single cylinder deadbolt prepped for an interchangeable core and supplied without the cylinder, with a 2-3/4 inch backset. The Arrow E61 26D IC is a Grade 2 single cylinder deadlock with SFIC prep less core for doors 1-3/8 inch to 1-3/4 inch, and the Delaney LM Series is a Grade 1 single cylinder less core deadbolt in Dull Chrome US26D. Cores are ordered separately on all three.
12) What replaces an Emtek 8467 on a classroom or storeroom door that needs classroom deadbolt function?
The Emtek 8467 is a cylinder x thumbturn deadbolt, so the inside face always releases the bolt by hand. A classroom deadbolt instead controls the bolt by key. The Falcon D111 is a Grade 1 heavy duty classroom deadbolt with an adjustable backset, the Falcon D211 is the Grade 2 medium duty classroom function version with single cylinder operation, and the Hager 3118 is a Grade 1 classroom deadbolt with a Schlage C keyway and 6-pin cylinder for doors 1-3/8 inch to 1-3/4 inch. The Corbin Russwin DL3211 is a Grade 1 cylindrical deadlock with cylinder x blank for 1-3/4 inch doors when no interior operation is wanted at all.
13) Which single cylinder deadbolt should be used instead of the Emtek 8467 on a high traffic commercial entrance?
The Emtek 8467 is a residential tubular deadbolt in solid brass. For an entrance seeing commercial traffic, the Dexter DB1000 Series is a Grade 1 single cylinder deadbolt for doors 1-3/8 inch to 1-7/8 inch, the Deltana CL200LM is a Grade 1 single cylinder cylinder x thumbturn deadbolt, and the Accentra D111 is a Grade 1 cylinder x thumbturn deadbolt on a 2-3/8 inch backset, the same standard backset the 8467 ships with. The Cal-Royal CB160 is a Grade 2 single cylinder deadbolt with a tamper-resistant cylinder guard where the cylinder itself is the exposure.
14) What comes in the box with the Emtek 8467 deadbolt?
Every 8467 ships with a brass trim strike, a heavy gauge steel understrike behind it, the hardened steel bolt, and the extension collar for thin doors. Cylinder, housing, collar, thumbturn and rosette are solid brass. You do not need to buy a strike separately; you will need screws long enough to reach the framing if you want the understrike anchored into the stud rather than just the jamb.
15) Can I get all the doors in my house keyed alike with the Emtek 8467?
Yes. Keying is a required selection on the 8467: choose keyed alike so a single key runs every deadbolt on the order, or keyed different. There is also a field for keying to a specific code if you are matching an existing Schlage C system. Order them together on the same order so the keying is applied as one set.
16) What is a simpler contemporary deadbolt alternative to the Emtek 8467 for a rental unit turnover?
The Emtek 8467 Modern deadbolt is a solid brass contemporary unit with brass cylinder, housing, collar, thumbturn and rosette. For units where a plainer contemporary face will do, the Bravura 310RC Elite is a Grade 2 contemporary round deadbolt with cylinder x thumbturn function, the Bravura 310SC Elite is the square-trim version of the same Grade 2 function, and the Brinks Mendocino Series is a contemporary square single cylinder deadbolt with a 4 way adjustable backset, which covers 2-3/8 inch and 2-3/4 inch preps without specifying a backset per door. Callan Model 200S-G2 is a Grade 2 single cylinder round trim deadbolt for the same use.
17) What is the alternative to an Emtek 8467 when the deadbolt needs to be keypad or credential operated?
The Emtek 8467 is a mechanical, non-electronic deadbolt operated by key and thumbturn. For openings that need code or credential entry, the Delaney KP400 is a Grade 2 electronic deadbolt with a programmable remote, the Codelocks CL2200 is a medium duty electronic surface deadbolt in a brushed steel finish, and the Codelock CL2210 is an electronic mortise deadbolt. For multifamily credential systems, the Dormakaba Nova-D is an RFID multihousing smart electronic deadbolt and the Dormakaba Saffire LX-D is an RFID electronic deadbolt with BLE and electronic lock override. The surface and mortise electronic units do not use the same standard tubular door prep the 8467 does.
18) Is the BEST 8T tubular deadbolt tube a replacement for an Emtek 8467?
No. The Emtek 8467 is a complete single cylinder deadbolt with cylinder, thumbturn, rosette, hardened steel bolt, heavy gauge steel understrike and brass trim strike. The BEST 8T is the T Series tubular deadbolt tube component, that is the bolt assembly on its own rather than a finished lock, and the Baldwin Reserve 8BR0618001 is a deadbolt spacer. The Arrow 460 is a mortise lock strike for latchbolt and deadbolt functions with a straight lip on 1-3/4 inch doors. Those are components ordered to complete or repair an assembly, not deadbolts a door can be locked with.
19) Which deadbolt has an easier thumbturn to operate than the Emtek 8467 for accessible units?
The Emtek 8467 uses a solid brass thumbturn on the interior. Where an accessible unit calls for a turn that is easier to grip, the Cal-Royal LSD is a Grade 3 single cylinder deadbolt with an ADA ergonomic thumbturn for doors 1-3/8 inch to 1-3/4 inch. The Cal-Royal ED500 is a Grade 3 single cylinder deadbolt with an adjustable backset over the same door thickness range, useful when the existing bores across a building are not all the same backset.
20) Is the Emtek 8467 interchangeable with a Baldwin Estates 8011 deadbolt?
They are not the same part. The Emtek 8467 is a single cylinder deadbolt, keyed outside with a thumbturn inside, on standard tubular door prep with a 2-1/8 inch cross bore and a 1 inch edge bore. The Baldwin Estates 8011 is a contemporary 1-5/8 inch double cylinder deadbolt in entrance function, so it takes a key on both faces. For a Baldwin unit with a thumbturn side, the Baldwin Reserve Contemporary Round and Square deadbolts are also double cylinder, so neither matches the 8467 single cylinder function.
21) What deadbolt works where the Emtek 8467 cannot be bored into the door?
The Emtek 8467 requires standard tubular door prep, a 2-1/8 inch cross bore and 1 inch edge bore. On a door that cannot take that bore, the Codelocks CL200 is a surface deadbolt with key override, and the Codelocks CL2200 is an electronic surface deadbolt in brushed steel, both mounting to the face of the door rather than through it. The Dormakaba D900 is a small case mortise deadbolt with a cylinder x thumbturn function, and the DynaLock 1300 Series is a heavy duty mortise electric deadbolt for openings released by an access control system. Each uses a different prep than the tubular bore.
22) What pairs with or replaces an Emtek 8467 when the entry needs the knob and deadbolt to work together?
The Emtek 8467 is a standalone deadbolt with no latch handle of its own. Where the entry should retract the latch and the bolt in one motion, the Falcon H2101 is a Grade 2 entrance interconnected lock with a single cylinder deadbolt built in. For a door that should stay latched but never keyed, the Arrow E60 is a Grade 2 non-keyed exit deadlock with blank plate x thumbturn for doors 1-3/8 inch to 1-3/4 inch.
23) Which Grade 2 deadbolts match the Emtek 8467 single cylinder function for standardizing a building?
The Emtek 8467 is a single cylinder cylinder x thumbturn deadbolt. Grade 2 units with the same function include the Dexter DB2000 Series for doors 1-3/8 inch to 1-3/4 inch, the Arrow DBX61 in the DBX Series, the Deltana CL200LA on a 2-3/4 inch backset, the Bravura Rectangle single cylinder deadbolt, and the Cal-Royal CB160 with a tamper-resistant cylinder guard. All operate the same way from either side as the 8467, so occupants use them identically across a mixed building.
24) What finishes does the Emtek 8467 Modern deadbolt come in?
Seven finishes on the 8467: Oil Rubbed Bronze (US10B), Polished Nickel (US14), Satin Nickel (US15), Flat Black (US19), Polished Chrome (US26), Unlacquered Brass (US3NL) and Satin Brass (US4). Each is offered in both the Schlage C and Weiser keyway versions. Unlacquered brass is the one to think twice about on an exterior door, since it is left uncoated and will patina.
25) Will the Emtek 8467 deadbolt match the rest of my Emtek trim?
The 8467 is from Emtek's Modern collection with contemporary styling and a solid brass body, so it pairs with Emtek's contemporary knob and lever trim in the same US finish code. Match on the finish code, not the finish name: a US15 deadbolt goes with US15 levers. Emtek publishes a knobset and leverset design sheet and a lookbook that show the matching trim families.
