Emtek 8554 Arts & Crafts Single Sided Deadbolt - Brass

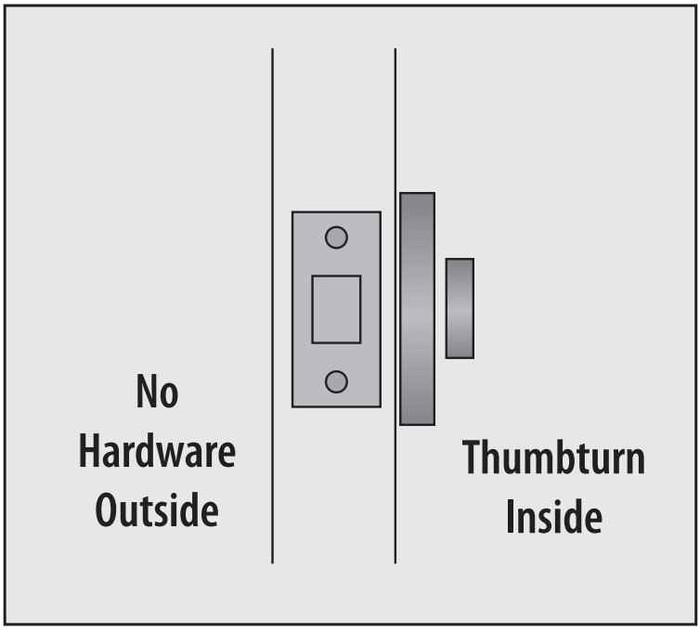

No. The 8554 is a single sided deadbolt operated by a thumbturn from the inside only, with no cylinder and no outside collar. Use it where you never need to lock or unlock from the other side, like an interior door, a closet, or a door that is secured from within. If you need key access from outside, you need a cylinder x thumbturn deadbolt instead.

It uses the standard tubular deadbolt prep: 2-1/8 inch cross bore, 1 inch edge bore, and a backset of either 2-3/8 or 2-3/4 inches. If your existing door is bored to that pattern, it goes straight in. Backset is a required choice at order time, so measure from the door edge to the center of the bore before you pick.

The Emtek 8554 is a tubular single sided deadbolt that uses a 2-1/8 inch cross bore and 1 inch edge bore. If you want a one sided deadbolt with a half bore instead, the Callan 205S is a Grade 3 one sided half-bore deadbolt. Both give you thumbturn-only operation from the interior; the difference is the door prep each one needs.

The Emtek 8554 Arts and Crafts deadbolt is non-keyed and single sided, operated by thumbturn from inside only with no cylinder or collar, so it cannot be keyed from outside. For an opening that needs outside key control, the Dexter DB2000-SCT is a Grade 2 single cylinder deadbolt with a cylinder outside and thumbturn inside, fitting doors 1-3/8 inch to 1-3/4 inch. The Hager 3115 is another cylinder by thumbturn deadbolt with a Schlage C keyway and the same 1-3/8 inch to 1-3/4 inch door thickness range.

The Emtek 8554 Arts and Crafts single sided deadbolt is a residential brass product for interior installation and appearance. For a commercial exit door, the Arrow E60 is a Grade 2 non-keyed exit deadlock with a blank plate outside and thumbturn inside, for doors 1-3/8 inch to 1-3/4 inch thick. That gives the same thumbturn-only operation with a blank exterior plate rather than the Emtek's interior-only trim.

The Emtek 8554 is a residential single sided deadbolt. Where a fire rated deadbolt is called for, the Hager 3215 single cylinder deadbolt with 1 inch throw carries a fire rating and fits doors 1-3/8 inch to 1-3/4 inch, and the Cal-Royal CRB800 is a heavy duty single cylinder deadbolt with a UL 3-hour fire rated latch.

Both are offered and you must pick one. Measure from the edge of the door to the center of the existing 2-1/8 inch bore: 2-3/8 inches is typical on residential doors, 2-3/4 on heavier or commercial-width stiles. If it is new prep, match whatever backset the passage or entry lock on the same door already uses so the boring jig lines up.

The 8554 itself is non-keyed - there is no cylinder in it. Emtek's Arts & Crafts deadbolts run the Schlage C keyway, which matters if you are keying other Emtek deadbolts on the same building into one system, but on this single sided model there is nothing to key.

The Emtek 8554 is a residential brass deadbolt, so for a spec calling out an ANSI/BHMA grade you would substitute a graded deadbolt. Grade 1 options include the Accentra D111 single cylinder deadbolt with 2-3/8 inch backset and the Delaney LM Series single cylinder less core deadbolt. Grade 2 options include the Arrow DBX61 and the Cal-Royal CB160, both cylinder by thumbturn.

The Emtek 8554 covers doors 1-3/8 inch to 2 inch, with 1-3/4 inch standard unless a thicker door is specified. Among alternatives, the Deltana 7312KA2 double cylinder deadbolt also lists a 1-3/8 inch to 2 inch range. The Corbin Russwin DL3011 cylindrical deadlock covers 1-3/4 inch to 2-1/4 inch if the door is thicker than 2 inch.

No. The Emtek 8554 is a single sided deadbolt with thumbturn operation from inside only and no exterior cylinder. For key control on both faces, the Callan 210S is a Grade 3 double cylinder deadbolt, the Hager 3214 is a Grade 2 double cylinder deadbolt with a Schlage C keyway, and the Design Hardware D1 Series is a Grade 1 extra heavy duty double cylinder deadbolt for 1-3/4 inch doors.

The Emtek 8554 uses an Arts and Crafts style brass thumbturn on the interior. Where an easier-to-grip turn is wanted, the Cal-Royal LSD is a Grade 3 single cylinder deadbolt with an ADA ergonomic thumbturn for doors 1-3/8 inch to 1-3/4 inch. It also carries an outside cylinder, which the 8554 does not.

The Emtek 8554 requires you to choose either a 2-3/8 inch or 2-3/4 inch backset when ordering. If the bore location is unconfirmed, an adjustable-backset deadbolt covers both: the Cal-Royal ED500 is a Grade 3 single cylinder deadbolt with adjustable backset for 1-3/8 inch to 1-3/4 inch doors, and the Brinks Raleigh E2401 single cylinder deadbolt has a 4 way adjustable backset.

Both are decorative solid brass style deadbolts. The Emtek 8554 is an Arts and Crafts single sided unit, thumbturn from inside only with no exterior cylinder, offered in Oil Rubbed Bronze, Satin Nickel, Flat Black, and Unlacquered Brass. The Baldwin Reserve Contemporary Round and Contemporary Square deadbolts are double cylinder, keyed on both faces, and contemporary rather than Arts and Crafts in trim shape.

It is part of Emtek's Arts & Crafts collection in solid brass, so it lines up with the same style family and shares the four finishes: Oil Rubbed Bronze, Satin Nickel, Flat Black, and Unlacquered Brass. If you are standardizing a house or a unit, order the deadbolt in the same finish code as the knobsets and the trim reads as a set.

Not without changing the door prep. The Emtek 8554 is a tubular deadbolt bored for a 2-1/8 inch cross bore, 1 inch edge bore, and a 2-3/8 inch or 2-3/4 inch backset. Mortise alternatives such as the Dormakaba D900 small case mortise deadbolt, cylinder by thumbturn with SC keyways, require a mortise pocket in the door edge instead.

No. The Emtek 8554 is a mechanical, non-electronic deadbolt operated by thumbturn. If you want code or credential entry, the Delaney KP400 is a Grade 2 electronic deadbolt with a programmable remote, and the Codelocks CL2210 is an electronic mortise deadbolt.
