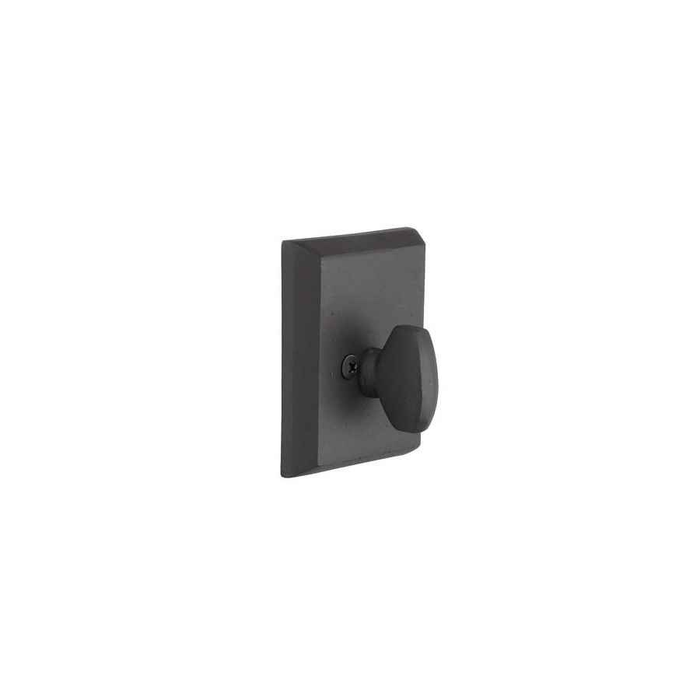

Emtek 8565 #3 Sandcast Bronze Single Sided Deadbolt

It's built as residential hardware, sandcast bronze, and Emtek describes it for interior installation and appearance. A thumbturn-only deadbolt with no key on either side is not what you want on a rental unit entry or a commercial opening. For those, look at a Grade 1 or Grade 2 commercial deadbolt: the Accentra D111 is Grade 1 cylinder x thumbturn, and the Cal-Royal CB160 is a Grade 2 single cylinder with a tamper-resistant cylinder guard.

If the door is bored to the standard tubular pattern, yes. The 8565 uses a 2-1/8 inch cross bore and a 1 inch edge bore, and you pick backset at 2-3/8 or 2-3/4 inches, which are the two standard residential backsets. Measure from the door edge to the center of the existing hole to tell which backset you have. One thing to plan for: because there's no exterior cylinder or collar, replacing a keyed deadbolt with this one leaves the outside face of the door open at the cross bore.

Backset is a required choice on the 8565: 2-3/8 inch or 2-3/4 inch. On a new door, match whatever the lockset on the same door uses so both bores line up on one centerline. On a retrofit, measure from the door edge to the center of the existing 2-1/8 inch cross bore. Get it wrong and the bolt won't reach the strike prep in the jamb.

The Emtek 8565 is a single sided, non-keyed deadbolt operated by a thumbturn from inside only, with no cylinder or collar on the exterior face. The Dexter DB2000-SCT is a Grade 2 single cylinder deadbolt with cylinder x thumbturn function, meaning it takes a key from outside and a turn from inside, and it fits doors 1-3/8 inch to 1-3/4 inch. Choose the 8565 where the exterior face should stay blank, such as an interior door or a door where key access from outside is handled by another lock; choose the DB2000-SCT where the opening needs key entry from the outside.

The Emtek 8565 is a non-keyed single sided deadbolt, so the Schlage C keyway reference applies to the 8565 family rather than to a cylinder on the single sided unit itself. If the opening needs a keyed Schlage C deadbolt, the Hager 3115 is a Grade 2 cylinder x thumbturn deadbolt with a Schlage C keyway, and the Hager 3118 is a Grade 1 classroom deadbolt with a Schlage C keyway and a 6-pin cylinder. Both fit doors 1-3/8 inch to 1-3/4 inch.

The Callan Model 205S is a Grade 3 one-sided half-bore deadbolt, prepped for a half bore rather than a full through bore. The Emtek 8565 requires a 2-1/8 inch cross bore and a 1 inch edge bore, so it needs the full standard deadbolt prep even though it is operated by thumbturn from one side only. On a door bored only halfway through, the Callan 205S is the one that matches the prep.

The Emtek 8565 is a non-keyed, thumbturn-operated deadbolt intended for residential use and interior installation and appearance. For a commercial exit opening, the Arrow E60 is a Grade 2 exit deadlock, non-keyed, with a blank plate x thumbturn function and a 1-3/8 inch to 1-3/4 inch door thickness range - the same blank-outside, turn-inside arrangement carrying a Grade 2 rating for commercial traffic.

For a fire rated opening, the Hager 3215 is a single cylinder deadbolt with a 1 inch throw carrying a fire rating, and the Cal-Royal CRB800 is a heavy duty single cylinder deadbolt with a UL 3-hour fire rated latch. The Emtek 8565 is a residential sandcast bronze single sided deadbolt intended for interior installation and appearance.

No - the Emtek 8565 is non-keyed and single sided, so there is no core to key. For an interchangeable core program, the Deltana CL200LAIC is a Grade 2 single deadbolt with interchangeable core and a 2-3/4 inch backset, the Arrow E61 is a Grade 2 single cylinder deadlock with SFIC prep less core for 1-3/8 inch to 1-3/4 inch doors, and the Delaney LM Series is a Grade 1 single cylinder less core deadbolt.

A single sided deadbolt secures a door from one side only, with a thumbturn inside and nothing showing outside. Typical uses are French doors and double door inactive leaves, closets, storage rooms, patio and interior doors where you never need to unlock from the other side. The Emtek 8565 is that type. If somebody needs to get in from the other side, you need a keyed deadbolt instead. The Callan 205S is another one-sided option, and it uses a half bore rather than a full 2-1/8 inch through bore.

Three finishes: Flat Black Bronze (8565FB), Medium Bronze (8565MB), and Tumbled White Bronze (8565TWB). These are sandcast bronze living finishes from Emtek's Sandcast Bronze collection, so they carry the cast texture and will vary piece to piece and mellow over time. If you're matching other openings in a house, order the deadbolts and the knobs or levers in the same finish code at the same time.

The Emtek 8565 handles up to 2 inch doors, but it's built for 1-3/4 inch as standard, so you must state the actual thickness on the order for anything thicker. Among comparable deadbolts, the Deltana 7312KA2 also covers 1-3/8 to 2 inches, and the Corbin Russwin DL3011 goes from 1-3/4 up to 2-1/4 inches if you're past 2 inches. Most other deadbolts stop at 1-3/4.

The Emtek 8565 covers doors 1-3/8 inch to 2 inch, with 1-3/4 inch as standard. Among comparable deadbolts, the Deltana 7312KA2 covers the same 1-3/8 inch to 2 inch range; it is a Grade 3 double cylinder deadbolt, so it takes a key on both faces rather than running blank outside. Most other deadbolts in the class, such as the Dexter DB2000 series and the Hager 3215, stop at 1-3/4 inch.

No. The BEST 8T is a T Series tubular deadbolt tube component - the latch mechanism itself, without the outside and inside trim. The Emtek 8565 is a complete single sided deadbolt with sandcast bronze trim and a thumbturn, ordered in a 2-3/8 inch or 2-3/4 inch backset. The 8T is what you buy to rebuild or complete a T Series lock, not a drop-in replacement for a finished deadbolt set.

The Emtek 8565 is a residential sandcast bronze deadbolt. Where an ANSI grade is required on the spec, the Delaney LM Series is a Grade 1 single cylinder less core deadbolt with cylinder x thumbturn function, the Deltana CL200LM is a Grade 1 single cylinder deadbolt, and the Cal-Royal CB160 is a Grade 2 single cylinder deadbolt with a tamper-resistant cylinder guard. All three are cylinder x thumbturn, so the exterior face carries a cylinder rather than staying blank.

The Cal-Royal LSD is a Grade 3 single cylinder deadbolt with an ADA ergonomic thumbturn, fitting doors 1-3/8 inch to 1-3/4 inch. The Emtek 8565 is a sandcast bronze single sided deadbolt operated by thumbturn from the inside; where the turn piece itself has to satisfy an accessibility requirement on the drawing, the LSD is the one specified for it.

The Emtek 8565 is ordered with the backset specified up front, either 2-3/8 inch or 2-3/4 inch. If the bore location is not confirmed yet, the Cal-Royal ED500 is a Grade 3 single cylinder deadbolt with an adjustable backset, the Falcon D111 is a Grade 1 classroom deadbolt with an adjustable backset, and the Brinks Raleigh E2401 is a single cylinder deadbolt with a 4 way adjustable backset. All three are cylinder x thumbturn rather than single sided.

The Emtek 8565 is a tubular deadbolt: it drops into a 2-1/8 inch cross bore with a 1 inch edge bore. The Dormakaba D900 is a small case mortise dead bolt with a D cylinder, keyed different with SC keyways, and it requires a mortise pocket cut into the door edge. The two are not interchangeable preps - a door bored for a tubular deadbolt will not take a mortise case without new machining.

The Emtek 8565 runs blank on the outside face with a thumbturn inside. For key access on both faces, the Callan Model 210S is a Grade 3 double cylinder deadbolt, the Delaney LU Series is a Grade 2 double cylinder deadbolt in stainless steel US32D, and the Design Hardware D1 Series is a Grade 1 extra heavy duty double cylinder deadbolt for 1-3/4 inch doors.

The Emtek 8565 is a mechanical, non-electronic deadbolt. If code or credential access is the goal instead, the Delaney KP400 is a Grade 2 electronic deadbolt with a programmable remote, the Codelocks CL200 is a surface deadbolt with key override, and the Codelocks CL2210 is an electronic mortise deadbolt. Note the CL200 and CL2210 are surface and mortise preps, not a tubular bore like the 8565.

The exterior trim is sandcast bronze, which is what gives the 8565 its cast texture and rustic look. Emtek lists brass for the lock material behind it. Bronze on the visible side is the reason people spec this one over a stamped deadbolt on a heavy wood entry or a timber frame door.

No. The Baldwin Reserve 8BR0618001 is a deadbolt spacer, a double cylinder accessory used to adapt an existing Baldwin deadbolt installation. The Emtek 8565 is a complete deadbolt with the tubular lock, sandcast bronze trim, and thumbturn. Order the 8565 to lock the door; the Baldwin spacer only fills a gap in a Baldwin assembly.

The Emtek 8565 is a sandcast bronze deadbolt in a rustic style, offered in Flat Black Bronze, Medium Bronze, and Tumbled White Bronze. For a contemporary profile, the Bravura 310SC Elite is a Grade 2 contemporary square deadbolt and the 310RC Elite is a Grade 2 contemporary round deadbolt, both cylinder x thumbturn; the Baldwin Reserve DC.CSD and DC.CRD are double cylinder contemporary square and round deadbolts.
