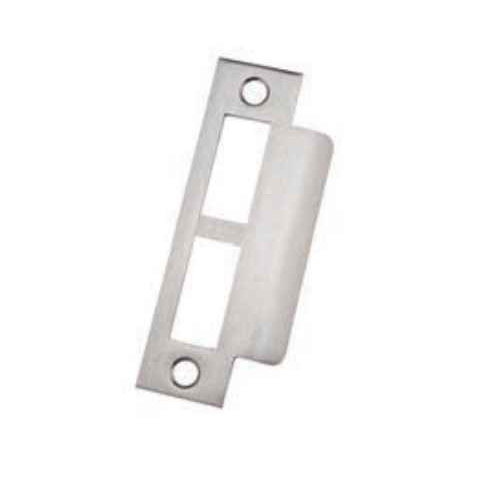

Emtek 86147 Brass Standard Strike Plate with understrike and screws

The 86147 strike plate measures 1-7/8 inches wide by 4-7/8 inches high, which is the standard mortise lock strike face for Emtek entrance locksets. If your frame is already prepped for a mortise lock strike of that footprint, it drops straight in. If your existing strike is a small 1-1/8 x 2-3/4 inch cylindrical face plate, this is a much larger plate and the frame mortise has to be enlarged.

It's the replacement strike for Emtek F20 and F13 mortise locks used in entrance locksets. If you're servicing one of those and the strike is damaged, painted over, or the wrong finish after a door refinish, this is the part. It is not a strike for a tubular deadbolt or a cylindrical lockset.

Underplate (understrike) and mounting screws are both in the box. The understrike is the metal box that sits behind the plate in the frame mortise so the latch and deadbolt have a pocket to throw into, and it's what a lot of aftermarket strikes leave out. Nothing else needs ordering to swap a strike.

Yes. Emtek supplies the strike with its mortise locks unless the door thickness is specified as 2 inches or greater, in which case the strike ships separately. The 86147 is that strike, in brass, with the understrike and screws.

The Emtek 86147 brass standard strike plate is the replacement part for F20 and F13 mortise locks in entrance locksets. It measures 1-7/8 inches wide by 4-7/8 inches high and ships with an underplate and screws. None of the Kwikset or Deltana strikes cross over to it: the Deltana SP2753 is a deadbolt strike at 2-3/4 by 1-1/4 inches, and the Kwikset 80318 full round adjustable strike, 81825 6 way adjustable deadlatch, 81640 strike box, and 81231-001 metal strike dust box are all deadbolt strike parts. A mortise lock case needs the tall mortise-pattern strike, so the 86147 is the part to order for that opening.

Eleven finishes: Polished Brass Lifetime (US3), Unlacquered Brass (US3NL), Satin Brass (US4), French Antique (US7), Oil Rubbed Bronze (US10B), Satin Nickel (US15), Pewter (US15A), Flat Black (US19), Polished Chrome (US26), Medium Bronze (MB), and Tumbled White Bronze (TWB). Order the same US code that's on your lockset and the strike will match across the opening. Unlacquered brass is the one to pick if the rest of the door is living finish and expected to patina.

Emtek lists the 86147 as residential. For a commercial or high-traffic institutional opening, the strike should come from the commercial lock line it belongs to rather than a residential brass strike. On a single-family entry or a low-traffic unit door with an Emtek F20 or F13 mortise lock, it's the correct part.

The 86147 is a brass mortise lock strike for Emtek F20 and F13 entrance locksets, not a deadbolt strike. For a separate deadbolt, the Deltana SP2753 is a 2-3/4 by 1-1/4 inch steel deadbolt strike plate, and the Kwikset 80318 full round adjustable strike is a deadbolt strike plate in a round pattern. Choose by the prep already routed in the frame: rectangular mortise prep takes the SP2753 pattern, a drilled round prep takes the 80318.

The Emtek 86147 is the visible brass strike plate itself and is supplied with an underplate and screws, so the reinforcing piece behind it is already in the package. The Kwikset 81640 strike box and the Kwikset 81231-001 metal strike dust box are standalone deadbolt strike parts that sit in the frame mortise behind a plate and are ordered separately from the face plate. If the finished brass face is what needs replacing on an Emtek mortise entrance lock, the 86147 is the part; if only the box in the frame is missing on a deadbolt prep, those Kwikset boxes are the parts that fill it.

They are different strike patterns. The Codelocks ASA strike plate is an ASA series strike in a stainless steel finish, the standard shape used with tubular latch and code lock hardware. The Emtek 86147 is a brass strike measuring 1-7/8 inches wide by 4-7/8 inches high made for F20 and F13 mortise entrance locksets, and it is offered in decorative finishes such as Oil Rubbed Bronze US10B, Satin Nickel US15, and Polished Chrome US26. On a door where the brass strike has to match the rest of the Emtek trim, the 86147 is the matching part; an ASA strike is the choice where the lock calls for the ASA prep.

The Emtek 86147 is a fixed 1-7/8 by 4-7/8 inch brass strike for F20 and F13 mortise entrance locksets, so it seats to the mortise strike prep as cut. Where the latch is landing off center on a deadbolt or deadlatch prep, the Kwikset 81825 6 way adjustable deadlatch and the Kwikset 80318 full round adjustable strike are the adjustable deadbolt strike parts that take up that error. On an Emtek mortise opening, correcting the frame prep and fitting the 86147 keeps the strike matched to the lock case.

Solid brass, both the plate material and the substrate. That matters on a strike more than people expect: it's the part the latch hammers into every time the door closes, and brass takes a finish that will actually still match a brass lever after a few years rather than rusting through a plated coat.

No handing to specify. The 86147 is a symmetrical mortise strike, so one part covers both left and right hand doors. All you pick is the finish. That's different from the lock body itself, which does care which way the door swings.

The 86147 ships as a set, plate plus understrike plus screws, and isn't broken out separately. If all you need is the box, a standalone dust box such as the Kwikset 81231-001 metal strike dust box or the Kwikset 81640 strike box covers deadbolt-size pockets, though neither matches the 1-7/8 by 4-7/8 inch mortise footprint the Emtek plate uses.

Not with one part number. The Emtek 86147 is the brass strike for F20 and F13 mortise entrance locksets at 1-7/8 by 4-7/8 inches and is a residential part offered in eleven finishes including Flat Black US19, Satin Brass US4, and Medium Bronze MB, so a whole run of mortise doors can be standardized on one finish. Doors carrying a separate deadbolt take a deadbolt strike such as the Deltana SP2753 at 2-3/4 by 1-1/4 inches in steel. Standardize by lock type: one Emtek finish across the mortise openings, a deadbolt strike where a deadbolt is the lock.
