Emtek Designer Brass Leverset ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$240.00
$196.36
Emtek Emtek Designer Brass Leverset - Wembley Lever, Passage Set EMTEK-DESIGNER-LEVERSETS-WEMBLEY-PASSAGE

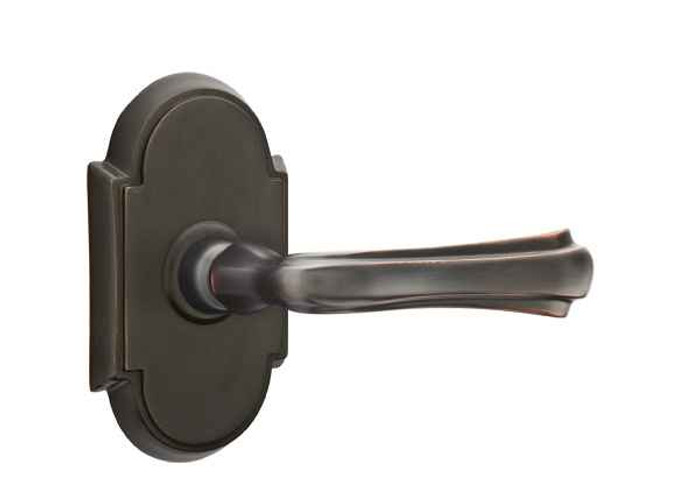

Emtek Designer Brass Leverset - Wembley Lever, Passage Set

(No reviews yet) Write a Review

Model: 8110.WM.RH.US15
From the Brass Collection
$240.00
$196.36
Selected Latch is
Selected Rosette is
Selected Handing is
Selected Finish is
Selected Backset is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$240.00
$196.36
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Emtek Designer Brass Leverset - Wembley Lever, Passage Set

  • Can be ordered with any Brass rosette
  • Sold as complete set. Includes Latch and Strike Plate
  • 28 Degree Latch (included when CF Mechanism is selected)
  • Fits any door between 1-3/8” to 2-1/4" thick with a 2-1/8" bore standard door prep*
  • Standard latch is for 2-3/8" backset. Specify 2-3/4" backset if required

* STRETTO rosette requires a 1-1/4” diameter bore hole and 2-hole door preparation for thumbturn privacy




Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Latch Faceplate: Round or Square Corner
  • Material: Brass

Product Specs

Subcategory:
Leversets
Collection:
Brass
Product Type:
Leversets
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Commercial/Residential:
Residential
Handle Type:
Lever
Lock Type:
Tubular
Series:
Wembley
Theme:
American Designer
Electronic:
No
Keyed Function:
Non-Keyed
Keyed:
No
Lock Function:
Passage
Product Attribute:
Cylindrical Locks
MAP Policy:
Yes
Product Function:
Passage/Hall/Closet
Product Style:
American Designer
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 8110.WM.RH.US15 – Frequently Asked Questions

1) Does the Emtek Wembley passage leverset fit a standard 2-1/8 inch bore door prep?
Yes. The Wembley passage set works with standard door prep: a 2-1/8 inch cross bore, and an adjustable latch set for either a 2-3/8 inch or 2-3/4 inch backset. Backset is a required selection when ordering, so pick the one that matches the hole already drilled in the door.
2) Is the Emtek Wembley passage lever handed, and how do I pick left or right?
Handing matters on this one. The Wembley lever is ordered Left Hand or Right Hand. Stand outside the door (the side you push from on an entry, or the hall side of a closet): if the hinges are on your left it is left hand, hinges on the right is right hand. Order the hand that puts the lever curving down toward the door edge correctly on both faces.
3) Does a passage leverset lock? I need something for a bedroom.
No lock at all. The Wembley passage set is non-keyed with no thumbturn, so the lever simply retracts the latch from both sides, which is what you want on a hall, closet, or a door held shut but never secured. For a bedroom or bath you need a privacy set with a push-button or thumbturn instead.
4) What comes in the box with the Emtek Wembley passage set, or do I have to buy the latch separately?
It ships complete. Both levers, the rosettes you select, the latch, and the strike plate are all included, so nothing else is needed to hang it on a bored door. Latch faceplates come in round or square corner to match the mortise already cut into the door edge.
5) What is the closest decorative brass equivalent to the Emtek Wembley passage leverset?
The Baldwin Estate 5103 passage lever with 5048 rose is the nearest decorative-residential equivalent. Both are passage function, non-keyed levers on a round rose intended for halls and closets. The difference is configuration breadth: the Wembley passage set is ordered with a chosen rosette from options including Lancaster, Oval, Quincy, Rectangular, Regular, Ribbon & Reed, Rope, Watford, Wilshire and the #8, in finishes such as Oil Rubbed Bronze (US10B), Satin Nickel (US15), Polished Chrome (US26), Polished Brass - Lifetime (US3) and Unlacquered Brass (US3NL), while the Baldwin 5103 is built around its 5048 rose.
6) The Wembley passage lever is a residential product. What should I use on a commercial opening instead?
For commercial openings, look at a graded cylindrical passage lock. The Falcon K101 is a Grade 1 heavy duty passage cylindrical lock with non-handed levers, fire rated, covering doors 1-3/8 inch to 2-1/4 inch thick. The Corbin Russwin CL3110 passage/closet is a Grade 1 vandal resistant cylindrical lever lock, fire rated, for 1-3/4 inch to 2 inch doors. The Design Hardware X75 is a Grade 1 passage lever lockset for 1-3/4 inch doors. The Emtek Wembley passage set is a brass residential leverset.
7) I need a lock on a bedroom or bathroom door, not a passage lever. What do I order?
The Wembley set here is passage function, which latches but does not lock. For a bed or bath door you want privacy function. The Baldwin Estate 5103 privacy lever with the 5048 rose is the matching decorative option. On the builder-grade side, the Kwikset 300BRNL Breton privacy lever set is Grade 3 for 1-3/8 to 1-3/4 inch doors, and the Hager 2540 is a Grade 2 privacy cylindrical lock with the Withnell lever for 1-3/8 to 2 inch doors.
8) Can I use the Emtek Wembley passage set on an exterior or office door that needs a key?
No. The Wembley passage set is non-keyed with no keyed function, so it provides no locking. For a keyed opening, the Deltana 6201 Manchester, 6411 Morant and 6431 Linstead levers are entry function for doors 1-3/8 to 2 inch thick, and the Deltana 5851 Claremont is also entry function. For a commercial office door, the Falcon B511CP6D is a Grade 2 cylindrical lever with entry/office function.
9) What is the CF mechanism option on Emtek leversets and should I choose it?
CF is Emtek's concealed fastener build: the rosettes mount with no exposed screws on the face of the rose, which is the cleaner look most designers spec. Choosing CF also brings the 28 degree rotation latch with it. If exposed screws don't bother you, the standard latch option is the plainer choice, and the 28 degree latch can also be ordered on its own.
10) What else looks like the Emtek Wembley if I want a decorative brass passage lever?
The closest peer in the same decorative residential lane is the Baldwin Estate 5103 passage lever on the 5048 rose, which is also a passage function lever set. If the budget is tighter and the look can be simpler, Bravura offers passage leversets in Grade 2, including the Miramar and Atlanta with round trim and the Tampa with square trim. None of those give you the ten-rosette mix and match that Emtek does.
11) I am buying matching Emtek hardware for a whole house. Can I mix a passage Wembley with dummy and privacy doors?
Yes, that is the normal way these get specified: same Wembley lever and same rosette across the house, with the function changed per door, passage for halls and closets and privacy for bed and bath. Keep the finish code consistent across the order (for example US15 Satin Nickel throughout), and note there is a split finish option on the order if you want the two faces of a door different.
12) I need a lower-cost passage lever for rental turns instead of the Emtek Wembley. What works?
Several plainer passage levers cover the same opening. The Kwikset 200BRNL Breton passage lever set is Grade 3 for 1-3/8 to 1-3/4 inch doors. The Callan Asheville AH5011 is a Grade 3 passage leverset in satin nickel. Bravura offers Grade 2 passage leversets in the Atlanta, Orlando and Tampa designs, the Tampa with square trim. These are finished builder-grade sets rather than the configurable brass Wembley, which is ordered by rosette and finish.
13) I need a matching lever on a door that does not move, like a false or closet panel. Is the Wembley passage set the right part?
No. The Wembley passage set is a complete latching set including latch and strike plate, so it is more than you need on a fixed panel. A dummy trim is the correct part: the Baldwin Estate 5103 is offered as a left hand and a right hand half dummy lever with the 5048 rose, and for commercial trim the BEST 9K Series 1DT is a Grade 1 heavy duty single dummy cylindrical lever trim while the BEST 7KC Series 1DT is the Grade 2 medium duty single dummy.
14) Does the Emtek Wembley passage lever need to be ordered handed, and are there non-handed passage levers instead?
The Wembley passage set is ordered as left hand or right hand, so the door swing has to be confirmed before it ships. If a non-handed set suits the job better, the Falcon B101 is a Grade 2 cylindrical passage lever with a non-handed design and the Falcon K101 is the Grade 1 passage lock with non-handed levers.
15) How does the Emtek Wembley passage set compare to a Grade 1 or Grade 2 commercial passage lever for a high-traffic corridor?
The Wembley is a residential brass leverset in passage function, ordered by rosette and finish. Commercial passage alternatives are rated for traffic duty: the Falcon T101 is a Grade 1 heavy duty passage lever with pressure release technology, the Accentra 5301LN Augusta is a Grade 2 passage lever in the 5300 Series, and the Dexter C1000 is a Grade 1 clutching non-keyed passage lever for 1-3/8 to 1-3/4 inch doors. Choose on whether the corridor is specified to a BHMA grade or to an appearance standard.
16) Is a keypad lever like the Lockey 2835 a substitute for the Emtek Wembley passage set?
Not really. The Wembley is a non-electronic brass passage leverset with no keyed or coded access. The Lockey 2835 is a mechanical pushbutton keyless lever lock with passage function and ADA compliance for doors 1 3/16 to 2 inch thick, and the 2835DC adds a double combination; the Lockey 1150 keypad lever sets cover 1-1/8 to 2 inch doors. They latch a door like a passage set but add code-controlled entry, so they suit a storage or staff door rather than a decorative hall opening.
17) My opening needs a storeroom or classroom lock, not a passage lever. What replaces the Wembley there?
The Wembley passage set does not lock at all, so a secured opening needs a keyed function lock. For storeroom, the Cal-Royal AG05 is a Grade 2 storeroom lever with a deadlocking latchbolt for 1-3/8 to 1-3/4 inch doors and the Hager 2580 is a Grade 2 storeroom lock with the Withnell lever for 1-3/8 to 2 inch doors. For classroom, the Cal-Royal AG03 is a Grade 2 classroom lever with a 6-pin Schlage C keyway keyed different on a 2-3/4 inch backset, and the Dexter C1000 classroom is a Grade 1 clutching keyed lever.
18) Is the Emtek Wembley lever solid brass or plated zinc?
Brass, both the lever and the rosette, which is why it takes living finishes like Unlacquered Brass (US3NL) that patina over time. It is part of Emtek's brass collection in the American Designer style.
