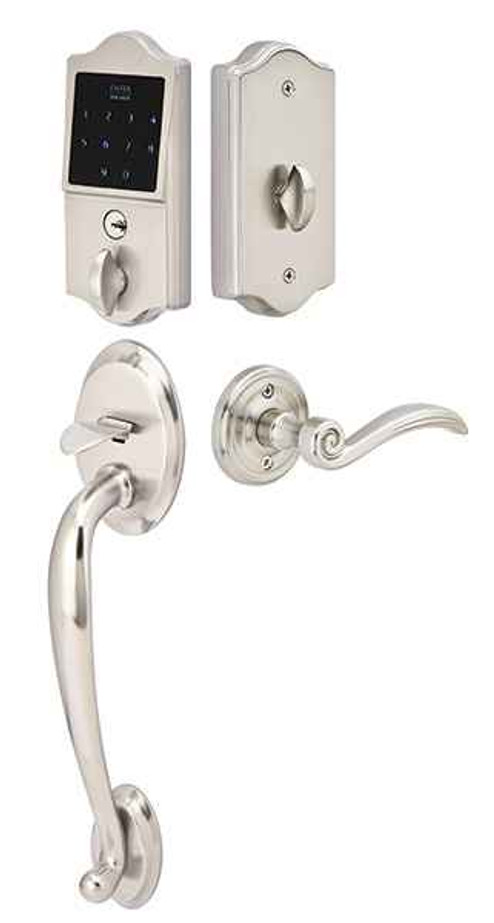

Emtek E4410 EMTouch Classic Style Electronic Keypad Entry Set - Single Cylinder

The E4410 goes into a standard 2-1/8 inch cross bore prep, so a door already drilled for a tubular lockset takes it without new boring. The standard latch is 2-3/8 inch backset; if your door is bored at 2-3/4 inch, specify that backset when you order. Backset is a required selection, so it gets built the way you pick it.

Handing matters when the inside trim is a lever. Right hand or left hand is a required selection on the E4410, and a lever has to be handed to swing correctly on your door. If you pick a knob for the interior, handing is not a functional issue, but the order still asks for it, so give the hand of the door as you stand outside it.

Five choices go on the order for the E4410: the interior knob or lever style (Emtek's full brass trim range, from the Ace Knob and Spoke Knob to the Cortina, Milano and Triton levers), handing, backset (2-3/8 or 2-3/4 inch), keyway (Schlage standard or Weiser WR5), and finish. Keying is also specified up front, keyed different or keyed alike, with keying to code available.

The E4410 is a single cylinder entry set that ships with a Schlage keyway as standard, and a Weiser WR5 keyway is the alternative. If your building is already on Schlage keys, order the standard keyway and key to code so the existing key works. Multiple units can be ordered keyed alike to each other as well.

The E4410 EMTouch is built around a 1-3/8 inch to 2 inch door thickness. For a thicker slab, the Yale Real Living BYRD226NRRX Assure Lock standalone touchscreen deadbolt with Ridgefield handleset covers 1-3/4 inch to 2-1/4 inch, and the Weslock 1411 Traditionale Colonial handleset with Eleganti knob, a single cylinder keyed entry, covers 1-3/4 inch to 2-1/4 inch if the keypad is not required.

If the touchscreen keypad is not needed, the Schlage Residential F60 Addison single cylinder keyed entry handleset with Accent lever is a Grade 2 entrance handleset for 1-3/8 inch to 1-3/4 inch doors, and the Weslock 2810 Hillcrest single cylinder handleset with Hudson knob covers 1-3/8 inch to 2 inch. Both are key-only entry sets; the E4410 stores up to 20 user codes alongside its cylinder.

The E4410 EMTouch is a tubular lockset that needs a 2-1/8 inch cross bore. On an opening already prepped for mortise trim, the Baldwin Estates 6542 Tremont single cylinder entry mortise trim, or the 6542 Tremont double cylinder version for glass-adjacent doors, is the entrance-function match, both specified for a 1-3/4 inch door.

Twenty user codes total on the EMTouch. It arrives programmed with two unique secure codes, so it works out of the box, and you add the rest as tenants, cleaners or trades need access. It's a touchscreen keypad, and it keeps a key cylinder as well, so a lost battery or forgotten code isn't a lockout.

A 9V battery runs the E4410. There is nothing to wire and no hub or network to set up, so it installs like a standard bored lockset with the keypad escutcheon on the outside. Because it's a single cylinder set, the key cylinder outside gives you a mechanical way in independent of the electronics.

It's sold as a complete set: exterior keypad handle section, the interior knob or lever you specify, latch, and strike plate. You don't order a latch separately. What isn't included is a separate deadbolt, the E4410 is an entry set with keypad and key on the one bored opening.

Emtek's EMTouch E4410 is a residential-duty brass handleset, built for houses, condos and small multi-family front doors. For a commercial opening that needs a graded lock, a Grade 2 handleset like the Master Lock HDLB Series single cylinder deadbolt handleset or the Schlage Residential F60 Addison is the closer fit, and the Kwikset 687AMD Amador exterior handleset is listed Grade 3.

The E4410 puts the keypad in the handleset itself, on a single 2-1/8 inch bore, and it's a single cylinder entry function. The other approach keeps a mechanical handleset and adds a powered deadbolt above it, which needs a second bore: the Kwikset 815SCEHFL San Clemente pairs a handleset with a SmartCode electronic deadbolt, and the Yale Real Living BYRD226NRRX and BYRD226CBARX pair the Ridgefield handleset with a standalone or Wi-Fi and Bluetooth touchscreen deadbolt. Pick the two-piece route if you want the door to stay locked by a deadbolt throw; pick the E4410 if you only have one prep to work with.

Yes, and that's the point of the E4410. The interior trim is chosen from Emtek's brass knob and lever range, so a house already on Providence Knobs or Cortina Levers keeps the same trim on the keypad door. Finishes are Oil Rubbed Bronze (US10B), Satin Nickel (US15) and Lifetime Polished Brass (US3), and a split finish can be specified if the inside and outside need to differ.

They are not the same build. The Yale Real Living BYRD226CBARX Assure Lock is a Wi-Fi and Bluetooth touchscreen deadbolt with Ridgefield handleset, and the BYRD256 CBARX Assure key free touchscreen deadbolt pairs with a Ridgefield passage handleset, meaning the interior trim does not latch. The Emtek E4410 EMTouch is a keyed single cylinder tubular entry set with a touchscreen reader, so the electronics sit in the entry set rather than in a separate connected deadbolt.

No. The Weslock 2815 Hillcrest handleset with New Heaven lever is a dummy function, as is the Weslock 6695 Belmont dummy handleset with Impresa knob, so neither latches or locks the door. The Emtek E4410 EMTouch is an entry function, single cylinder and keyed. A dummy handleset suits an inactive leaf of a pair, not the active entry door.

The Emtek E4410 EMTouch is specified for residential use. Where a stated grade is required on the door schedule, the Master Lock HDLBA0615/4D single cylinder deadbolt handleset is Grade 2 entrance, the Schlage Residential F60 Addison with Accent lever is Grade 2, and the Kwikset 687AMD SMT Amador single cylinder handleset is Grade 3 for a 1-3/4 inch door.

The E4410 EMTouch is sold as a complete set including latch and strike plate, with a required inside knob or lever selection. When the interior trim is already in place, the Kwikset 687BW SMT Belleview single cylinder handleset and the Kwikset 687AMD SMC Amador with SC1 keyway SmartKey are exterior-only keyed entry handlesets, both Grade 3 for a 1-3/4 inch door.

If the code entry isn't wanted, a straight keyed handleset does the same job mechanically. From other brands, the Deltana 810871 Montego and the Weslock 2810 Hillcrest with Hudson Knob are both single cylinder handlesets, and the Pamex FS7P31 Lexington in Satin Nickel is an entry handleset as well. All three are key-only, no batteries and no codes to manage.

The Schlage Residential JE285 Barcelona style handleset with Seville lever is a non-keyed entry function, Grade 2, for 1-3/8 inch to 1-3/4 inch doors. The Emtek E4410 EMTouch is keyed with a single cylinder, so on a secondary door that only needs the same handleset appearance the non-keyed JE285 fills the opening without a cylinder to key.

The Emtek E4410 EMTouch is brass. In solid brass entry handlesets, the Deltana 803871B Hanover, the Deltana 815871 St. Ann, and the Deltana 825871 Kingston are all solid brass entry function handlesets, without the touchscreen keypad the E4410 carries.

No. The Schlage Residential JI18/19 interconnected lock with Torino lever is a passage function with a keyed deadbolt, so the lever itself does not lock and security comes from the separate deadbolt. The Emtek E4410 EMTouch is an entry function keyed single cylinder set. They solve different openings even though both are keyed.

The E4410 EMTouch can be ordered with any brass knob or lever for the inside trim. Baldwin offers the Wesley handleset with Alcott knob and the Wesley handleset with Carnaby knob, both entrance function, as fixed handleset-and-knob pairings rather than an open trim selection.
