Emtek Modern Classic Brass Kno...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$190.00
$152.00
Emtek Emtek Modern Classic Brass Knobset - Round Knob, Passage Set EMTEK-KNOBSETS-ROUND-PASSAGE

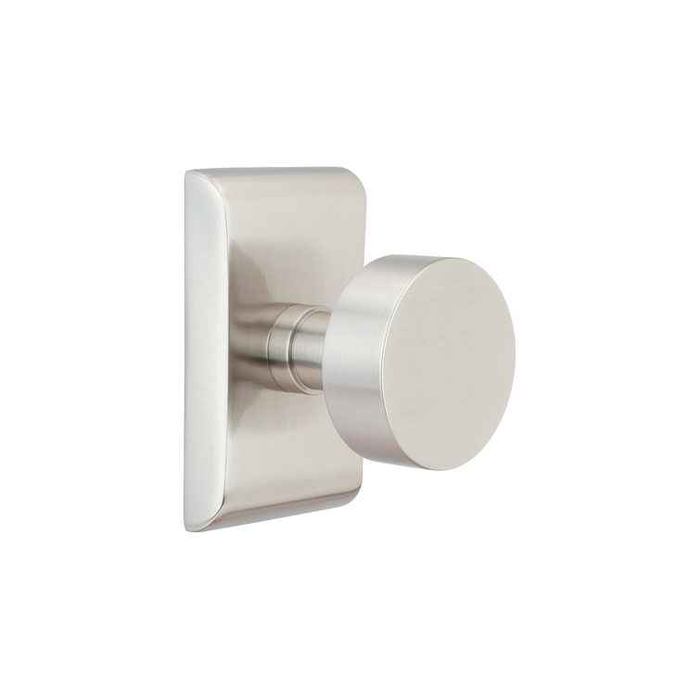

Emtek Modern Classic Brass Knobset - Round Knob, Passage Set

(No reviews yet) Write a Review

Model: 5109.ROU.US19
From the Brass Collection
$190.00
$152.00
Selected Concealed Fastener (CF) Mechanism is
Selected Rosette is
Selected Finish is
Selected Backset is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$190.00
$152.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Emtek Modern Classic Brass Leverset - Round Knob, Passage Set

  • Can be ordered with any Brass rosette
  • Sold as complete set. Includes Latch and Strike Plate
  • 28 Degree Latch (included when CF Mechanism is selected)
  • Fits any door between 1-3/8” to 2-1/4" thick with a 2-1/8" bore standard door prep*
  • Standard latch is for 2-3/8" backset. Specify 2-3/4" backset if required

* STRETTO rosette requires a 1-1/4” diameter bore hole and 2-hole door preparation for thumbturn privacy




Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Latch Faceplate: Round or Square Corner
  • Material: Brass

Product Specs

Subcategory:
Knobsets
Collection:
Brass
Product Type:
Knobsets
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Commercial/Residential:
Residential
Handle Type:
Knob
Lock Type:
Tubular
Series:
Round
Theme:
Contemporary
Electronic:
No
Keyed Function:
Non-Keyed
Keyed:
No
Lock Function:
Passage
MAP Policy:
Yes
Product Function:
Passage
Product Shape:
Round
Product Style:
Contemporary
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 5109.ROU.US19 – Frequently Asked Questions

1) Does the Emtek Round passage knob come with a 2-3/8 or 2-3/4 inch backset latch?
Backset is a required choice at order time, 2-3/8 inch or 2-3/4 inch. The standard latch shipped is 2-3/8 inch, so if your existing bore is set back 2-3/4 inch from the door edge, you have to specify it. Measure from the edge of the door to the center of the bore before ordering; getting this wrong means the latch will not reach the strike.
2) What comes in the box with an Emtek passage knobset, and do I need to buy a latch separately?
It ships as a complete set: both knobs, the rosettes, the latch, and the strike plate. Nothing else to order to hang it on a prepped door. The latch faceplate is available with round or square corners, so match it to the mortise already cut in your door edge, and pick the rosette style separately since any Brass rosette can be ordered with this knob.
3) Is a passage knob the right function for a bedroom or bathroom door?
No. Passage means the knob turns freely from both sides with no lock at all, which suits halls, closets, and pantry doors. For a bedroom or bath you want a privacy function with a thumbturn inside. In the same knob format, the Baldwin Estate 5000 with 5148 rose and the Deltana 6112 St. Thomas are privacy knobs; the Cal-Royal BER20 and Pamex FTF are Grade 3 privacy options.
4) Is the Emtek brass passage knob rated for commercial traffic?
It is a residential tubular lockset in solid brass, built for homes and light-traffic interior doors. For a commercial corridor, classroom, or anything spec'd to a grade, go with a cylindrical Grade 1 or 2 knob instead: the Schlage D10S is Grade 1 passage, the Falcon X101 is Grade 1 heavy duty passage covering 1-3/8 to 2-1/4 inch doors, and the Corbin Russwin CK4310 is Grade 1 passage for 1-3/8 to 2 inch doors.
5) My door is 2 inches thick. Will an Emtek round knob passage set work?
Not from the specification table, which puts the range at 1-3/8 to 1-3/4 inches. For a genuinely thick door, the Deltana 6171 Round Knob and Deltana 3381 Egg Knob cover 1-3/8 to 2 inches, and the Falcon X101 goes to 2-1/4 inches. Same round knob look on the Deltana 6171 if that is what you are after.
6) I am replacing an old builder-grade knob. Will the Emtek drop into the existing holes?
In most cases yes, because it uses the same 2-1/8 inch cross bore that standard residential door prep already has, and it handles both common backsets, 2-3/8 and 2-3/4 inch. Two things to check on the door: the thickness has to fall between 1-3/8 and 1-3/4 inches, and the latch mortise in the edge has to match the faceplate corner you pick, round or square.
7) The opening needs a key - is there a keyed version or a comparable keyed knob?
The Emtek Round knob passage set is non-keyed. For a keyed knob on the same door prep, the Kwikset 400P-CP Polo is a Grade 3 keyed entry knob for 1-3/8 to 1-3/4 inch doors with a round corner adjustable latch and strike, the Cal-Royal BER00 is a Grade 3 entrance/office knob with a Kwikset keyway, and the Corbin Russwin CK4851 is an entrance/office cylindrical lock with a conventional cylinder for 1-3/8 to 2 inch doors. The Deltana 6171 Round Knob is offered in entry function if the round brass shape is what you are matching.
8) What is the closest commercial-grade equivalent to an Emtek Round passage knobset for a door that needs an ANSI grade?
The Emtek Round knob passage set is a residential tubular knobset in brass, non-keyed passage function. When an opening needs a stated ANSI grade instead, the Schlage D10S is a Grade 1 cylindrical non-keyed knob lock in passage function with an Orbit knob, and the Corbin Russwin CK4310 is a Grade 1 passage/closet cylindrical lock with a Global knob covering 1-3/8 to 2 inch doors. Both are commercial-styled knobs rather than decorative brass, so the trade-off is a graded lock in place of Emtek's rosette and finish selection.
9) The door is a bedroom or bathroom, not a hall - what should I order instead of a passage knobset?
A passage knob has no locking function at all, so it is wrong for a bath or bedroom. For those openings the Baldwin Estate 5000 Baltimore knob with 5148 rose is a privacy lock with a 2-3/8 inch backset and full lip strike, the Deltana 6112 St. Thomas is a privacy knob for 1-3/8 to 2 inch doors, and the Dexter C2000 is a Grade 2 privacy cylindrical ball knob for 1-3/8 to 1-3/4 inch doors. Emtek's Round knob is also built in privacy form, so a house can hold one look across hall and bath doors.
10) Which knobs look like a passage substitute but will not actually latch the door?
Dummy trim is the common mix-up. The Schlage A170 single dummy trim, the BEST 6K single dummy trim, the Bravura Biloxi dummy knobset and the Omnia 458/0 single dummy latchset all mount a knob on the face of the door with no latch bolt and no bore-through operation. The Emtek Round passage set is sold complete with latch and strike plate and turns a live latch, so a dummy is only correct on a fixed or ball-catch door.
11) Can an Emtek Round passage knobset go on a fire-rated corridor door?
The Emtek Round knob is a residential brass knobset. Where the opening carries a fire label, the Falcon W101 is a Grade 2 medium duty passage/closet cylindrical knob lock with a fire rating and a 2-3/4 inch backset, and the Falcon X101 is a Grade 1 heavy duty passage knobset with a fire rating, interchangeable core, and a 1-3/8 to 2-1/4 inch door thickness range. Those are the ones to spec when the label governs.
12) What is the CF mechanism option on Emtek knobsets and should I pick it?
CF stands for concealed fastener: the rosettes mount with no exposed screws showing on the face. Pick it when the trim is going somewhere people look closely and you do not want screw heads on the rose. Choosing the CF mechanism brings a 28 degree rotation latch with it. If you do not care about visible screws, the standard mechanism is the third choice on that option.
13) Can I get Emtek round knobs in matching black hardware across a whole house?
Eight finishes run across the round knob line: Flat Black (US19), French Antique (US7), Oil Rubbed Bronze (US10B), Polished Chrome (US26), Polished Nickel Lifetime (US14), Satin Brass (US4), Satin Nickel (US15), and Unlacquered Brass (US3NL). Flat Black US19 is the one to standardize on for black hardware. Emtek also allows a split finish specified at order, if you want the inside face different from the hall side.
14) I need a knob on a closet door that does not turn, just sits there. Is a passage set what I want?
No. A passage set has a working latch that retracts when you turn the knob. If the door is a false panel or one leaf of a pair with no latch, you want a dummy trim instead. Options in that function include the Schlage A170 single dummy, the BEST 6K single dummy, the Omnia 434/0 and 442/00 solid brass dummy knobs, and the Cal-Royal BA40.
15) I need a decorative brass passage knob but not the Emtek price of a configured set - what else is there?
The Emtek Round passage knobset is configured across finish, rosette and concealed-fastener choices, which is why it ships as a made-to-order set. For a simpler pre-set brass passage knob, the Omnia 434/PA is a solid brass egg-shaped knob latchset in passage function with a 3 inch projection, and the Baldwin Estate 5011 Colonial is a passage knob with the 5058 rose. Both arrive as a fixed trim combination rather than a configurable one.
16) The door is thicker than 1-3/4 inches - which passage knob covers it?
For a passage knob on a thicker door, the Corbin Russwin CK4310 Grade 1 passage/closet lock covers 1-3/8 to 2 inches, and the Falcon X101 Grade 1 passage knobset covers 1-3/8 to 2-1/4 inches. Among decorative brass knobs, Deltana lists 1-3/8 to 2 inches on the 6171 Round Knob and 3381 Egg Knob, both in entry function.
17) What is a straight Grade 2 passage knob substitute if the Emtek finish range is not needed?
When the decorative brass finishes are not the point, the Grade 2 passage knobs are the direct swap: Corbin Russwin CK4410 passage/closet cylindrical lock for 1-3/8 to 1-3/4 inch doors, Dexter C2000 passage cylindrical ball knob for the same range, Arrow MK01 and RK01 passage cylindrical knob locks for 1-3/8 to 1-3/4 inch doors, and Pamex FTF30 Baron in Grade 3 passage for the same thickness range. All are non-keyed passage like the Emtek Round set.
18) The closet needs to lock from the outside - what replaces a passage knob there?
Passage knobs latch but never lock, so a secured storage or closet door needs a storeroom function instead. The Sargent 6G04 is a Grade 2 standard duty storeroom/closet knob lock with a single cylinder, and the Sargent 8XG04 is a Grade 1 heavy duty storeroom/closet single cylinder knob lock with a 2-3/4 inch backset. The BEST 8K is a Grade 1 heavy duty entrance function knob lock if the door needs to be openable from inside with the outside key-controlled.
19) Which passage knobs come with a 2-3/4 inch backset already rather than as an option?
The Emtek Round knob ships with a 2-3/8 inch standard latch and takes 2-3/4 inch when specified at order. If a fixed 2-3/4 inch backset is wanted from the start, the Falcon W101 Grade 2 passage/closet knob lock is built with a 2-3/4 inch backset. At the other end, the Baldwin Estate 5000 Baltimore passage knob is preconfigured with a 2-3/8 inch backset and full lip strike.
20) Which rosette shapes can I get on the Emtek Round knob?
Six rose styles pair with the round knob: Disk, Modern, Modern Rectangular, Neos, Square, and Urban Modern. Round or Disk roses cover the standard 2-1/8 inch bore cleanly; the Square and Modern Rectangular roses are the ones to pick when you are matching square door trim or rectangular hinges elsewhere in the room.
21) Is the Emtek round knob solid brass or plated?
Brass through the substrate, not a plated pot metal core. That matters on unlacquered brass in particular (US3NL), where the finish is meant to wear and patina with handling rather than flake. If you want it to stay bright, Polished Nickel Lifetime (US14) is the finish to pick.
22) I am buying passage and entry knobs for a whole house - is there a single package instead of separate sets?
The Emtek Round knob is ordered per opening, with backset, rosette and finish selected each time, which is how a mixed-function house gets one consistent look. If a single packaged buy is preferred instead, the Schlage Residential F500 Plymouth with Georgian knob ships as a combo pack with adjustable backsets and dual strikes for 1-3/8 to 1-3/4 inch doors, and the Kwikset 200P Polo passage knob ships with a 6AL latch and RCS round corner strike.
23) Is there another round-shaped brass knob if the Emtek rosette options do not match the rest of the doors?
The Emtek Round knob pairs with Disk, Modern, Modern Rectangular, Neos, Square and Urban Modern rosettes. If none of those match, the Sure-Loc Modern Bergen Round Knob and the Bravura Albany with round trim, a Grade 2 passage knobset, both carry a round knob on their own trim, and the Bravura Dallas uses rectangle trim in a Grade 2 passage knobset with a US4 satin brass finish, which is one of the finishes the Emtek Round knob is also offered in.
