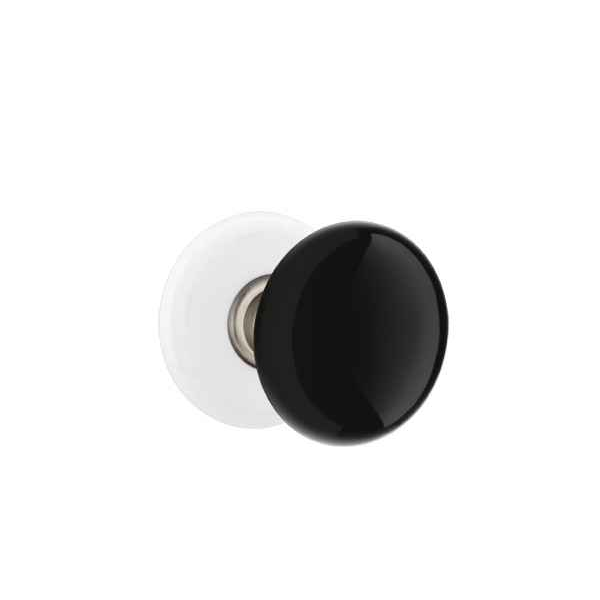

Emtek Porcelain Knobsets, Ebony Knob, Passage Set

Emtek Porcelain Knobsets, Ebony Knob, Passage Set

(No reviews yet) Write a Review

Model: 8030.EB.US15
From the Glass & Porcelain Collection
$190.00
$155.08
Selected Latch is
Selected Rosette is
Selected Finish is
Selected Backset is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$190.00
$155.08
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Emtek Porcelain Knobsets, Ebony Knob, Passage Set

  • Can be ordered with any Brass rosette
  • Sold as complete set. Includes Latch and Strike Plate
  • 28 Degree Latch is available for additional charge
  • Fits any door between 1-3/8” to 2-1/4" thick with a 2-1/8" bore standard door prep*
  • Standard latch is for 2-3/8" backset. Specify 2-3/4" backset if required

* STRETTO rosette requires a 1-1/4” diameter bore hole and 2-hole door preparation for thumbturn privacy




Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Latch Faceplate: Round or Square Corner
  • Material: Brass

Product Specs

Subcategory:
Knobsets
Collection:
Glass & Porcelain
Product Type:
Knobsets
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Commercial/Residential:
Residential
Handle Type:
Knob
Lock Type:
Tubular
Series:
Porcelain
Theme:
Glass & Porcelain
Electronic:
No
Keyed Function:
Non-Keyed
Keyed:
No
Lock Function:
Passage
MAP Policy:
Yes
Product Function:
Passage
Product Style:
Porcelain
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 8030.EB.US15 – Frequently Asked Questions

1) Is the Emtek Porcelain Ebony knob passage set lockable?
No. It's a passage function set, non-keyed, so both knobs always turn and the latch never locks. Use it on halls, closets, and pantry doors. For a bedroom or bath you need a privacy set with a thumbturn, and for an exterior or office door you need a keyed function.
2) Will the Emtek porcelain knob set fit my existing door prep?
If the door has the standard 2-1/8 inch cross bore, yes. The latch is supplied for a 2-3/8 inch backset as standard, and you specify 2-3/4 inch backset instead if that's what your edge bore measures. Latch faceplate comes round corner or square corner to match the mortise already cut in the door edge.
3) How do I measure backset before ordering an Emtek knobset?
Measure from the door edge to the center of the 2-1/8 inch bore hole. That's either 2-3/8 inches or 2-3/4 inches on virtually all residential doors, and the Ebony porcelain passage set is offered with either. 2-3/8 is the common interior figure; 2-3/4 shows up more on exterior and some commercial-prepped doors. Get it wrong and the latch won't reach the bore.
4) I need a commercial-rated passage knob instead of a porcelain one. What should I use?
The Emtek Porcelain Ebony passage set is a residential tubular knobset. For a rated opening, the Schlage D10S is a Grade 1 heavy duty cylindrical passage knob lock with the Orbit knob, and the Falcon X101 is a Grade 1 heavy duty cylindrical passage knobset that is fire rated and fits doors 1-3/8 inch to 2-1/4 inch. In Grade 2, the Corbin Russwin CK4410 and the Dexter C2000 passage ball knob both cover passage/closet openings.
5) Which knobs look like a substitute for the Emtek porcelain passage set but will not latch?
Dummy trims are the common mix-up. The BEST 6K single dummy trim, Schlage A170 single dummy, Omnia 434/0 and 442/00 dummy latchsets, Bravura Biloxi dummy knobset and Cal-Royal BA40 dummy knob are all surface-mounted pulls with no latch. The Emtek Ebony passage set includes a latch and strike plate and operates a latch bolt.
6) The door is a bedroom or bathroom. What should I order instead of the passage version?
Passage is a non-keyed latch with no locking, so for a bed or bath door choose a privacy function. Comparable privacy knobs include the Baldwin Estate 5077 Bethpage privacy knob with R027 rose, the Baldwin Estate 5000 Baltimore privacy knob with 5148 rose and 2-3/8 inch backset, the Deltana 6112 St. Thomas privacy knob for 1-3/8 inch to 2 inch doors, and the Dexter C2000 Grade 2 privacy ball knob.
7) My doors are thicker than 1-3/4 inch. Which passage knobs cover that?
The Emtek Porcelain Ebony passage set can be ordered in an extended door thickness configuration covering 1-3/4 inch to 2-1/4 inch. Among comparable passage knobs, the Falcon X101 covers 1-3/8 inch to 2-1/4 inch and the Corbin Russwin CK4310 Grade 1 passage/closet lock covers 1-3/8 inch to 2 inch.
8) Does the Emtek porcelain passage knob come with a latch and strike, or do I buy those separately?
It ships as a complete set: both porcelain knobs, the rosettes you select, the latch, and the strike plate. Nothing else is required to hang it on a bored door.
9) What is the 28 degree rotation latch option on Emtek knobsets for?
It reduces how far the knob has to rotate to retract the latch, which suits users with limited hand strength or grip. It's an option on the Ebony porcelain passage set alongside the standard latch, and it carries an extra charge.
10) Can I match Emtek porcelain knobs to the trim finishes already in my house?
The Ebony porcelain knob is paired with brass rosettes and trim in seven finishes: French Antique (US7), Oil Rubbed Bronze (US10B), Pewter (US15A), Polished Brass Lifetime (US3), Polished Chrome (US26), Satin Nickel (US15), and Unlacquered Brass (US3NL). Unlacquered brass will patina over time; the Lifetime polished brass will not.
11) Which rosette should I pick with the Ebony porcelain knob?
Four rosette styles are offered: Lancaster, Porcelain, Ribbon and Reed, and Rope. Porcelain rosette carries the ceramic look through to the door face; Lancaster, Rope, and Ribbon and Reed are brass patterns. All of them use the same bored prep, so the choice is purely visual.
12) What are decorative alternatives to the Emtek porcelain knob if I want solid brass instead of ceramic?
For a passage function in solid brass, the Omnia 434/PA egg-shaped knob latchset is a traditional brass option, and Baldwin's Estate 5011 Colonial passage knob with 5058 rose is another. Both are passage sets like the Emtek. If you want the same look on a door that doesn't need a working latch, Omnia's 434/0 and 442/00 are single dummy versions.
13) I need the same look on my bedroom doors but with a lock. What pairs with the Emtek porcelain passage set?
Passage is the hall and closet function, so bedrooms and baths need the privacy version of the same Emtek Porcelain knob rather than this one. Keeping both from the Porcelain series in one finish and one rosette style is what keeps the doors matching through the house. Note that the STRETTO rosette is the exception on privacy: it needs a 1-1/4 inch diameter bore and a two-hole door prep for the thumbturn.
14) What is a lower-cost basic passage knob if the porcelain look is not required?
The Kwikset 200P Polo passage knob ships with a 6AL latch and RCS round corner strike for interior hall and closet doors, and the Pamex FTF Grade 3 Baron passage knob lockset fits doors 1-3/8 inch to 1-3/4 inch. Both are plain metal knobs without the porcelain knob and selectable brass rosette of the Emtek Ebony set.
15) The opening needs to lock with a key. What knob takes the place of the porcelain passage set?
The Emtek Porcelain Ebony passage set is non-keyed. Keyed knob options include the Baldwin Estate 5000 Baltimore in entry configurations, the Kwikset 400P Polo keyed entry knob with 6AL latch and RCS strike, the Deltana 6171 Round Knob entry for 1-3/8 inch to 2 inch doors, and in commercial grades the Sargent 8XG04 Grade 1 storeroom knob lock with 2-3/4 inch backset or the Corbin Russwin CK4851 entrance/office lock with conventional cylinder.
16) I need several matching passage knobs for a rental turn. Is there a multi-pack alternative?
The Sure-Loc Bergen round knob is offered as a 6-pack with adjustable backset, which suits repeating the same interior knob across a unit. The Emtek Porcelain Ebony passage set is ordered per opening with the finish, rosette and latch selected individually.
17) Is the Emtek porcelain knob electronic or smart-lock compatible?
No. It's a purely mechanical tubular passage set with no electrified option and no keyway.
