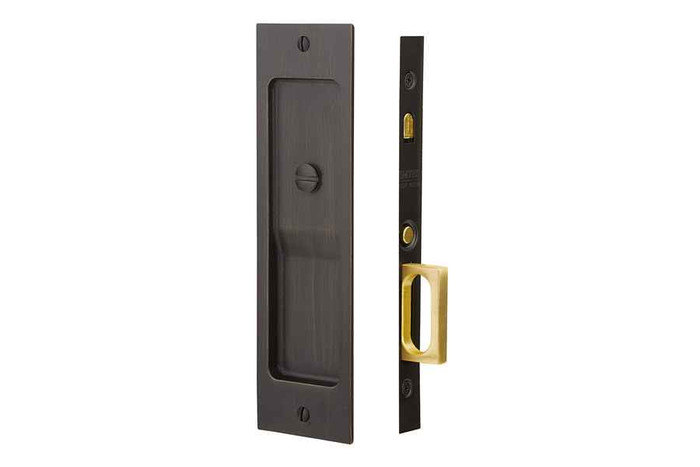

Emtek Sandcast Bronze Rustic Modern Rectangular Pocket Door Mortise Locks (2-1/2" x 8-1/2")

No handing to specify. Emtek's Rustic Modern Rectangular pocket door mortise lock is non-handed, so one part number covers a door that slides either direction. What you do have to specify is the door thickness and, on keyed sets, your keying preference.

Four functions cover it. Privacy (model 2125) is the bed and bath choice, locking from inside. Passage (2124) latches but never locks, which is what a closet or hallway pocket door wants. Keyed (2123) takes a key and suits an office or a door onto a storage or utility space. Dummy (2126) has no latch at all and is pure pull hardware for a door that stays free-running. All four come in Flat Black Bronze, Medium Bronze, and Tumbled White Bronze.

Emtek pocket door mortise locks key alike with each other, but they may not key alike with other Emtek products. So a pair of keyed 2123 pocket doors can run on one key; expecting that same key to turn the Emtek entry handleset on the front door is where people get caught. Keying is selected when you order, either keyed alike or keyed different, and you can supply a key code.

Emtek builds these to a specified door thickness with 1-3/8 inches as the minimum, so give the actual measurement when ordering. If you would rather have a lock published to a stated range, the Weslock 0577 rectangular privacy pocket door lock and the Weslock 0527 rectangular passage version both cover 1-3/8 to 2 inch doors, and the 0577 has an adjustable backset with a full lip strike. The Emtek is a fixed 2-1/8 inch backset.

The Omnia 7035/A is a keyed entry pocket door lock with modern rectangular trim and solid brass construction, making it the direct alternative when a keyed pocket door is required. The Emtek 2123 is the keyed member of the sandcast bronze Rustic Modern Rectangular set and can be keyed alike with other Emtek pocket door mortise locks. Most of the other pocket door locks in the category are privacy or passage only, so a keyed opening narrows the field to these two quickly.

The Omnia 7012/L is a modern rectangular pocket door lock with a privacy function and emergency release, which is the nearest rectangular-trim privacy match to the Emtek 2125. The Weslock 0577 is also a rectangular privacy pocket door lock, and it adds an adjustable backset and a full lip strike, where the Emtek runs a fixed 2-1/8 inch backset. All three are privacy function, so they suit a bath or bedroom pocket door where the door needs to lock from the inside only.

The Emtek Rustic Modern Rectangular trim is 2-1/2 by 8-1/2 inches, which needs a fair amount of stile height. Shorter footprints in pocket door locks include the Deltana SDL25 privacy at 2-1/2 by 2-3/4 inches, the Deltana SDP25 passage at the same 2-1/2 by 2-3/4 inches, the Deltana SDL60 decorative privacy at 6 inches, and the Deltana SDLA325 heavy-duty adjustable privacy at 3-1/4 by 2-1/4 inches. Measure the flat area of the stile before ordering, since the trim plate has to sit fully on it.

The Emtek Rustic Modern Rectangular pocket door mortise locks take a minimum door thickness of 1-3/8 inches and the actual thickness must be specified with the order for every function. If you want a lock that states a range rather than a build-to-thickness, the Weslock 0577 privacy and Weslock 0527 passage cover 1-3/8 to 2 inches, while the Pamex PF1 and PF2 cover 1-5/16 to 1-9/16 inches. Confirm the door slab thickness at the edge before ordering either way.

The trim plates measure 2-1/2 by 8-1/2 inches and are 1/8 inch thick. That 1/8 inch matters on a pocket door: the plate has to clear the jamb and slide into the pocket without rubbing, so check your pocket clearance and the strike side reveal. The 8-1/2 inch dimension also means you are cutting a tall mortise in the door edge, not a small round bore, so the slab needs enough meat at 1-3/8 inches minimum thickness.

It is a residential product. The Rustic Modern Rectangular sandcast bronze set is catalogued for residential use, which makes it a fit for single family, custom homes, and high-end multi-family units rather than a commercial corridor. For a heavier-duty privacy pocket door latch, look at the Deltana SDLA325 heavy-duty adjustable pocket door lock or the Rockwood 891 pocket door privacy latch.

A mortise lock like Emtek's 2123 through 2126 goes into a long pocket cut in the door edge and carries a rectangular face plate, 2-1/2 by 8-1/2 inches here, with a real latch and strikeplate. The round and square face styles, such as the Orca Hardware PDLRD round and PDLSQ square privacy locks or the Pamex PF1 square and PF2 round sliding door locks, use a small compact prep and give you a flush pull with a privacy turn. Choose the mortise style when you want a keyed or latching function and a substantial plate; choose the compact round or square when the door is thin or the prep is already cut for one.

For an opening that only needs a pull and latch with no locking, the Weslock 0527 is a rectangular passage pocket door lock with no locking function, and the Omnia 7012/N is a modern rectangular pocket door passage lock with a mortise edge pull. The Pamex PF1 square style sliding door lock covers doors 1-5/16 to 1-9/16 inch thick. The Emtek passage equivalent is the 2124, which carries the same sandcast bronze 2-1/2 by 8-1/2 inch trim as the rest of the series.

The Omnia 7012/L is a modern rectangular pocket door lock with a privacy function and an emergency release. The Emtek 2125 is the privacy function in the sandcast bronze Rustic Modern Rectangular series, supplied as a complete set with screws and strikeplate on a 2-1/8 inch backset, and Emtek classifies the series as residential. For a bathroom where a caregiver or property manager needs to be able to get in from the outside, confirm the release feature against the function you are specifying.

The Emtek Rustic Modern Rectangular sandcast bronze set is rectangular trim only. For round trim on a pocket door, the Orca Hardware PDLRD is a round pocket door lock with a privacy function, the Weslock 0627 is a round passage pocket door lock with adjustable backset and full lip strike, and the Pamex PF2 is a round sliding door lock with a 2-3/8 inch backset. If square trim is the goal instead, the Orca Hardware PDLSQ is a square privacy pocket door lock.

No. The Emtek 2124 is the mortise lock and trim that mounts in the door edge and face; it is not the hanging system. The NGP SLAL250PD72 is a 72 inch aluminum pocket door track rated up to 250 pounds, and the Orca Hardware PK1200 is a pocket door frame set for 1 inch or 1-3/4 inch doors. Those carry and pocket the door, and a job typically needs both a frame or track and a lock set, not one instead of the other.

They are not the same part. The Rockwood 891 is a pocket door privacy latch, and the Deltana SDLA325 is a heavy-duty adjustable privacy pocket door lock at 3-1/4 by 2-1/4 inches. The Emtek 2125 is a complete privacy set in sandcast bronze with a 2-1/2 by 8-1/2 inch trim plate 1/8 inch thick, supplied with screws and strikeplate on a 2-1/8 inch backset. If you are replacing an existing latch, match the mortise pocket and trim footprint already cut into the door, not just the function.

The Omnia 7012/PD is a modern rectangular pocket door lock set with a mortise edge pull in a pair dummy function, meaning both faces are non-operating trim. The Emtek match within the same sandcast bronze rectangular series is the 2126 dummy, which keeps the identical 2-1/2 by 8-1/2 inch rectangular trim as the keyed, passage, and privacy versions, so a run of doors can mix functions and still look the same.

Yes, split finish is an option on the Emtek Rustic Modern Rectangular pocket door set, so the hall side and the room side can differ. The finish choices are Flat Black Bronze (FB), Medium Bronze (MB), and Tumbled White Bronze (TWB), and all three are offered across the keyed, passage, privacy, and dummy functions. Because these are sandcast bronze, expect finish variation piece to piece, which is part of the material rather than a defect.

Emtek offers the dummy function as model 2126 in all three sandcast bronze finishes, so you can dress a second leaf to match a latching first leaf. Note it is sold as a set for one door. For a matched pair supplied as a dummy pair, the Omnia 7012/PD modern rectangular pocket door set is a pair dummy with a mortise edge pull.
