Emtek SELECT Brass T-Bar Facet...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$283.00
$226.40
Emtek Emtek SELECT Brass T-Bar Faceted Lever - Passage Set EMTEK-T-BAR-FACETED-LEVER-PASSAGE

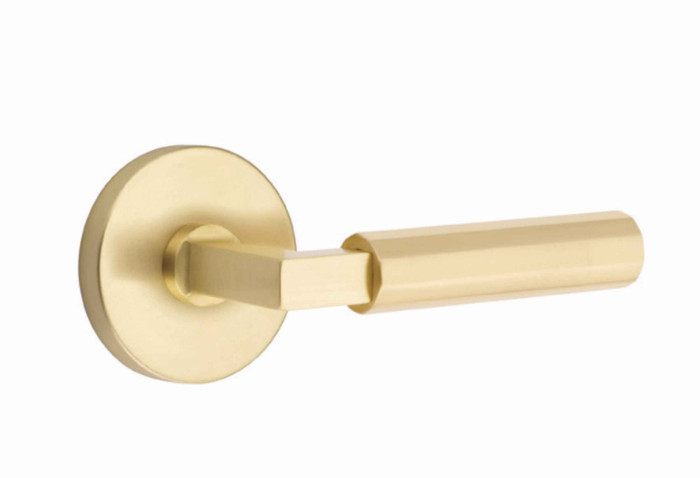

Emtek SELECT Brass T-Bar Faceted Lever - Passage Set

(No reviews yet) Write a Review

Model: 5109US19.TAUS19.FA.RH
From the SELECT Series Collection
$283.00
$226.40
Selected Handle is
Selected Stem is
Selected Rosette is
Selected Finish Options for ROSETTE and STEM is
Selected Concealed Fastener (CF) Mechanism is
Selected Handing is
Selected Backset is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$283.00
$226.40
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Emtek SELECT Brass T-Bar Faceted Lever - Passage Set

  • Can be ordered with any Brass rosette
  • Sold as complete set. Includes Latch and Strike Plate
  • 28 Degree Latch option (included when CF Mechanism is selected)
  • Fits any door between 1-3/8” to 2-1/4" thick with a 2-1/8" bore standard door prep*
    • Door thickness for CF Mechanism is 13/8” to 13/4”. Specify if thicker.
  • Standard latch is for 2-3/8" backset. Specify 2-3/4" backset if required



* STRETTO rosette requires a 1-1/4” diameter bore hole and 2-hole door preparation for thumbturn privacy





Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Latch Faceplate: Round or Square Corner
  • Material: Brass



Manufacturer Resources:

Product Specs

Collection:
SELECT Series
Commercial/Residential:
Residential
Electronic:
No
Handle Type:
Lever
Keyed:
No
Keyed Function:
Non-Keyed
Lock Function:
Passage
Lock Type:
Tubular
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Leversets
Series:
Faceted
Theme:
Contemporary
Product Attribute:
Cylindrical Locks
MAP Policy:
Yes
Stems:
T-Bar
Product Function:
Passage/Hall/Closet
Product Style:
Contemporary
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware
SKU:
EMTEK-T-BAR-FACETED-LEVER-PASSAGE

Emtek 5109US19.TAUS19.FA.RH – Frequently Asked Questions

1) Will the Emtek SELECT T-Bar Faceted passage lever fit a standard 2-1/8 inch bored door prep?
Yes. The T-Bar Faceted passage set drops into a standard 2-1/8 inch cross bore and works on doors 1-3/8 inch through 2-1/4 inch thick. One exception on the prep: if you pick a STRETTO rosette, that one needs a 1-1/4 inch diameter bore and a 2-hole door preparation. Everything else in the rosette range uses the standard single-bore prep.
2) What backset does the Emtek T-Bar Faceted passage lever come with, and can it work in a 2-3/4 inch bore?
The latch is adjustable and you pick the backset when you order: 2-3/8 inch or 2-3/4 inch. The standard latch supplied is the 2-3/8 inch one, so if the existing holes on your door are drilled at 2-3/4 inch from the edge, specify 2-3/4 inch on the order or the latch will not reach the strike.
3) Does the Concealed Fastener option on the Emtek Faceted lever change what doors it fits?
It does, and this is the detail people miss. With the standard latch the set covers 1-3/8 inch to 2-1/4 inch doors. Choose the Concealed Fastener (CF) mechanism and the range narrows to 1-3/8 inch through 1-3/4 inch, so a thicker door has to be called out when ordering. The CF build also brings the 28 degree latch with it. If you have a 2 inch or 2-1/4 inch slab and want no visible screws on the rose, flag the thickness rather than assuming it ships to fit.
4) Do I need to specify handing for an Emtek passage lever?
Yes. The T-Bar Faceted passage set is handed, ordered left hand or right hand, so you need to know which way the door swings and which side the hinges are on before you order. That is different from most commercial cylindrical passage locks, which are non-handed and reversible in the field. If you are buying for several openings that swing different ways, count them out by hand rather than ordering one part number for all of them.
5) Is a passage lever the right function for a bedroom or bathroom door?
No. A passage set latches the door shut but has no lock at all, no key and no thumbturn, so it is for halls, closets, and pantries. For a bedroom or bath you want a privacy function with an inside thumbturn. Emtek builds the same Faceted lever in a privacy version, and among other brands ZenSupply carries the Baldwin Estate 5103 privacy lever with the 5048 rose and the Kwikset 300BRNL Breton privacy set.
6) Can I use the Emtek SELECT Faceted lever on apartment corridor or office doors?
Emtek lists the SELECT Series Faceted lever as residential, solid brass, tubular cylindrical construction. It is a finish-level product for homes and residential unit interiors, not a commercial-duty lock. For corridors, offices, and anything taking traffic, go to a graded cylindrical passage lock: the Falcon K101 is Grade 1, heavy duty, fire rated, covering 1-3/8 inch to 2-1/4 inch doors, and the Corbin Russwin CL3110 is a Grade 1 fire rated passage lever for 1-3/4 inch to 2 inch doors. For lighter commercial work the Hager 2510 is a Grade 2 passage lever for 1-3/8 inch to 2 inch doors.
7) Will the Emtek Faceted passage lever replace an existing knob or lever on a standard residential door?
On a standard residential prep, yes. If the door already has a bored lockset in a 2-1/8 inch cross bore with a 2-3/8 inch or 2-3/4 inch backset and the slab is between 1-3/8 inch and 2-1/4 inch, the set goes in with no new drilling, since the latch and strike are included. Two things to check on the old hardware: the latch faceplate corner, round or square, so the new latch matches the existing mortise in the door edge, and the swing, because the lever is ordered handed.
8) Which decorative passage lever is closest to the Emtek T-Bar Faceted lever for a residential interior door?
The Baldwin Estate 5103 Passage Lever with 5048 Rose is the nearest decorative equivalent: a passage function lever supplied with its own rose, the same way the Emtek T-Bar Faceted passage set pairs a lever and stem with a brass rosette. The Emtek set differs in that the rosette is a selection - Disk, Modern Rectangular, Quincy, Square, Urban Modern, Watford or Wilshire - while the Baldwin 5103 is built around the 5048 rose.
9) If a bedroom or bathroom door needs a lock, is the Emtek T-Bar Faceted passage lever the wrong choice?
Yes. The Emtek SELECT T-Bar Faceted lever is a passage function, non-keyed set - it latches but never locks, which suits halls and closets. For a bed or bath door use a privacy lever: the Baldwin Estate 5103 Privacy Lever with 5048 Rose in the decorative range, or the Hager 2540 Grade 2 privacy cylindrical lock with Withnell lever for doors 1-3/8 inch to 2 inch. Ordering the passage set for a bathroom leaves the door with no way to secure it.
10) What looks like a substitute for an Emtek passage lever but will not actually operate the latch?
Dummy levers are the common mix-up. The Baldwin Estate 5103 Left Hand Half Dummy and 5103 Right Hand Half Dummy, the BEST 9K Series 1DT Grade 1 single dummy trim, and the BEST 7KC Series single dummy trim are all dummy function - fixed trim with no latch mechanism. The Emtek SELECT T-Bar Faceted passage set is sold complete with latch and strike plate and retracts the latch when the lever is turned. Use a dummy only on an inactive leaf or a door held by a roller catch.
11) Which passage lever should be used instead of the Emtek T-Bar Faceted set on a 2 inch thick door?
The Emtek SELECT T-Bar Faceted passage set covers 1-3/8 inch to 2-1/4 inch with standard door prep, but when the Concealed Fastener mechanism is selected the range narrows to 1-3/8 inch to 1-3/4 inch unless a thicker door is specified. For a thick door without that constraint, the Hager 2510 Grade 2 passage lever with Withnell design covers 1-3/8 inch to 2 inch, the Arrow GL01 Grade 2 Sierra lever passage lock covers 1-3/4 inch to 2 inch, and the Falcon K101 Grade 1 passage lock covers 1-3/8 inch to 2-1/4 inch.
12) What passage lever carries an ANSI grade for a facility standardizing across doors, since the Emtek T-Bar Faceted set is a residential product?
The Emtek SELECT T-Bar Faceted lever is classified residential. Where a graded passage lever is required, the Design Hardware X75 flat lever is Grade 1 passage for 1-3/4 inch doors and the Design Hardware J75 flat lever is the Grade 2 passage version at the same thickness. Accentra offers the 5301LN Augusta Grade 2 cylindrical passage lever in the 5300 Series and the 4601LN Grade 2 passage lever with Augusta trim in the 4600 Series, which lets a facility hold one trim design across two series.
13) What should be ordered instead of the Emtek T-Bar Faceted passage lever when the door has to be keyed or code-controlled?
The Emtek SELECT T-Bar Faceted set is non-keyed passage function. For a locking opening, the Dexter C1000 Series Grade 1 entry/office cylindrical lever is keyed and clutching for doors 1-3/8 inch to 1-3/4 inch, the Cal-Royal AG05 is a Grade 2 storeroom lever with a deadlocking latchbolt for 1-3/8 inch to 1-3/4 inch, and the Hager 2580 is a Grade 2 storeroom lock with the Withnell lever for 1-3/8 inch to 2 inch. Where no key should be carried, the Lockey 2835 mechanical pushbutton keyless lever lock is ADA compliant with passage function for doors 1 3/16 inch to 2 inch.
14) What comes in the box with the Emtek SELECT T-Bar Faceted passage lever?
It ships as a complete set: levers for both sides, the rosettes you selected, the latch, and the strike plate. You do not need to source the latch separately. The latch faceplate is available with round or square corners, so match it to the mortise already cut in the door edge, and the strike should match the frame prep the same way.
15) Can I mix the rosette style and finish on the Emtek Faceted lever?
The Faceted lever on a T-Bar stem can be ordered with any of the brass rosettes: Disk, Modern Rectangular, Quincy, Square, Urban Modern, Watford, or Wilshire. Finish for the rosette and stem is chosen from seven options: Flat Black (US19), Oil Rubbed Bronze (US10B), Polished Chrome (US26), Polished Nickel Lifetime (US14), Satin Brass (US4), Satin Nickel (US15), and Unlacquered Brass (US3NL). There is also a split finish field on the order if you want different finishes on the two faces of the door, which is how you match a dark hallway side to a lighter bedroom side.
16) What is a decorative brass alternative to the Emtek Faceted passage lever if I want a traditional look?
The Faceted lever on a T-Bar stem is a contemporary design, faceted geometry on a straight bar stem. If the house calls for something more traditional in the same decorative tier, the Baldwin Estate 5103 passage lever with the 5048 rose is the closest peer ZenSupply stocks. For a mid-price decorative option, the Bravura Miramar passage leverset comes in US4 Satin Brass with round trim and is a Grade 2 lock.
17) What is a lower-cost passage leverset if the Emtek brass faceted lever is more than the job needs?
For a builder-grade interior passage opening, the Kwikset 200BRNL RDT Breton passage lever set is a Grade 3 passage lock for doors 1-3/8 inch to 1-3/4 inch thick, and the Callan Asheville CLN-AH5011 is a Grade 3 passage leverset in satin nickel. Both perform the same latching job as the Emtek SELECT T-Bar Faceted passage set, which is a solid brass residential lever with seven finish choices from Flat Black through Unlacquered Brass.
18) The Emtek T-Bar Faceted passage lever is handed - what passage lever avoids handing on a jobsite?
The Emtek SELECT T-Bar Faceted passage set is ordered Left Hand or Right Hand, so the door swing has to be confirmed before the order goes in. If handing is a risk across a multi-door package, the Falcon B101 is a Grade 2 medium duty cylindrical passage lever with a non-handed design and the Falcon K101 is a Grade 1 heavy duty passage lock with non-handed levers, so one part number covers either swing.
19) What decorative passage lever alternatives are there to the Emtek Faceted design in a contemporary style?
The Emtek SELECT T-Bar Faceted lever is a contemporary brass lever on a T-Bar stem. In the same passage function with different trim shapes, Bravura offers the Atlanta passage leverset with round trim, the Orlando passage leverset with round trim, and the Tampa passage leverset with square trim, all Grade 2, plus the Miramar passage leverset with round trim in US4 satin brass, Grade 2. The Emtek set is offered in Satin Brass (US4) as well, so a satin brass run can be matched across both.
20) What is a 28 degree latch and do I need it on an Emtek lever?
The 28 degree latch is the one packaged with the Concealed Fastener mechanism on the Faceted lever set, and it comes automatically when CF is selected. You do not order it separately. Pick CF if you want the rose mounted without exposed screws; the standard latch option covers everything else and keeps the wider 1-3/8 inch to 2-1/4 inch thickness range.
21) Is the Emtek SELECT T-Bar Faceted lever solid brass or plated pot metal?
Brass, both the material and the substrate, across the SELECT Series Faceted line. That matters for the unlacquered brass option (US3NL) in particular: unlacquered brass is bare, so it will darken and patina with handling rather than staying bright. If you want it to stay as delivered, pick one of the plated or coated finishes such as Polished Nickel Lifetime (US14) or Satin Nickel (US15) instead.
