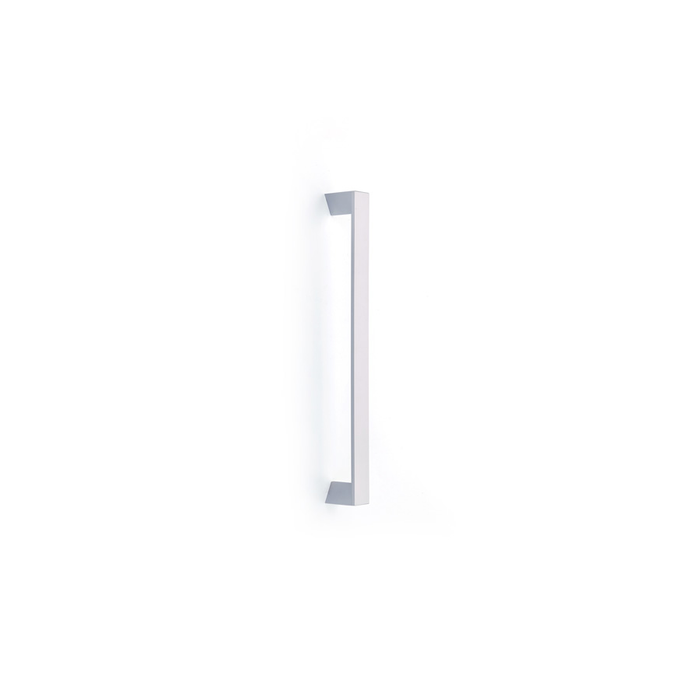

Emtek Trinity Appliance Pull, 12" and 18" Appliance Pulls, Schaub Collection

The Trinity appliance pull comes in two center-to-center spacings, 12 inches and 18 inches, so it only lines up with existing holes if your current pull matches one of those. Measure hole center to hole center on the appliance panel before ordering. If the existing spacing is something else, you are drilling new holes rather than dropping this one in.

Three mounting options, and they solve different door conditions. Standard is thru-bolt with decorative caps, so the fastener passes through the panel and the cap shows on the back side. Concealed surface (CS) fastens from behind so nothing shows on the face opposite the pull, which is what you want on a panel you cannot or do not want to drill through visibly. Back-to-back (BTB) pairs two pulls on opposite faces of the same door sharing the same bolts, typical on a glass or swing door where you need a pull on both sides. The mounting is part of the part number: 86444US19 is the 12 inch standard in Flat Black, CS86444US19 the concealed surface, BTB86444US19 the back-to-back.

Yes, give the panel thickness with the order. Thru-bolt and back-to-back mounting both run a fastener through the panel, so the screw length has to match what you are drilling through. There is a door thickness field on the order for exactly that. Measure the appliance panel or slab, not the cabinet face frame.

Projection is 1-3/4 inches. That matters in a galley kitchen or a tight island run where a refrigerator or panel door swings past a wall or an adjacent cabinet, and it is also the clearance you need for a hand to get behind the bar.

Screws are included. Each Trinity appliance pull ships as a complete set with its fasteners, so there is no separate hardware line to add. Nothing else is required to hang it on a prepped panel.

Six finishes: Satin Brass (US4), Oil Rubbed Bronze (US10B), Polished Nickel (US14), Satin Nickel (US15), Flat Black (US19), and Polished Chrome (US26). All six are offered in both the 12 inch and 18 inch lengths, so you can run a matched pair, say an 18 inch on the refrigerator and a 12 inch on the dishwasher panel, in the same finish.

It works anywhere you need a long bar pull, not just on appliance panels. Emtek lists it as a door or appliance pull, and the back-to-back mounting option is the giveaway: BTB puts a matching pull on both faces of the same door with shared fasteners, which is how you handle a glass or full-height swing door. For a cabinet, the limit is the 12 or 18 inch hole spacing and the 1-3/4 inch projection.

86445US19 is the 18 inch Trinity in Flat Black with standard thru-bolt mounting. The 12 inch in the same finish is 86444US19. Prefix the number for the other mountings: CS for concealed surface, BTB for back-to-back, so CS86445US19 or BTB86445US19 on the 18 inch.

Brass, both the material and the substrate, so the finish is applied over brass rather than over a steel or zinc casting. That is what holds up in a kitchen where the pull gets handled with wet or greasy hands all day.

Emtek classes the Trinity as residential hardware. For a multi-family unit kitchen or a hospitality suite it is at home; for a high-traffic commercial back-of-house door where the pull takes constant abuse, spec a commercial-rated pull instead.
