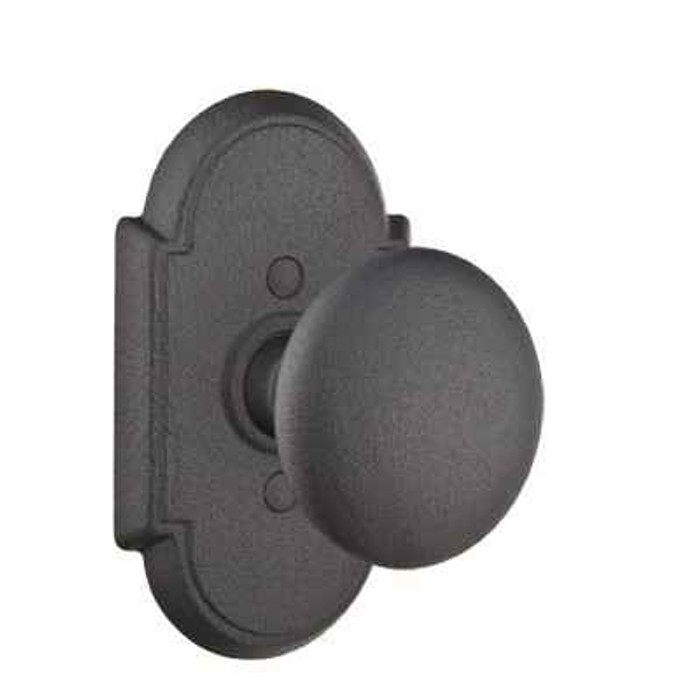

Emtek Wrought Steel Knobsets - Jamestown Knob, Privacy Set

(No reviews yet) Write a Review

Model: 7201.J.FBS
From the Wrought Steel Collection
$190.00
$155.19
Selected Latch is
Selected Rosette is
Selected Finish is
Selected Backset is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$190.00
$155.19
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Emtek Wrought Steel Knobsets - Jamestown Knob, Privacy Set

  • Can be ordered with any Wrought Steel rosette
  • Sold as complete set. Includes Latch and Strike Plate
  • 28 Degree Latch (included when CF Mechanism is selected)
  • Fits any door between 1-3/8” to 2-1/4" thick with a 2-1/8" bore standard door prep*
  • Standard latch is for 2-3/8" backset. Specify 2-3/4" backset if required

* STRETTO rosette requires a 1-1/4” diameter bore hole and 2-hole door preparation for thumbturn privacy




Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Latch Faceplate: Round or Square Corner
  • Material: Brass

Product Specs

Collection:
Wrought Steel
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Knobsets
Subcategory:
Knobsets
Commercial/Residential:
Residential
Handle Type:
Knob
Lock Function:
Privacy/Bed/Bath
Lock Type:
Tubular
Series:
Jamestown
Theme:
Rustic Living
Electronic:
No
Keyed:
No
Keyed Function:
Non-Keyed
MAP Policy:
Yes
Product Function:
Privacy/Bed/Bath
Product Style:
Wrought Steel
Product Material:
Steel
Product Category:
Mechanical Locks
Product Substrate:
Steel
Department:
Door Hardware

Emtek 7201.J.FBS – Frequently Asked Questions

1) Will the Emtek Jamestown privacy knob fit a standard pre-bored door, or do I need special prep?
The Jamestown privacy knobset drops into a standard 2-1/8 inch cross bore door prep, so a typical pre-bored interior door takes it without rework. The one exception is the STRETTO rosette, which needs a 1-1/4 inch diameter bore and a 2-hole door preparation for the thumbturn privacy. If your doors are already bored 2-1/8 inch, stay away from STRETTO and pick one of the other Wrought Steel rosettes.
2) My existing doors are drilled for a 2-3/4 inch backset. Can I still use this Emtek knobset?
Yes. Backset is a required choice when ordering the Jamestown privacy set, and both 2-3/8 inch and 2-3/4 inch are offered. The standard latch ships 2-3/8 inch, so you have to specify 2-3/4 inch if that is what your doors are bored for. Those are the two backsets used on residential and light commercial doors, so measuring one door from the edge to the center of the bore tells you which to order for the whole run.
3) Does the Emtek Jamestown privacy set take a key?
No. It is a non-keyed privacy/bed/bath function, so it locks from the inside with a thumbturn and has no cylinder or keyway. That is the right function for bedrooms and bathrooms. For an exterior or keyed entry door you need a keyed lockset instead.
4) What is a comparable privacy knob to the Emtek Jamestown wrought steel knob set from another decorative brand?
For a decorative privacy bed/bath knob in the same vein, the Deltana 6112 St. Thomas knob privacy set covers doors 1-3/8 inch to 2 inch thick, and the Baldwin Estate 5077 Bethpage privacy knob with R027 rose is another privacy-function knob. The Emtek Jamestown privacy knob differs in that it is a wrought steel piece from Emtek's Wrought Steel collection and can be ordered with any Wrought Steel rosette, with an adjustable 2-3/8 inch or 2-3/4 inch backset and a 2-1/8 inch cross bore.
5) My door is 2 inches thick - will the Emtek Jamestown privacy knob work, or do I need something else?
The Emtek Jamestown wrought steel privacy knob set fits doors from 1-3/8 inch to 2-1/4 inch thick with a 2-1/8 inch bore standard prep, so a 2 inch door is within range. If you are cross-shopping, the Deltana 6112 St. Thomas privacy knob also covers 1-3/8 inch to 2 inch, while the Dexter C2000 privacy ball knob and the Pamex FTF Baron privacy lockset both stop at 1-3/4 inch.
6) What is the difference between the standard latch and the 28 Degree Rotation latch on the Emtek Jamestown knob?
Both are offered on the Jamestown privacy set. The 28 degree latch reduces how far the knob has to turn before the latch retracts, and it is the latch included when the CF mechanism is selected. If you are matching the feel of other Emtek sets already in the house, order the same latch type across all of them.
7) What comes in the box with the Emtek Jamestown knobset, and do I need to buy the latch and strike separately?
It ships as a complete set with the latch and strike plate included, so no separate latch order. You do pick the latch faceplate style, round corner or square corner, to match how your door edge and frame are already mortised. Both knobs, the rosettes, and the privacy mechanism come with the set.
8) What else could I use if I want a decorative privacy knob but not the wrought steel look?
Among privacy knobsets in the same bored tubular family, the Baldwin Estate 5077 Bethpage privacy knob with R027 rose and the Deltana 6112 St. Thomas privacy knob are both traditional decorative options, the Deltana listing a 1-3/8 inch to 2 inch door thickness range. If budget-grade is the aim, the Cal-Royal BER20 and the Pamex FTF Baron are Grade 3 privacy knob locks for 1-3/8 inch to 1-3/4 inch doors. The Jamestown is the pick when you want the blackened or satin steel rustic finish.
9) What do I order for the hall and closet doors if I am using the Emtek Jamestown privacy knob on the bedrooms?
The Jamestown wrought steel knob set covered here is privacy/bed/bath function, which has a thumbturn and no key. For hall and closet openings you want passage function - the Dexter C2000 Series passage ball knob is Grade 2 for 1-3/8 inch to 1-3/4 inch doors, the Pamex FTF Baron passage knob lockset is Grade 3 over the same range, and the Baldwin Estate 5011 Colonial passage knob with 5058 rose is a decorative passage option.
10) Is there a simpler off-the-shelf privacy knob if I do not need to pick a rosette and finish like the Emtek Jamestown requires?
The Emtek Jamestown wrought steel privacy knob is configured by rosette (#1, #2 or #3), finish in Flat Black Steel or Satin Steel, latch type and backset. If you want fewer choices to make, the Cal-Royal BER20 Grade 3 privacy knob and the Pamex FTF Baron Grade 3 privacy knob lockset are both prepackaged privacy knobs for 1-3/8 inch to 1-3/4 inch doors, and the Schlage Residential F500 Plymouth with Georgian knob ships as a combo pack with adjustable backsets and dual strikes.
11) The bathroom door needs a key override from the outside - is the Emtek Jamestown privacy knob the right pick?
No. The Emtek Jamestown wrought steel knob set is non-keyed privacy/bed/bath function. For a keyed knob on that opening, the Cal-Royal BER00 entrance/office knob is Grade 3 with a Kwikset keyway for 1-3/8 inch to 1-3/4 inch doors, the Dexter C2000 entry/office ball knob is Grade 2 keyed over the same range, and the Sargent 6G04 is a Grade 2 storeroom/closet knob with a single cylinder.
12) For a high-traffic institutional building, what heavy duty knob lock would I specify rather than the Emtek Jamestown?
The Emtek Jamestown wrought steel knob set is a residential tubular lock. For heavy duty institutional work, the Schlage D10S passage knob is Grade 1 heavy duty, the Falcon X101 is a Grade 1 heavy duty cylindrical passage knobset with interchangeable core and a fire rating covering 1-3/8 inch to 2-1/4 inch doors, the Sargent 8XG04 is a Grade 1 heavy duty storeroom knob with 2-3/4 inch backset, and the BEST 8K Series entrance knob is Grade 1 heavy duty.
13) What is the closest privacy knob to the Emtek Jamestown if I am matching an existing Baldwin trim package?
Within Baldwin, the Estate 5077 Bethpage privacy knob with R027 rose and the Estate 5000 Baltimore 2 inch knob with 5148 rose privacy lock, which comes preconfigured with a 2-3/8 inch backset and full lip strike, are both privacy-function knobs. The Emtek Jamestown privacy knob is a wrought steel design that can be paired with any Wrought Steel rosette and takes either a 2-3/8 inch or 2-3/4 inch backset.
14) What finishes and rosettes can I get the Emtek Wrought Steel Jamestown knob in?
Two finishes, Flat Black Steel (FBS) and Satin Steel (SWS), and three rosette shapes, #1, #2 and #3. Any Wrought Steel rosette can be paired with the Jamestown knob, so you can keep one rosette profile running through a whole house while changing function from room to room.
15) Is there handing to worry about when I order the Emtek Jamestown privacy knob?
No handing to specify. It is a bored tubular knobset with a round knob on both faces, so it works on a left or right hand door either way it swings. The two things you do have to get right on the order are backset and latch faceplate corner style.
16) I am buying privacy knobs for a whole floor of bedrooms - is there a multi-pack alternative to ordering the Emtek Jamestown one at a time?
The Sure-Loc Bergen round knob is offered as a 6-pack with adjustable backset if volume packaging is the priority. The Emtek Jamestown wrought steel knob privacy set is ordered per opening with your choice of rosette and finish, and each set includes the latch and strike plate.
