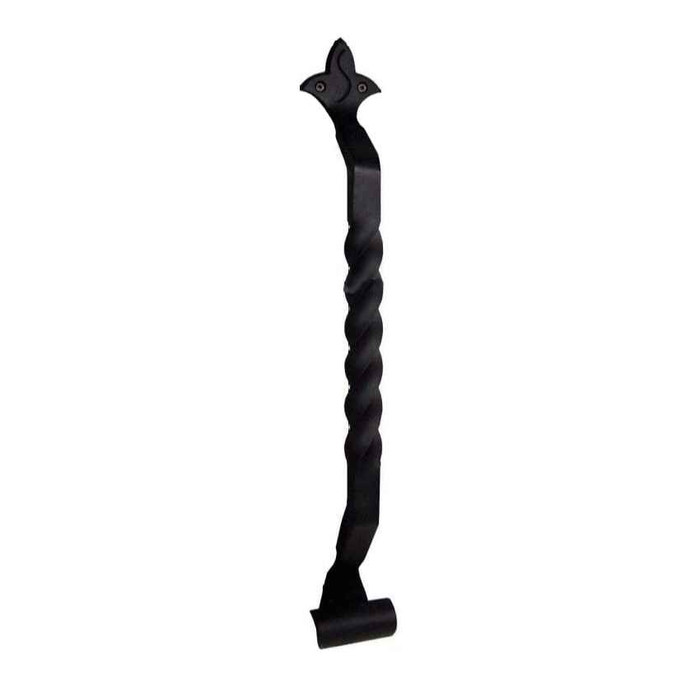

Emtek Wrought Steel San Carlos 24" Door Pull

The San Carlos pull mounts thru-bolt, so it bolts straight through the door face. That means the door has to be drilled through and the fastener length has to suit your door thickness, which is why door thickness is asked for when ordering. Thru-bolting also puts the load through the door rather than into surface screws, which is what you want on a heavy entry slab.

The Emtek San Carlos wrought steel pull is designated residential. For commercial openings, look at the Ives heavy duty pulls: the 8103HD straight pull with 1 inch round bar and through-bolt mounting, the 8102HD straight pull with 3/4 inch round bar and 1-1/2 inch clearance, or the 8169 C style offset pull at 1 inch diameter with heavy duty mounting. The ABH AB3300 straight flat end pull at 1 inch diameter and the ABH AB7200 solid stainless flat end pull at 7/8 inch diameter with through-bolt mounting are also built for commercial doors.

The Emtek San Carlos is a 24 inch tall pull with a 2 inch projection in wrought steel, thru-bolt mounted. The closest same-length alternatives are the Deltana SSPOBB24, a 24 inch back-to-back modern offset door pull, and the Deltana SSPORBB24, a 24 inch back-to-back round offset pull. Both match the 24 inch length, but they ship as back-to-back sets with a pull on each face, while the San Carlos is a single wrought steel pull with a rustic forged look rather than a modern offset profile.

The Ives 8145EZHD is a 45 degree offset door pull with heavy duty mounting hardware described as ADA compliant. The Emtek San Carlos is a straight-run 24 inch wrought steel pull with a 2 inch projection and is designated residential, so on an opening where ADA clearance is being specified the 8145EZHD offset is the one to price.

Projection is 2 inches, measured off the door face, so you get roughly two inches of knuckle room behind the grip. On a door with a storm or screen swinging close by, or a pull set near a jamb, check that 2 inches clears before you drill.

Two: Flat Black Steel (part 76041FBS) and Satin Steel (76041SWS). Both are the same wrought steel pull, so if you are matching other Emtek Wrought Steel Collection hardware on the same opening, order the finish code that matches the rest of the set.

The San Carlos 24 inch is a single pull, one part number per side. If you want a matching grip on both faces of the door, order two. Buyers who specifically want a factory back-to-back set can look at the Deltana SSPOBB24, a 24 inch back-to-back modern offset pull.

A straight pull like the 24 inch San Carlos sits parallel to the door face with a fixed 2 inch projection, which gives an even grip along its whole length, good for a full-height entry statement. An offset pull angles out so the grip sits further off the door at one end, which helps where you need extra hand clearance or an ADA-oriented grip, for instance the Ives 8145EZ 45 degree offset pull or the ABH AB3310 offset flat end pull.

The Emtek San Carlos is sized at 24 inches. For a shorter run, the Deltana SSP1210 is a 12 inch contemporary pull supplied single side, and the Cal-Royal PUL-175 is a 3-1/2 inch night latch cylinder pull in stainless steel. The Deltana is a plain grip pull; the Cal-Royal is a short pull built around a night latch cylinder, so it is not a drop-in for a straight grip application.

No - a push plate is a flat plate with no grip and mounts to the push side of the door, while the Emtek San Carlos is a 24 inch graspable pull with a 2 inch projection for the pull side. If you need plates instead, the Trimco 1001-1 heavy duty push plate is 3 inch by 12 inch, the Trimco 1041 half-round push plate is 8 inch by 16 inch, and the Trimco 1070 series classic push/pull plates run 3-1/2 inch by 15 inch. Only the 1070 series combines a plate with a pull.

The Emtek San Carlos is built at a fixed 24 inch height. The ABH AB3330 series offset round end pull is offered with custom length options, and the ABH AB3310 offset flat end pull is a commercial grade surface mount option in the same family. Those are the ones to look at when the opening does not take a stock length.

The Trimco 1035 Ultimate Restroom Pull is a heavy duty pull made specifically for restroom doors. The Emtek San Carlos is a 24 inch wrought steel decorative pull designated residential, so on an institutional restroom the Trimco 1035 is the purpose-built choice while the San Carlos suits a residential or rustic interior opening.

Emtek classes it as a door or appliance pull, so yes, it is intended for both. At 24 inches long with a 2 inch projection it suits a panel-front refrigerator or a tall pantry door as readily as an entry slab. Keep in mind it thru-bolts, so the panel has to be drilled through.

Solid wrought steel throughout, substrate and all, and Emtek styles it under its Rustic Living theme. The forged steel look in flat black reads correctly on a plank, knotty alder or barn-style entry door where a polished brass or stainless pull would look out of place.

No. The San Carlos is a straight mechanical pull with no electronic component, no latch and no lock function. It is grip only, so you still need a separate latch, deadbolt or lockset on the opening to secure it.

The San Carlos is wrought steel, offered in Flat Black Steel and Satin Steel finishes. Stainless alternatives include the ABH AB7200 solid stainless steel flat end pull at 7/8 inch diameter with through-bolt mounting and the Cal-Royal PUL-175 in stainless construction. The material drives the look as much as anything - the San Carlos carries a forged wrought steel character, where the stainless bar pulls read as a smooth machined profile.
