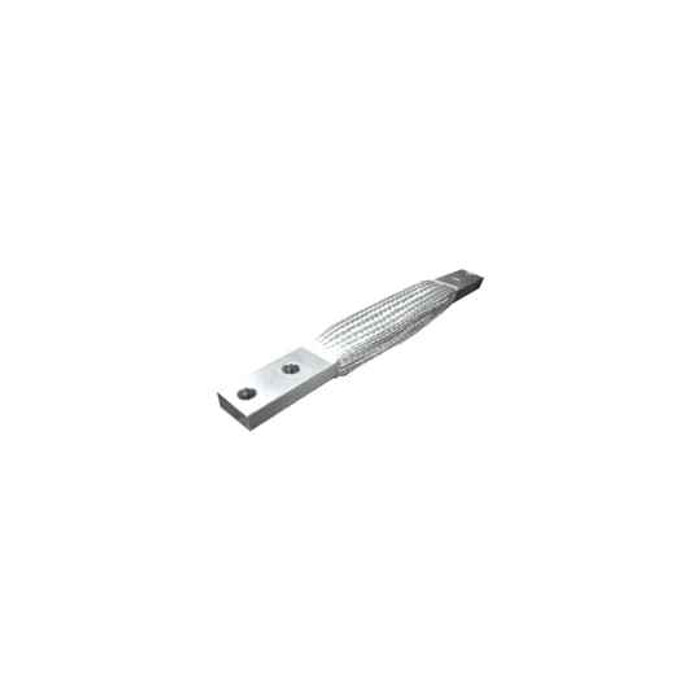

EX-FLEX BRAID TNCU 1100A 2H 304MM
Manufacturer Resources
Product Specs
- Cable Length:
- 304 mm
- Conductor Category:
- Flexible
- Conductor Shape:
- Flat
- Country Of Origin:
- United States (US)
- Material Of Conductor:
- Tin-Plated Copper
- Product Group:
- Wire & Cable Management
- Product Type:
- Extra Flexible Braid Connector - 2-Hole
- Selling Unit Of Measure:
- each
- Standards:
- IEEE / ANSI C37, 34
- Type2:
- Flexible braid
- Department:
- Electrical
- Product Subgroup:
- Connectors
Blackburn EXB110A1304 – Frequently Asked Questions
1) How does the EX-FLEX braid connector bolt up, and how many holes does it have?
Both ends are two-hole terminal pads. Two-hole pads resist rotation under fault current and vibration, which is why they are specified on bus work where a single-hole lug can loosen or spin. You will need to match the hole spacing and bolt size on your existing bus pads, and supply your own bolts, washers and belleville hardware since the braid is sold as the connector alone, each.
2) Why use a flexible braid instead of a solid copper bus bar between equipment?
A braid absorbs movement. The EXB110A1304 is a flat, flexible tin-plated copper braid, so it takes up thermal expansion of the bus, seismic movement, and equipment vibration that would otherwise transfer stress straight into a rigid bar and its bolted joints. It also lets you connect two pieces of gear whose pads are not in perfect alignment. Where the connection is fixed, rigid and in line, a solid bar is the simpler choice.
3) Is the Blackburn EXB110A1304 braid tin-plated, and does that matter for aluminum bus?
The conductor is tin-plated copper. The tin plating is what lets you land it on aluminum bus or pads without the galvanic corrosion you get from bare copper against aluminum, and it slows oxidation on the contact face so joint resistance stays stable over time. Still prep and torque the joint to the equipment manufacturer's instructions.
4) What standards does the Blackburn EX-FLEX braid connector meet for switchgear submittals?
It is built to IEEE / ANSI C37 and 34. If your drawing or submittal package calls out C37 switchgear connector requirements, that reference is on the product data and can go straight into the submittal.
5) Is the Blackburn EXB110A1304 braid made in the USA for Buy American jobs?
Country of origin is the United States. On federal, transit and institutional work with domestic sourcing language in the spec, that is the line the procurement reviewer is looking for.
6) Is the EXB110A1304 sold individually or in pairs?
Each. One braid per unit, so if you are jumpering three phases you need to order three, and add spares if the connection points are hard to reach once the gear is energized and back in service.
