Square D Type S External Reset Mechanism Kit, NEMA 1/12

Square D Type S External Reset Mechanism Kit, NEMA 1/12

(No reviews yet) Write a Review

Model: 9066RA1

In Stock (leaves warehouse same day if ordered before 3pm ET)

$79.97
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Square D Type S External Reset Mechanism Kit, NEMA 1/12

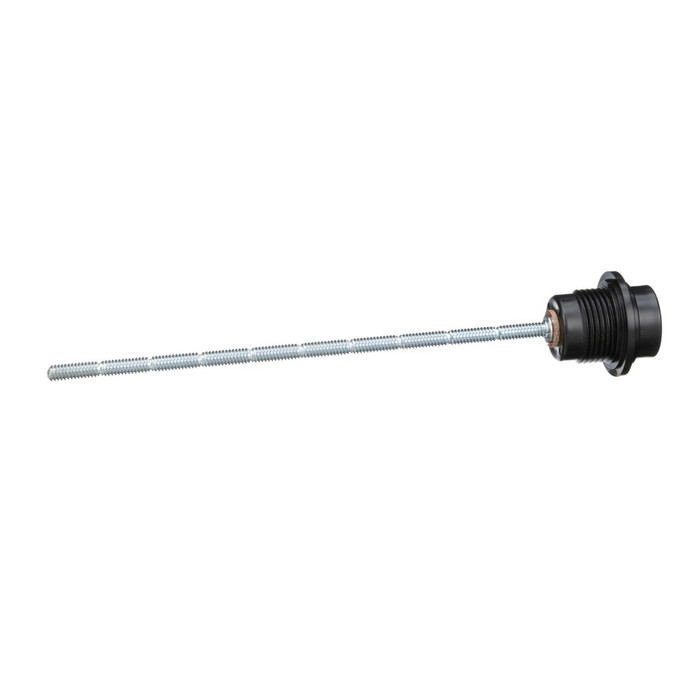

The Square D External Reset Mechanism is an OEM kit designed for Type S overload relays, allowing the relay to be reset without opening the enclosure. A grey push button operator marked RESET mounts into the cover of a NEMA 1 or NEMA 12 enclosure, and the kit includes one threaded reset rod for a complete external reset assembly. This accessory comes standard installed on non-reversing, reversing, combination, and multispeed starters, giving panel builders and electricians a simple, field-ready way to restore thermal protection after a trip.

Key Features

  • External Reset Button: Grey push button operator marked RESET mounts directly into the enclosure cover for reset access without opening the panel.
  • Enclosure Compatibility: Sized for NEMA 1 or NEMA 12 enclosure covers, supporting both general-purpose and dust/oil-resistant indoor applications.
  • Complete Kit Contents: Includes one threaded reset rod so the push button can actuate the Type S overload relay reset mechanism.
  • Range of Product: Built for the Type S overload relay platform, compatible with accessory 9066W1.
  • Mounting Support: Designed to mount to the enclosure door for straightforward OEM or field installation.
  • Simple Installation: Direct mount or separate mount configurations are available for flexible panel layouts.
  • Field Interchangeable Design: Supports field interchangeable thermal units, useful for replacement motor installations.

Certifications & Compliance

  • NEMA 1 Enclosure Rated
  • NEMA 12 Enclosure Rated

Technical Specifications

  • Warranty: 18 months
  • Returnability: Yes
  • RoHS EU In Scope: Yes
  • Country of Origin: Mexico
  • Mounting Support: Enclosure door
  • Compatible Accessory: 9066W1
  • Packaging: 1 ea

Typical Applications

  • Type S Overload Relay Installations
  • Non-Reversing, Reversing, Combination, and Multispeed Starters
  • Industrial and Commercial Motor Control Panels
  • OEM Panel Building
  • NEMA 1 and NEMA 12 Enclosure Installations
  • Field Replacement of Reset Hardware on Existing Starters

Why Square D?

Square D by Schneider Electric engineers this external reset mechanism kit to provide thermal protection access for some of the most costly motor control equipment in a facility, without requiring the enclosure to be opened. With GSC-certified quality status, field interchangeable components, and support for both direct and separate mount configurations, this kit gives contractors, panel builders, and OEMs a dependable, code-conscious way to keep Type S overload relays serviceable and code-compliant.

Manufacturer Resources

Product Specs

Product Type:
Reset Mechanism Kit
Series:
Type S
Configuration:
NEMA 1/12 Enclosure
Country of Origin:
Mexico
Department:
Electrical
Product Group:
Circuit Protection
Product Subgroup:
Circuit Breakers

Square D 9066RA1 – Frequently Asked Questions

1) What does the Square D 9066RA1 reset kit actually do on a motor starter?
It puts the overload reset on the outside of the enclosure. A grey push button marked RESET mounts into the cover of a NEMA 1 or NEMA 12 enclosure, and a threaded reset rod links that button to the Type S overload relay inside. After a thermal trip, an operator presses the button and restores the starter without opening the panel or exposing live parts.
2) Will the 9066RA1 work with my overload relay, or is it Type S only?
Type S only. The 9066RA1 external reset mechanism is built for the Square D Type S overload relay platform, and the rod is made to actuate that relay's reset mechanism. If the starter in your panel uses a different Square D overload class, this kit is not the part for it. The kit is also listed as compatible with accessory 9066W1.
3) Do I need this kit if I'm buying a new Square D starter?
Usually not. The external reset mechanism comes standard installed on non-reversing, reversing, combination, and multispeed starters. Buy the 9066RA1 as a field replacement when the original button or rod is broken or missing, or when you are building a panel from loose components and need external reset access.
4) Can this be installed on a starter that is mounted away from the enclosure door?
Yes. Both direct mount and separate mount configurations are supported, so the relay does not have to sit directly behind the cover opening. The button itself mounts to the enclosure door either way.
5) What part number do I order for a Square D external reset button?
Order Square D 9066RA1, the Type S external reset mechanism kit for NEMA 1/12 enclosures. That single MPN covers the button operator and the threaded rod together.
6) Does this reset kit restrict which thermal units I can run in the overload relay?
No. The Type S platform this kit serves uses field interchangeable thermal units, so you can swap the heater element to match a replacement motor's full load amps and keep the same external reset hardware in the door.
7) Is the Square D 9066RA1 RoHS compliant and where is it made?
It is in scope for and compliant with RoHS EU, and it is manufactured in Mexico. Specification-driven jobs with material declarations on the submittal usually want both of those on record.
How fast can I get the Square D 9066RA1 delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit, reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Square D 9066RA1 come with a warranty?
Absolutely. The Square D 9066RA1 is backed by a manufacturer’s warranty. For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Square D 9066RA1?
You can call, text, or email our expert support team for fast answers. We’re here to help with product selection, installation tips, and troubleshooting. Contact Us
Why buy the Square D 9066RA1 from ZenSupply?
ZenSupply makes it easy to get the commercial door hardware you need—fast shipping, expert support, and rewards on every order. Our team is always ready to help you choose the right product for your project.
!
