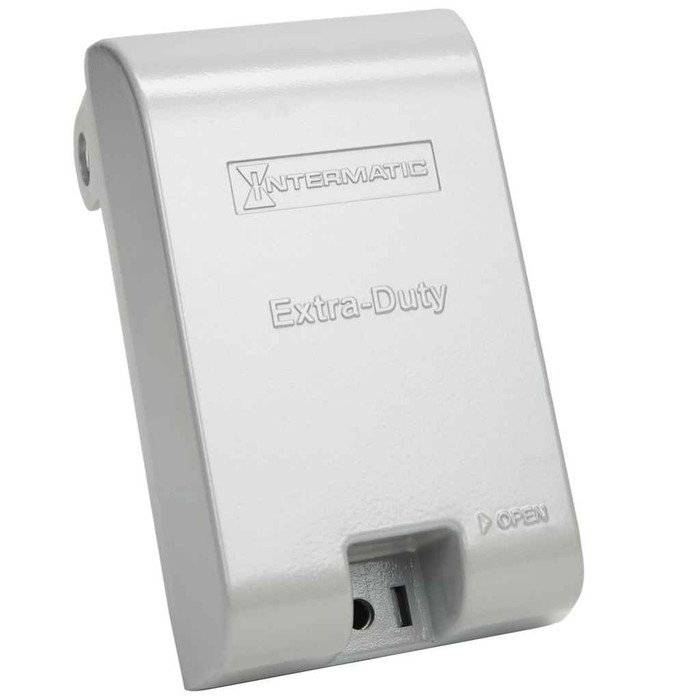

Intermatic WP1010MXD Extra-Duty Die-Cast In-Use Weatherproof Cover, Single-Gang, Vrt, 3.125" Gray

Intermatic Extra-Duty Die-Cast In-Use Weatherproof Cover Single-Gang Vertical 3.125" Gray

(No reviews yet) Write a Review

Model: WP1010MXD
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$95.41
$42.69
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Intermatic Extra-Duty Die-Cast In-Use Weatherproof Cover Single-Gang Vertical 3.125" Gray

Professional-grade outdoor electrical protection with heavy-duty die-cast construction

The Intermatic Extra-Duty Die-Cast In-Use Weatherproof Cover delivers superior protection for outdoor electrical receptacles with heavy-duty die-cast aluminum construction and UV stabilized polycarbonate inserts. This single-gang vertical cover features a 3.125" depth and gray finish, designed for demanding outdoor applications requiring Type 3R enclosure protection and NEC compliance for wet locations.

Professional Features & Benefits

  • Heavy-duty die-cast aluminum construction: Provides exceptional durability and corrosion resistance for long-term outdoor performance in harsh weather conditions.
  • UL Certified Type 3R outdoor enclosure: Ensures reliable protection against rain, sleet, snow, and ice formation while meeting professional electrical safety standards.
  • Cold impact testing to -60�F (-51�C): Maintains structural integrity and protection in extreme cold weather applications where standard covers may fail.
  • 12 lbf impact rating: Withstands significant physical impact while keeping the cover intact and maintaining weatherproof seal integrity.
  • Reinforced hinge pin design: Exceeds 40 lbf hinge hang/stress testing for reliable long-term operation under repeated use and environmental stress.
  • Lockable hasp security: Accepts padlocks up to 1/4" diameter shank for theft prevention and unauthorized access control in commercial applications.
  • 2020 NEC Article 406.9(B)(1) compliant: Meets current electrical code requirements for wet locations and extra-duty applications ensuring code compliance.

Technical Specifications

  • Applications: Engine Block Heaters;Receptacle Protection;Walk-in Refrigeration Cooler/Freezer
  • Country Of Origin: India
  • Depth: 3.125 in
  • Input Voltage Rating Range S : NA
  • Marketing Description: Die-Cast In-Use Aluminum Weatherproof Covers are extra-duty rated and easy to install. Heavy-duty d
  • Product Color: Gray
  • Product Height: 6.375 in
  • Product Length: NA NA
  • Product Weight: NA lbs
  • Product Width: 3.8 in
  • Warranty Period: 1-Year limited

Professional Applications

  • Engine block heater connections in commercial vehicle facilities and cold climate installations
  • Walk-in refrigeration cooler and freezer electrical connections requiring weatherproof protection
  • Outdoor receptacle protection in commercial and industrial facilities
  • Marine and waterfront electrical installations requiring corrosion-resistant enclosures
  • Agricultural and farming operations with outdoor electrical equipment
  • Construction sites and temporary power installations
  • Municipal and utility outdoor electrical connections

Why Choose Intermatic Quality?

Intermatic delivers professional-grade electrical protection with this extra-duty weatherproof cover featuring UL certification, 1-year limited warranty coverage, and compliance with current NEC requirements. The heavy-duty die-cast aluminum construction with UV stabilized components ensures reliable long-term performance in demanding outdoor environments.

Manufacturer Resources

Product Specs

Application:
Engine Block Heaters;Receptacle Protection;Walk-in Refrigeration Cooler/Freezer
Country Of Origin:
India
Input Voltage Rating Range S :
NA
Marketing Description:
Die-Cast In-Use Aluminum Weatherproof Covers are extra-duty rated and easy to install. Heavy-duty d
Product Color:
Grey
Product Height:
6.375 in
Product Length:
NA NA
Product Weight:
NA lbs
Product Width:
3.8 in
Warranty Period:
1-Year limited
Product Depth:
3.125 in

Intermatic WP1010MXD – Frequently Asked Questions

1) Will the Intermatic WP1010MXD in-use cover clear a plug with a bulky right-angle or transformer plug head?
Depth is the number that decides it. The WP1010MXD gives you 3.125 inches of cover depth over the receptacle, with an overall footprint of 6.375 by 3.8 inches. That handles a standard cord cap and most timer or block-heater cords, but measure the plug body plus the bend radius of the cord as it exits. Anything projecting past 3-1/8 inches from the device face will hold the lid open and break the weather seal.
2) Does the WP1010MXD meet the extra-duty requirement for an outdoor receptacle inspection?
It does. The Intermatic WP1010MXD is an extra-duty rated in-use cover that complies with 2020 NEC Article 406.9(B)(1) for receptacles in wet locations, and it is UL certified as a Type 3R outdoor enclosure. That is what an inspector is looking for on an exterior 15/20A receptacle where a cord stays plugged in.
3) Is this cover single-gang vertical or horizontal, and does that matter for my box?
The WP1010MXD is a single-gang cover configured vertical. Orientation matters because the hinge and the cord exit are set for a device mounted with the long axis vertical. If your box is rotated so the receptacle sits sideways, the lid and drip path will be wrong and you want the horizontal version instead.
4) Will a die-cast cover like this hold up on a walk-in freezer or an engine block heater outlet in a cold climate?
That is exactly what it is built for. Intermatic lists engine block heaters and walk-in refrigeration cooler/freezer connections among its applications, and the cover is cold impact tested to -60 F (-51 C), so it will not go brittle and crack when a driver yanks a block heater cord at sub-zero temperatures. Die-cast aluminum with UV stabilized polycarbonate inserts also survives sun exposure better than an all-plastic cover.
5) Can I padlock the Intermatic in-use cover to stop tenants or the public plugging into an outdoor outlet?
Yes. The cover has a lockable hasp that takes a padlock with a shank up to 1/4 inch diameter. Property managers use that on common-area and exterior receptacles to keep unauthorized loads off the circuit while a permanently connected cord (irrigation controller, block heater) stays plugged in underneath.
6) How does a die-cast aluminum in-use cover compare to a plastic one for a high-traffic or vandal-prone location?
The tradeoff is impact and abuse tolerance. This one is rated to 12 lbf impact and its hinge pin is reinforced past 40 lbf hinge hang/stress testing, which is the failure point on cheaper covers, the lid snapping off at the hinge after enough cycles. On a loading dock, parking structure, construction temp power, or a municipal pedestal, that matters more than the cost difference. On a protected residential soffit, a lighter polycarbonate cover is usually enough.
7) What does Type 3R actually protect against, and is it enough for a coastal or wash-down install?
Type 3R covers rain, sleet, snow, and ice formation, which is the standard rating for outdoor receptacle enclosures. It is not a wash-down or hosedown rating. Intermatic does list marine and waterfront installs among the uses for this die-cast cover, because the cast aluminum body resists corrosion better than sheet steel, but for direct pressure spray you want an enclosure rated for it.
8) What finish does the Intermatic WP1010MXD come in for matching existing covers on a building?
Gray is the only finish for the WP1010MXD, which is the standard neutral for exterior commercial and utility work. If you are standardizing a property, order the same model number across all the single-gang vertical openings and the finish will match run to run.
