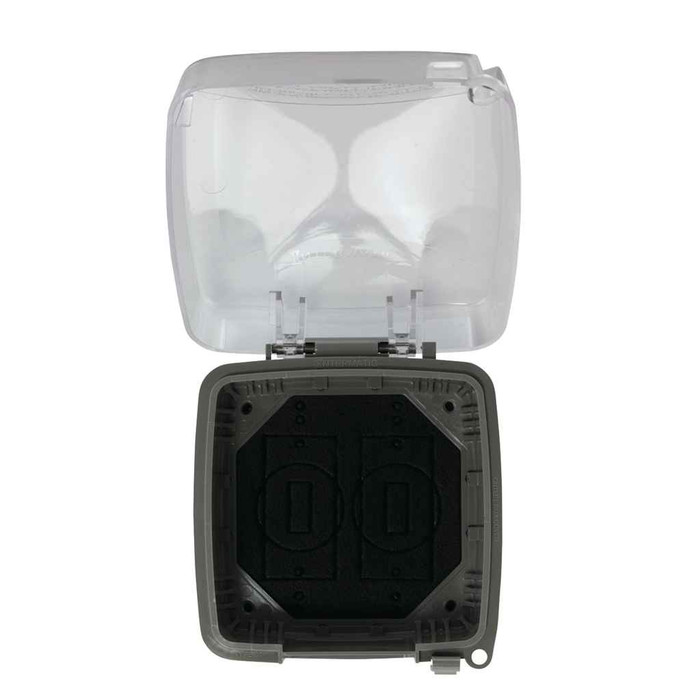

Intermatic WP5225C Extra-Duty Plastic In-Use Weatherproof Cover, Double-Gang, Vrt, 2.75" Clear

Intermatic Extra-Duty Plastic In-Use Weatherproof Cover Double-Gang Vertical 2.75" Clear

(No reviews yet) Write a Review

Model: WP5225C
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$77.59
$25.40
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Intermatic Extra-Duty Plastic In-Use Weatherproof Cover Double-Gang Vertical 2.75" Clear

Professional weatherproof protection for outdoor electrical receptacles

The Intermatic Extra-Duty Plastic In-Use Weatherproof Cover provides reliable protection for double-gang receptacles in demanding outdoor environments. Constructed with heavy-duty UV stabilized polycarbonate materials and featuring a 2.75" depth for vertical mounting, this clear cover delivers professional-grade weatherproofing with impact resistance and cold weather durability. UL Certified for Type 3R outdoor enclosures and compliant with 2020 NEC Article 406.9 (B)(1) requirements for wet locations and extra-duty applications.

Professional Features & Benefits

  • Heavy-duty UV stabilized polycarbonate construction: Provides long-lasting durability and resistance to weather degradation in outdoor installations.
  • 2.75" depth with double-gang vertical configuration: Accommodates standard receptacles while maintaining weatherproof seal during use.
  • 12 lb. impact test rating: Ensures cover remains intact under physical stress and harsh environmental conditions.
  • Cold impact testing to -60�F (-51�C): Maintains structural integrity and protection in extreme cold weather applications.
  • UL Certified Type 3R outdoor enclosure rating: Meets professional standards for outdoor electrical protection and code compliance.
  • Lockable hasp design: Accepts up to 1/4" diameter shank padlocks for security in accessible locations.
  • 1-year limited warranty: Provides professional assurance and quality backing for reliable long-term performance.

Technical Specifications

  • Applications: Receptacle Protection
  • Country Of Origin: Mexico
  • Depth: 2.75 in
  • Input Voltage Rating Range S : NA
  • Marketing Description: Plastic In-Use Weatherproof Covers are extra-duty rated and easy to install. Covers come with a gas
  • Product Color: Clear;Gray
  • Product Height: 6 in
  • Product Length: NA NA
  • Product Weight: NA lbs
  • Product Width: 6.625 in
  • Warranty Period: 1-Year limited

Professional Applications

  • Outdoor receptacle protection in residential applications
  • Commercial building exterior electrical outlets
  • Industrial facility weatherproof receptacle covers
  • Multi-unit property outdoor electrical protection
  • Professional office building exterior outlets
  • Retail establishment outdoor electrical connections
  • Emergency services facility exterior power access

Why Choose Intermatic Quality?

Intermatic delivers professional-grade electrical protection with UL Certified Type 3R rating and comprehensive compliance with 2020 NEC Article 406.9 (B)(1) and CEC Article 26-702 requirements. The reinforced hinge pin design exceeds 40 lb. stress testing while the pre-adhered neoprene gasket with mounting screw slits ensures reliable weatherproof sealing. Backed by a 1-year limited warranty, this extra-duty cover provides dependable outdoor electrical protection for demanding professional applications.

Manufacturer Resources

Product Specs

Application:
Receptacle Protection
Country Of Origin:
Mexico
Input Voltage Rating Range S :
NA
Marketing Description:
Plastic In-Use Weatherproof Covers are extra-duty rated and easy to install. Covers come with a gas
Product Color:
Clear;Gray
Product Height:
6 in
Product Length:
NA NA
Product Weight:
NA lbs
Product Width:
6.625 in
Warranty Period:
1-Year limited
Product Depth:
2.75 in

Intermatic WP5225C – Frequently Asked Questions

1) Does the Intermatic WP5225C meet the extra-duty requirement for outdoor receptacles in wet locations?
Yes. The WP5225C in-use cover is UL Certified as a Type 3R outdoor enclosure and complies with 2020 NEC Article 406.9(B)(1) for wet locations and extra-duty applications, plus CEC Article 26-702 for Canadian work. That is the clause an inspector cites when a receptacle stays energized with a cord plugged in outdoors.
2) Will a 2.75 inch deep in-use cover leave room for a large plug or a right-angle cord?
The WP5225C gives you 2.75 inches of depth inside the lid, measured off the mounting surface. That handles standard cord caps and most molded plugs; if you are plugging in a bulky timer, GFCI adapter, or transformer-style plug, step up to a deeper cover instead. Overall the cover measures 6 inches by 6.625 inches on the wall.
3) Is the WP5225C for a single receptacle or a two-gang box?
Double-gang only. The WP5225C covers a two-gang opening and is built for vertical mounting, so the box has to be oriented with the gangs stacked the way the cover expects. A single-gang box or a horizontally mounted two-gang box needs a different cover.
4) Can this weatherproof cover be padlocked shut on a public-facing wall?
It has a lockable hasp that accepts a padlock with a shank up to 1/4 inch in diameter. That is the usual reason property managers pick it for exterior outlets at retail frontage, laundry areas, or tenant patios where you want to control who plugs in.
5) Do I need to buy a gasket separately for the Intermatic WP5225C?
No. A neoprene gasket comes pre-adhered to the cover, with slits already cut for the mounting screws, so the weather seal is part of the install rather than a separate piece to source. You still supply the receptacle and the box.
6) What color is the WP5225C cover, and can I see the outlet through it?
The lid is clear so you can see the receptacle and plug without opening it, and the assembly is catalogued in clear and gray. On facilities where crews want to confirm at a glance that a cord is seated, the clear lid saves opening a sealed cover in the rain.
