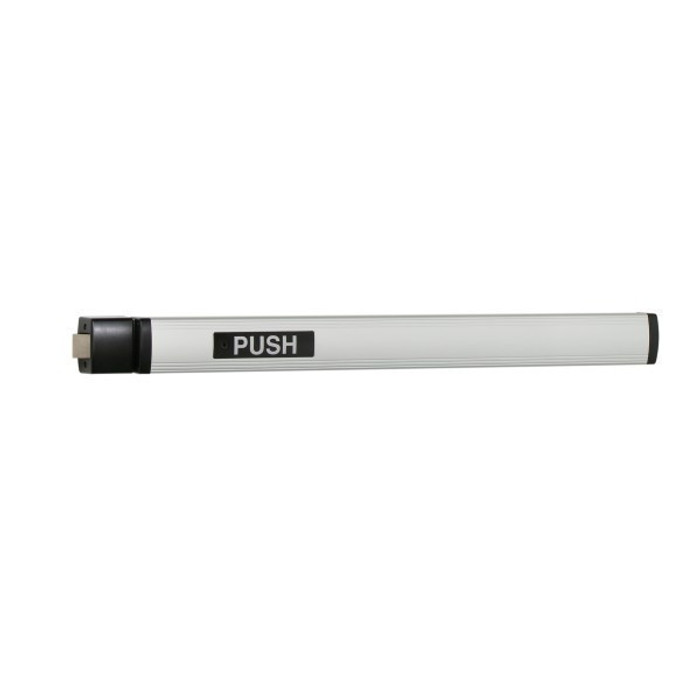

Falcon 1595HB-P Narrow Stile Rim Exit Device with Hold Back Cylinder and Pull - 48 Inch

Professional Grade 1 Exit Device for Aluminum Door Applications

The Falcon 1595HB-P is a narrow stile rim exit device from the 1590 Series, specifically engineered for 1-3/4" aluminum doors in commercial applications. This 48-inch device features hold back cylinder functionality with pull, allowing key operation to retract the latch and hold it back for extended access. Built with steel operating mechanisms and hardened steel latch bolts, this Grade 1 certified exit device meets ANSI/BHMA A156.3 standards for demanding commercial environments.

Professional Features & Benefits

  • Door Compatibility: Designed for 1-3/4" aluminum doors with narrow stile applications for optimal fit and performance.
  • Grade 1 Durability: ANSI/BHMA A156.3 Grade 1 certification ensures heavy-duty performance for high-traffic commercial applications.
  • Heavy-Duty Construction: Steel operating mechanisms with hardened steel latch bolts and sturdy aluminum push bars provide exceptional durability.
  • Hold Back Functionality: Key retracts latch and holds latch back with included pull for convenient extended access control.
  • Professional Dimensions: 48" length with 2-3/4" projection and 3/4" latch throw for reliable engagement.
  • Concealed Fasteners: All mounting screws are concealed for clean professional appearance and enhanced security.
  • Manufacturer Warranty: 10-year limited warranty provides added confidence and protection for commercial installations.
  • Electrification Ready: Compatible with building security systems for integrated access control solutions.

Technical Specifications

  • ANSI/BHMA: ANSI A156.3-2001
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Door Hand Direction: Non-Handed
  • Door Strike: TD35 Strike supplied standard. STK45 optional.
  • Door Thickness Range: 1-3/4"
  • Fasteners: All mounting screws are concealed
  • Grade: Grade 1
  • Latch Throw: 3/4"
  • Lock Function: Exit Only
  • Product Category: Exit Devices and Trim
  • Product Function: Exit Only
  • Product Group: Exit Devices and Trim
  • Product Model: 1595HB-P-4FT
  • Product Projection: 2-3/4"
  • Product Size: 48"
  • Product Subgroup: Exit Devices - Rim
  • Product Type: Exit Devices - Rim
  • Series: 1590 Series
  • Stile Type: Narrow Stile
  • Subcategory: Rim Exit Devices
  • Trim Hardware: Less Trim
  • Wood Door Compatible: No

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness of 1-3/4" and narrow stile compatibility for aluminum doors.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door surfaces for rim device installation.
  3. Prepare door by drilling required holes and routing as specified in manufacturer instructions for concealed fastener mounting.
  4. Install all mounting hardware and secure the device to door per manufacturer torque specifications using concealed fasteners.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion including hold back cylinder function.
  6. Test device operation to verify proper function including key operation for latch retraction and hold back feature. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Multi-Family Residential Properties
  • Retail Establishments
  • Educational Facilities
  • Healthcare Institutions
  • Industrial and Warehouse Facilities
  • Government and Municipal Buildings

Why Choose Falcon Quality?

Falcon 1590 Series exit devices deliver professional-grade reliability with steel operating mechanisms and hardened steel latch bolts rated for Grade 1 commercial applications. The 10-year limited warranty provides added confidence for demanding installations. Engineered for aluminum door applications where dependable narrow stile performance and hold back functionality are essential for safe egress and access control.

Manufacturer Resources

Falcon Exit Devices Catalog

Product Specs

Product Group:
Exit Devices and Trim
Series:
1590 Series
Fasteners:
All mounting screws are concealed
ANSI/BHMA:
ANSI A156.3-2001
Product Subgroup:
Exit Devices - Rim
Subcategory:
Rim Exit Devices
Latch Throw:
3/4"
Commercial/Residential:
Commercial
Grade:
Grade 1
Product Type:
Exit Devices - Rim
Stile Type:
Narrow Stile
Lock Function:
Exit Only
Wood Door Compatible:
No
Product Model:
1595HB-P-4FT
Product Function:
Exit Only
Door Hand Direction:
Non-Handed
Door Thickness Range:
1-3/4"
Product Size:
48"
Product Projection:
2-3/4"
Trim Hardware:
Less Trim
Door Strike:
TD35 Strike supplied standard. STK45 optional.
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Falcon 1595HB-P 48IN US28 – Frequently Asked Questions

1) What does the hold back function on the Falcon 1595HB-P actually do?
Key operation retracts the latch bolt and holds it back, so the door stays push/pull free until you key it again. Useful for storefront doors that need to be open to the public during business hours and latched after. The 1595HB-P ships with a pull on the outside for that unlatched period, and the function is exit only, so there is no lever or other outside trim.
2) Do I have to specify handing on the Falcon 1595HB-P, and which hand do I pick?
Handing is a required selection: RHR (right hand reverse) or LHR (left hand reverse). Exit devices are always reverse bevel, since you push out. Stand outside the door, on the pull side: if the hinges are on your right and the door pulls toward you, it is RHR. Note that the device chassis itself is listed non-handed; the handing choice is about how the assembly comes set up for your opening.
3) Is a strike included with the Falcon 1595HB-P, and will it latch into my existing frame?
A TD35 strike comes standard, with the STK45 available as an option. The latch bolt throws 3/4 inch, so the strike has to be set to catch that projection on the frame face. If you are replacing an older rim device, plan on using the supplied strike rather than the one in the frame, since rim strike geometry varies by manufacturer and the 3/4 inch bolt needs to seat fully.
4) Is the Falcon 1595HB-P fire rated? I need a device for a fire rated exit door.
The 1595HB-P is a hold back device with a key-retractable latch, which is a panic function for non-fire openings. For a fire rated opening, look at fire labeled rim devices instead, such as the Adams Rite 3700 Series narrow stile fire rated rim device, the Arrow FS1250, or the Marks USA M9900F in 36 or 48 inch. Those are listed as fire rated in our records; the Falcon hold back device is not.
5) My door is a wide stile hollow metal leaf, not aluminum storefront. Is this the wrong device?
Yes, wrong device for that opening. The 1595HB-P is a narrow stile device intended for aluminum doors and is not wood door compatible. For a wide stile leaf, look at wide stile rim devices like the Von Duprin 22, the Corbin Russwin ED5200, the BEST Precision 2101, or the Dormakaba 9300, all Grade 1 wide stile rim devices. The Von Duprin 22 and Corbin ED5200 are both listed for 1-3/4 inch doors.
6) I need the same hold-back key function as the Falcon 1595HB-P but from another brand. What should I look at?
On the Falcon 1595HB-P the key retracts and holds back the latch, with a pull supplied. The closest cataloged equivalent in function is the Sargent 8504, a night latch function narrow stile rim exit device, where a key controls outside access rather than a lever trim. The Detex V4003A/03AN is a wide stile Grade 1 rim device supplied with night latch trim if the opening has a wide stile rather than narrow.
7) What is the difference between the Falcon 1595HB-P and the Von Duprin 22 rim exit device?
Both are Grade 1 rim exit devices for 1-3/4 inch doors. The Von Duprin 22-3FT is a wide stile pushpad device at 36 inches, non-handed, and not wood door compatible. The Falcon 1595HB-P is a narrow stile touch bar device at 48 inches with a 2-3/4 inch projection, non-handed, and includes hold back cylinder and pull. Narrow stile geometry matters on aluminum storefront doors where a wide stile chassis will not fit the stile face.
8) The Falcon 1595HB-P will not work on my wood door. What rim exit device will?
The Falcon 1595HB-P is not wood door compatible. Adams Rite narrow stile interlocking rim devices are the wood-door path: the 8700 Series 30 inch is Grade 1, narrow stile and wood door compatible, and the 3700 Series 30 inch adds a fire rating with the same wood door compatibility. The Adams Rite 8800 Series, by contrast, is listed for 1-3/4 inch to 2-1/4 inch doors and is not wood door compatible.
9) Which alternatives to the Falcon 1595HB-P come with electric latch retraction already?
The Falcon 1595HB-P offers an EL electric latch retraction device option and an S signal switch option that monitors the latch bolt. For electrified alternatives, the Dormakaba E2103 is an electrified 36 inch rim device supplied with 4908A trim in a classroom function, the SDC S6136 Spectra is an electrified architectural rim device on a 4 inch wide stile for 1-3/4 inch to 2 inch doors, and the Sargent 12-8810-LTRIM is a fire rated wide stile rim device with RX and motorized latch retraction. Note that those three are wide stile or trim-specific, where the Falcon is narrow stile.
10) Can I get the Falcon 1590 Series narrow stile device with electric latch retraction or latch monitoring?
Yes on both. The 1595HB-P is offered with EL electric latch retraction for access control release, or with S, a signal switch that monitors the latch bolt for door status reporting back to a panel. There is also a plain mechanical version with no device option. EL and the signal switch are separate selections, so pick the one your integrator needs.
11) What finishes does the Falcon 1595HB-P come in for matching storefront doors?
Three anodized aluminum finishes: US28 clear aluminum anodized, DC13 dark bronze anodized, and DC35 black anodized. Those are the standard storefront colors, so matching existing entrances on a property is usually straightforward. All three are offered with the plain device, with EL electric latch retraction, and with the S signal switch.
12) Is the Falcon 1595HB-P heavy duty enough for a high traffic school or hospital entrance?
It carries ANSI/BHMA Grade 1 under A156.3-2001, the top commercial durability tier for exit devices, and is a commercial-rated product. Construction is steel operating mechanism with hardened steel latch bolt and an aluminum push bar. For an institution standardizing openings, the Grade 1 rating plus the three anodized finishes make it practical to spec across a building of aluminum entrances.
13) Do I need to order trim separately for the Falcon 1595HB-P?
The 1595HB-P ships less trim, but it is not bare: the HB-P configuration includes a pull and the hold back rim cylinder assembly for outside access. Since the function is exit only, there is no lever or thumbpiece trim to add. If you want a keyed lever or classroom style outside operation, a rim device that accepts trim, such as the Corbin Russwin ED4200, is the better route.
14) Is an SDC PSB560 or MSB550 bar an alternative to the Falcon 1595HB-P?
They solve a different problem. The SDC MSB550 is a mechanical switch bar that releases an electromagnetic lock, and the SDC PSB560 SureExit is a pressure sense bar with tri-failsafe technology; both are listed for narrow or wide stile doors. Neither latches the door on its own. The Falcon 1595HB-P is a mechanical rim exit device with a 3/4 inch latch throw and a TD35 strike supplied standard, so it provides the latching the switch bars do not.
15) What 48 inch rim exit devices besides the Falcon 1595HB-P are available for a wide door?
At 48 inch device length the set includes the CRL Jackson 1095 Series crossbar rim panic device in wide stile, the Corbin Russwin ED3200 Grade 1 crossbar rim device for 1-3/4 inch doors in wide stile, the Dormakaba 9300A wide stile heavy duty Grade 1 device for 1-3/4 inch to 2-1/4 inch doors, the Marks USA M9900F-48 fire rated rim device, and the Dexter ED1000-R-EO-4FT Grade 1 rim device. The Falcon 1595HB-P is the narrow stile 48 inch option with hold back cylinder and pull.
16) Is the Hager 4601 concealed vertical rod device a substitute for the Falcon 1595HB-P?
No. The Hager 4601 Series 36 inch is a Grade 1 narrow stile concealed vertical rod exit device, which requires a door prepped for concealed rods at top and bottom. The Falcon 1595HB-P is a rim device that latches to a surface strike, with the TD35 strike supplied standard and STK45 optional. If you want a narrow stile rim device from Hager instead, the 4701 Series 36 inch is a Grade 1 rim exit device.
17) Is the Detex 00 Series dummy device an alternative to the Falcon 1595HB-P?
No. The Detex Advantex 00 Series is a super-heavy-duty dummy exit device in a wide stile design, meaning it has no latching mechanism and is used for appearance matching on a non-egress leaf. The Falcon 1595HB-P is a functioning exit only device with a hardened steel latch bolt and 3/4 inch latch throw.
18) What narrow stile rim device should I standardize on across a building if I also need non-handed hardware like the Falcon 1595HB-P?
The Falcon 1595HB-P is non-handed. Among narrow stile peers, the BEST Precision 2401 Series is an exit only non-handed narrow stile rim device, and the BEST Precision 5101 Series is a non-handed universal design rim device. Both are listed as not wood door compatible, the same as the Falcon 1595HB-P, so they suit metal and aluminum openings.
19) Are the mounting screws on the Falcon 1595HB-P exposed on the push side?
No. All mounting screws are concealed, which keeps the bar face clean and removes an easy tamper point on a public entrance. Install uses Falcon templates for the rim device hole pattern, and the concealed fastener arrangement means the door prep has to be laid out to the template rather than matched to whatever holes are already there.
