Falcon 19-R Series Grade 1 Rim...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$420.00
$193.25

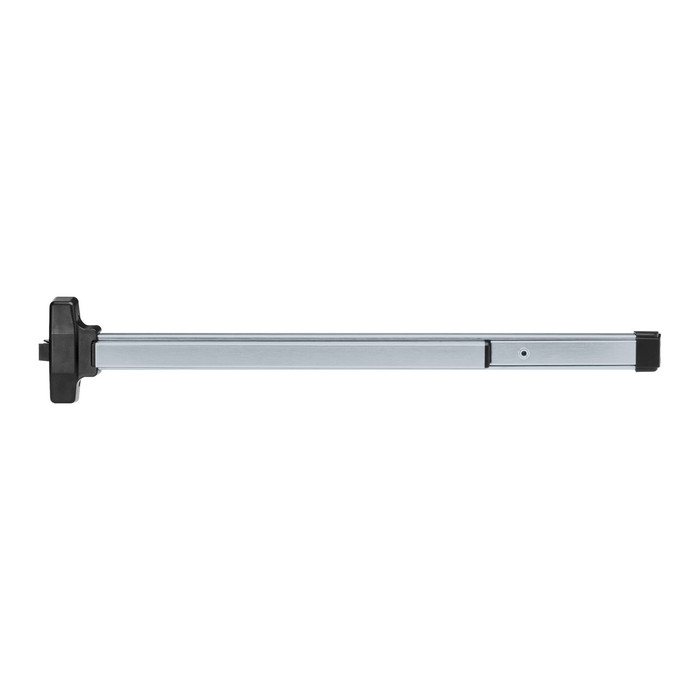

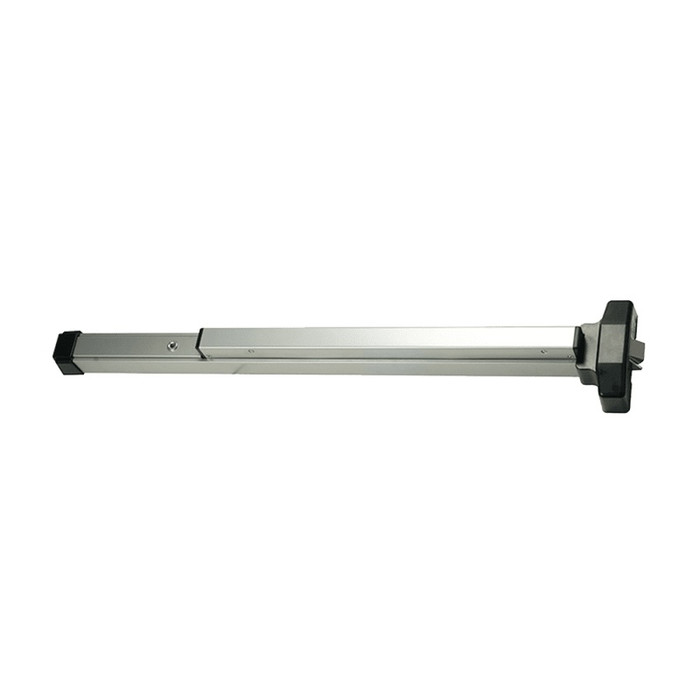

Falcon 19-R Series Grade 1 Rim Exit Device - Exit Only, Narrow Stile, 48" Pushpad

Falcon 19-R Series Grade 1 Rim Exit Device - Exit Only, Narrow Stile, 48" Pushpad

(No reviews yet) Write a Review

Model: 19-R-EO SP28 4
$420.00
$193.25
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$420.00
$193.25
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Falcon 19-R-EO Series Grade 1 Rim Exit Device - Narrow Stile, 48" Pushpad

The Falcon 19-R Series rim exit device is a Grade 1 panic hardware solution built for narrow stile aluminum doors. Covering a full 48" door width, this exit-only device provides code-compliant egress on single doors in commercial office, retail, educational, and multi-family applications. Available in standard and UL-listed fire-rated (1-1/2-hour "B" label) configurations across three anodized finishes.

Key Features

  • 48" Door Coverage: Full-width pushpad spans the door for ADA-accessible, single-motion egress.
  • Grade 1 Certified: ANSI/BHMA A156.3-2001 Grade 1 - the highest commercial durability rating for exit devices.
  • Narrow Stile Design: Engineered specifically for 1-3/4" narrow stile aluminum doors. Use the Falcon-provided door templates (see PDF resources below) for correct field installation cutouts.
  • Exit Only Function: Provides free egress from the inside only - no outside entry trim. Specify a trim-function model if outside access is required.
  • Fire-Rated Option: UL-listed "B" label (1-1/2-hour) fire exit construction available - select Fire Rated: Yes at checkout.
  • Non-Handed: Universal installation - no handing required, simplifying ordering and field installation.
  • Stainless Steel Pushpad: Scratch-resistant pushing surface for long-term appearance and durability.
  • Concealed Fasteners: All machine screw mounting hardware is concealed for a clean, professional finish.
  • F570 Door Strike: Ships with Falcon F570 rim strike; 3/4" latch throw.

Technical Specifications

  • Model: 19-R-EO-4FT
  • ANSI/BHMA: A156.3-2001, Grade 1
  • Door Width Coverage: 48" (4 ft)
  • Door Thickness: 1-3/4"
  • Stile Type: Narrow Stile
  • Latch Throw: 3/4"
  • Door Strike: F570
  • Handing: Non-Handed
  • Fire Rating: Optional - UL "B" label, 1-1/2-hour (select variant)
  • Finishes Available: SP28 Aluminum Anodized, SP313 Dark Bronze Anodized, US32D Satin Stainless Steel
  • Function: Exit Only (no outside trim)

Installation Notes

  • Use the Falcon-provided hollow metal or wood door templates for correct cutout dimensions (see PDF resources).
  • Verify 1-3/4" door thickness and narrow stile width before ordering.
  • All mounting fasteners are concealed machine screws; no exposed hardware.
  • For fire-rated openings, select the Fire Rated: Yes variant to receive the UL-listed assembly.

Typical Applications

  • Commercial office buildings and retail storefronts
  • Educational facilities and institutional buildings
  • Multi-family residential common areas and stairwells
  • Fire-rated corridor and stairwell doors (fire-rated variant)
  • Aluminum storefront and curtainwall door systems

Product Specs

Product Group:
Exit Devices and Trim
Series:
19 Series
Fasteners:
All machine screw mounting are concealed
Grade:
Grade 1
ANSI/BHMA:
ANSI A156.3-2001
Product Subgroup:
Exit Devices - Rim
Product Type:
Exit Devices - Rim
Subcategory:
Rim Exit Devices
Commercial/Residential:
Commercial
Latch Throw:
3/4"
Stile Type:
Narrow Stile
Lock Function:
Exit Only
Wood Door Compatible:
No
Product Model:
19-R-EO-4FT
Product Function:
Exit Only
Door Hand Direction:
Non-Handed
Door Thickness Range:
1-3/4"
Product Size:
48"
Trim Hardware:
Less Trim
Door Strike:
F570
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Falcon 19-R-EO SP28 4 – Frequently Asked Questions

1) Will the Falcon 19-R exit device fit a narrow stile aluminum storefront door?
That's exactly what the 19-R is built for. It's a narrow stile rim device sized for 1-3/4 inch doors, so it mounts on the narrow vertical stile of an aluminum storefront leaf without the wide backplate a wide stile device needs. If your door is thicker than 1-3/4 inches, this is not the device for that opening.
2) Does the Falcon 19-R exit only device let someone in from outside?
No outside access at all. The 19-R-EO is an exit only device supplied less trim, meaning there is no lever, pull, or cylinder on the exterior side. It gives free egress from the inside and the door stays locked from outside. If you need people to come back in with a key or a lever, you need a trim-function model instead, or a Falcon exit device with the matching outside trim ordered alongside it.
3) Is the Falcon 19-R fire rated for a stairwell or corridor door?
There is a fire rated version. The 19-R is offered in both a standard and a UL listed fire exit configuration carrying a 1-1/2 hour B label, and you pick which one you get by choosing Fire Rated Yes or No when you order. Both choices come in all three finishes. On a labeled opening, take the fire rated one. Note that a fire exit device does not dog down, so hex or cylinder dogging is only meaningful on the non-rated version.
4) What do I have to specify when ordering a Falcon 19-R besides the finish?
Three things beyond finish. Dogging: hex key dogging, cylinder dogging, or less dogging. Whether you want the AX accessible device option. And fire rated yes or no. Cylinder dogging takes a mortise cylinder you supply, hex dogging uses a key like the Falcon 2789 dogging key. Finish choices are US28 aluminum anodized, SP313 dark bronze anodized, and US32D satin stainless steel.
5) What narrow stile rim exit device should I use if the door is wood rather than aluminum?
The Adams Rite 3700 Series 30 inch is a fire rated narrow stile rim exit device listed as wood door compatible, and the Adams Rite 8700 Series 30 inch is the non-fire-rated narrow stile equivalent, also wood door compatible. The Falcon 19-R-EO is a narrow stile device for aluminum doors and is not wood door compatible, so on a wood opening the Adams Rite narrow stile devices are the ones to price.
6) I need a 48 inch fire rated rim exit device - what are my options besides the Falcon 19-R?
The Marks USA M9900F-48 is a 48 inch fire rated rim panic exit device, exit only, with a panic protector end cap. The Falcon 19-R-EO also covers 48 inches and is offered in a UL listed B label 1-1/2 hour fire exit build. If the opening is a narrow stile aluminum door, the Falcon narrow stile designation is the deciding spec; on a hollow metal fire door the Marks unit is the more direct pick.
7) What is the closest equivalent to a Falcon 19-R-EO 48 inch rim exit device from another manufacturer?
The Dexter ED1000-R-EO-4FT is the nearest match: a Grade 1 rim exit device in the same 4-foot size, exit only, in a non-fire-rated build. The Falcon 19-R-EO covers 48 inches of door width, carries ANSI A156.3-2001 Grade 1, and is exit only with no outside trim. Where the two part ways is stile type - the Falcon 19-R is built specifically for narrow stile aluminum doors, so on a storefront opening that stile designation is the spec to confirm before swapping.
8) Which rim exit device do I use if the opening needs outside key access instead of exit only?
The Falcon 19-R-EO is exit only and ships less trim, so there is no outside entry. For a narrow stile door where outside access is required, the Corbin Russwin ED4200 is a Grade 1 narrow stile rim exit device whose function covers exit only and accepts trim, and the Sargent 8504 is a narrow stile rim device in night latch function, where an outside key retracts the latch.
9) Is an SDC pressure sense bar or switch bar the same thing as a Falcon 19-R rim exit device?
No. The SDC PSB560 Series 36 inch pressure sense bar and the SDC MSB550 Series 36 inch mechanical switch bar release an electromagnetic lock - they signal, they do not carry a latch. The Falcon 19-R-EO is a mechanical rim exit device with a 3/4 inch latch throw that ships with the F570 rim strike, so it latches the door on its own. The SDC bars fit narrow or wide stile and belong on maglock openings, not as a mechanical latching substitute.
10) Which narrow stile rim device covers doors thicker than 1-3/4 inch?
The Falcon 19-R-EO is built for 1-3/4 inch doors. Where the leaf is thicker, the Adams Rite 8800 Series is a Grade 1 narrow stile rim exit device covering 1-3/4 inch to 2-1/4 inch, and on the wide stile side the DORMA 9300 Series 48 inch exit only device covers the same 1-3/4 inch to 2-1/4 inch range. Measure the leaf before ordering, since the narrow stile Falcon chassis is set to the single thickness.
11) Do I have to order a left hand or right hand Falcon 19-R?
Handing isn't a factor. The 19 Series rim device is non-handed, so one part number covers both swings and you can stock a single device for a building with doors going both ways. Nothing gets reversed in the field either.
12) Should I use a rim exit device or a vertical rod device on my aluminum door?
A rim device like the 19-R latches into a strike on the frame at the lock stile, which is the simplest install and the right call for a single door in a frame with a solid stop. Vertical rod devices latch top and bottom instead, which is what you need on a pair of doors with no center mullion, or where there is no frame face to mount a strike to. If you have a pair with a removable mullion, rim devices on both leaves are still the way to go. The 19 Series does have 571 and 571A vertical rod adapters in its accessory range if the application shifts.
13) Is the Falcon 19-R Grade 1 and what does that mean for a high traffic entrance?
Certified to ANSI/BHMA A156.3-2001, Grade 1. That's the top durability class for exit devices, which is the one to specify on a main entrance, a school corridor, or any door taking constant use. For a facility standardizing on Grade 1 rim hardware, the Corbin Russwin ED2200 and the Von Duprin 22 Series are Grade 1 rim devices too, though both are wide stile rather than narrow.
14) What else could I use instead of the Falcon 19-R on a narrow stile door?
Several narrow stile rim devices cover the same opening. The TownSteel ED3700 and ED8900 are Grade 1 narrow stile rim devices, the Corbin Russwin ED4200 is Grade 1 narrow stile rated for 1-3/4 inch doors and accepts outside trim if you later need entry, and the Detex 40 Advantex is a Grade 1 narrow stile device in an extra heavy duty build. The Adams Rite 8800 Series is narrow stile and covers 1-3/4 to 2-1/4 inch doors, which is the one to look at if your leaf is thicker than 1-3/4 inches.
15) What door prep does the Falcon 19-R need, and can it go on an existing hollow metal door?
It uses the standard 161 prep, which is the common cylindrical lock cutout, so on a hollow metal door already prepped for 161 the device drops onto existing holes with the rest of the mounting drilled from the Falcon template. Falcon publishes hollow metal door template indexes for the 19 Series; use those to lay out the pad and strike locations before you drill. All mounting is concealed machine screws, so nothing shows on the face once it's up.
16) Can I hold the Falcon 19-R unlatched during business hours?
Yes, on the non fire rated version, if you order it with dogging. Hex dogging holds the pushpad depressed with a hex key so the door pushes open freely, and cylinder dogging does the same with a keyed cylinder for a building where you don't want a loose hex key floating around. Less dogging means the device always latches. Dogging is not available on fire rated exit hardware, so a labeled stairwell door latches every time regardless.
17) Does a Sargent 2828 work on the same 48 inch door as a Falcon 19-R?
The Sargent 2828 is a Grade 1 reversible rim exit device for a 48 inch minimum door width, exit only, wide stile. The Falcon 19-R-EO is Grade 1 exit only at 48 inches and is non-handed rather than reversible, with a narrow stile chassis. On a wide stile hollow metal door the Sargent 2828 covers the same width; on an aluminum storefront leaf the narrow stile Falcon is the one that fits the stile.
18) Can I put a Cal-Royal A9820 48 inch exit device on the same opening as a Falcon 19-R?
The Cal-Royal A9820 is a 48 inch rim exit device in exit only function, heavy duty, listed at Grade 2. The Falcon 19-R-EO is exit only at the same 48 inch width and carries ANSI A156.3-2001 Grade 1. For a facility spec that calls out Grade 1 panic hardware, that grade difference is the item to check before substituting.
19) What is the difference between a crossbar rim panic device and the Falcon 19-R pushpad?
The CRL Jackson 1095 Series is a 48 inch crossbar rim panic device in exit only function, wide stile, and the Corbin Russwin ED3200 is a Grade 1 48 inch crossbar rim device, also wide stile. The Falcon 19-R-EO is a pushpad device with a full 48 inch stainless steel pushpad for single-motion egress, built for narrow stile. Where an existing fleet of doors already carries crossbar hardware, the crossbar peers keep the look consistent; where the door is aluminum narrow stile, the pushpad chassis is what fits the stile.
20) I need a narrow stile device with concealed vertical rods instead of a rim device - what is the alternative?
The Hager 4601 Series 36 inch is a Grade 1 narrow stile concealed vertical rod exit device, and the Hager 4501 Series 36 inch is the wide stile pushpad concealed vertical rod version. The Falcon 19-R-EO is a rim device that latches into the F570 strike on the frame. On a pair of doors with no mullion, or where the door prep is already cut for concealed rods, the Hager 4601 is the narrow stile route.
21) Which Falcon 19-R finish matches dark bronze storefront?
SP313 dark bronze anodized is the match for bronze anodized aluminum storefront. US28 aluminum anodized goes with clear anodized aluminum frames, and US32D satin stainless suits stainless or brushed hardware schedules. All three are available in both the standard and fire rated builds, so you can hold one finish across rated and non-rated openings in the same building.
