Falcon Falcon - 2090EO Narrow Stile Rim Type Crossbar Exit Device - Exit Only - 44 IN FAL-2090EO-44IN

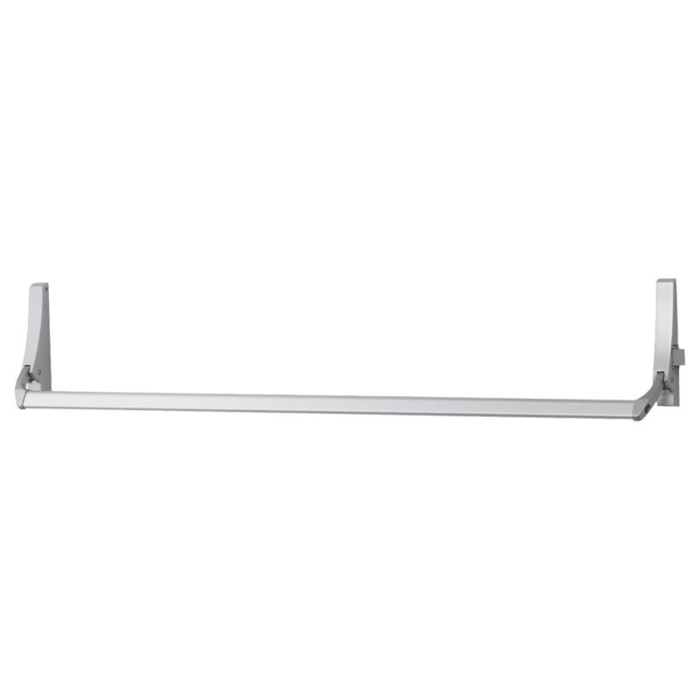

Falcon 2090EO Narrow Stile Rim Exit Device - Exit Only - 44 Inch

(No reviews yet) Write a Review

Model: 2090EO 44IN RHR P13
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$599.00
$268.85
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Falcon 2090EO Narrow Stile Rim Exit Device - Exit Only - 44 Inch

Grade 1 Aluminum Storefront Exit Device Solution

The Falcon 2090EO narrow stile rim exit device delivers Grade 1 performance specifically engineered for 44" aluminum doors with narrow stile construction. This exit-only device features an aluminum crossbar and narrow stile center case designed for 1-3/4" door thickness with 4-3/8" projection. Certified to ANSI A156.3-2001 Grade 1 standards and UL305 listed, this device provides reliable egress for commercial and retail applications with a 10-year limited warranty.

Professional Features & Benefits

  • 44-Inch Length: Designed for standard commercial door widths with field-adjustable sizing capability for precise fit.
  • Narrow Stile Design: Aluminum crossbar and center case specifically engineered for small stile aluminum doors in storefront applications.
  • Grade 1 Durability: ANSI A156.3-2001 Grade 1 certification ensures heavy-duty performance for high-traffic commercial environments.
  • Non-Handed Installation: Field-reversible design allows convenient installation flexibility without requiring specific door handing.
  • Tamper-Resistant Construction: Standard hex dogging and concealed mounting screws prevent unauthorized tampering and adjustment.
  • Retrofit Compatible: Ideal for retrofit commercial and retail applications requiring durable crossbar solutions on existing aluminum doors.
  • UL305 Fire Rating: UL305 listed for fire-rated door applications ensuring code compliance and safety.
  • Manufacturer Warranty: 10-year limited warranty provides long-term protection and confidence in commercial installations.

Technical Specifications

  • ANSI/BHMA: ANSI A156.3-2001
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Door Hand Direction: Yes
  • Door Thickness Range: 1-3/4"
  • Grade: Grade 1
  • Lock Function: Exit Only
  • Product Category: Exit Devices and Trim
  • Product Function: Exit Only
  • Product Group: Exit Devices and Trim
  • Product Model: 2090EO
  • Product Projection: 4-3/8"
  • Product Size: 44"
  • Product Subgroup: Exit Devices - Rim
  • Product Type: Exit Devices - Rim
  • Series: 2090 Series
  • Stile Type: Narrow Stile
  • Subcategory: Rim Type Cross Bar Exit Device
  • Trim Hardware: Less Trim
  • Wood Door Compatible: No

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including 1-3/4" door thickness, narrow stile width compatibility, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Falcon Quality?

Falcon 2090 Series exit devices deliver professional-grade reliability with aluminum construction rated to ANSI A156.3-2001 Grade 1 standards and UL305 fire rating certification. The 10-year limited warranty provides added confidence and protection for demanding commercial applications. Engineered specifically for aluminum storefront doors where dependable egress performance and tamper-resistant operation are essential.

Product Specs

Product Group:
Exit Devices and Trim
Series:
2090 Series
Grade:
Grade 1
ANSI/BHMA:
ANSI A156.3-2001
Product Subgroup:
Exit Devices - Rim
Subcategory:
Rim Type Cross Bar Exit Device
Commercial/Residential:
Commercial
Product Type:
Exit Devices - Rim
Stile Type:
Narrow Stile
Lock Function:
Exit Only
Wood Door Compatible:
No
Product Model:
2090EO
Product Function:
Exit Only
Door Hand Direction:
Yes
Door Thickness Range:
1-3/4"
Product Size:
44"
Product Projection:
4-3/8"
Trim Hardware:
Less Trim
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Falcon 2090EO 44IN RHR P13 – Frequently Asked Questions

1) Can I put the Falcon 2090EO on a wood door?
No. The 2090EO is specified for aluminum doors only and is not rated for wood door applications. If your opening is a wood door, look at a narrow stile rim device that carries wood door approval, such as the Adams Rite 3700 Series or the Adams Rite 8700 Series, both of which are listed as wood door compatible.
2) Does the Falcon 2090EO come with outside trim, or do I need to order a lever separately?
It ships less trim. The 2090EO is an exit only device, meaning it releases the latch from the inside and there is no outside operating trim in the box. If people need to get back in through that door with a key or lever, you have to order outside trim separately. If you want a device family where outside trim is part of the specified function, the Corbin Russwin ED4200 is a narrow stile Grade 1 rim device listed as exit only or accepts trim.
3) Do I have to specify handing on the Falcon 2090EO 44 inch?
Yes, you pick a hand when you order. The 44 inch 2090EO is offered in left hand reverse and right hand reverse, each in four finishes. Stand outside the door: if it pulls toward you and the hinges are on your left, that's left hand reverse. Falcon builds the device field reversible, so the hand can be changed on the job, but ordering the correct one saves the step.
4) Should I use a rim exit device or a vertical rod device on my storefront door?
A rim device like the 2090EO latches into a strike on the frame at the door edge, which is the simpler install and the normal choice for a single storefront leaf or a pair with a mullion. If you have a pair of doors with no center mullion, a rim device has nothing to latch into and you need vertical rod hardware instead, which latches at the head and the sill. Falcon's 1990 Series is the concealed vertical rod panic device for that situation.
5) Will the Falcon 2090EO work on a 2 inch thick door?
No. The 2090EO is a single thickness device specified for 1-3/4 inch doors only. For thicker leaves, the Adams Rite 8800 Series covers 1-3/4 to 2-1/4 inches and the DORMA 9300 Series covers the same range in a wide stile pushpad, while the SDC S6136 handles 1-3/4 to 2 inches.
6) I need a fire rated exit device for a labeled opening. Is the Falcon 2090 the right one?
No, take a different device. Fire rated openings need a device without dogging that carries a fire exit hardware label, and a fire label has to be verified on the specific unit you buy. Options carrying a fire rating in our data include the Adams Rite 3700 Series narrow stile rim device, the Arrow FS1250 32 inch, the Dexter ED1000 fire rated rim device, and the Marks USA M9900F in 36 and 48 inch.
7) What is a direct narrow stile rim exit device equivalent to the Falcon 2090EO?
The closest like-for-like narrow stile rim devices are the Corbin Russwin ED4200, a Grade 1 narrow stile rim exit device for 1-3/4 inch doors, and the TownSteel ED3700, a heavy duty Grade 1 narrow stile rim device. The Falcon 2090EO is itself a Grade 1 narrow stile rim device for 1-3/4 inch doors, so all three suit the same small stile aluminum storefront opening. The ED4200 differs in that it is listed as exit only and accepts trim, while the 2090EO is supplied less trim in an exit only function.
8) The opening is a fire-rated door and needs a narrow stile rim device - what should be used instead of the Falcon 2090EO?
For a fire-rated opening in narrow stile, the Adams Rite 3700 Series is a fire-rated Grade 1 narrow stile rim exit device with starwheel interlocking. Other fire-rated rim devices in the same family of parts include the Dexter ED1000 fire rated Grade 1 rim device, the Marks USA M9900F exit only rim device, and the Orca OED85, though those are not identified as narrow stile. The Falcon 2090EO is an exit only device certified to ANSI A156.3-2001 Grade 1.
9) What is the difference between the Falcon 2090EO and a wide stile rim device like the Von Duprin 22 or Corbin Russwin ED5200?
The Falcon 2090EO is a narrow stile rim crossbar device sized for the small stiles of aluminum storefront doors. The Von Duprin 22-3FT is a wide stile pushpad rim device, Grade 1, for 1-3/4 inch doors, and the Corbin Russwin ED5200 is a Grade 1 wide stile rim device for 1-3/4 inch doors that accepts trim. All three are rim devices with the same strike approach, but a wide stile chassis needs the stile width of a hollow metal or wide stile door and will not land on a narrow stile aluminum door.
10) The door is thicker than 1-3/4 inch - what narrow stile rim device fits instead of the Falcon 2090EO?
The Falcon 2090EO is specified for a 1-3/4 inch door thickness. Where the door runs thicker, the Adams Rite 8800 Series is a Grade 1 narrow stile rim exit device with a 1-3/4 inch to 2-1/4 inch door thickness range. Confirm the actual leaf thickness before ordering, since a rim chassis and its mounting screws are cut for a specific range.
11) Is the Cal-Royal A9800 a substitute for the Falcon 2090EO?
They are not equal on grade. The Falcon 2090EO is certified to ANSI A156.3-2001 Grade 1. The Cal-Royal A9800 rim exit device is listed as Grade 2 heavy duty, as is the Cal-Royal 5000 touch bar rim device. On a specification that calls for Grade 1 exit hardware, a Grade 2 chassis will not satisfy it; the Corbin Russwin ED4200 or TownSteel ED3700 hold Grade 1 in narrow stile.
12) The opening needs outside key access, not just egress - what replaces the Falcon 2090EO?
The Falcon 2090EO is an exit only function supplied less trim, so it gives egress with no outside operation. Where a cylinder is needed from the pull side in narrow stile, the Sargent 8504 is a Grade 1 narrow stile rim exit device in night latch function, and the Corbin Russwin ED4200 is a Grade 1 narrow stile rim device that accepts trim.
13) The frame will not take a rim strike - what is the alternative to the Falcon 2090EO?
The Falcon 2090EO is a rim device, which needs a strike mounted on the frame stop. Where that is not workable, a concealed vertical rod device latches at the head and sill instead: the Hager 4601 Series is a Grade 1 concealed vertical rod narrow stile exit device, and the Hager 4501 Series is the Grade 1 concealed vertical rod device with a wide stile pushpad. Vertical rod devices require the door to be prepped for rods, so this is a door decision, not a swap of the bar alone.
14) My door is narrower than 44 inches. Can the Falcon 2090EO be cut down?
The 44 inch 2090EO is field adjustable for sizing, so it can be fitted to standard commercial door widths rather than needing an exact match out of the box. Follow the Falcon template and instructions for the trim procedure. If your openings are consistently around 36 inches, a device built at that length, like the TownSteel ED3700 or the Corbin Russwin ED4200, both Grade 1 narrow stile rim devices at 36 inches, is less work.
15) Is the Falcon 2090EO Grade 1, and what does that mean for a high traffic entrance?
Grade 1, certified to ANSI A156.3-2001. Grade 1 is the top ANSI/BHMA durability tier for exit devices and is what specifiers call for on main entrances, schools, and anything cycling all day. For a storefront entry that gets hit thousands of times a week, that is the grade you want on the drawing.
16) Can I hold the door unlatched during business hours with the Falcon 2090EO?
Yes, hex dogging is standard on the 2090EO. Insert the hex key and depress the crossbar to hold the latch retracted, so the door push-pulls freely all day, then undog it at closing and the latch returns to normal. Hex dogging also means no accessible thumbturn for someone to defeat from the push side, and the mounting screws are concealed.
17) Can the Falcon 2090EO be tied into an access control system?
Not on its own. The 2090EO is a mechanical exit only device with no electrified option in its specification. If the opening needs card reader release, remote unlock, or request to exit signalling, look at devices built for it: the Dormakaba electrified rim device with 4908A trim, the SDC S6136 Spectra electrified architectural rim device, the SDC MSB550 mechanical switch bar with electromagnetic lock release, or the Securitron EMB electromechanical exit bar.
18) I'm replacing an old crossbar panic bar on an aluminum storefront. Is the Falcon 2090EO a retrofit?
The 2090EO is built for exactly that job, replacing crossbar devices on existing aluminum storefront doors. It is a rim type crossbar device, so it lands in the same general footprint as the crossbar bar you are pulling off. Two things decide it: the existing leaf has to be 1-3/4 inches thick, and you need a rim strike on the frame or a frame that can be prepped for one. Take the old device off and template the new one rather than assuming the old holes line up.
19) Which narrow stile rim exit devices carry a push pad instead of the Falcon 2090EO crossbar?
The Falcon 2090EO uses an aluminum crossbar in a rim type crossbar chassis. If a push pad or touch bar look is wanted in narrow stile, the BEST Precision 2401 Series is a narrow stile rim exit device, exit only and non-handed, and the TownSteel ED8900 is a heavy duty Grade 1 narrow stile rim device. Crossbar and pad devices prep the same rim strike but present a different bar to the user, which matters when matching a run of doors.
20) Which narrow stile rim device is the step up from the Falcon 2090EO for very high traffic?
For openings taking abuse, the Detex 40 Advantex is a narrow stile rim exit device rated extra heavy duty at Grade 1, and the Dormakaba QED200 and Stanley Security QED200 are Grade 1 heavy duty narrow stile rim devices with hex key dogging. The Falcon 2090EO is Grade 1 with standard hex dogging, so the difference is duty level rather than a change in how the device preps or dogs.
21) Can an SDC exit bar be used in place of the Falcon 2090EO on an aluminum storefront door?
They do different jobs. The SDC MSB550 is a mechanical switch bar that releases an electromagnetic lock, and the SDC PSB560 SureExit is a pressure sense bar with tri-failsafe technology; both are offered for narrow or wide stile doors but work as the release for an electrified locking system. The Falcon 2090EO is a mechanical rim exit device that latches into a rim strike on its own. If the door has no mag lock and needs latching, the switch and sense bars are not a substitute.
22) What crossbar rim exit devices match the Falcon 2090EO look on a 48 inch opening?
The Falcon 2090EO covers a 44 inch device with an aluminum crossbar. For wider leaves with the same crossbar appearance, the CRL Jackson 1095 Series is a 48 inch crossbar rim panic device in exit only, and the Corbin Russwin ED3200 is a Grade 1 48 inch crossbar rim exit device for 1-3/4 inch doors. Both are wide stile, so they suit a wider stile leaf rather than a narrow stile storefront door.
23) What finishes does the Falcon 2090EO 44 inch crossbar come in?
Four: P28 satin aluminum clear anodized, P13 dark bronze anodized aluminum, P35 flat black coated, and 626 satin chrome. P28 and P13 are the two that match typical clear and bronze anodized storefront framing, so those are the ones to pick if you are matching existing entrances rather than making the device stand out. All four are available in both left hand reverse and right hand reverse.
