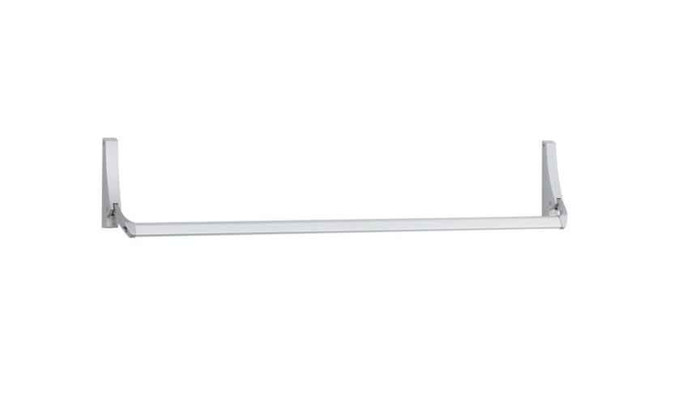

Falcon 2093NL/HB Narrow Stile Rim Exit Device with Night Latch/Hold Back Function and Pull - 44 Inch

Professional Grade 1 Exit Device for Aluminum Storefront Applications

The Falcon 2093NL/HB is a Grade 1 narrow stile rim exit device from the proven 2090 Series, specifically engineered for 44-inch aluminum storefront doors with 1-3/4" door thickness. This professional-grade exit device features night latch/hold back functionality with rim cylinder and 9970 pull, providing reliable egress control for commercial and retail applications. Certified to ANSI A156.3-2001 Grade 1 standards with UL305 listing, this device offers non-handed design for convenient field reversibility and comes backed by a 10-year limited warranty.

Professional Features & Benefits

  • 44-Inch Length: Designed for standard commercial door widths with narrow stile aluminum construction compatibility.
  • Grade 1 Durability: ANSI A156.3-2001 Grade 1 certification ensures heavy-duty performance for high-traffic commercial applications.
  • Night Latch/Hold Back Function: Key retracts latch and holds latch back for controlled access with included rim cylinder and 9970 pull trim.
  • Narrow Stile Design: Aluminum crossbar and center case specifically engineered to fit small stile aluminum doors with 4-3/8" projection.
  • Non-Handed Installation: Field-reversible design allows installation flexibility without requiring specific door handing during ordering.
  • Tamper-Resistant Construction: Standard hex dogging and concealed mounting screws prevent unauthorized tampering and adjustment.
  • Retrofit Compatible: Ideal for retrofit commercial and retail applications requiring durable crossbar exit solutions.
  • 10-Year Limited Warranty: Comprehensive manufacturer warranty provides long-term protection and confidence in professional installations.

Technical Specifications

  • ANSI/BHMA: ANSI A156.3-2001
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Door Hand Direction: Yes
  • Door Thickness Range: 1-3/4"
  • Grade: Grade 1
  • Lock Function: Dummy/Pull Trim
  • Product Category: Exit Devices and Trim
  • Product Function: Pull Trim
  • Product Group: Exit Devices and Trim
  • Product Model: 2093NL/HB
  • Product Projection: 4-3/8"
  • Product Size: 44"
  • Product Subgroup: Exit Devices - Rim
  • Product Type: Exit Devices - Rim
  • Series: 2090 Series
  • Stile Type: Narrow Stile
  • Subcategory: Rim Type Cross Bar Exit Device
  • Trim Hardware: Pull Trim
  • Wood Door Compatible: No

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including 1-3/4" door thickness, narrow stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Falcon Quality?

Falcon 2090 Series exit devices deliver professional-grade reliability with aluminum construction and Grade 1 certification for demanding commercial applications. The 10-year limited warranty and UL305 listing demonstrate Falcon's commitment to quality and safety standards. Engineered for demanding commercial applications where dependable egress performance is essential.

Product Specs

Product Group:
Exit Devices and Trim
Series:
2090 Series
Grade:
Grade 1
ANSI/BHMA:
ANSI A156.3-2001
Product Subgroup:
Exit Devices - Rim
Subcategory:
Rim Type Cross Bar Exit Device
Commercial/Residential:
Commercial
Product Type:
Exit Devices - Rim
Stile Type:
Narrow Stile
Lock Function:
Dummy/Pull Trim
Wood Door Compatible:
No
Product Model:
2093NL/HB
Product Function:
Pull Trim
Door Hand Direction:
Yes
Door Thickness Range:
1-3/4"
Product Size:
44"
Product Projection:
4-3/8"
Trim Hardware:
Pull Trim
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Falcon 2093NL/HB 44IN RHR P28 – Frequently Asked Questions

1) Will the Falcon 2093NL/HB fit a narrow stile aluminum storefront door?
That is exactly what the 2090 Series crossbar device is built for. The 2093NL/HB is a narrow stile rim device with an aluminum crossbar and center case sized to small stile aluminum doors, and it projects 4-3/8 inches off the door face. It fits 1-3/4 inch doors only. It is not for wood doors.
2) Can I use a Falcon 2093NL/HB on a 1-3/8 inch or 2-1/4 inch door?
No. The 2093NL/HB is a single-thickness device rated for 1-3/4 inch doors, the standard commercial thickness. For a thicker leaf, the Adams Rite 8800 Series narrow stile rim device covers 1-3/4 to 2-1/4 inches, and the DORMA 9300 Series wide stile device covers the same range if the stile allows it.
3) What does the NL/HB function on a Falcon 2090 Series exit device actually do?
Night latch with hold back. Outside, a key in the rim cylinder retracts the latch so someone can pull the door open by the 9970 pull; turn it further and the latch holds back, so the door stays in a push/pull state for business hours. Turn it back and the latch drops in again at close. From the inside the crossbar always gives free egress. The outside trim is a pull only, no lever, so there is no locking or unlocking from the outside except by key.
4) Do I have to order the Falcon 2093NL/HB by hand?
You pick a hand at order, Left Hand Reverse or Right Hand Reverse, in each of the four finishes. The device chassis itself is non-handed and field reversible, so a crew that shows up with the wrong hand can reverse it on site rather than send it back.
5) Is the rim cylinder and outside pull included with the 2093NL/HB, or do I order them separately?
Both come with it. The NL/HB package ships with the rim cylinder and the Falcon 9970 pull, so the outside trim is covered. What you still need to sort is the strike on the frame and, if you want the cylinder on your existing key system, having it keyed to your keyway.
6) Can I use a Von Duprin 22 or a BEST Precision 2101 in place of the Falcon 2093NL/HB on an aluminum storefront door?
No. The Von Duprin 22-3FT is a wide stile pushpad rim exit device and the BEST Precision 2101 Series is a wide stile rim device. Both are rim devices for 1-3/4 inch class doors, but a wide stile chassis needs more stile face than an aluminum storefront leaf provides. The Falcon 2093NL/HB is narrow stile with a 4-3/8 inch projection specifically for small stile aluminum doors. For a hollow metal or wood leaf with a full stile, the Von Duprin 22 is a Grade 1 rim option.
7) What is the closest equivalent to a Falcon 2093NL/HB narrow stile rim exit device in night latch function from another manufacturer?
The Sargent 8504 is the nearest match in intent: it is a Grade 1 narrow stile rim exit device with a night latch product function, the same combination the Falcon 2093NL/HB provides through its 2090 Series narrow stile chassis with rim cylinder and 9970 pull. Both are narrow stile rim devices carrying Grade 1, so a keyed-outside-pull opening specified around the Falcon can generally be written around the Sargent 8504 instead. Confirm the finish and handing you need, since the Falcon 2093NL/HB is supplied in left hand reverse and right hand reverse.
8) The opening is a fire rated aluminum door. What narrow stile rim exit device works there instead of the Falcon 2093NL/HB?
Use the Adams Rite 3700 Series, a fire rated Grade 1 narrow stile rim exit device with starwheel interlocking. The Falcon 2093NL/HB is a Grade 1 narrow stile rim device certified to ANSI A156.3-2001, but for an opening that must carry a fire label the 3700 Series is the one built for it. The Adams Rite 3700 is also listed as wood door compatible, while the Falcon 2093NL/HB is not.
9) The door is thicker than 1-3/4 inch. What narrow stile rim device covers that when the Falcon 2093NL/HB does not?
The Adams Rite 8800 Series is a Grade 1 narrow stile rim exit device with a 1-3/4 inch to 2-1/4 inch door thickness range, so it spans the thicker leaf. The Falcon 2093NL/HB is built for 1-3/4 inch doors. Measure the actual stile face thickness before ordering, because a rim device sized to the wrong leaf will not seat its mounting.
10) If I only need exit and no keyed pull on the outside, what is the simpler narrow stile alternative to the Falcon 2093NL/HB?
The BEST 2401 Series is a narrow stile rim exit device that is exit only and non-handed, and the Marks USA M8800 is a 36 inch narrow stile rim device that is exit only with panic protector end caps. Either drops the outside keyed function. The Falcon 2093NL/HB carries night latch/hold back with a rim cylinder and 9970 pull, which is what you keep when the outside of the door has to be entered by key.
11) Is the Hager 4601 narrow stile exit device a substitute for the Falcon 2093NL/HB?
Not directly. The Hager 4601 Series is a Grade 1 concealed vertical rod narrow stile exit device, so it latches into the head and sill through rods concealed in the door. The Falcon 2093NL/HB is a rim device, latching to a strike on the frame face. Swapping between the two changes the door prep entirely. For a rim-to-rim narrow stile swap, the Hager 4701 Series rim device or the TownSteel ED8900 stay in the same latching family.
12) Should I use a rim exit device or a vertical rod device on my storefront door?
A rim device like the 2093NL/HB latches into a strike on the frame at the lock stile, which is the simplest install and the usual answer on a single aluminum storefront leaf. Vertical rod devices latch top and bottom instead, which is what you want on a pair of doors with no center mullion. If that is your opening, look at a concealed vertical rod narrow stile device such as the Hager 4601 Series rather than a rim device.
13) Is the Falcon 2093NL/HB rated for heavy traffic in a retail entrance?
It is certified Grade 1 to ANSI A156.3-2001, the top durability tier for exit devices, which is what a retail or school entrance running all day should be on. Hex dogging is standard, so during business hours you can dog the crossbar down and leave the latch retracted for push/pull traffic.
14) How much clearance do I need for the crossbar on a Falcon 2090 Series device?
Allow 4-3/8 inches of projection from the door face. That matters where the door swings into a vestibule, a railing, or another leaf, and it is the dimension to check before you cut the door. Mounting screws are concealed, so nothing else adds to the stack.
15) What are the other narrow stile Grade 1 rim exit device options besides the Falcon 2090 Series?
Several: the TownSteel ED3700 and ED8900 are both heavy duty Grade 1 narrow stile rim exit devices, the Corbin Russwin ED4200 is a Grade 1 narrow stile rim device for 1-3/4 inch doors that is exit only and accepts trim, and the Detex 40 Advantex is an extra heavy duty Grade 1 narrow stile rim device. The Falcon 2093NL/HB is a Grade 1 narrow stile crossbar rim device on 1-3/4 inch doors. The Corbin Russwin ED4200 and the Detex 40 are not wood door compatible, matching the Falcon on that point.
16) I need an electrified narrow stile exit bar rather than a mechanical crossbar. What replaces the Falcon 2093NL/HB?
Look at the SDC MSB550 Series mechanical switch bar with electromagnetic lock release or the SDC SureExit PSB560 pressure sense bar with tri-failsafe technology; both are listed for narrow or wide stile doors. The Dormakaba QED200 is a Grade 1 heavy duty narrow exit device. The Falcon 2093NL/HB is a mechanical crossbar rim device with hex dogging, so an access control tie-in means moving to a switched bar rather than adding to the 2090.
17) What finishes does the Falcon 2093NL/HB come in for matching the rest of my storefront?
Four: P28 satin aluminum clear anodized and P13 dark bronze anodized, which are the two that match standard storefront framing, plus P35 flat black coated and 626 satin chrome. All four are offered in both hands, so a building with mixed handing can stay on one finish across every opening.
