Falcon 25-V Series Pull Trim F...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$2,478.00
$1,260.00

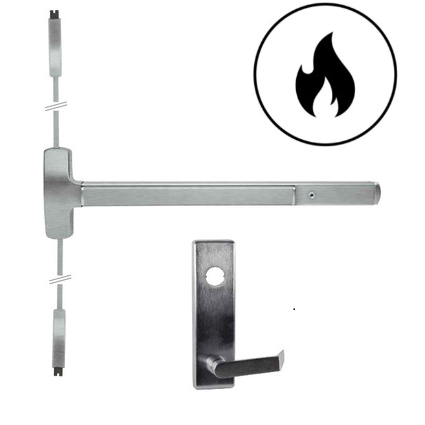

Falcon 25-V Series - Pull Trim - Fire Rated Surface Vertical Rod Exit Device - 3 FT

Falcon 25-V Series Pull Trim Fire Rated Surface Vertical Rod Exit Device - 3 FT

(No reviews yet) Write a Review

Model: F-25-V-TP 3 US28
$2,478.00
$1,260.00
Selected Finish is
Selected Trim Function is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,478.00
$1,260.00
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Falcon 25-V Series Pull Trim Fire Rated Surface Vertical Rod Exit Device - 3 FT

Professional Fire-Rated Exit Device Solution

The Falcon 25-V Series Pull Trim Fire Rated Surface Vertical Rod Exit Device delivers Grade 1 performance for demanding commercial applications. This 3 FT fire-rated exit device features extruded aluminum construction with 1-3/4" door thickness compatibility and field reversible operation. UL listed with ANSI A156.3-2001 certification, this device provides reliable egress protection for high-traffic installations requiring fire-rated hardware.

Professional Features & Benefits

  • Fire-Rated Construction: UL listed fire rating provides code-compliant egress protection for fire-rated door assemblies in commercial applications.
  • Grade 1 Durability: ANSI A156.3-2001 Grade 1 certification ensures heavy-duty performance for high-traffic commercial installations.
  • Extruded Aluminum Construction: Delivers greater strength and impact resistance compared to standard materials for long-term reliability.
  • Field Reversible Operation: Adaptable for left-hand or right-hand door configurations without additional hardware for installation flexibility.
  • Wide Stile Compatibility: Designed for wide stile door applications with 2-3/4" product projection for proper clearance and operation.
  • Dual Latch Configuration: 3/4" top latch throw and 1/2" bottom latch throw provide secure multi-point latching for enhanced security.
  • Streamlined Design: No exposed screws or rivets on device back creates clean installation appearance with professional aesthetics.
  • Stainless Steel Push Pad: Scratch-resistant pushing surface withstands heavy use while maintaining appearance in commercial environments.

Technical Specifications

  • ANSI/BHMA: ANSI A156.3-2001
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Door Hand Direction: Field Reversible
  • Door Strike: 3788 top Strike is surface applied 2130 bottom Strike is mortised into floor
  • Door Thickness Range: 1-3/4"
  • Fasteners: Sheet metal screws and machine screws standard
  • Fire Rating: Yes
  • Grade: Grade 1
  • Latch Throw: 3/4" (Top), 1/2" (Bottom)
  • Lock Function: Dummy/Pull Trim
  • Product Category: Exit Devices and Trim
  • Product Function: Pull Trim
  • Product Group: Exit Devices and Trim
  • Product Projection: 2-3/4"
  • Product Size: 36"
  • Product Subgroup: Exit Devices - Vertical Rod
  • Product Type: Exit Devices - Surface Vertical Rod
  • Series: 25 Series
  • Stile Type: Wide Stile
  • Subcategory: Surface Vertical Rod
  • Trim Hardware: Pull Trim

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Falcon Quality?

Falcon 25-V Series exit devices deliver professional-grade reliability with extruded aluminum construction and Grade 1 ANSI certification for demanding commercial applications. UL listed fire rating and field reversible operation provide code-compliant performance with installation flexibility. Engineered for high-traffic environments where dependable egress protection is essential.

Product Specs

Product Group:
Exit Devices and Trim
Series:
25 Series
Fasteners:
Sheet metal screws and machine screws standard
ANSI/BHMA:
ANSI A156.3-2001
Product Subgroup:
Exit Devices - Vertical Rod
Product Type:
Exit Devices - Surface Vertical Rod
Subcategory:
Surface Vertical Rod
Latch Throw:
3/4" (Top), 1/2" (Bottom)
Commercial/Residential:
Commercial
Grade:
Grade 1
Stile Type:
Wide Stile
Lock Function:
Dummy/Pull Trim
Product Function:
Pull Trim
Door Hand Direction:
Field Reversible
Door Thickness Range:
1-3/4"
Product Size:
36"
Fire Rating:
Yes
Product Projection:
2-3/4"
Trim Hardware:
Pull Trim
Door Strike:
3788 top Strike is surface applied 2130 bottom Strike is mortised into floor
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Falcon F-25-V-TP 3 US28 – Frequently Asked Questions

1) What is the Falcon 25 V Series pull trim fire rated surface vertical rod exit device used for?
This device provides emergency egress for fire-rated doors up to 3 feet wide. The vertical rod mechanism engages top and bottom latching points. Pull trim allows entry from the outside when unlocked.
2) What door types and sizes work with this exit device?
Compatible with hollow metal, wood, and aluminum doors up to 3 feet wide. Verify door thickness and weight capacity with manufacturer specifications. Check door prep requirements before installation.
3) How do I determine the correct handing for this device?
Stand on the outside of the door. If hinges are on your right, order right hand. If hinges are on your left, order left hand. Verify handing before ordering as field modifications are limited.
4) What finishes are available for the Falcon 25 V Series?
Standard finishes typically include aluminum, bronze, and brass tones. Verify available finish options with current specifications. Consider matching existing door hardware for consistent appearance.
5) What fire rating and security grade does this device meet?
This device maintains fire door ratings when properly installed. Meets UL listed requirements for fire-rated assemblies. Verify specific grade and certification requirements for your application.
6) Does this exit device meet building code requirements?
Designed to meet IBC and NFPA egress requirements for fire doors. Always verify local code compliance with AHJ before installation. Consider occupancy type and egress width requirements.
7) What accessories and parts are available for this device?
Common accessories include cylinder dogging, alarm switches, and weather stripping. Replacement parts available for trim components and rod assemblies. Check with manufacturer for specific part numbers.
8) What are the basic installation requirements?
Requires door prep for vertical rods and trim mounting. Use manufacturer template for precise measurements. Install top and bottom strikes in frame. Follow torque specifications for all fasteners.
9) How do I maintain and adjust this exit device?
Lubricate moving parts with manufacturer-approved lubricant. Check rod extension and retraction regularly. Adjust latch engagement at top and bottom strikes as needed. Test operation monthly.
10) What other Falcon exit device models are similar?
Consider other Falcon 25 Series models without pull trim for inside-only egress. The 24 Series offers similar features for different applications. Browse our door hardware section for alternatives.
11) What field conditions affect installation and operation?
Extreme temperatures may affect operation. High humidity areas require appropriate finishes. Door sag or frame settling can cause binding. Ensure adequate clearances during installation.
12) What are the critical measurements needed for ordering?
Measure door width, thickness, and height accurately. Note backset requirements for trim mounting. Verify frame dimensions for top and bottom strike placement. Document all measurements before ordering.
