Falcon 25MELK 25 Series Motori...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,014.30
$520.18

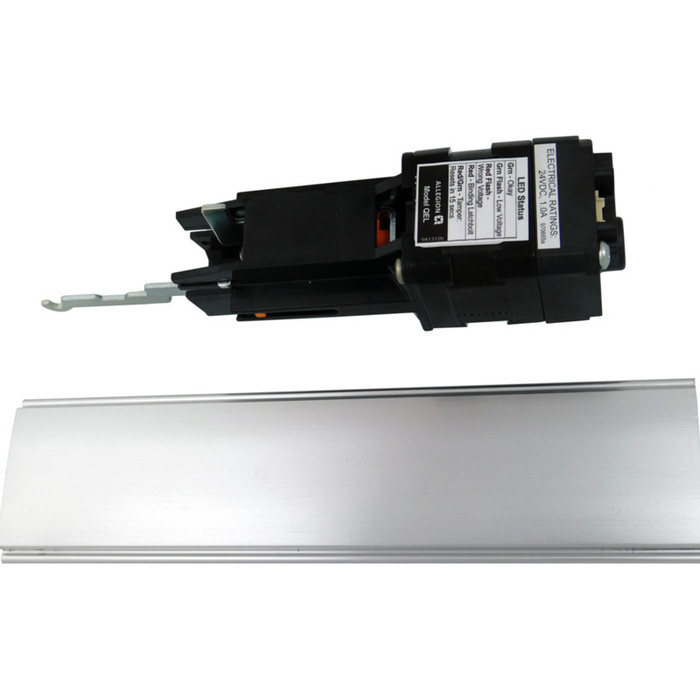

Falcon 25MELK 25 Series Motorized Electric Latch Retraction Kit — motor unit and crossbar components shown disassembled

Falcon 25MELK 25 Series Motorized Electric Latch Retraction Kit for Exit Devices

(No reviews yet) Write a Review

Model: 25MELK-3FT-US26D
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,014.30
$520.18
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Falcon 25MELK Motorized Electric Latch Retraction Kit

The Falcon 25MELK Motorized Electric Latch Retraction Kit adds electronic latch retraction to compatible Falcon 24 and 25 Series exit devices (excludes 25-M mortise). It enables credential reader integration for momentary unlatching or extended free-entry periods, a clean alternative to mechanical dogging that preserves full mechanical egress at all times. Compatible with panic and fire-rated devices.

Key Features

  • Series Compatibility: Fits most Falcon 24 and 25 Series exit devices; not compatible with 25-M mortise models.
  • Low Inrush Current: 1.0 amp inrush supports longer wire runs and works with standard Schlage power supplies and option boards without an additional power supply upgrade.
  • Self-Calibrating Motor Assembly: On-board installation and troubleshooting diagnostics built into the motor assembly for reliable field commissioning.
  • Electronic Push Bar Control: Push bar retracts electronically when dogged - smooth operation, no manual dogging tool required.
  • Vandal-Resistant: Detects and responds to attack and tampering events.
  • Fire Alarm Integration: Available on fire-rated devices; drops power automatically on fire alarm signal to allow free egress.
  • Modular Retrofit Design: Converts an existing mechanical Falcon 24 or 25 Series device to motorized electric latch retraction without replacing the exit device.

Technical Specifications

  • Inrush Current: 1.0 amp
  • Compatible Device Series: Falcon 24 Series, Falcon 25 Series (except 25-M mortise)
  • Operation Modes: Momentary unlatching; extended free-entry (timed)
  • Fire Rating: Available on panic and fire-rated exit devices
  • Product Series: 25 Series
  • Product Type: Motorized Electric Latch Retraction Kit

Typical Applications

  • Commercial office and retail access control upgrades
  • Multifamily and mixed-use residential entry points
  • Healthcare, education, and government facilities requiring credential-controlled egress
  • Industrial and warehouse access points with fire-rated door requirements

Installation Notes

Designed as a retrofit kit for compatible Falcon 24 and 25 Series exit devices. Verify device model compatibility before ordering - 25-M mortise models are not supported. Refer to Falcon installation documentation and the Falcon Exit Devices Catalog for wiring diagrams and integration guidance.

Manufacturer Resources

Falcon Exit Devices Catalog

Product Specs

Subcategory:
Parts and Accessories
Product Subgroup:
Parts and Accessories
Product Group:
Exit Devices and Trim
Parts and Accessories Type:
Installation Accessories
Product Attribute:
Parts and Accessories
Product Type:
Motorized Electric Latch Retraction Kit
Series:
24 Series, 25 Series
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Falcon 25MELK-3FT-US26D – Frequently Asked Questions

1) Will the Falcon 25MELK electric latch retraction kit work on my existing Falcon exit device, or do I have to replace the whole device?
The 25MELK is a retrofit kit. It converts an existing mechanical Falcon 24 or 25 Series exit device to motorized electric latch retraction without replacing the device itself. The one exclusion is the 25-M mortise version, which the kit does not support. So if you have 25-R rim, 25-V vertical rod, or a 24 Series device already hung, you keep the device and add the motor assembly. Check the model stamp on your device before ordering, because a 25-M mortise opening needs a different approach entirely.
2) Does the Falcon 25MELK need its own dedicated power supply, or will my existing access control power supply run it?
Inrush is 1.0 amp, which is low enough that the kit runs off standard Schlage power supplies and option boards with no power supply upgrade. That low inrush also buys you longer wire runs from the panel to the door, which matters when the power supply room is nowhere near the opening. Older solenoid-style latch retraction pulls a much heavier inrush spike, which is what usually forces a supply upgrade; the motorized design is what avoids it here.
3) Can I put electric latch retraction on a fire rated exit device, or does that violate the fire door?
Electric latch retraction is available on fire rated Falcon devices as well as panic devices. On a fire rated opening the kit drops power automatically on a fire alarm signal, so the latches project and the door relatches and stays positively latched during an alarm. Free mechanical egress through the push bar is preserved at all times, powered or not. This is the reason latch retraction is used instead of mechanical dogging on fire rated doors: a fire device cannot be dogged, but it can be electrically retracted and released on alarm.
4) What do I need to specify when ordering a Falcon 25MELK latch retraction kit?
Two things: finish and device width. Finish is US26D satin chrome or US28 aluminum anodized, and width is 3 foot or 4 foot, matching the width of the exit device already on the door. All four combinations are built, so a 4 foot device in US28 is orderable the same as a 3 foot in US26D. Measure the existing push bar rail, not the door leaf, and match the finish to the device you are converting so the retrofit does not read as a patch job.
5) Should I use electric latch retraction or just dog the exit device during business hours?
Mechanical dogging holds the latch retracted until somebody walks over with a dogging key and undogs it, and it cannot be used on a fire rated device at all. The 25MELK retracts the push bar electronically instead, so the door is controlled from your access system: momentary unlatch on a valid credential, or an extended timed free-entry period for store hours. No dogging tool, no manual trip to the door at open and close, and the opening can be secured instantly from the panel. If the door has no access control and no schedule to hold, mechanical dogging on a non-fire device is the simpler answer.
6) How does the Falcon 25MELK tie into a card reader for a main entrance?
The kit is what makes a mechanical exit device credential-controlled. A valid read at the reader signals the kit to retract the latch momentarily so the door pulls open from the outside, then the latch projects again. For daytime open hours you run it in extended free-entry mode so the latch stays retracted on a timer. Wiring diagrams and integration guidance are in the Falcon Exit Devices Catalog. Egress from inside is always mechanical through the push bar, independent of the reader and independent of power.
7) I have a mix of Falcon 24 and 25 Series devices across a building. Can I standardize on one latch retraction kit?
Yes, with one carve-out. The 25MELK covers most Falcon 24 and 25 Series exit devices, so a facility running both series can spec the same kit across the openings it is upgrading. The exception is any 25-M mortise device, which the kit does not fit. Order per opening by the device width, 3 foot or 4 foot, and by finish, US26D satin chrome or US28 aluminum anodized, so each door gets the right rail length and matches what is already installed.
8) Is there any way to commission and troubleshoot the Falcon 25MELK in the field without a tech callback?
The motor assembly is self-calibrating and carries on-board installation and troubleshooting diagnostics, so the kit sets its own travel on install and reports faults at the device rather than leaving you guessing at the panel. It also detects and responds to attack and tampering events, which is worth knowing on a public-facing entry where the bar gets pushed and pulled on hard.
