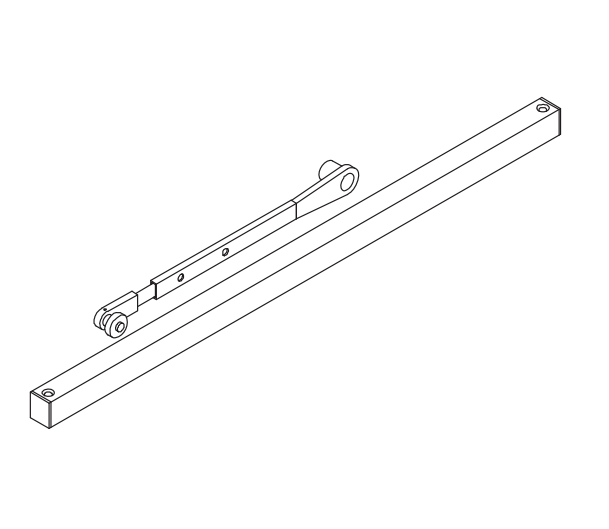

Falcon 8230-3077PLCM Standard Arm with Track for 8230 Series Automatic Door Operators

Falcon 8230-3077PLCM Standard Arm with Track for 8230 Series Automatic Door Operators

(No reviews yet) Write a Review

Model: 8230-3077PLCM AL
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$283.00
$170.86
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Falcon 8230-3077PLCM Standard Arm with Track for 8230 Series Automatic Door Operators

Professional Replacement Component for Automatic Door Systems

The Falcon 8230-3077PLCM is a precision-engineered standard arm with track assembly designed specifically for 8230 Series automatic door operators. This commercial-grade replacement component ensures reliable operation and proper door control in automatic door systems. Manufactured to exact specifications, this arm and track assembly maintains the performance standards required for commercial door automation applications.

Professional Features & Benefits

  • Series-Specific Compatibility: Engineered exclusively for 8230 Series automatic operators ensuring perfect fit and optimal performance.
  • Standard Arm Design: Provides reliable door control with consistent opening and closing motion for smooth automatic operation.
  • Integrated Track System: Complete arm and track assembly eliminates compatibility concerns and simplifies replacement procedures.
  • Commercial-Grade Construction: Built to withstand the demands of high-traffic commercial applications with durable materials and precision manufacturing.
  • Direct Replacement Component: Exact replacement part maintains original equipment performance without modification or adaptation requirements.
  • Professional Installation Ready: Designed for straightforward replacement by qualified technicians with standard tools and procedures.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Parts and Accessories Type: Replacement Parts
  • Product Attribute: Parts and Accessories
  • Product Category: Door Controls
  • Product Group: Door Controls
  • Product Subgroup: Parts and Accessories
  • Product Type: Door Closer Arms
  • Series: 8200 Series

Installation & Operation

This replacement arm and track assembly is designed for use with compatible 8230 Series automatic door operators. Refer to the parent device installation instructions and manufacturer documentation for proper integration. Ensure compatibility with existing hardware before installation.

Professional Applications

  • Commercial Building Automatic Door Systems
  • Retail Store Entrance Automation
  • Healthcare Facility Access Points
  • Educational Institution Entrances
  • Office Building Main Entrances
  • Industrial Facility Personnel Doors
  • Multi-Tenant Building Common Areas

Why Choose Falcon Quality?

Falcon door control components deliver professional-grade reliability with precision engineering designed for demanding commercial applications. This genuine replacement part maintains the original performance specifications of your 8230 Series automatic operator system. Engineered for dependable operation where consistent automatic door function is essential for building access and traffic flow.

Manufacturer Resources

Falcon Closers Catalog

Product Specs

Product Group:
Door Controls
Product Subgroup:
Parts and Accessories
Commercial/Residential:
Commercial
Product Type:
Door Closer Arms
Series:
8200 Series
Parts and Accessories Type:
Replacement Parts
Product Attribute:
Parts and Accessories
Product Category:
Door Controls
Department:
Door Hardware

Falcon 8230-3077PLCM AL – Frequently Asked Questions

1) What does the Falcon 8230-3077PLCM include, and what door operators does it fit?
The 8230-3077PLCM is a complete standard arm and track assembly for Falcon 8230 Series automatic door operators. Arm and track ship together as one assembly, so there's no separate track to source. It's a series-specific part: it goes on 8230 Series operators, not on a manual surface closer and not on another manufacturer's operator.
2) Is the Falcon 8230-3077PLCM a track arm or a regular push/pull arm, and what does that change on the door?
It's a track arm. The slide track mounts on the door face (or frame, depending on the operator's mounting) and the arm shoe rides in it, so the arm stays tight to the door instead of standing out from it like a scissor or parallel arm. Track arms give a lower profile and a cleaner look at an entrance, and they generally need less headroom projection. If what's on your opening now is a two-piece jointed arm with an elbow, this isn't the same geometry, and the operator has to be spec'd for track operation.
3) Can I use the Falcon 8230-3077PLCM arm to replace the arm on an LCN or Sargent closer?
No. This arm and track is built for Falcon 8230 Series operators. For LCN closers, the arm has to match the LCN series: the 1260-3077 regular arm with parallel arm bracket for 1260 closers, the 4000T-3077T standard arm for 4000T Series, or the 1250-3049/PA hold open arm with parallel arm shoe for 1250 Series. Sargent 351 and 281 closers take Sargent's own 25 Series arms, such as the 25-CPS parallel arm with compression stop. Closer arms are not interchangeable across brands, the pinion spline and shoe pattern differ.
4) I need the door to stay open on its own. Is the Falcon 8230 standard arm a hold-open arm?
It isn't. The 8230-3077PLCM is a standard arm, with no mechanical hold-open built in. On an 8230 automatic operator, hold-open time is handled electronically by the operator control, not by the arm. If you want a mechanical hold open on a manual closer instead, that's a different part entirely, like the LCN 4010-3049 hold open arm with adjustable elbow, the LCN 1250-3049/PA non-handed hold open arm, or the Sargent 25-H hold-open arm for 351 and 281 closers.
5) If the arm on my Falcon 8230 operator is bent or the track is worn, can I replace just that instead of the whole operator?
Yes, and that's what this part is for. The 8230-3077PLCM is Falcon's replacement arm and track for the 8230 Series, so a bent arm, a seized shoe, or a scored track gets swapped without touching the operator body, the header, or the wiring. Because arm and track come together, you replace the whole wear path at once rather than trying to match a new shoe into an old track.
6) What is the equivalent standard arm if the door has an LCN surface closer rather than a Falcon 8230 automatic operator?
The Falcon 8230-3077PLCM is a standard arm with track built for 8230 Series automatic door operators, so it belongs on the operator it was cut for. Where the opening runs an LCN closer instead, the arm-only counterpart is the LCN 4000T-3077T Standard Arm Replacement Component, from the 4000T Series. Both are standard-arm replacement components; the difference is the parent device each one mounts to, so match the arm to the closer or operator family already on the door rather than to the arm's appearance.
7) The Falcon 8230-3077PLCM does not hold the door open. What arm should be used on an opening that needs a hold-open?
The 8230-3077PLCM is a standard arm with track, which controls opening and closing motion without a hold-open detent. For openings that need the leaf to stay put, LCN offers the 1250-3049/PA Hold Open Arm Assembly with Parallel Arm Shoe, a non-handed design with adjustable hold open in the 1250 Series, and the 4010-3049 Hold Open Arm with Adjustable Elbow Function in the 4020 Series. On the Sargent side, the 25-CPSH is a heavy-duty hold-open parallel arm with compression stop for 351 and 281 closers, and the 25-H is a hold-open arm for 351 and 281 in regular and top jamb mount. Each of these attaches to its own closer family, so confirm the closer on the door before ordering a hold-open arm.
8) Can a Sargent 1431-CPS TB EN be ordered instead of the Falcon 8230-3077PLCM?
No, and the two are not the same class of item. The Falcon 8230-3077PLCM is a replacement arm and track assembly that goes onto an existing 8230 Series automatic operator. The Sargent 1431-CPS TB EN is a heavy duty surface door closer with parallel arm and compression stop, Grade 1, meaning it is a complete closer body rather than a component for an operator already on the door. Order the 1431-CPS TB EN when the whole closer is being installed or replaced; order the 8230-3077PLCM when the operator stays and only the arm and track are being renewed.
9) Is the LCN 1260-3077 a drop-in for the Falcon 8230-3077PLCM since both part numbers end in 3077?
No. The shared 3077 suffix reflects a standard arm designation, not interchangeability. The LCN 1260-3077 is a regular arm with parallel arm bracket door closer assembly for the 1260 Series, and the LCN 4000T-3077T is a standard arm replacement component for the 4000T Series, while the Falcon 8230-3077PLCM is built for 8230 Series automatic door operators. Each arm is cut to the mounting pattern of its own closer or operator family, so the ordering decision comes from the device on the door, not from matching digits in the part number.
10) What finish does the Falcon 8230 standard arm and track come in?
689 aluminum, and that's the only finish offered on the 8230-3077PLCM. 689 is painted aluminum, the default finish on most commercial door closers and operators, so it will match a standard 689 operator cover on the same opening. If the rest of your entrance hardware is 690 dark bronze or 630 stainless, this arm won't match it visually.
11) Do I need to order a left-hand and right-hand version of the Falcon 8230 arm and track?
One part number covers it. The 8230-3077PLCM is sold as a single assembly with no handing option to specify, so you order the same part for either swing. Orientation is set at install by which side of the opening the operator sits on.
12) I need to stop the door from hitting a wall. Does the Falcon 8230 standard arm have a built-in stop?
No stop in this arm. The 8230-3077PLCM is a plain standard arm and track, so overswing has to be controlled by the operator's own settings or by a separate wall or floor stop. Arms with an integral stop are a different category of part, for example the Sargent 25-CPS parallel arm with compression stop or the 25-CPSH hold-open version, both for 351 and 281 closers rather than for a Falcon operator.
13) I manage a building with several Falcon 8230 automatic doors. Can I stock one arm for all of them?
If the openings all run Falcon 8230 Series operators with standard track arms, the 8230-3077PLCM is one part number that covers them, in one finish (689 aluminum), with no handing to track. That makes it straightforward to keep a spare on the shelf. Openings running a different operator series, or an operator set up for a push-side arm rather than a track, need their own arm.
14) What arm should be used when the closer is mounted parallel arm on the pull side instead of using a track?
The Falcon 8230-3077PLCM is a standard arm supplied with its track as a complete assembly, which is the track-mounted approach. Where the hardware is parallel arm mounted, the LCN 1260-3077 is a regular arm with parallel arm bracket door closer assembly in the 1260 Series, and the LCN 1250-3049/PA pairs a hold open arm assembly with a parallel arm shoe in the 1250 Series. From Sargent, the 25-CPS is a heavy-duty parallel arm with compression stop compatible with 351 and 281 closers. The mounting method and the parent closer family both have to line up, so a parallel arm part will not serve a track application and the reverse is equally true.
15) For a facility standardizing on Grade 1 heavy duty door control, which comparable arms carry that rating?
Among the door control arms and closers alongside the Falcon 8230-3077PLCM, the Sargent parts carry a stated Grade 1, heavy duty rating: the 25-CPS parallel arm with compression stop for 351 and 281 closers, the 25-CPSH hold-open version of that same parallel arm with compression stop, the 25-H hold-open arm for 351 and 281 in standard and top jamb mount, and the 1431-CPS TB EN surface closer with parallel arm and compression stop. The Falcon 8230-3077PLCM is a commercial replacement arm and track for 8230 Series automatic operators, so on those openings the performance is set by the operator it serves rather than by the arm ordered separately.
16) Is the Falcon 8230 arm and track rated for a busy commercial entrance, or is it a light-duty part?
Commercial-rated. Falcon lists the 8230-3077PLCM as a commercial component, and it's the arm Falcon uses on 8230 Series operators at retail entrances, healthcare access points, school and office main entries, and multi-tenant common areas. It is not a residential part.
17) Where do I find the mounting dimensions and setup instructions for the Falcon 8230 arm and track?
Falcon's Door Controls catalog covers the 8200 Series and is the reference for arm and track mounting geometry, and the operator's own installation instructions give the template for the opening you're working on. Mounting positions are driven by the operator and the header, so the parent device documentation governs, not the arm on its own.
