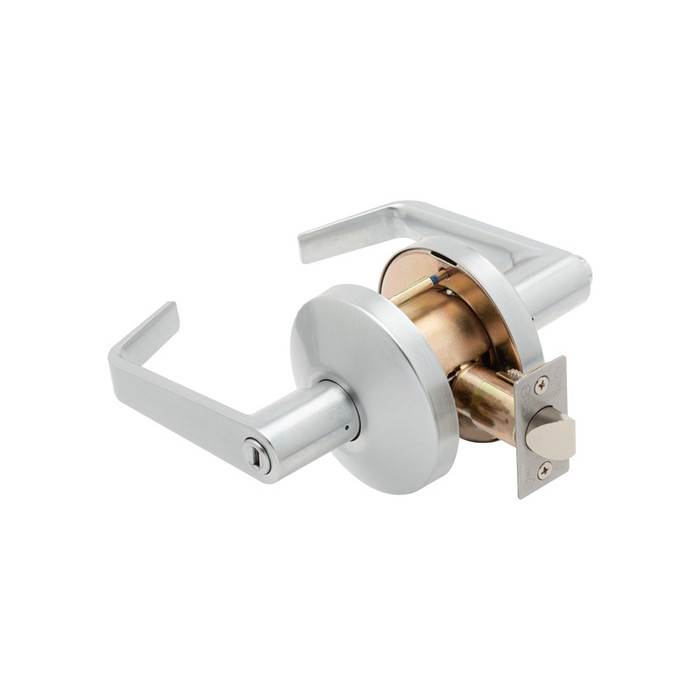

Falcon B301S Grade 2 Cylindrical Privacy Lock with Non-Keyed Lever

Falcon B301S Grade 2 Cylindrical Privacy Lock with Non-Keyed Lever

Medium-Duty Commercial Privacy Lock Solution

The Falcon B301S is a Grade 2 cylindrical privacy lock designed for bedroom and bathroom applications in commercial environments. This ANSI/BHMA A156.2 Series 4000 certified lock features adjustable door thickness from 1-3/8" to 2" and a 2-3/4" backset with non-handed design for versatile installation. Built with heavy-duty springs and through-bolted construction, this UL listed lock meets ADA standards while providing reliable privacy function for medium-duty applications.

Professional Features & Benefits

• Door Thickness Compatibility: Adjustable from 1-3/8" to 2" to accommodate all common door thicknesses for versatile installation options.
• Heavy-Duty Construction: Individual heavy-duty springs for lever return prevent lever sag while through-bolted trim with thread sealant provides exceptional strength and prevents loosening.
• Grade 2 Certification: Exceeds ANSI/BHMA A156.2 Series 4000 Grade 2 standards for durability and reliability in commercial applications.
• Non-Handed Design: Does not require field disassembly for re-handing, allowing for easy installation and maintenance in any door configuration.
• Interchangeable Core Compatibility: Compatible with SFIC products from other manufacturers for quick and convenient re-keying in retrofit situations.
• ADA Compliance: Meets ADA standards with lever design suitable for accessible applications.
• UL Fire Rating: UL listed with 3-hour A label fire rating for code compliance in fire-rated openings.
• Manufacturer Warranty: 10-year warranty for added confidence and long-term protection.

Technical Specifications

• ANSI/BHMA: F76
• Backset (Distance): 2-3/4"
• Commercial/Residential: Commercial
• Department: Door Hardware
• Door Hand Direction: Non-Handed
• Duty Level: Medium Duty
• Electronic: No
• Grade: Grade 2
• Handle Type: Lever
• Keyed: No
• Keyed Function: Non-Keyed
• Lock Function: Privacy/Bed/Bath
• Lock Type: Cylindrical
• Product Attribute: Cylindrical Locks
• Product Category: Mechanical Locks
• Product Function: Privacy/Bed/Bath
• Product Group: Mechanical Locks
• Product Model: B101
• Product Subgroup: Bored Locksets
• Product Type: Leversets
• Rose Diameter: 3-1/2"
• Series: B Series
• Standard Latch: 1-1/8" x 2-1/4", Square corner faceplate, 1" housing diameter, 1/2" Throw, 2-3/4" backset
• Standard Strike: 1-1/4" x 4-7/8", ANSI, Square corner, no box
• Subcategory: Cylindrical Locks

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness between 1-3/8" and 2", and confirm 2-3/4" backset compatibility.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door surfaces for the cylindrical lock installation.
3. Prepare door by drilling required holes including the 2-1/8" cross bore and 1" edge bore as specified in manufacturer instructions.
4. Install the latch assembly and strike plate, ensuring proper alignment with the 1/2" throw and square corner faceplate configuration.
5. Mount the lever trim assemblies and secure with through-bolted screws, ensuring heavy-duty springs are properly positioned for lever return.
6. Test privacy function operation to verify proper locking and unlocking from both sides, and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Multi-Family Residential Properties
• Educational Facility Dormitories
• Healthcare Institution Patient Rooms
• Commercial Office Building Restrooms
• Retail Establishment Employee Areas
• Government and Military Housing
• Industrial Facility Locker Rooms

Why Choose Falcon Quality?

Falcon B Series cylindrical locks deliver professional-grade reliability with heavy-duty spring construction and through-bolted trim rated to exceed ANSI/BHMA Grade 2 standards. The 10-year manufacturer warranty and UL 3-hour fire rating provide added confidence for demanding commercial applications. Engineered for new construction and retrofit projects where cost-effective security and reliable privacy function are essential.
